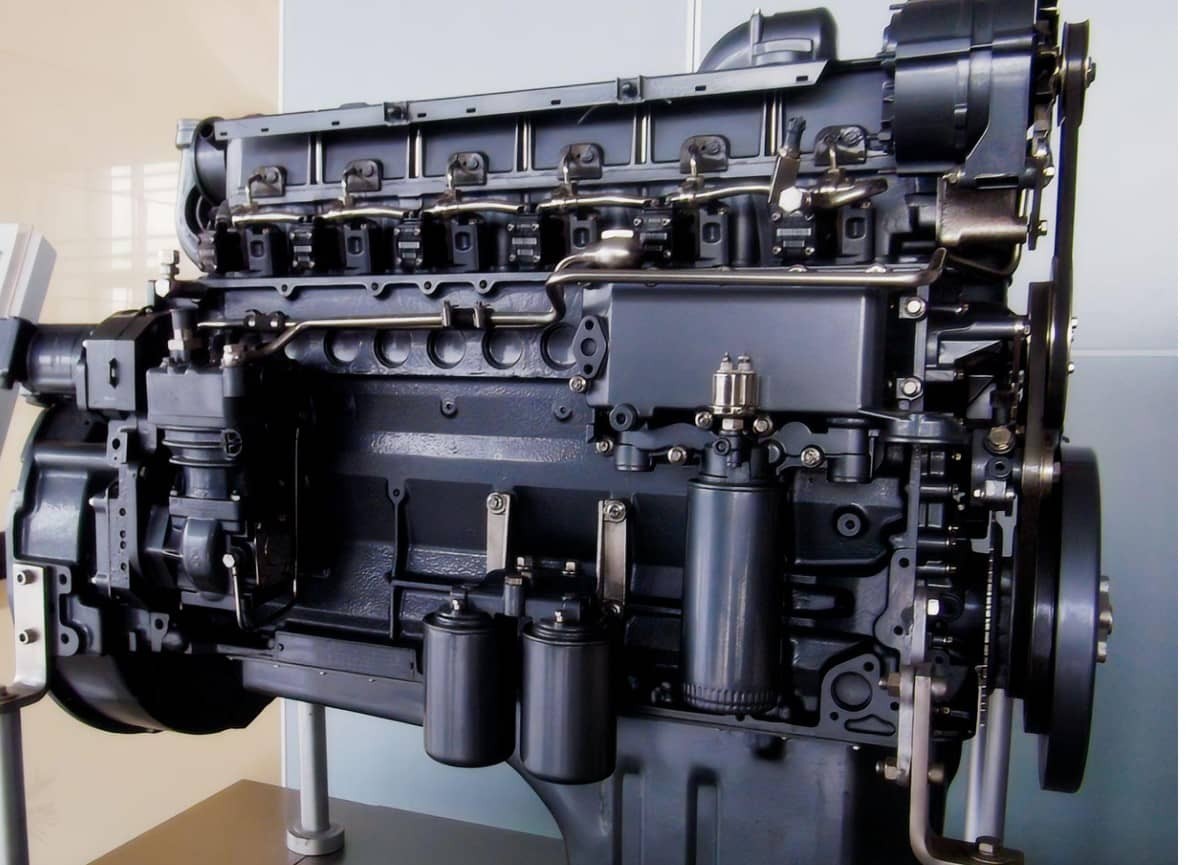

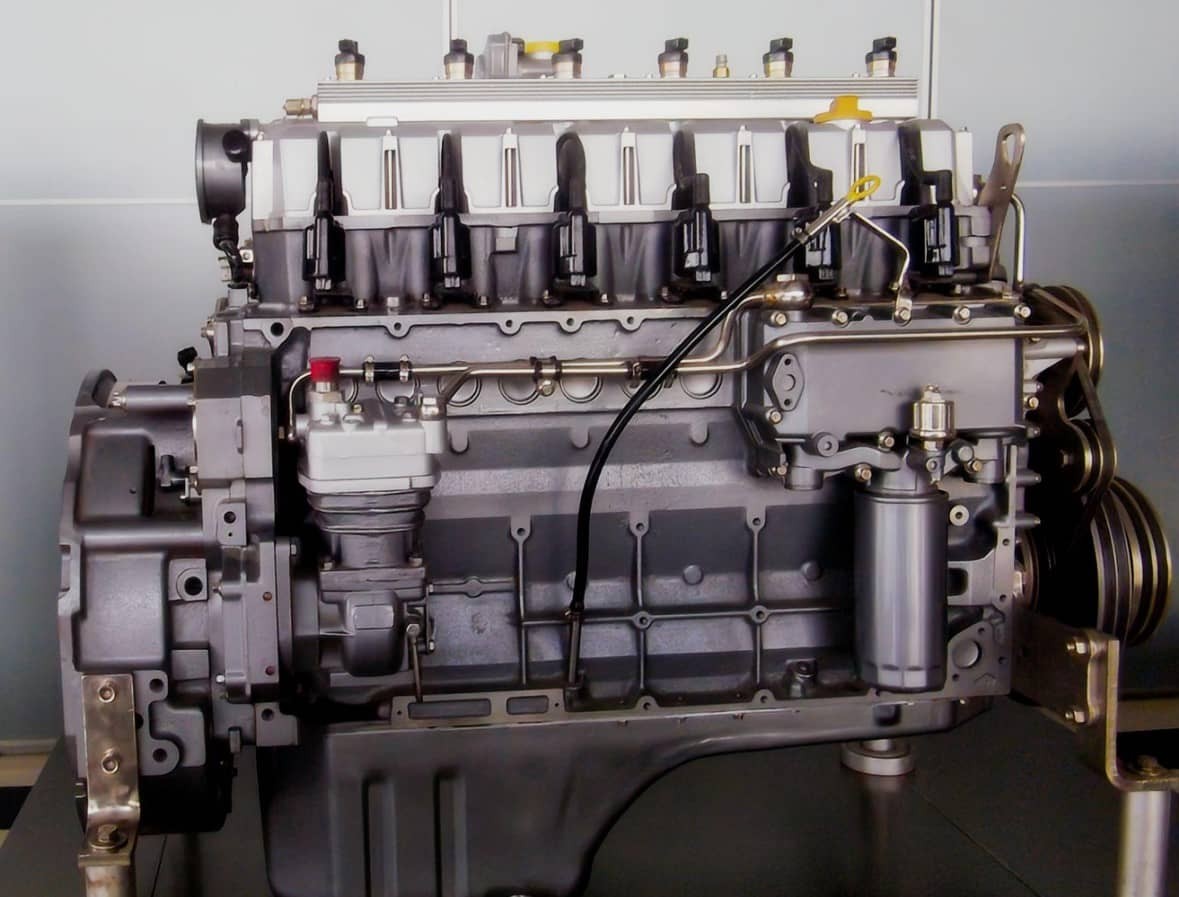

Genuine Dalian Deutz BF6M1013-26E4 Vehicle Diesel Engine (192kW / Euro IV)
Finding a reliable drop-in replacement engine for heavy-duty commercial fleets requires more than just matching horse-power numbers on paper. The Dalian Deutz BF6M1013-26E4 is a 7.14-liter, 6-cylinder inline turbocharged diesel engine engineered specifically for demanding logistics trucks, regional haulers, and intercity buses. Delivering 192 kW (260 HP) at 2300 RPM, this unit balances high torque output with strict Euro IV emission compliance.
As an established global engine supplier, HekoPower sources genuine factory-tested BF6M1013-26E4 complete engine assemblies, short blocks, and long blocks directly from Dalian Deutz. Every unit undergoes rigorous dynamometer testing before export to guarantee OEM tolerances, correct ECU mapping, and immediate job-site readiness.
Tech Specs of Deutz BF6M1013-26E4 Vehicle Diesel Engine
General Engine Data
Engine Model: Deutz BF6M1013-26E4
Type: 6 Cylinders, in Line
Displacement: 7.146 L
Bore * Stroke: 108 * 130
Overall Dimension: 1266mm*600mm*952mm
Net Weight (with flywheel & alternator): 650 Kg
Key Performance Data
Rated Power: 192 kW
Max. Torque/Speed: 950 N.m @ 1400 rpm
Rated Speed: 2300 rpm
Idle Speed: 650-750 rpm
Fuel Consumption @ rated Power: 221.96 g/kw.h
Max. Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro IV
Aspiration: Turbocharged & Aftercooled
Fuel System: Electronic Unit Pump, Direct Injection
Cooling Method: Water Cooled
Starting System: Electronic Starting (12V/24V)
Compression Ratio: 18:1
Engine Cooling Fluid Volume: 23 L
Technical Comparison: Deutz BF6M1013-26E4 vs. Industry Benchmarks
Choosing between the Deutz BF6M1013 series and competing platforms like the Cummins ISDe270 or Weichai WP7 comes down to duty cycle, weight distribution, and operating environments.
Power Density and Torque Delivery
While many 6.7-liter to 7.0-liter displacement engines rely on aggressive turbocharging to achieve 190kW+ power bands, the Deutz 7.14L displacement delivers its 1050 Nm torque lower in the RPM range (1400 RPM). This generous displacement yields higher low-end pulling power without forcing the engine to run at maximum thermal limits.
Fuel System Architecture: PLD vs. High-Pressure Common Rail
Many competitive Euro IV engines use high-pressure common rail (HPCR) systems that are exceptionally sensitive to contaminated fuel. The Deutz BF6M1013-26E4 utilizes individual plug-in unit pumps (PLD).
Each cylinder operates with its own high-pressure injection pump driven directly by the camshaft. This design offers two distinct operational benefits:
- Higher tolerance for varying diesel fuel quality in international export markets.
- Isolated maintenance — if an injection pump fails, you replace a single unit pump rather than the entire common rail assembly.
Thermal Efficiency and Weight Management
Weighing approximately 610 kg dry, the BF6M1013-26E4 maintains a favorable power-to-weight ratio. Its closed-loop cooling system features targeted piston cooling jets that lower internal crown temperatures during prolonged hill climbs under full gross vehicle weight (GVW).
Real Application Scenarios & Vehicle Integration
The versatile flywheel interface and modular mounting brackets of the Dalian Deutz BF6M1013-26E4 make it a primary choice across several commercial transport sectors.
Heavy Logistics & Freight Trucks
In 18-ton to 30-ton regional delivery rigs, engine responsiveness determines trip efficiency. The 192kW Deutz power unit provides steady acceleration through multi-gear manual and automated manual transmissions (AMTs). Fleet operators running long-haul routes report lower driver fatigue due to the inherent dampening of the 6-cylinder engine structure.
Passenger Transit & Intercity Coaches
City transit buses and 12-meter coaches demand continuous stop-and-go endurance. The electronic governor on the BF6M1013-26E4 maintains stable idling and prevents power surges during accessory engagement (such as high-output air conditioning compressors). The engine’s compact overhead dimension fits neatly into rear-engine coach compartments without compromising cooling airflow.
Maintenance, Troubleshooting & Replacement Guide
To maximize the working lifecycle of your Deutz engine and avoid costly downtime, adhere to strict preventive service schedules and correct replacement procedures.
Preventive Maintenance Schedule
- Oil & Filter Change: Every 25,000 km or 500 operating hours. Use high-performance 15W-40 diesel oil meeting API CI-4 standards.
- Fuel Filter & Water Separator: Replace every 15,000 km. Water contamination is the primary cause of unit pump plunger wear.
- Valve Clearance Adjustment: Inspect every 60,000 km (Intake: 0.30 mm | Exhaust: 0.50 mm cold engine).
- Coolant Flush: Every 2 years or 100,000 km. Use silicate-free ethylene glycol coolant to prevent cylinder liner cavitation.
Drop-in Replacement Checklist for Fleet Technicians
When ordering a replacement engine from HekoPower to replace a worn or damaged engine, verify the following connection points:
- SAE Flywheel Housing Size: Confirm whether your transmission uses an SAE 2 or SAE 3 housing configuration.
- ECU Pinout Matching: Ensure your chassis wiring harness matches the Dalian Deutz electronic engine controller interface.
- Cooling Package Orientation: Check radiator inlet/outlet positions and fan clutch engagement depth.
- Exhaust SCR Flange: Match the Euro IV catalytic converter pipe layout to prevent backpressure bottlenecks.
HekoPower provides pre-shipment verification of serial numbers and housing dimensions to guarantee that your incoming unit drops directly onto the chassis mounts with zero custom fabrication.
Deutz BFM1013-Vehicle Diesel Engine Series, original products from Dalian Deutz Engine Plant. This series mainly includes Deutz BF4M1013-16E3, Deutz BF4M1013-18E3, Deutz BF4M1013-19E3, Deutz BF6M1013-22E3, Deutz BF6M1013-24E3, Deutz BF6M1013-26E3, Deutz BF6M1013-28E3, Deutz BF6M1013-24E4, Deutz BF6M1013-26E4, Deutz BF6M1013-28E4, Deutz BF6M1013-30E3.
Frequently Asked Questions
Is the Dalian Deutz BF6M1013-26E4 a genuine Deutz design?
Yes. Dalian Deutz (Deutz-FAW Engine Co., Ltd.) is an official joint venture operating under strict Deutz AG licensing, tooling, and quality control systems. Components are built to original German engineering specifications.
Can I upgrade my Euro II or Euro III vehicle with this Euro IV engine?
Yes, but you must install the accompanying SCR (Selective Catalytic Reduction) AdBlue/DEF system and update the engine control wiring harness to handle the electronic management requirements.
What is the difference between a complete engine assembly and a long block?
A complete engine assembly includes the fuel system, turbocharger, starter motor, alternator, sensors, and ECU — ready to run immediately. A long block includes only the crankcase, cylinder head, pistons, crankshaft, and valvetrain, requiring you to transfer your existing bolt-on accessories.
How does HekoPower ensure engine safety during international freight export?
Every engine is fully drained of internal testing fluids, treated with anti-corrosion fogging oil, mounted on heavy-duty steel bottom skids, and enclosed in heat-sealed vapor-barrier plastic inside solid export plywood crates.
