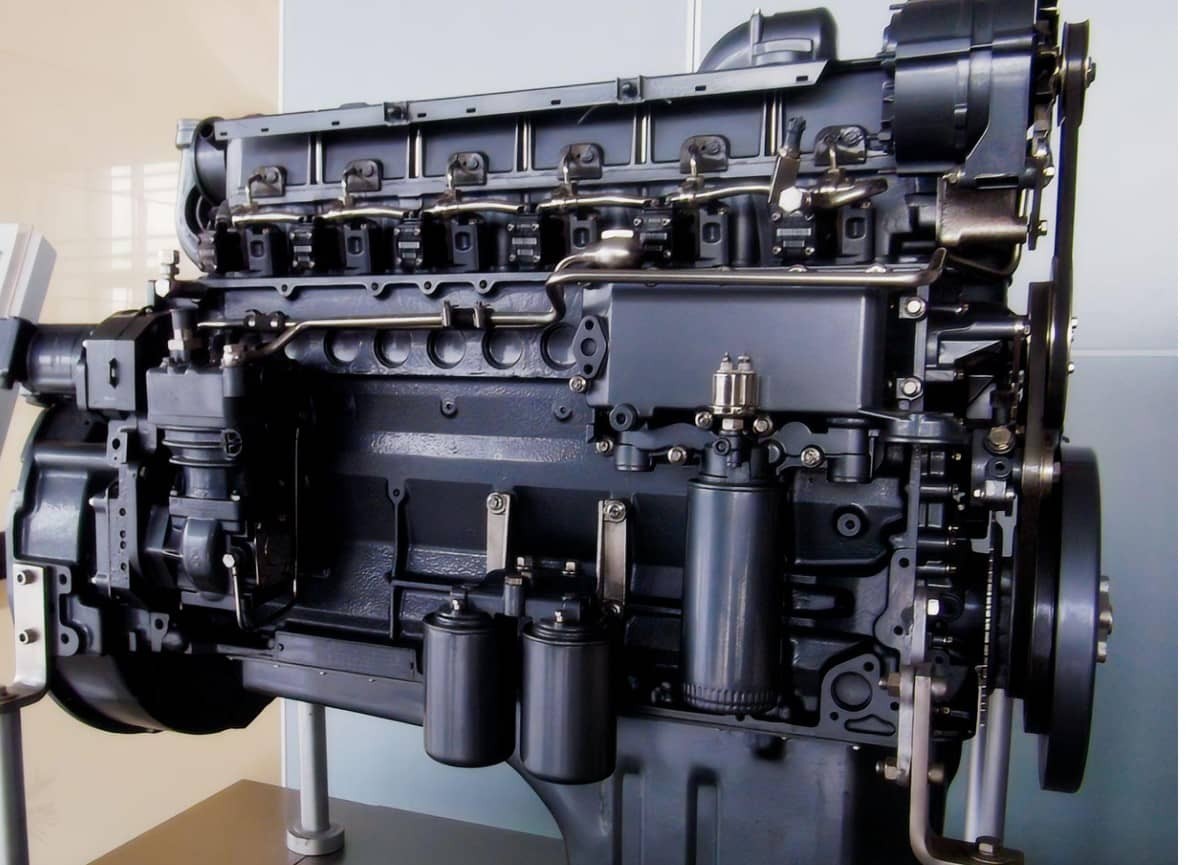

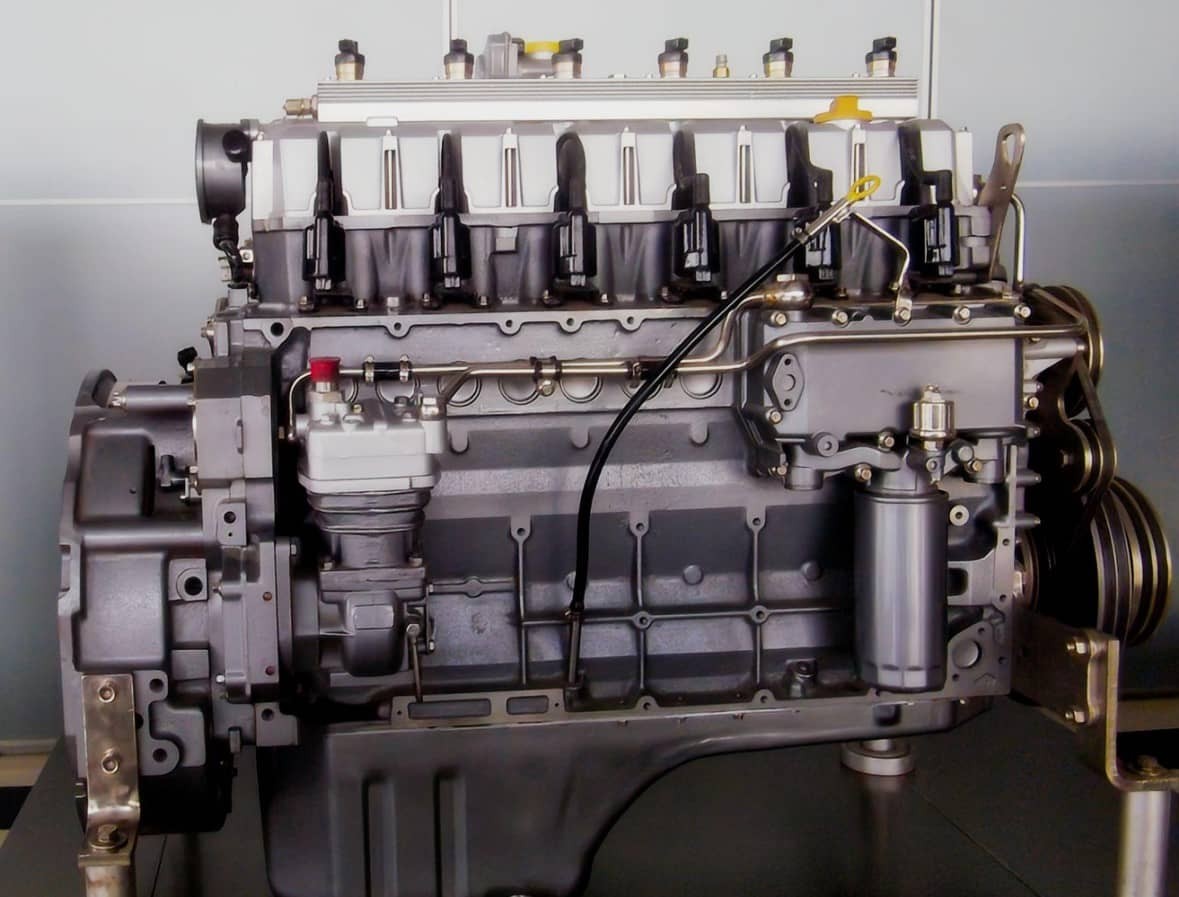

Deutz BF6M1013-22E3
Original Deutz licence plant, new machines at absolute wholesale prices.
HekoPower Group is the reliable choice.
Our partner Deutz, with 160 years of heritage, is one of the world’s leading manufacturers of innovative drive systems. Dalian Deutz Power Machinery Co.,Ltd.("Dalian Deutz"), Dalian Deutz Engine Plant is Deutz License Plant in China, which has successively introduced the technology of Deutz AG, including the BFM1013, BFL1011, FL2011, FL912, FL913, FL914, BFM1015, TCD2015, BFM2012, TCD2012, TCD2013, TD2.9, D4D, D5E, D6E, D7E, D8K, D12, D13 series etc.
Deutz BF6M1013-22E3 could be available for Truck, Bus, Coach, Van, Commercial vehicles, Motor power pack.
Technical Specifications
General Engine Data
Engine Model: Deutz BF6M1013-22E3
Type: 6 Cylinders, in Line
Displacement: 7.146 L
Bore * Stroke: 108 * 130
Overall Dimension: 1266mm*600mm*952mm
Net Weight (with flywheel & alternator): 650 Kg
Key Performance Date
Rated Power: 162 kW
Max. Torque/Speed: 580 N.m @ 1400 rpm
Rated Speed: 2300 rpm
Idle Speed: 650-750 rpm
Fuel Consumption @ rated Power: 216.11 g/kw.h
Max. Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro III
Aspiration: Turbocharged & Aftercooled
Fuel System: EUP Direct Inject Pump
Cooling Method: Water Cooled
Starting System: Electronic Starting (12V/24V)
Compression Ratio: 18:1
Engine Cooling Fluid Volume: 23 L
Deutz BFM1013-Vehicle Diesel Engine Series
Deutz BFM1013-Vehicle Diesel Engine Series, original products from Dalian Deutz Engine Plant. This series mainly includes Deutz BF4M1013-16E3, Deutz BF4M1013-18E3, Deutz BF4M1013-19E3, Deutz BF6M1013-22E3, Deutz BF6M1013-24E3, Deutz BF6M1013-26E3, Deutz BF6M1013-28E3, Deutz BF6M1013-24E4, Deutz BF6M1013-26E4, Deutz BF6M1013-28E4, Deutz BF6M1013-30E3.
