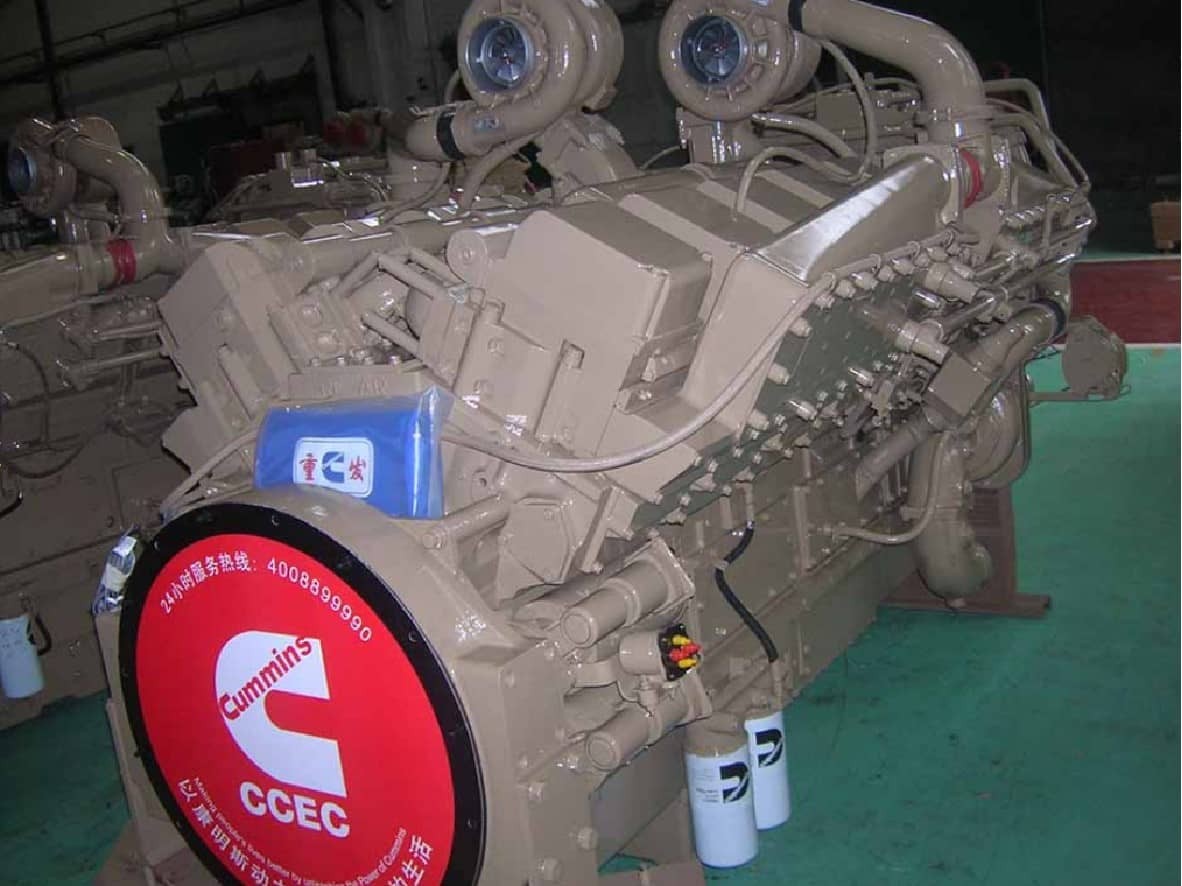

Original CCEC Cummins KTA50-G15 1400kW Generator Engine
The Cummins KTA50-G15 is a 50.3-liter, 16-cylinder V-type engine engineered specifically for heavy-duty industrial power generation. Manufactured by Chongqing Cummins Engine Co., Ltd. (CCEC), this power package delivers a rated output of 1400kW (1750kVA) at 1500 RPM for 50Hz generator applications, with a standby capacity reaching 1500kW (1875kVA). Built upon Cummins’ proven K50 platform, the KTA50-G15 pairs a mechanical Pressure Time (PT) fuel system with dual Holset turbochargers and a water-air intercooling system to yield exceptional transient response and thermal efficiency under severe continuous or emergency standby loads.
HekoPower supplies complete, factory-new CCEC KTA50-G15 engine assemblies, providing equipment integrators and facility operators with authentic power solutions, complete factory documentation, and dedicated engineering support.
Tech Specs of Cummins KTA50-G15-1400KW
General Engine Data
Engine Model: Cummins KTA50-G15-1400KW
Type: 16 Cylinders, V Type
Displacement: 50.3 L
Bore * Stroke: 159 * 159
Net Weight: 13795 Kg
Overall Dimension: 6100mm*2138mm*2557mm
Key Performance Data
Rated Power, Standby Output: 1400 kW/1750 HP, 1500 kW/1875 HP
Rated Speed: 1500 rpm
Low Idle Speed: 700-800 rpm
Fuel Consumption @ Rated Power: 460 L/Kw.h
More Technical Data
Engine Exhaust Manifold: Optional for Wet Exhaust manifold Heat exchanger
Aspiration: Turbocharged/Water-Air Intercooler
Compression Radio: 13.9:1
Lowest Starting Temp (Without auxiliary system): -12℃
Cooling Method: Water Radiator & Fan
Technical Comparisons: KTA50-G15 vs. KTA50-G9 and KTA50-G8
Understanding the precise differences across the Cummins K50 series prevents costly misalignments in generator set pairing and power plant design.
Frequency and Speed Optimization
The primary distinction between the KTA50-G15 and the KTA50-G9 lies in operating frequency and rated engine speed. The KTA50-G15 is calibrated specifically for 50Hz power grids, running at a governed speed of 1500 RPM to yield 1400kW prime output. In contrast, the KTA50-G9 is optimized for 60Hz operations, running at 1800 RPM to achieve higher output levels up to 1384kW to 1855kW depending on duty configuration. Operating a KTA50-G9 at 1500 RPM for a 50Hz application compromises turbocharger boost efficiency and increases specific fuel consumption, making the KTA50-G15 the proper selection for 50Hz installations.
Output Nodes and Load Acceptance
When compared to the KTA50-G8, the KTA50-G15 represents a step up in rated capacity on the same 50.3L block. While the KTA50-G8 produces 1200kW prime power at 1500 RPM, the G15 variant utilizes refined fuel injection timing and matched Holset turbocharging to push baseline output to 1400kW. This additional 200kW headroom allows facility engineers to drive larger 1750kVA alternators (such as Stamford S7 series) without increasing the physical footprint or mounting envelope of the generator set.
Gross vs. Net Rating Clarification
A common point of confusion during project specification is the difference between gross engine rating (1491kW) and net flywheel output (1400kW). The 1491kW specification accounts for total shaft power generated prior to parasitic fan and cooling drag. For generator assembly calculations, the net 1400kW prime rating at 1500 RPM represents the realistic baseline available to drive the alternator shaft under continuous operational conditions.
Maintenance Schedules, Replacement Tips, and Misconceptions
Maintaining a 50.3-liter V16 engine requires strict adherence to fluid standards and mechanical tolerances to prevent premature wear and unplanned downtime.
Servicing the PT Fuel System and Injectors
The mechanical PT fuel system relies on precise hydraulic pressure and mechanical rocker arm force to atomize fuel. Injector calibration and valve lash must be inspected every 1,500 operating hours or annually. Using lower-grade diesel or failing to replace fuel filters every 250 hours leads to plunger scoring in the PT pump, causing uneven cylinder power distribution and excessive exhaust temperatures.
Managing the Two-Pump, Two-Loop Cooling System
The KTA50-G15 employs a two-pump, two-loop cooling configuration that isolates the jacket water circuit from the low-temperature aftercooler circuit. A frequent maintenance mistake is treating both cooling loops as a single shared system. Mixing flow rates or using improper thermostat modulation ranges degrades intake air cooling, raising cylinder temperatures and lowering knock margin under full standby load. Supplemental Coolant Additives (SCA) must be monitored every 250 hours to prevent liner pitting from cavitation.
Common Misconceptions
Misconception 1: Any Heavy-Duty 15W-40 Engine Oil is Suitable
Because the KTA50-G15 subjects lubrication oil to high thermal loads across 16 cylinder positions and twin turbochargers, standard fleet oil is insufficient. Always select oils meeting Cummins Engineering Standards CES 20078 or CES 20076 to prevent valve-train wear and turbocharger shaft carboning.
Misconception 2: Extended Light-Load Operation Prevents Engine Wear
Running the KTA50-G15 below 30% rated load for extended periods causes "wet stacking"—unburned fuel and oil accumulating in the exhaust manifold due to low cylinder combustion temperatures. To clear deposits and seat piston rings properly, run the engine at a minimum 70% load for at least two hours following extended low-load testing.
Real-World Application Scenarios
Data Center Emergency Backup Power
Data centers require immediate, high-step load acceptance during main grid failures. The 1400kW KTA50-G15 provides the rotational inertia and rapid transient recovery needed to accept 100% block loads in a single step when paired with an appropriate electronic governor. Its 1500 RPM operational stability maintains tight frequency regulation, protecting sensitive server infrastructure from power drops.
Remote Mining and Energy Site Operations
In remote off-grid mining sites and oil drilling rigs, access to specialized service technicians is limited. The fully mechanical fuel control of the KTA50-G15 eliminates reliance on complex engine control modules (ECMs) that can fail in high-vibration, high-dust environments. Its heavy-duty cast iron block, Ni-resist pistons, and cleanable oil centrifugal bypass filters ensure reliable continuous power under extreme dust and varying fuel quality.
Healthcare and Critical Commercial Facilities
Hospitals and high-rise commercial complexes utilize the KTA50-G15 in multi-engine parallel configurations. The 60-degree V16 engine layout provides balanced firing, minimizing vibration transmitted through building foundations. When fitted with a Coolpac integrated radiator setup, the engine operates within tight noise and thermal profiles suitable for localized plant rooms.
CCEC K50 Series Engine Family & Selection
Selecting the correct power engine requires aligning required electrical output, operating frequency, and duty cycle. Matching your generator set with an original CCEC engine ensures long overhaul intervals and predictable operating costs over the life of your power generation asset.
As a professional Cummins distributor, HekoPower has rich experience in the field of industrial power solutions and has established a long-term and stable cooperative relationship with Chongqing Cummins (CCEC). We provide 100% original CCEC Cummins KTA50-G15 diesel engines, with complete product certificates and quality assurance. HekoPower is a professional supplier of Cummins KTA50-G15 diesel engines, providing a full range of CCEC K50-G series products, including KTA50-G3-1097KW, KTA50-G3-1220KW, KTA50-G8-1200KW, KTA50-GS8-1287KW, KTA50-G9-1384KW, KTA50-G15-1400KW.
Frequently Asked Questions (FAQ)
What is the fuel consumption of the Cummins KTA50-G15 at full load?
At 100% standby load (1500kW output at 1500 RPM), fuel consumption averages approximately 360 to 380 liters per hour. Under standard 1400kW prime power operation, fuel consumption runs around 335 to 345 liters per hour depending on ambient air temperatures and cooling fan draw.
Which alternator models pair best with the KTA50-G15?
For a 1400kW/1750kVA generator configuration at 50Hz (1500 RPM), the KTA50-G15 is most frequently paired with a double-bearing or single-bearing Stamford S7L1D-J alternator or equivalent Leroy Somer LSA 50.2 units.
How heavy is the KTA50-G15 engine assembly for shipping?
The dry weight of the bare KTA50-G15 engine is approximately 13,795 kg. When configured as a complete Coolpac assembly with skid base, radiator, and industrial silencers, total shipping weight ranges between 15,500 kg and 16,800 kg.
Can HekoPower export complete engine packages with global warranty coverage?
Yes. As an industrial engine supplier working closely with CCEC manufacturing lines, HekoPower supplies complete, original Cummins KTA50-G15 engine assemblies with official serial numbers, factory test sheets, and global warranty coverage.
