Details

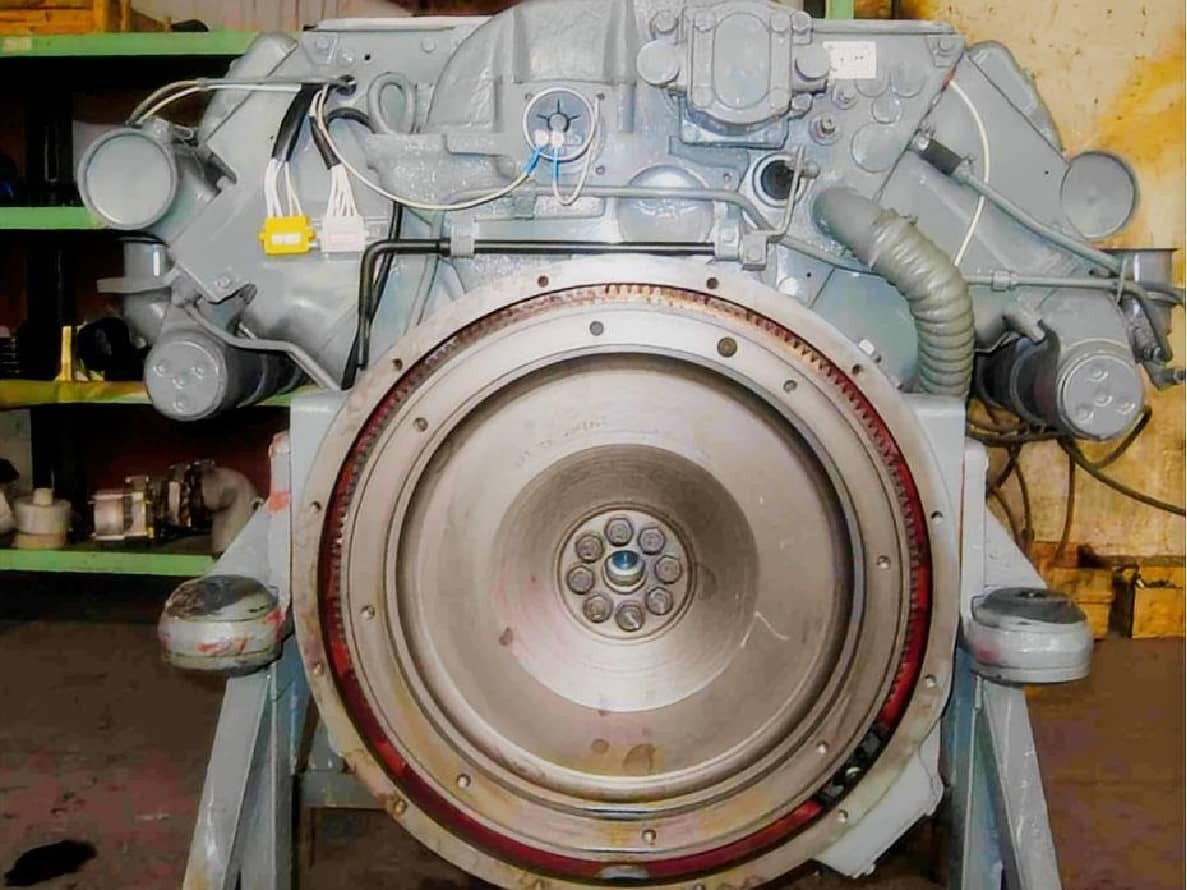

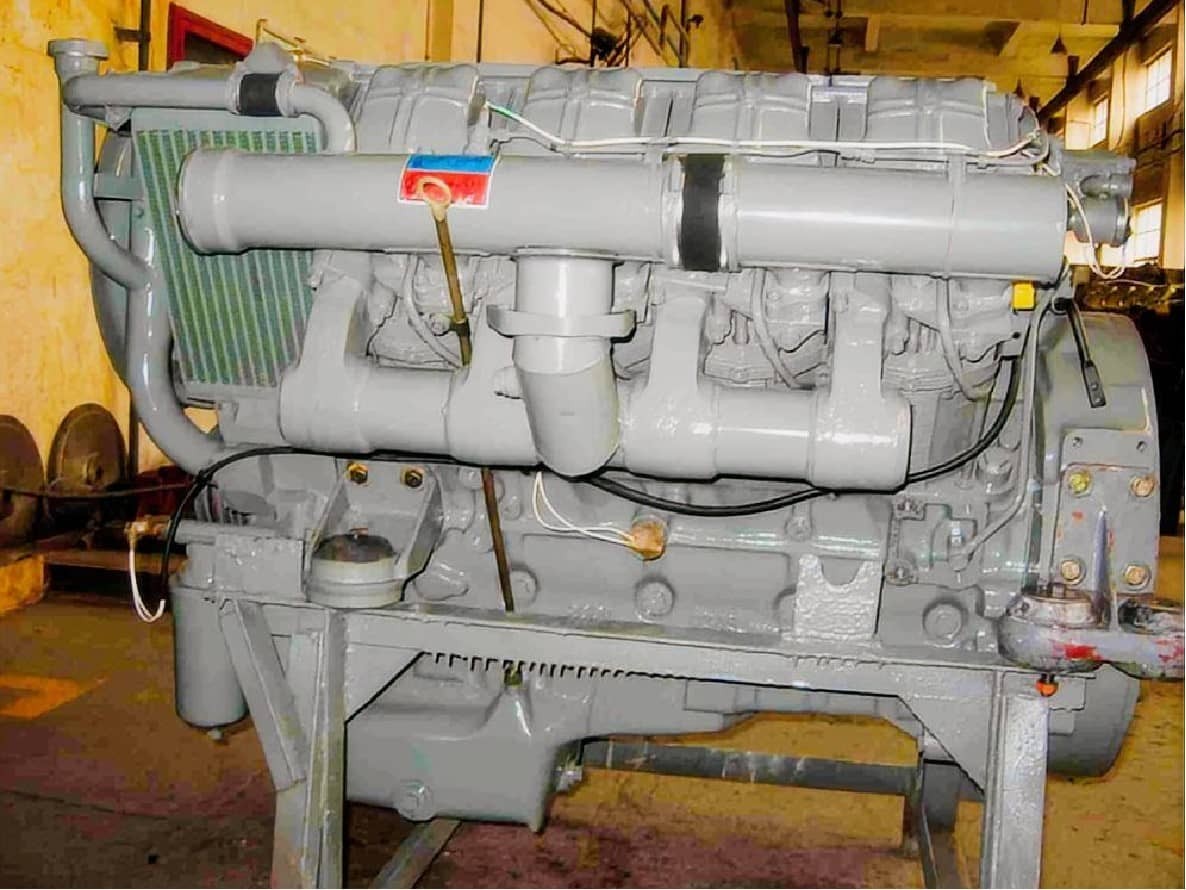

Deutz F12L413F-60HZ Air-Cooled V12 Generator Engine for 60Hz Power Generation
The Deutz F12L413F-60HZ is a heavy-duty, air-cooled V12 diesel engine specifically configured for 60Hz power generation. Operating at a steady 1800 RPM, this Deutz industrial generator engine is built to deliver uncompromising prime and standby power in environments where traditional water-cooled systems fail. As a leading China Deutz F12L413F supplier, HekoPower provides the complete genuine Deutz F12L413F engine assembly, ready to be coupled with standard alternators for industrial and commercial power demands.
When you buy a Deutz F12L413F engine from us, you are securing a reliable prime power diesel engine that eliminates the complexities of radiators, water pumps, and coolant lines. This makes it an exceptionally resilient G-Drive engine for extreme climates and remote locations.
Tech Specs of Deutz F12L413F 60Hz Generator Engine
General Engine Data
Engine Model: Deutz F12L413F-60HZ
Type: 12 Cylinders, V Type
Displacement: 19.144 L
Bore * Stroke: 125 * 130
Net Weight: 1120 Kg
Overall Dimension: 1575mm*1038mm*956mm
Key Performance Data
Rated Power/Standby Power: 194 KW, 227 kW
Rated Speed: 1800 rpm
Low Idle Speed: 550-650 rpm
Fuel Consumption @ Rated Power: 217 g/kW.h
More Technical Data
Aspiration: Natural Aspirated
Fuel System: EUP
Compression Ratio: 18:1
Cooling Method: Air Cooled
Electrical System (Starter Motor/Alternator): Electronic Starting (24V)
Lubricant Capacity: 48 L
Why the Deutz V12 Air-Cooled 60Hz Power Output Excels
Understanding the Deutz V12 air-cooled 60Hz power output requires looking at its operating cycle. To produce 60Hz electricity, the engine must maintain a strict 1800 RPM. The 12-cylinder Deutz generator engine achieves this with remarkably low vibration due to its balanced V-configuration.
This 1800 RPM Deutz generator engine is highly versatile. When used as a generator drive diesel engine, it easily handles sudden load impacts without bogging down. Operators tracking the Deutz F12L413F fuel consumption at prime power consistently find that its mechanical direct injection system offers excellent fuel economy, keeping operational costs manageable over continuous running cycles. It serves perfectly as a Deutz diesel engine for continuous power in off-grid situations, while also providing rapid-response capabilities as a heavy duty standby generator engine.
Real Application Scenarios for the F12L413F
Different industries require different power solutions. The robust nature of the air cooled Deutz generator engine makes it the preferred choice across several demanding sectors.
Mining and Extraction
Operating an air-cooled 60Hz diesel generator engine for mining offers distinct advantages. Dust and debris frequently clog standard radiators, leading to overheating. The F12L413F relies on a high-velocity axial cooling fan that pushes air directly over heavily finned cylinders. Furthermore, utilizing a Deutz engine for mining generator applications means there is no risk of coolant freezing during winter operations or boiling over in deep, high-temperature pits.
Telecommunications and Critical Infrastructure
Remote cell towers and data relays require a dependable off-grid V12 Deutz generator engine. A Deutz engine for telecom backup power can sit idle for months and still start immediately when grid power drops. Because there is no coolant to degrade or leak over time, maintenance crews face fewer emergency call-outs.
Healthcare and Emergency Services
A Deutz engine for hospital generator use must meet strict reliability standards. The F12L413F serves flawlessly as an industrial backup power engine. In the event of a total grid failure, this Deutz engine for emergency power generation reaches optimal operating speed in seconds, ensuring life-saving equipment remains online.
Industrial and Field Operations
From a Deutz engine for oilfield power station deployment to a Deutz engine for factory standby generator use, this V12 platform scales to the task. It is also highly sought after as a Deutz engine for construction power supply and a Deutz engine for rental generator sets, where equipment is frequently moved and exposed to rough handling.
Technical Comparisons: Air-Cooled vs Water-Cooled Engines
Most competitor websites push standard water-cooled engines without explaining the specific engineering trade-offs. The Deutz FL413 Series 60Hz diesel engine stands apart because it removes the entire liquid cooling circuit.
Water-cooled systems account for a significant percentage of premature engine failures due to cavitation, blown hoses, or water pump seal leaks. By utilizing an air cooled genset engine, you eliminate these failure points entirely. The Deutz V12 industrial diesel engine utilizes a large, gear-driven cooling fan. While an air-cooled engine may run with slightly higher acoustic levels than a water-jacketed engine, the trade-off in extreme mechanical reliability and reduced maintenance is highly favorable for harsh environments.
Deutz F12L413F Dimensions, Dry Weight, and Installation Requirements
For engineers designing a custom genset canopy, understanding the Deutz F12L413F dimensions and dry weight is critical. The V12 layout provides a relatively compact footprint compared to an inline-12, allowing for a shorter base frame.
Deutz F12L413F installation requirements mandate careful attention to airflow. Because it relies entirely on ambient air for cooling, the generator room or soundproof canopy must feature adequate intake louvers and exhaust venting. The hot air discharged by the cooling fan must be routed outside the enclosure immediately to prevent recirculation. Proper vibration isolators are also required between the engine feet and the skid to manage the torque generated by this heavy-duty Deutz 60Hz generator engine.
Maintenance and Replacement Tips
Keeping your Deutz generator diesel engine running at peak performance requires adherence to a strict maintenance schedule. The most critical component is the cooling system.
Deutz F12L413F cooling fan maintenance should be performed regularly. Inspect the fan drive mechanism and ensure the cylinder cooling fins remain free of oil and dust buildup. Blocked fins will lead to localized overheating. Routine valve lash adjustments and timely replacement of fuel and oil filters will optimize the Deutz F12L413F fuel consumption at prime power.
When it comes to servicing, always insist on OEM Deutz generator engine components. HekoPower provides comprehensive support for Deutz F12L413F replacement parts and global shipping. Using counterfeit parts on a high-compression V12 engine can lead to catastrophic failure. We supply genuine injection pumps, starter motors, and gasket kits to keep your F12L413F generator engine running safely.
HekoPower: Your OEM Deutz Generator Engine Supplier
As a trusted HekoPower Deutz engine supplier, we bridge the gap between heavy industry and reliable power generation. We offer highly competitive Deutz F12L413F wholesale price structures for bulk procurement, generator assemblers, and international dealers.
If you are looking for a Deutz F12L413F engine for sale, we provide transparent information regarding Deutz F12L413F engine price and availability. Our logistics team handles the complexities of the export Deutz F12L413F engine process, ensuring your asset is securely crated, properly documented, and shipped safely to your port of choice. Whether you are an end-user or a Deutz F12L413F-60HZ generator engine supplier in your local market, HekoPower guarantees authentic equipment and professional technical support.
Deutz FL413-Generator Engine Series, original products from Huachai Deutz Engine Plant. This series mainly includes Deutz F8L413F, Deutz F10L413F, Deutz F12L413F, Deutz BF6L513, Deutz BF8L513, Deutz BF8L513C, Deutz BF10L513, Deutz BF12L513, Deutz BF12L513C, Deutz BF12L513CP, Deutz F8L413F (60HZ), Deutz F8L513 (60HZ), Deutz F12L413F (60HZ).
Frequently Asked Questions (FAQs)
What is the difference between a prime power and standby F12L413F engine?
A prime power diesel engine is rated to run continuously for an unlimited number of hours per year under variable loads. A heavy-duty standby generator engine is rated for emergency use only when the primary utility fails, typically limited to a few hundred hours annually at a slightly higher power output.
Can the Deutz F12L413F 60Hz engine be converted to 50Hz?
Yes. The engine speed dictates the frequency. While the Deutz F12L413F-60HZ operates at 1800 RPM to produce 60Hz, adjusting the governor and fuel injection parameters to run the engine at 1500 RPM will produce 50Hz power, though the overall kilowatt output will decrease accordingly.
Why is the F12L413F ideal for off-grid operation?
The Deutz F12L413F air cooled diesel engine requires no radiator fluid, meaning it cannot freeze in sub-zero temperatures and cannot boil over in desert heat. This removes the need for daily coolant checks, making it perfect for unmanned, off-grid locations.
