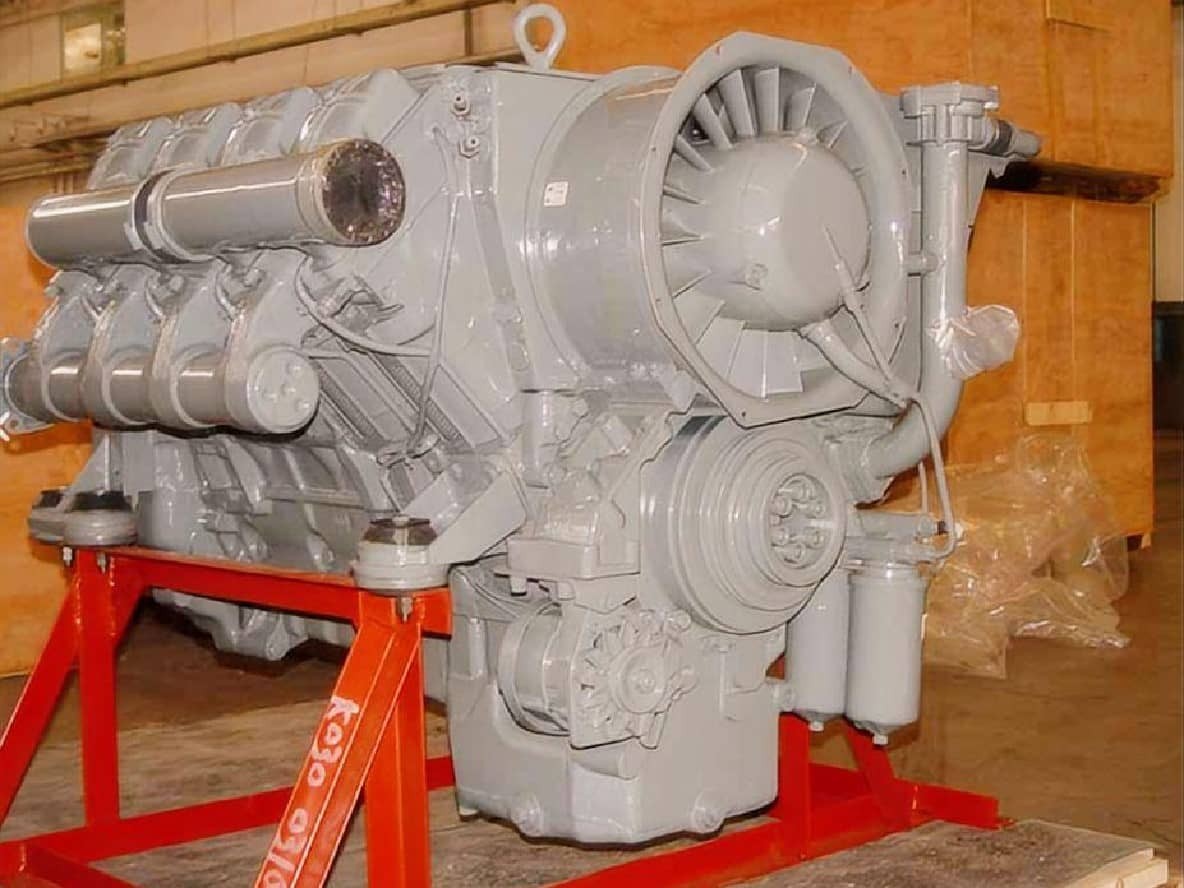

Deutz BF6L513
Original Deutz licence plant, new machines at absolute wholesale prices.
HekoPower Group is the reliable choice.
Our partner Deutz, With 160 years of heritage, is one of the world’s leading manufacturers of innovative drive systems. Hebei Huabei Diesel Engine Company("Huachai"), Huachai Deutz Engine Plant is Deutz License Plant in China, which has successively introduced the technology of Deutz AG since 1979, including the B/FL413/513, BFM1015, TCD2015, TCD12.0/16.0, HC4132, HC6132 series.
Deutz BF6L513-Generator Engine is the generator used as a backup or safety equipment in the absence of mains power or in the event of a power failure and/or blackout.
Technical Specifications
General Engine Data
Engine Model: Deutz BF6L513
Type: 6 Cylinders, V Type
Displacement: 9.572 L
Bore * Stroke: 125 * 130
Net Weight: 635 Kg
Overall Dimension: 1138mm*1042mm*950mm
Key Performance Date
Rated Power: 103 KW
Rated Speed: 1500 rpm
Low Idle Speed: 550-650 rpm
Fuel Consumption @ Rated Power: 217 g/kW.h
More Technical Data
Aspiration: Turbocharged
Fuel System: EUP
Compression Ratio: 15.8:1
Cooling Method: Air Cooled
Electrical System (Starter Motor/Alternator): Electronic Starting (24V)
Deutz FL413/FL513-Generator Engine Series

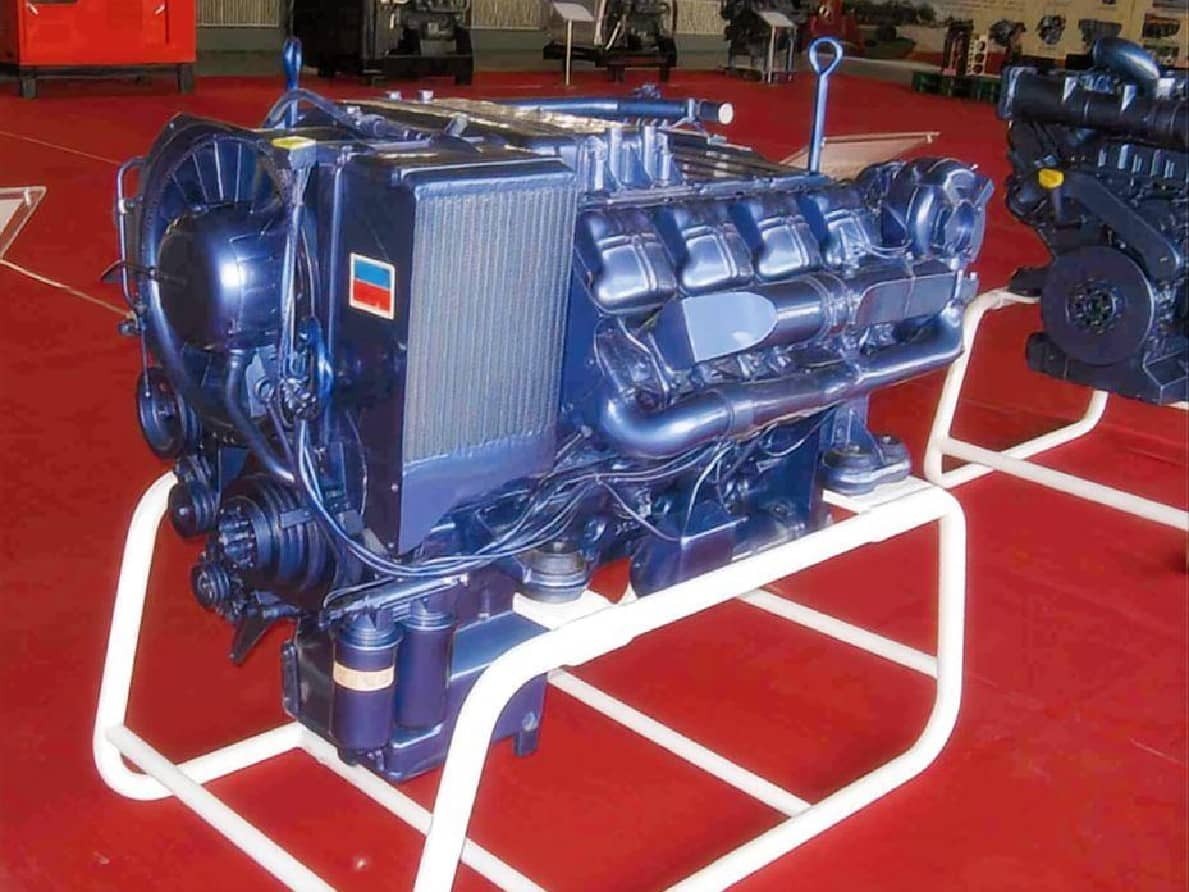

Deutz FL413-Generator Engine Series, original products from Huachai Deutz Engine Plant. This series mainly includes Deutz F8L413F, Deutz F10L413F, Deutz F12L413F, Deutz BF6L513, Deutz BF8L513, Deutz BF8L513C, Deutz BF10L513, Deutz BF12L513, Deutz BF12L513C, Deutz BF12L513CP, Deutz F8L413F (60HZ), Deutz F8L513 (60HZ), Deutz F12L413F (60HZ).
