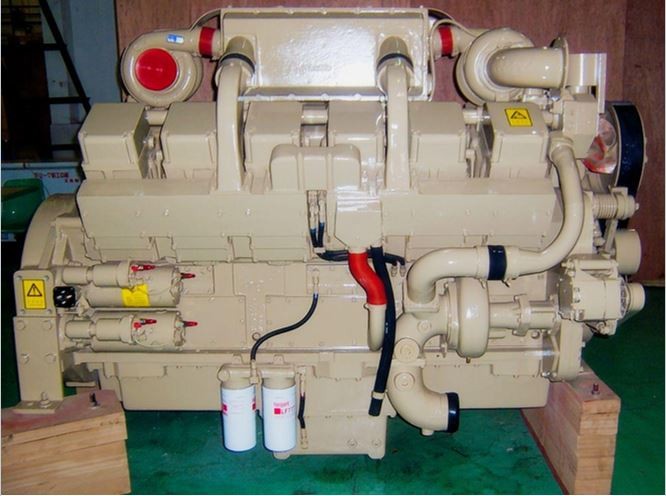

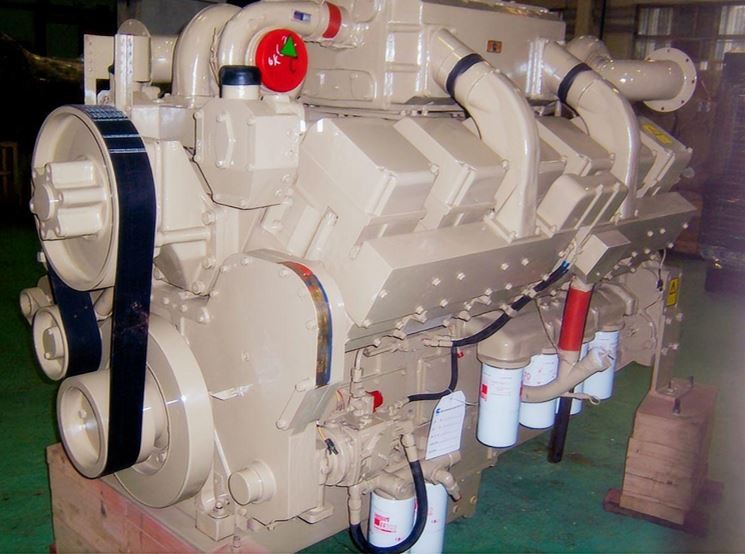

Cummins KTA38-C1200 Industrial Engine: The Powerhouse for Heavy-Duty Operations
As a leading HekoPower original Cummins KTA38-C1200 wholesale supplier, we understand that in industries like mining and oilfield drilling, downtime is not an option. The Cummins KTA38-C1200 engine is a 37.7L V12 masterpiece designed for the most grueling duty cycles. Delivering a robust 895kW (1200HP), this turbocharged intercooled engine provides the reliable torque required for heavy-duty construction machinery and high-altitude industrial applications.
Tech Specs of Cummins KTA38-C1200
General Engine Data
Engine Model: Cummins KTA38-C1200
Type: 12 Cylinders in Line, V Type
Displacement: 37.7 L
Bore * Stroke: 159 * 159
Overall Dimension: 2003mm*1362mm*1661mm
Net Weight (with flywheel & alternator): 3606 Kg
Key Performance Data
Rated Power: 895 kW/1200HP
Rated Speed: 2100 rpm
Continuous Output/Rated Speed: 716 kW/1200HP @1800 rpm
Max Torque/Speed: 4678 N.m @ 1300 rpm
Fuel Consumption @ Rated Power: 210 g/Kw.h
Max. Continuous Running Altitude: 2000 m
Idle Speed: 725 rpm
More Technical Data
Certification: Euro II
Aspiration: Turbocharged-Intercooled
Fuel System: Direct Injection PT Pump, STC
Compression Ratio: 13.8:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 31 L
Performance Characteristics and Engineering Advantages
The KTA38-C1200 is designed for high-load continuous operation environments.
High Torque at Low Engine Stress
At 1800 rpm, the engine delivers strong torque output, making it suitable for:
- Mining dump trucks
- Bulldozers
- Heavy drilling rigs
Cummins KTA38-C1200 torque performance at 1800 rpm ensures stable power delivery under sudden load changes.
Turbocharged Intercooled Efficiency
The turbocharged aftercooled system improves:
- Air intake density
- Fuel combustion efficiency
- Power stability in high-temperature environments
High-Altitude Adaptability
This engine supports:
- 2000m high-altitude operation
- Reduced power loss in low oxygen environments
It is widely used in mountainous mining regions.
Application-Specific Versatility
The KTA38-C1200 for Construction Machinery isn't just a label—it's a testament to the engine's adaptability.
Mining and Earthmoving Operations
Whether it is a KTA38-C1200 engine for mining truck fleets or a KTA38-C1200 engine for bulldozer units, this power plant handles intermittent high-load shocks with ease. Many of our clients use the KTA38-C1200 replacement for CAT engine setups in 100-ton dump trucks due to its lower maintenance costs and widely available KTA38-C1200 overhaul kit parts.
Oilfield and Drilling Rig Reliability
In the energy sector, the Cummins KTA38-C1200 engine for drilling rig operations provides the steady-state power required for mud pumps and drawworks. As a 1200HP Cummins engine for oilfield machinery, it thrives in 24/7 operations where the KTA38-C1200 two-loop cooling system engine design prevents overheating even in desert environments.
Engineering for Extreme Environments
One of the reasons to buy genuine Cummins KTA38-C1200 engines from HekoPower is our focus on environmental adaptability.
High-Altitude and Cold Start Capabilities
The Euro II Cummins KTA38-C1200 high-altitude engine is specifically calibrated for thin-air performance. With a Cummins KTA38-C1200 2000m high-altitude engine rating, it loses significantly less horsepower than standard industrial engines. Furthermore, the KTA38-C1200 -12℃ cold start diesel engine capability ensures that your project in northern climates or high mountains stays on schedule.
Comparing the KTA38 Series
Understanding the Cummins K38 series engine comparison is vital for choosing the right power unit.
KTA38-C1200 vs KTA38-C1100 Power Performance Comparison
While the C1100 offers 1100HP, the KTA38-C1200 vs KTA38-C1100 choice usually comes down to the required reserve power. The C1200 provides that extra 100HP margin necessary for peak loads in deep-pit mining.
KTA38 vs QSK38 Difference
The main KTA38 vs QSK38 difference is the fuel system. The KTA38 uses the mechanical PT system, making it easier to maintain in remote areas, whereas the QSK series uses electronic high-pressure common rail (HPCR). For most construction sites, the KTA38 remains the preferred KTA38-C1200 industrial power pack engine.
HekoPower Advantage: Sourcing and Support
As a genuine Cummins KTA38 supplier, HekoPower goes beyond just the sale.
Pricing and Delivery Timelines
We offer a transparent KTA38-C1200 engine price list for our bulk buyers. Our Cummins KTA38-C1200 factory wholesale price is among the most competitive in the market because we are a direct bulk Cummins KTA38-C1200 engine distributor. We guarantee a Cummins KTA38-C1200 engine 15 business days delivery for standard configurations.
Warranty and After-Sales
Every unit is backed by a 12-month warranty Cummins KTA38-C1200 engine guarantee. Whether you need a KTA38-C1200 technical data sheet PDF or a complete KTA38-C1200 common problems and troubleshooting guide, our technical team is available to assist your maintenance crew.
Cummins k38-C Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes KT38-C925, KTA38-C1050, KTA38-C1100, KTA38-C1200, KTA38-C1400, QSK38-C.
Frequently Asked Questions (FAQ)
What is the overhaul interval (TBO) for the KTA38-C1200 in mining applications?
The Time Between Overhauls (TBO) depends heavily on the specific application, operating conditions, and maintenance practices. In severe-duty mining applications, a typical TBO can range from 15,000 to 20,000 hours. We recommend consulting the official maintenance manual and working with our technical team to establish a preventive maintenance schedule tailored to your operation.
How does the KTA38-C1200 compare to other engines like the KTA38-C1100 or QSK38?
The primary difference lies in power output and technological generation. The KTA38-C1200 vs KTA38-C1100 power performance comparison shows the C1200 is rated for higher horsepower. When considering the KTA38 vs QSK38 difference, the QSK38 is a more modern, electronically controlled engine, whereas the KTA38-C1200 is a mechanically controlled workhorse known for its simplicity and ruggedness.
What are common problems and troubleshooting steps for the KTA38-C1200?
Like any complex machine, issues can arise. Common areas to monitor include the fuel system (injectors, PT pump), the turbocharger, and the cooling system. Regular maintenance is the best prevention. For a detailed guide, we can provide a KTA38-C1200 engine technical data sheet PDF that includes a comprehensive troubleshooting section.
Do you supply overhaul kits and replacement parts?
Yes, in addition to complete engines, HekoPower is a genuine Cummins KTA38 supplier for all related components. We can provide a complete KTA38-C1200 overhaul kit parts list, ensuring you have the correct parts for any maintenance or repair job.
