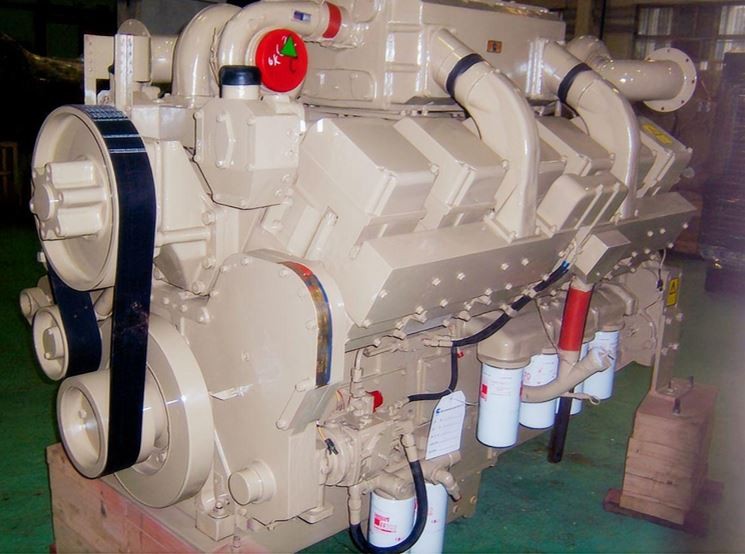

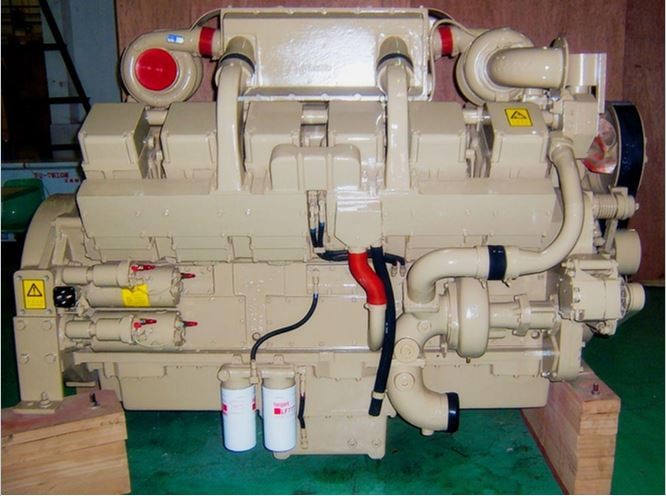

Cummins KT38-C925: High-Performance 925HP CCEC Industrial Diesel Engine
The Cummins KT38-C925 is a high-performance 37.7L V12 turbocharged industrial diesel engine developed by Chongqing Cummins Engine Co., Ltd.. Designed for heavy-duty construction and mining environments, this engine delivers 690kW (925HP) at 2100rpm and a peak torque of 4095N·m @1300rpm, ensuring reliable performance under continuous load conditions.As a core product supplied by HekoPower, this model is widely used in mining trucks, oil field drilling equipment, pavers, and heavy construction machinery, where durability and torque stability are critical.
Tech Specs of Cummins KT38-C925
General Engine Data
Engine Model: Cummins KT38-C925
Type: 12 Cylinders in Line, V Type
Displacement: 37.7 L
Bore * Stroke: 159 * 159
Overall Dimension: 2003mm*1362mm*1661mm
Net Weight (with flywheel & alternator): 3606 Kg
Key Performance Data
Rated Power: 690 kW/925HP
Rated Speed: 2100 rpm
Continuous Output/Rated Speed: 582 kW/780HP @1800 rpm
Max Torque/Speed: 4095 N.m @ 1300 rpm
Fuel Consumption @ Rated Power: 215g/Kw.h
Max. Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro II
Aspiration: Turbocharged-Intercooled
Fuel System: Direct Injection PT Pump, STC
Compression Ratio: 13.9:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 31 L
Key Technical Advantages of KT38-C925
High-Torque Output for Heavy Load Applications
The KT38-C925 features a low-speed, high-torque design, making it ideal for demanding environments such as mining and infrastructure projects. Its torque curve ensures stable output even under fluctuating loads, improving operational efficiency.
Superior Cooling and Combustion System
The engine features a KT38-C925 dual pump two loop cooling system and a large capacity integral aftercooler, critical for KT38-C925 cooling system requirements for tropical climates. With a 31L cooling fluid volume, it maintains stability even at the 2000m max continuous running altitude. Internally, the KT38-C925 dual Ni-resist aluminum alloy piston and offset piston pin liner cavitation protection ensure longevity, reducing maintenance intervals significantly.
Durable Internal Structure
- Dual Ni-resist aluminum alloy pistons
- Offset piston pin design to reduce liner cavitation
- Heavy-duty crankshaft for long service life
Cold Start and Fuel System Reliability
Equipped with a Mechanical fuel system Cummins PT fuel system KT38-C925 explanation available upon request, this engine guarantees reliability. It boasts a CCEC KT38-C925 -12℃ starting temp no auxiliary system, making it perfect for remote locations without pre-heating infrastructure.
Fuel Efficiency & Operating Performance
At 75% load, the KT38-C925 achieves excellent fuel efficiency, making it suitable for long-duration industrial use. The Cummins PT mechanical fuel system ensures precise fuel delivery and stable combustion performance.
Industry Applications: Where the KT38-C925 Excels
Construction & Earthmoving
Ideal as a KT38-C925 engine for excavator and bulldozer operations, specifically for machines requiring over 900HP.
Mining & Drilling
Specifically engineered as a CCEC KT38-C925 for oil field drilling machine and KT38-C925 for mining truck and grader. Its high torque curve handles the sudden load spikes of drilling rigs effortlessly.
Oil & Gas
The CCEC KT38-C925 for oil field drilling machines provides the steady power required for deep-well operations.
Industrial Machinery
Often utilized as a Cummins KT38-C925 for iron planing machines and large-scale pavers.
Power Generation
The go-to Cummins V12 diesel engine for 800kW - 1000kW generator sets, offering KT38-C925 fuel efficiency at 75% load rating that outperforms competitors.
Comparison Guide
KT38-C925 vs KTA38-C1050
Many clients ask about the KT38-C925 vs KTA38-C1050 difference. While both share the 38L platform, the C925 is tuned for a 582kW 780HP @1800rpm continuous output, making it more fuel-efficient for applications that don’t require the 1050HP peak of its sibling. If your project demands high torque but seeks to lower the KT38-C925 fuel consumption per hour, the C925 is the superior technical choice.
Compared with higher-output models, the KT38-C925 offers:
- Lower fuel consumption at mid-load
- Better suitability for continuous duty applications
- More cost-effective solution for 800–1000kW power systems
KT38 vs QSK38
While QSK38 provides electronic control and higher emissions compliance, KT38-C925 remains preferred for:
- Simpler mechanical systems (easy maintenance)
- Lower initial investment
- Proven reliability in remote job sites
Why Choose HekoPower for Your KT38-C925?
When you buy KT38-C925 diesel engine wholesale from HekoPower, you are securing more than just hardware; you are investing in a partnership.
- Genuine Quality: We guarantee a K38-C series KT38-C925 original CCEC engine, never refurbished unless explicitly stated.
- Commercial Terms: We offer CCEC KT38-C925 absolute wholesale price new machine with flexible 12 months warranty T/T L/C payment options.
- Fast Delivery: Understand your urgency with our Cummins KT38-C925 15 business days lead time and efficient KT38-C925 engine lead time and delivery protocols.
- Support: Access our comprehensive Cummins KT38-C925 maintenance guide, KT38-C925 service manual download, and KT38-C925 complete overhaul kit and spare parts list.
If you are looking for other models of the Cummins K38-C Series, HekoPower also provides high-quality products such as Cummins KTA38-C1050 and Cummins QSK38-C. Cummins k38-C Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes KT38-C925, KTA38-C1050, KTA38-C1100, KTA38-C1200, KTA38-C1400, QSK38-C.
