Complete HND Deutz TBD620V16 2240HP Diesel Engine Solutions

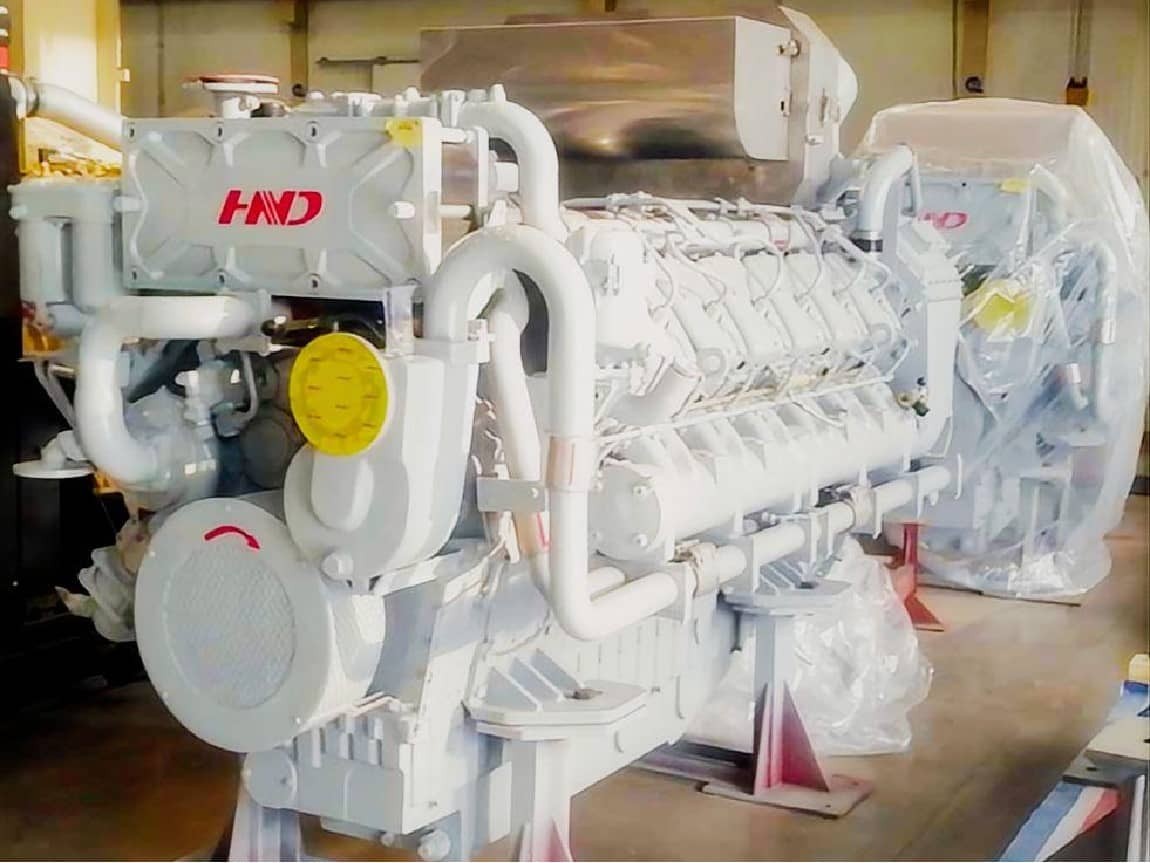

As a specialized commercial marine power distributor, HekoPower supplies the complete HND Deutz TBD620V16 marine propulsion engine for heavy-duty maritime applications. Manufactured by the Henan Diesel Engine Plant under authorized Deutz MWM technology, this 1658kW marine main propulsion engine is engineered for continuous, high-load operations.
Whether you are designing a new commercial vessel or replacing an aging powertrain, securing a reliable high power marine propulsion diesel engine is critical to your operational profitability. We do more than just ship heavy machinery. We act as your comprehensive China TBD620V16 engine supplier, providing factory-fresh engine assemblies, classification society certifications, and lifelong technical support.
Tech Specs of Deutz TBD620V16 2240HP Diesel Engine
General Engine Data
Engine Model: Deutz TBD620V16-2240HP
Type: 16 Cylinders, V Type 90°, 4 Stroke
Displacement: 70.88 L
Bore * Stroke: 170 * 195
Wet Weight (with heat exchanger): 6290 Kg
Overall Dimension: 3400mm*1450mm*2180mm
Key Performance Data
Rated Power: 1658 kW/2240 HP
Rated Speed: 1800 rpm
Lubricant Oil Consumption: ≤1.4 g/kW.h
Low Idle Speed: 650 rpm
Fuel Consumption: 205 g/kW.hr
More Technical Data
Certification: CCS/IMO Certificates
Aspiration: Turbocharged and Intercooled
Fuel System: Direct Injection Pump
Compression Ratio: 13.5:1
Starting Method: Electrical Start (12V/24V)
Cooling Method: Water Cooled
Governor Type: Electronic/Mechanical
Technical Comparisons in the 2200HP Class
When evaluating a Deutz TBD620V16 2240HP engine for sale against competing 2000HP-class alternatives, marine architects must consider total displacement, fuel economy, and system complexity.
The HND TBD620V16 70.88L displacement specs provide a significant advantage over smaller, highly stressed engines attempting to reach the 2200HP threshold. A larger displacement operating at a conservative 1800 RPM (or the optional TBD620V16 1658kW 1500rpm diesel engine variant) ensures the engine does not have to overwork to maintain hull speed in rough seas.
Fuel efficiency is another critical factor for commercial operators. The Deutz TBD620V16 fuel consumption 205 g/kWh is highly competitive for mechanical injection engines. Unlike modern common-rail systems that require ultra-pure, heavily filtered fuel to prevent catastrophic injector failure, the mechanical direct injection system on the Deutz MWM TBD620V16 engine is incredibly robust. It tolerates the varied fuel qualities often found in remote ports, making it vastly superior for global commercial fleets.
Furthermore, the TBD620V16 marine engine weight and dimensions offer a structural advantage. Competitor engines delivering similar output often require heavily reinforced hull beds due to their massive cast-iron inline blocks. The V16 diesel engine for commercial vessel applications distributes its weight more evenly, lowering the vessel's center of gravity and simplifying the engine mounting process during shipyard integration.
Real Application Scenarios and Driveline Integration
Purchasing a bare engine is rarely enough. A successful installation requires exact matching between the engine, the marine transmission, and the vessel's operational profile. As a dedicated Deutz TBD620V16 2240HP complete marine power pack provider, we tailor the setup to your specific hull.
TBD620V16 Engine for Fishing Vessel Applications
Deep-sea trawlers require consistent, low-end torque to drag heavy nets through unpredictable currents. The 2240HP marine propulsion engine excels here due to its rapid turbocharger spooling. We frequently assist shipyards with Deutz TBD620V16 marine gearbox matching Advance ZF systems. By utilizing deep-reduction gearboxes, this engine can turn massive, slow-spinning propellers to maximize towing efficiency without engine lugging.
TBD620V16 Engine for Tug Boat Operations
Harbor tugs and pushboats live and die by their maneuverability and bollard pull. The HND TBD620V16 V16 marine propulsion engine provides near-instant throttle response. Because it is a turbocharged engine with optimized charge-air cooling, captains experience zero hesitation when shifting from idle to full ahead during critical docking maneuvers. This marine diesel engine for workboat propulsion is trusted heavily in coastal harbors worldwide.
TBD620V16 Engine for Cargo Vessel Fleets
For inland freighters and coastal cargo ships, continuous operation is the only priority. The TBD620V16 1658kW 1800RPM technical parameters allow these vessels to maintain steady cruising speeds for days at a time. The robust cooling circuit ensures that even under maximum cargo loads in tropical waters, the engine temperatures remain firmly within safe operational limits.
Engine Maintenance, Overhaul, and Parts Procurement
Prolonging the life of your investment requires strict adherence to the TBD620V16 marine engine maintenance interval. HekoPower operates as a primary TBD620V16 engine spare parts supplier, ensuring you are never left waiting at the dock for essential service items.
Routine TBD620V16 cooling system maintenance is vital. We supply replacement raw water pump impellers and heat exchanger gaskets to prevent salt-water scaling and thermal degradation. When your engine reaches its mid-life service interval, a TBD620V16 turbocharger replacement may be necessary to restore optimal air-to-fuel ratios and eliminate black exhaust smoke.
For major rebuilds, we stock the complete HND TBD620V16 spare parts and overhaul maintenance kit. Because this engine utilizes individual cylinder heads and wet-type cylinder liners, chief engineers can perform in-situ overhauls. This means you can install TBD620V16 engine overhaul parts directly inside the engine room without cutting through the vessel's deck to extract the engine block, saving tens of thousands in shipyard fees.
Repowering and Replacing Deutz TBD620V16 Propulsion Engines
If your current power plant has reached the end of its operational lifespan, choosing a TBD620V16 marine engine replacement is a straightforward process. As an experienced TBD620V16 marine engine exporter, we ensure the new HND TBD620V16 engine assembly for sale arrives fully tested and configured for your existing engine bed. We provide comprehensive layout drawings to help your naval architects align the new engine with your existing shaft and exhaust systems, minimizing costly downtime.
Addressing Common Misconceptions
There is a common misconception that a 16-cylinder V type marine engine is overwhelmingly complex to maintain compared to a 6-cylinder unit. In reality, the modular design of the Deutz TBD620V16 70.8L diesel engine makes it highly serviceable. Every cylinder head is identical and can be lifted by a single mechanic.
Another misunderstanding involves the TBD620V16 fuel consumption at rated load. Some operators believe a larger engine inherently burns excess fuel. However, because the 1658kW marine propulsion diesel engine generates massive torque effortlessly, it often operates at a lower load percentage than a smaller engine struggling to push the same hull, ultimately saving fuel over long voyages.
Exploring Alternative Power Configurations
As your dedicated marine power partner, we understand that power requirements vary heavily based on specific hull designs, operational routes, and engine room constraints. While the 16-cylinder, 2240HP model detailed above is our flagship offering in this displacement class, we fully support the entire engine family to ensure an exact match for your naval architecture.
Deutz TBD620-Marine Propulsion Series, Marine Propulsion Diesel Engines for commercial and recreational applications, original products from Henan Diesel Engine Plant (HND). This series mainly includes TBD620V6-970HP, TBD620V8-1120HP, TBD620V12-1680HP, TBD620V12-1850HP, TBD620V16-2240HP, TBD620V16-2500HP.
Frequently Asked Questions (FAQ)
How can I get an accurate HND TBD620V16 engine price?
Because every vessel requires different classification certificates and gearbox configurations, a standard TBD620V16 diesel quotation requires a brief consultation. Contact our sales team with your vessel type and desired transmission, and we will provide a comprehensive, itemized pricing sheet within 24 hours.
Are these engines compliant with international maritime regulations?
Yes. We are a CCS IMO certified TBD620V16 marine engine supplier. We can provide engines with full emissions compliance documentation and classification society certificates necessary for global commercial operation and insurance underwriting.
Do you supply the original HND Deutz TBD620V16 engine assembly?
Absolutely. When you buy original HND Deutz TBD620V16 engine assemblies from HekoPower, you receive brand-new, factory-tested equipment. We do not sell refurbished or second-hand engines as new.
Can you ship to my designated shipyard internationally?
Yes. As a global TBD620V16 marine engine supplier, we handle all export logistics, heavy-lift freight crating, and customs documentation to ensure your engine arrives safely at your designated shipyard anywhere in the world.
