Details

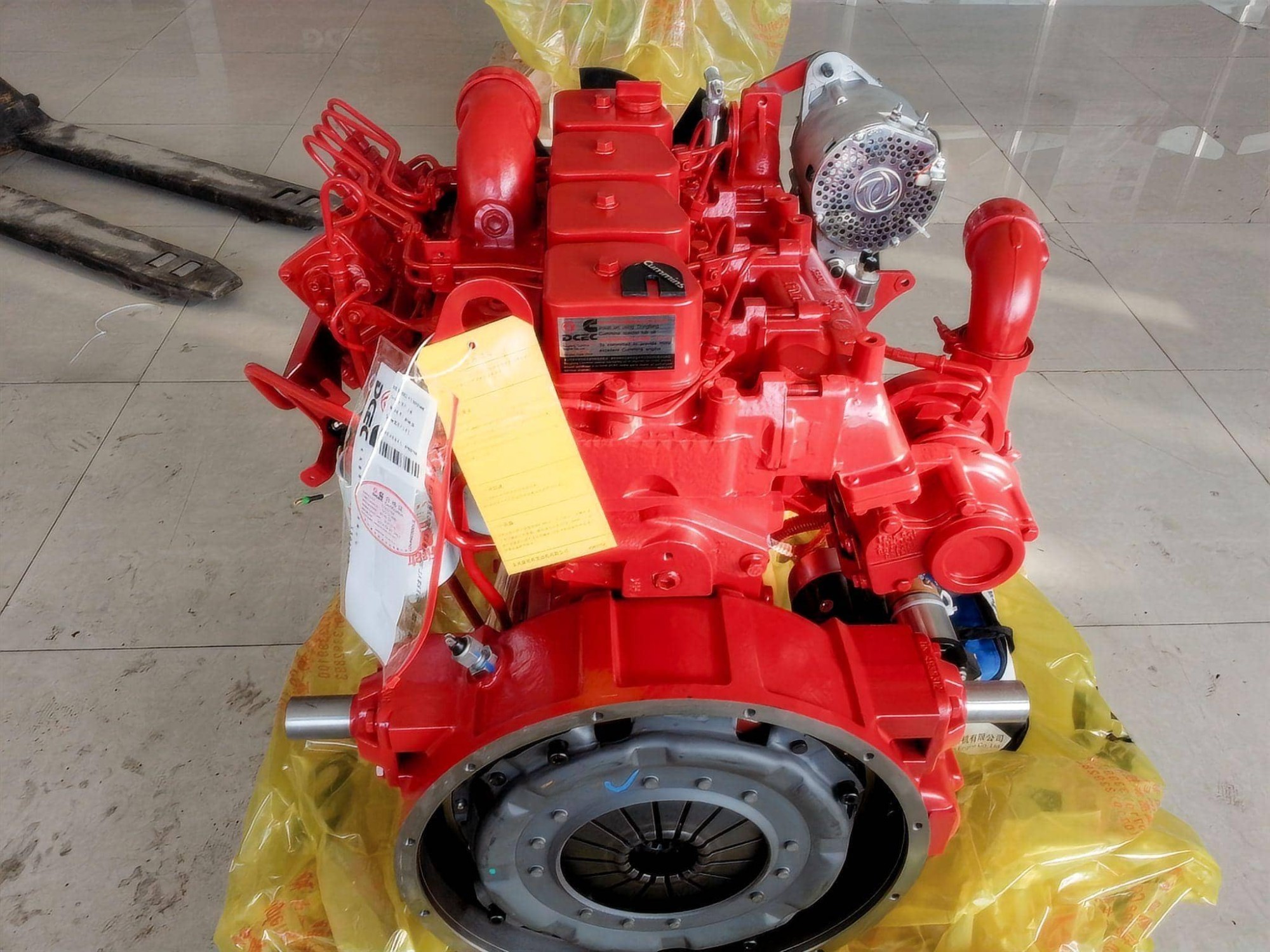

Genuine Cummins B140-33 Automotive Engine (4BT3.9, 140HP)
When commercial fleets and truck manufacturers require uncompromising reliability combined with straightforward mechanical architecture, they turn to the Cummins B140-33 automotive engine. Manufactured by Dongfeng Cummins Engine Co., Ltd (DCEC), this 4-cylinder in-line diesel engine represents the peak of the 3.9L Cummins B series engine family. Delivering 103kW of power, the B140-33 diesel engine is specifically engineered for light to medium-duty commercial transport. As a leading Cummins B140-33 engine exporter and wholesale supplier, HekoPower provides complete, factory-fresh engine assemblies ready to drop into your chassis, eliminating the downtime associated with rebuilding aging blocks.
Tech Specs of Cummins B140-33
General Engine Data
Engine Model: Cummins B140-33
Type: 4 Cylinders in Line
Displacement: 3.9 L
Bore * Stroke: 102 * 120
Net Weight (with flywheel & alternator): 362 Kg
Overall Dimension: 778mm*634mm*912mm
Key Performance Data
Rated Power: 102 kW/140HP
Rated Speed: 2700 rpm
Max Torque/Speed: 520 N.m @ 1500 rpm
Fuel Consumption @ Rated Power: 234 g/Kw.h
Max. No-load Governed Speed: 3050 rpm
Idle-Speed: 750 rpm
Max Continuous Running Altitude: 3000 m
More Technical Data
Certification: Euro II
Aspiration: Turbocharged & Intercooled
Fuel System: Wuxi Weifu Pump
Compression Radio: 17.3:1
Electrical System (Starter Motor/Alternator): 12V (500A)/24V (250A)
Lowest Starting Temp Without auxiliary system: -10℃/-25℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 7.0 L
Core Capabilities of the 3.9L Cummins B Series Engine
Engineered for the demands of constant stop-and-go urban transport and regional hauling, the Cummins 4BT3.9 B140-33 engine assembly maximizes power density within a compact cast-iron footprint. Operating at a peak engine speed of 2700 RPM, it strikes a precise balance between fuel economy and pulling power.
The physical durability of this 140HP Cummins truck engine stems from its forged steel crankshaft, heavy-duty connecting rods, and plateau-honed cylinders which drastically reduce oil consumption. By pushing 140 horsepower out of a compact four-cylinder block, engineers utilized a highly efficient forced-induction setup. The Cummins B140-33 turbocharged intercooled engine uses an exhaust-driven turbo to force air into the cylinders, while the charge-air cooler (intercooler) strips away the heat generated by compression. This delivers a dense, oxygen-rich air charge into the combustion chamber. This specific thermal management system optimizes the Cummins B140-33 fuel consumption and max torque output, allowing the engine to generate an impressive 502 Nm to 520 Nm of torque at just 1500 RPM. This low-end grunt is essential for getting fully loaded trucks moving on steep gradients without excessive clutch wear.
Technical Comparisons for the B140-33 (Mechanical vs. Electronic)
Commercial engine buyers often evaluate the Cummins B140-33 against smaller displacement variants like the B125-33, or against newer electronic platforms like the ISF3.8 or ISDe140. Choosing the 3.9L 140HP Cummins diesel engine comes down to prioritizing mechanical simplicity and field repairability.
Compared to electronic common-rail engines, the Cummins B140-33 Euro II emissions standard platform relies on a completely mechanical fuel delivery system. The Cummins B140-33 with Bosch / Wuxi Weifu fuel pump operates without complex Engine Control Modules (ECM), wiring harnesses, or sensitive electronic sensors. If a truck breaks down in a remote region or a developing export market, local mechanics can easily adjust the mechanical pump timing, bleed the fuel lines, and replace standard mechanical injectors without needing proprietary computerized diagnostic tools. This lack of electrical complexity results in a massive reduction in fleet downtime.
Furthermore, when comparing the 4BT3.9 B140-33 engine to six-cylinder models, this four-cylinder configuration offers a superior power-to-weight ratio for light chassis. Weighing approximately 362 kilograms dry, it leaves more available weight capacity for actual cargo payload while still delivering the necessary 140HP output required for highway speeds.
Real Application Scenarios for the DCEC B140-33
Where exactly is the original Dongfeng Cummins B140-33 engine deployed? Its primary home is inside light to medium-duty commercial vehicles. It serves as the factory powertrain for various Dongfeng truck configurations, including regional transport lorries, municipal water trucks, and agricultural cargo vehicles.
Because HekoPower operates as a primary Cummins B140-33 engine China supplier, we frequently export this exact model to automotive assembly plants, fleet operators, and aftermarket retrofitters across Southeast Asia, Africa, and South America. In these operating environments, transport companies prioritize the physical ruggedness of the engine block over advanced emission electronics. Drivers hauling payloads ranging from 3 to 8 tons rely heavily on the consistent 103kW engine output to maintain momentum on poorly paved routes. The mechanical robustness of the Cummins B140-33 engine for Dongfeng truck applications ensures that varying qualities of local diesel fuel will not immediately cripple the vehicle, a common issue with highly sensitive Euro IV or Euro V electronic engines.
Maintenance, Troubleshooting, and Replacement Engine Tips
When fleets seek a replacement engine for Cummins B140-33 units, they often experience premature failures due to simple operational misconceptions. A highly common error following a new engine installation is neglecting the turbocharger oil feed system. Because the B140-33 operates at high internal temperatures, heavy acceleration immediately after a cold start will starve the turbocharger bearings of lubricating oil. We strictly advise operators to allow a three-minute idle period on cold startups, and a similar cool-down idle before shutting the engine off after a heavy highway run.
Another critical maintenance requirement involves the fuel delivery system. While the Cummins B140-33 Weifu fuel pump is exceptionally durable, mechanical injection pumps rely entirely on the diesel fuel itself for internal lubrication. They are highly sensitive to water contamination. Operators must drain the water-in-fuel separator daily and replace the primary fuel filters according to the 140HP 4-cylinder in-line diesel engine specs (typically every 250 hours). Excess water passing through the system will score the fuel pump plungers and corrode the injector nozzles, leading to hard starting, white exhaust smoke, and a severe drop in the engine's 140HP output.
When purchasing a Cummins B140-33 replacement engine, procurement teams must also verify the scope of the assembly. HekoPower supplies complete turnkey assemblies. This means the engine arrives with the starter motor, alternator, fuel injection pump, and turbocharger pre-installed and factory-calibrated. Attempting to bolt worn, aging external accessories onto a fresh short block frequently leads to underperformance and voids the baseline reliability of the new unit.
Comprehensive Cummins Engine Supply
Before HekoPower ships your Cummins B140-33 engine assembly, our export logistics team secures the heavy cast-iron unit in reinforced fumigated wooden crating to eliminate the risk of transit damage. While the specifications of this 3.9L 140HP Cummins diesel engine make it the ideal, highly reliable solution for light and medium-duty transport, fleet requirements vary widely based on chassis dimensions and maximum payload demands.
Some operators may require lower horsepower outputs for lighter urban delivery chassis, while heavy-haul construction fleets may require the larger displacement of a six-cylinder configuration. To accommodate the entire spectrum of commercial transport and industrial power needs, HekoPower supplies the complete, genuine lineup of Dongfeng Cummins powerplants to match any operational requirement.
DCEC B Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes B125-33, B140-33, B160-33, B170-33, B180-33, B190-33, B210-33.
Frequently Asked Questions (FAQs)
How can I verify I am receiving a genuine DCEC B140-33 engine?
Every original Dongfeng Cummins B140-33 engine carries a riveted metal dataplate bolted to the timing gear housing. This plate contains the unique Engine Serial Number (ESN) and the Control Parts List (CPL) number. As a trusted Cummins B140-33 wholesale supplier, HekoPower guarantees that every engine we export can be authenticated directly through the global Cummins QuickServe database. We only provide factory-new engines, never rebuilt or grey-market blocks disguised as new.
What is the standard Cummins B140-33 price and lead time?
Pricing for commercial diesel engines fluctuates slightly based on raw steel costs and factory production schedules. However, because HekoPower operates as a direct factory supplier, we bypass intermediary markups to keep the Cummins B140-33 engine price highly competitive for international buyers. The standard lead time for a standard B140-33 engine for sale is typically 10 to 15 business days to arrive at the Chinese export port. Custom configurations requiring specific PTO (Power Take-Off) setups or specialized air compressors may require minor additional lead time.
Can I replace a damaged electronic engine with this mechanical B140-33?
We frequently receive technical inquiries asking if the mechanical B140-33 truck engine can replace a newer ISDe or ISBe common-rail engine to avoid continuous electrical faults in harsh environments. While the physical engine mounts, footprint, and bell housing dimensions are largely identical across the 3.9L Cummins B series engine family, converting from electronic to mechanical is not a direct plug-and-play swap. It requires modifying the vehicle's dashboard wiring harness, swapping the electronic throttle pedal for a mechanical linkage cable, and altering the air intake piping. Our engineering team can provide guidance on this process provided your local transport regulations legally permit installing a Cummins B140-33 Euro II emissions standard engine into your specific chassis.
