Details

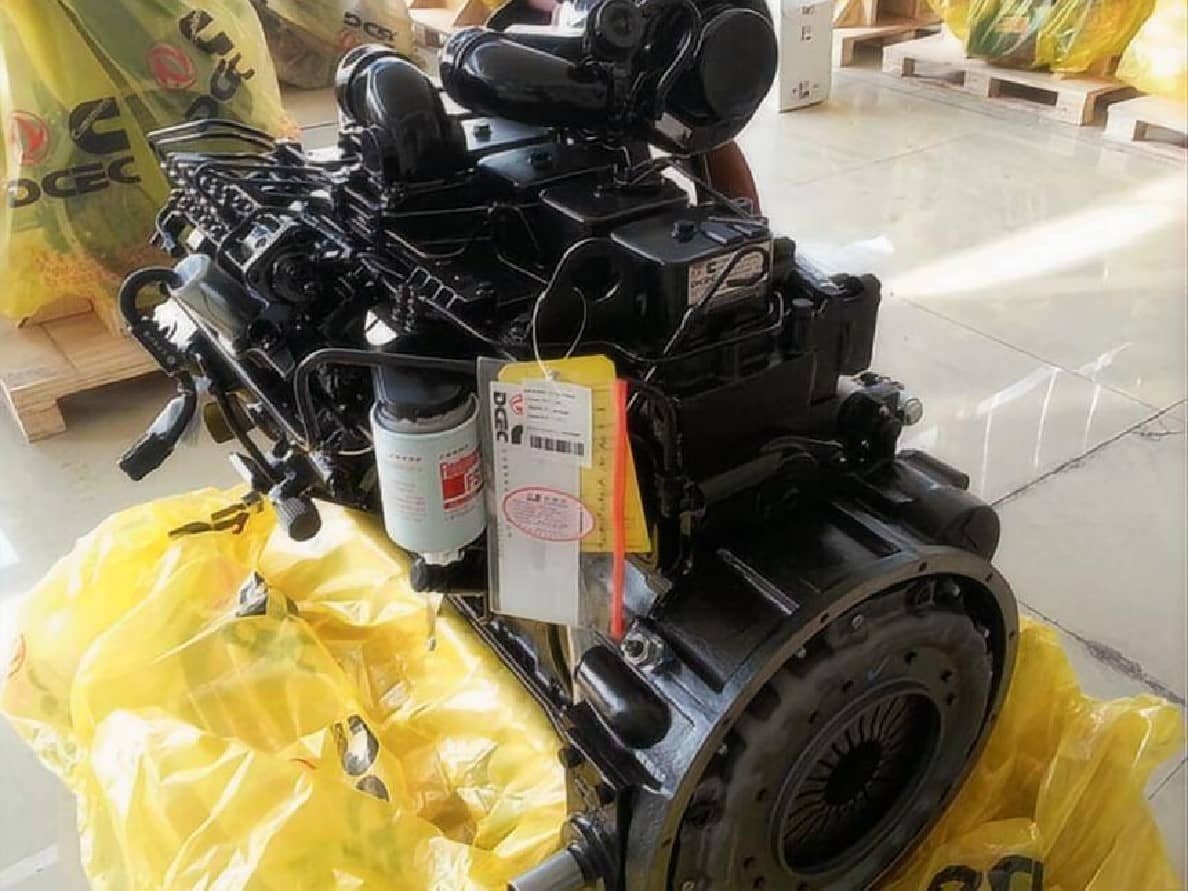

DCEC Cummins B160-33 Engine Assembly
The Cummins B160-33 automotive engine is a foundational powerplant for mid-range commercial transportation worldwide. Manufactured by the Dongfeng Cummins Engine Company (DCEC), this robust 5.9L 6-cylinder diesel engine delivers a highly reliable 118kW and 160HP at 2500 rpm. HekoPower operates as a direct genuine Cummins B160-33 engine supplier, delivering the complete engine configuration to global logistics fleets, municipal transport departments, and heavy machinery repair centers. Unlike newer, highly computerized platforms, the Cummins B160-33 mechanical diesel engine relies on proven physical engineering, making it the premier choice for operators in remote locations who require durability and straightforward field maintenance. When evaluating a Cummins B160-33 complete engine for your fleet, understanding its specific torque curves, mechanical fueling systems, and emission standards is critical to minimizing vehicle downtime.
Tech Specs of Cummins B160-33
General Engine Data
Engine Model: Cummins B160-33
Type: 6 Cylinders in Line
Displacement: 5.9 L
Bore * Stroke: 102 * 120
Net Weight (with flywheel & alternator): 413 Kg
Overall Dimension: 1026mm*699mm*912mm
Key Performance Data
Rated Power: 118 kW/160HP
Rated Speed: 2500/2600 rpm
Max Torque/Speed: 570 N.m @ 1500-1600 rpm
Torque/Rated Speed: 550 N.m @ 1600 rpm
Fuel Consumption @ Rated Power: 242 g/Kw.h
Max. No-load Governed Speed: 2750±50 rpm
Idle-Speed: 750±100 rpm
Max Continuous Running Altitude: 3000 m
More Technical Data
Certification: Euro II
Aspiration: Turbocharged & Intercooled
Fuel System: Wuxi Weifu Pump
Compression Radio: 17.3:1
Electrical System (Starter Motor/Alternator): 12V (500A)/24V (250A)
Lowest Starting Temp Without auxiliary system: -10℃/-25℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 9.0 L
Technical Comparisons for the 5.9L B-Series
Fleet managers frequently need to evaluate the Cummins B160-33 vs B170-33 performance differences before finalizing a purchase. Both powerplants share the identical Cummins 6-cylinder 5.9L engine block architecture, but their fueling calibrations differ significantly. When analyzing the Cummins B160-33 118kW vs 125kW power gap, the B170-33 offers slightly higher peak horsepower. However, the B160-33 160HP engine provides an incredibly flat, consistent torque curve that is optimized for stop-and-go urban routes. Buyers will often notice variations in technical data sheets comparing B160-33 570Nm vs 500Nm torque outputs; this variance simply depends on the specific governor settings and transmission pairings ordered by the original vehicle manufacturer. For pure fuel efficiency in standard commercial hauling, the B160-33 remains superior.
Another vital engineering comparison is the Cummins B160-33 vs EQB160-20. The primary distinction here is the emissions classification. The EQB160-20 was engineered for Euro II compliance, whereas the B160-33 Euro III engine meets stricter environmental standards while maintaining mechanical simplicity. Many fleet mechanics prefer the B160-33 truck engine because it completely avoids the complex Electronic Control Modules (ECM) found on the ISDe series. The absence of high-pressure common rail electronics means you will not suffer from sensor-related breakdowns, making the 160HP Cummins vehicle diesel engine exceptionally reliable in extreme weather or high-dust environments.
Real Application Scenarios in Commercial Transport
The Dongfeng Cummins B160-33 truck engine is explicitly engineered for commercial vehicles operating under variable load stresses. It is widely installed as the factory-standard powerplant for medium-duty flatbeds, municipal dump trucks, and regional distribution vans. The engine's low-end torque allows these heavy commercial vehicles to accelerate smoothly from a dead stop without straining the drivetrain, which significantly extends the life of the vehicle's clutch and transmission.
Beyond freight, this platform excels in passenger transport. As a dedicated B160-33 bus engine and B160-33 coach engine, it provides the steady, unfluctuating power required to operate large pneumatic braking systems and heavy air-conditioning compressors simultaneously. City transit buses face grueling operating conditions with constant idling and acceleration. The 5.9L Cummins B160-33 commercial vehicle engine manages these thermal loads efficiently due to its high-capacity water pump and optimized cylinder head cooling passages. When aging transit fleets require repowering, the B160-33 engine replacement for Dongfeng truck and bus chassis offers a seamless, drop-in solution that restores factory-level reliability without requiring a costly total vehicle replacement.
Expert Maintenance and Engine Replacement Tips
Sourcing a DCEC B160-33 replacement engine requires verifying exact hardware configurations to guarantee a successful installation. A common misconception among buyers is that any Cummins B5.9 engine can be swapped effortlessly into any chassis. This is false. You must verify Cummins 6BT5.9 B160-33 Wuxi Weifu pump compatibility with your vehicle's existing throttle linkage. Attempting to install a mechanically injected B160-33 into a truck originally wired for an electronic engine will require extensive dashboard and wiring harness modifications. Knowing how to identify Cummins B160-33 engine data plates on the timing gear cover is the first step every mechanic must take before ordering.
Proper maintenance of the B160-33 Wuxi Weifu fuel pump is the single most important factor in engine longevity. Because this is a mechanical fuel injection engine, any water or particulate contamination passing through the fuel filter will permanently score the high-pressure pump plungers. Fleet operators must enforce strict fuel water-separator draining schedules. Additionally, while the B160-33 bore and stroke of 102x120mm creates a highly durable rotating assembly, mechanics must not neglect periodic valve lash adjustments. Because it is a mechanical pushrod engine, failing to adjust the intake and exhaust valve clearances every 1,500 hours will eventually lead to poor compression, increased B160-33 fuel consumption, and noticeable power loss on highway inclines.
Core B-Series Availability and Global Export
When investing in commercial powertrains, partnering with an established DCEC Cummins B160-33 engine assembly supplier guarantees you receive factory-calibrated, dyno-tested equipment rather than rebuilt units of questionable origin. HekoPower operates as a primary Cummins B160-33 engine exporter, supporting heavy machinery fleets globally.
DCEC B Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes B125-33, B140-33, B160-33, B170-33, B180-33, B190-33, B210-33.
Frequently Asked Questions (FAQs)
What are the official B160-33 engine torque and fuel consumption ratings?
The B160-33 fuel consumption and torque specs are highly optimized for commercial returns. The engine delivers a peak torque ranging from 500Nm to 570Nm at a low 1400 rpm. This early torque delivery allows truck drivers to shift gears sooner, resulting in an excellent brake specific fuel consumption rate of approximately 242g/Kw.h under standard hauling loads.
What are the exact B160-33 engine dimensions and packing weight for shipping?
Logistics planning requires exact data. The physical B160-33 engine dimensions are approximately 1095mm in length, 744mm in width, and 905mm in height. The bare B160-33 engine weight is roughly 413kg. However, as a professional Cummins B160-33 complete engine supplier, HekoPower secures the assembly in a reinforced wooden export crate, bringing the final B160-33 engine dimensions and packing weight to roughly 453kg for international sea or air freight.
How fast is the Cummins B160-33 engine lead time?
For an original DCEC B160-33 engine supplier like HekoPower, rapid deployment is standard. Our typical Cummins B160-33 engine lead time is approximately 10 to 15 business days, depending on current warehouse stock and custom export packaging requirements. We advise fleet managers to request a formal Cummins B160-33 engine quotation with their exact destination port to receive precise transit schedules.
Can I use the B160-33 2500 rpm engine for a power generator?
No. The B160-33 5.9L 160HP engine specifications are strictly designed for automotive traction applications. The B160-33 diesel engine utilizes a variable speed governor inside the Wuxi Weifu pump to handle accelerating vehicle loads. Diesel generator sets require engines equipped with a constant-speed governor locked at 1500 rpm or 1800 rpm to maintain stable electrical frequencies.
Do you provide Cummins B160-33 engine assembly wholesale pricing for large fleets?
Yes. As a dedicated Cummins B160-33 engine wholesale supplier, HekoPower provides tiered pricing structures for logistics companies, bus operators, and regional repair facilities purchasing multiple units. A bulk Cummins B160-33 engine price will significantly lower your per-unit capital expenditure when executing a fleet-wide 160HP Cummins truck engine replacement program.
