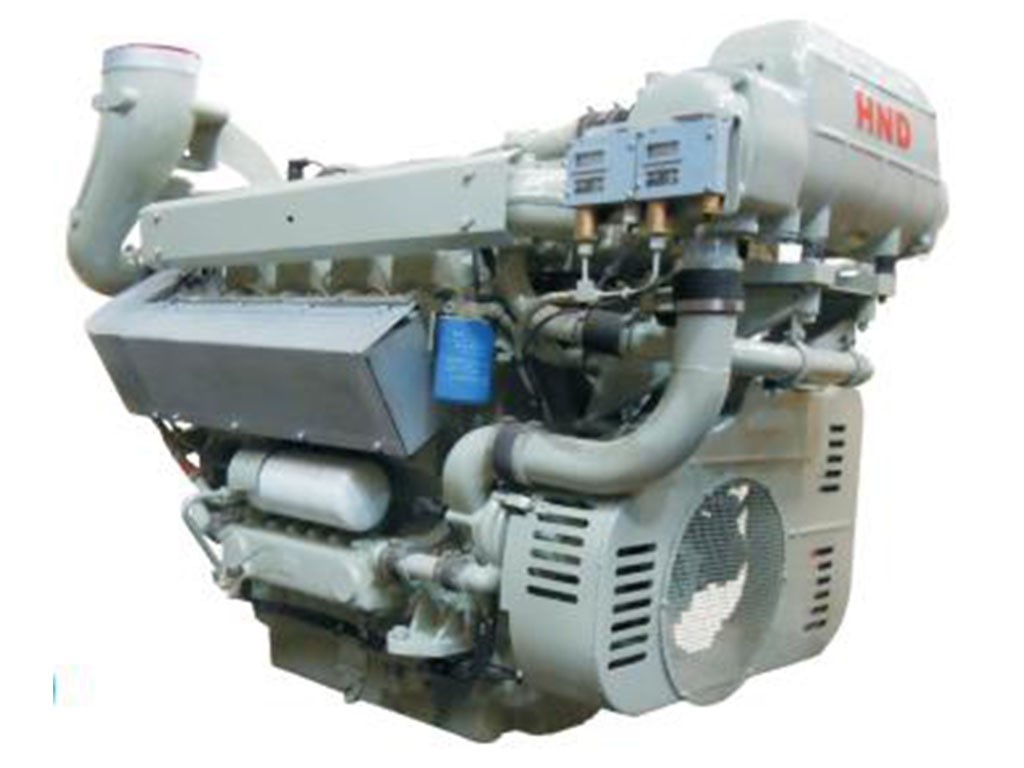

Engineering Overview of the Deutz TD234V6 Construction Engine
Operating heavy construction machinery requires an engine that delivers continuous torque under extreme job site conditions. The Deutz TD234V6 construction diesel engine is engineered specifically to meet these rigorous demands. As a robust V-configuration power unit, it balances a compact footprint with high displacement, making it a preferred choice for medium-to-heavy earthmoving equipment. Operating at a steady 1500 RPM with a continuous output rating of 121 kW, this 6-cylinder powerplant provides the steady mechanical reserve needed for cyclic loading applications like wheel loaders and large excavators.
Unlike high-speed automotive derivatives, the TD234V6 series emphasizes mechanical durability, heavy-duty crankcase rigidity, and thermal management. HekoPower supplies these units directly to international contractors and equipment rebuilders who require authentic performance data rather than superficial sales brochure summaries. When evaluating a heavy-duty power upgrade or replacement, understanding the precise architectural layout of this 10.8-liter displacement engine ensures seamless integration into existing equipment chassis without requiring costly drivetrain modifications.
Tech Specs of Deutz TD234V6 Construction Engine
General Engine Data
Engine Model: Deutz TD234V6-Construction Diesel Engine
Type: 6 Cylinders, V Type
Displacement: 10.8 L
Bore * Stroke: 128 * 140
Ignition Sequence: A1-B2-A3, B1-A2-B3
Key Performance Data
Continuous Power/Speed (kw/rpm): 121kW/1500 rpm
Intermittent Power/Speed (kw/rpm): 138kW/1800 rpm
Minimum Speed At Full Load: 1000 rpm
Idle Speed: 650 rpm
Fuel Consumption rate/ mean effective pressure at the MCFN power (g/kW.h/MPa): 210/0.90 @ 1500 rpm. 213/0.85 @ 1800 rpm
More Technical Data
Certification: Euro II
Fuel System: Direct Injection Pump
Governor Type: Mechanical Governor
Turning: Contrarotate (face to flywheel)
Cooling Method: Water Cooled
Compression Radio: 15:1
Technical Comparison: TD234V6 vs. Standard Inline 6-Cylinder Engines
Fleet managers often debate whether to choose a V-form engine like the Deutz TD234V6 or a conventional inline 6-cylinder alternative of comparable output. Inline engines generally offer easier side-access for auxiliary components, but they demand a significantly longer engine bay. In contrast, the 90-degree V6 architecture of the TD234V6 compresses the overall length of the block. This allows equipment manufacturers to optimize weight distribution over the front axle of a loader or compact crawler carrier.
Furthermore, the crankshaft design of the TD234V6 features shorter throw spans, which drastically reduces torsional vibration harmonics compared to long inline configurations. This structural rigidity minimizes crankshaft fatigue during high-load digging phases. When sourcing this engine through HekoPower, technical teams verify that cooling fan drives and flywheel housings match precise OEM clearance requirements, preventing the cooling efficiency drops commonly reported when retrofitting generic inline units into V-form dedicated compartments.
Real Application Scenarios on Heavy Construction Sites
The true capability of the Deutz TD234V6 is best observed in demanding field environments. On large-scale earthmoving projects, wheel loaders face constant hydraulic shock loads as buckets penetrate packed aggregate. The torque curve of the TD234V6 allows the engine to recover RPM rapidly without excessive governor hunting, keeping hydraulic pump flow steady.
Another primary application is powering heavy-duty mobile crushers and screening plants operating in remote quarries. These environments expose the power unit to high ambient temperatures and airborne dust. The turbocharged aspiration of the TD234V6 compensates for altitude-induced power loss up to moderate elevations, ensuring that crushing throughput remains consistent throughout long operational shifts. HekoPower routinely configures these units with heavy-duty dual-stage air filtration packages tailored specifically for high-particulate construction zones.
Maintenance, Replacement Tips, and Common Misconceptions
Proper upkeep dictates the lifespan of any industrial diesel engine. A frequent misconception among operators is that V6 engines require identical maintenance intervals for both cylinder banks regardless of exhaust manifold temperatures. Due to asymmetrical cooling airflow in certain tight engine compartments, technicians should regularly inspect the rear cylinder bank for signs of localized thermal stress.
When executing a full engine replacement with a unit supplied by HekoPower, always flush the external hydraulic oil coolers and radiator cores thoroughly. Debris from a failed predecessor engine frequently hides in oil lines and heat exchangers, leading to premature bearing scoring on the newly installed TD234V6. Additionally, ensure that the mechanical injection pump timing is verified using pin gauges rather than relying solely on visual alignment marks during initial commissioning.
Deutz TBD234-Construction Diesel Engine Series, original products from Henan Diesel Engine Plant (HND). This series mainly includes TBD234V6-Construction Diesel Engine, TD234V8-Construction Diesel Engine, TBD234V8-Construction Diesel Engine, TBD234V12-Construction Diesel Engine, TD234V6-Construction Diesel Engine, TD234V8-Construction Diesel Engine.
Frequently Asked Questions
What is the continuous power rating and operational speed of the Deutz TD234V6?
The engine delivers a continuous output of 121 kW at a regulated speed of 1500 RPM, making it ideal for continuous industrial duty cycles where thermal stability is critical.
Can the TD234V6 serve as a direct replacement for older TBD234 series variants?
Yes, the TD234V6 shares the core block dimensions of the TBD234 family. However, minor adjustments to exhaust routing and control linkages may be necessary depending on the specific machinery model year. HekoPower technical staff assist customers in verifying compatibility prior to shipment.
What type of fuel injection system does this construction engine utilize?
It relies on a heavy-duty mechanical injection pump system, which offers superior tolerance to varying diesel fuel qualities found in remote global job sites compared to sensitive electronic common-rail setups.
How does HekoPower ensure safe international transit for complete diesel engines?
Every unit supplied by HekoPower is securely bolted to a custom fumigation-free wooden skid, sealed in moisture-barrier anticorrosion wrap, and fitted with port protective caps to safeguard internal components during ocean or air freight.
