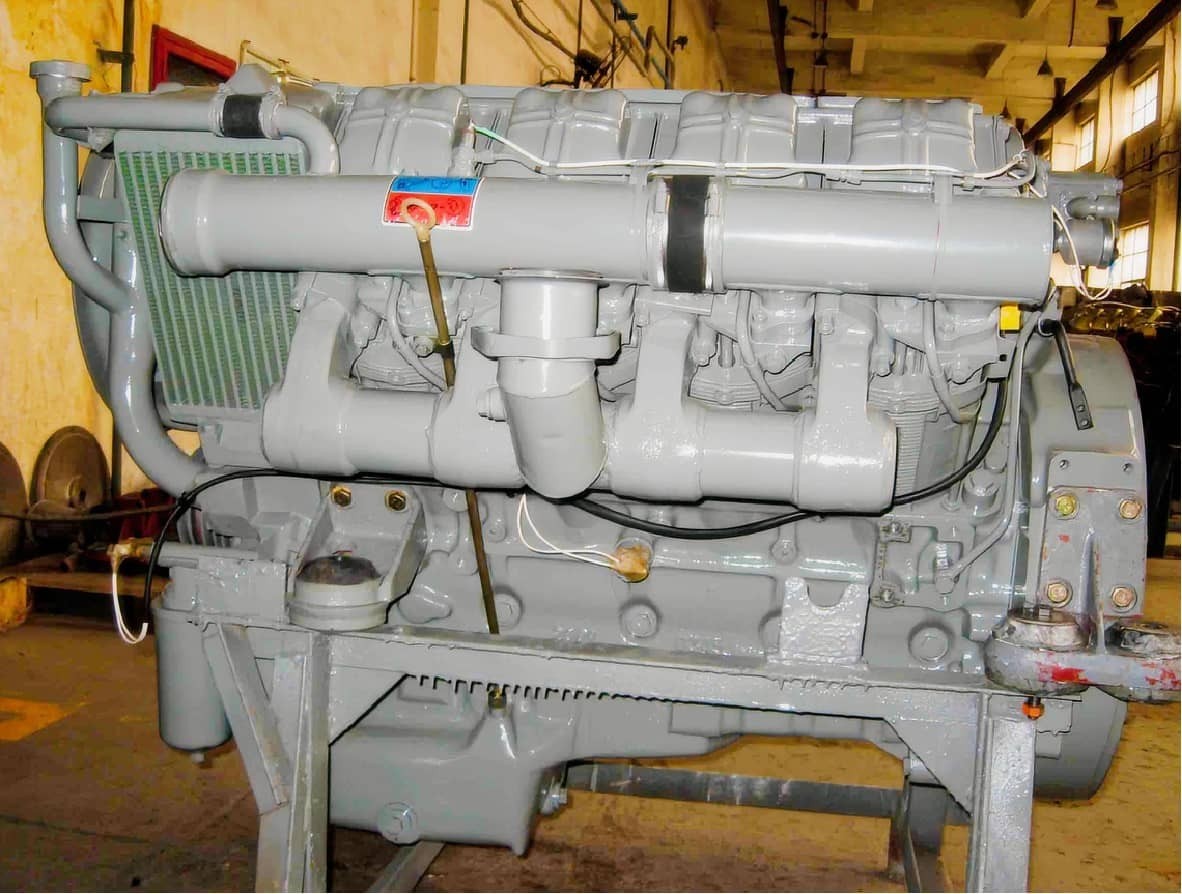

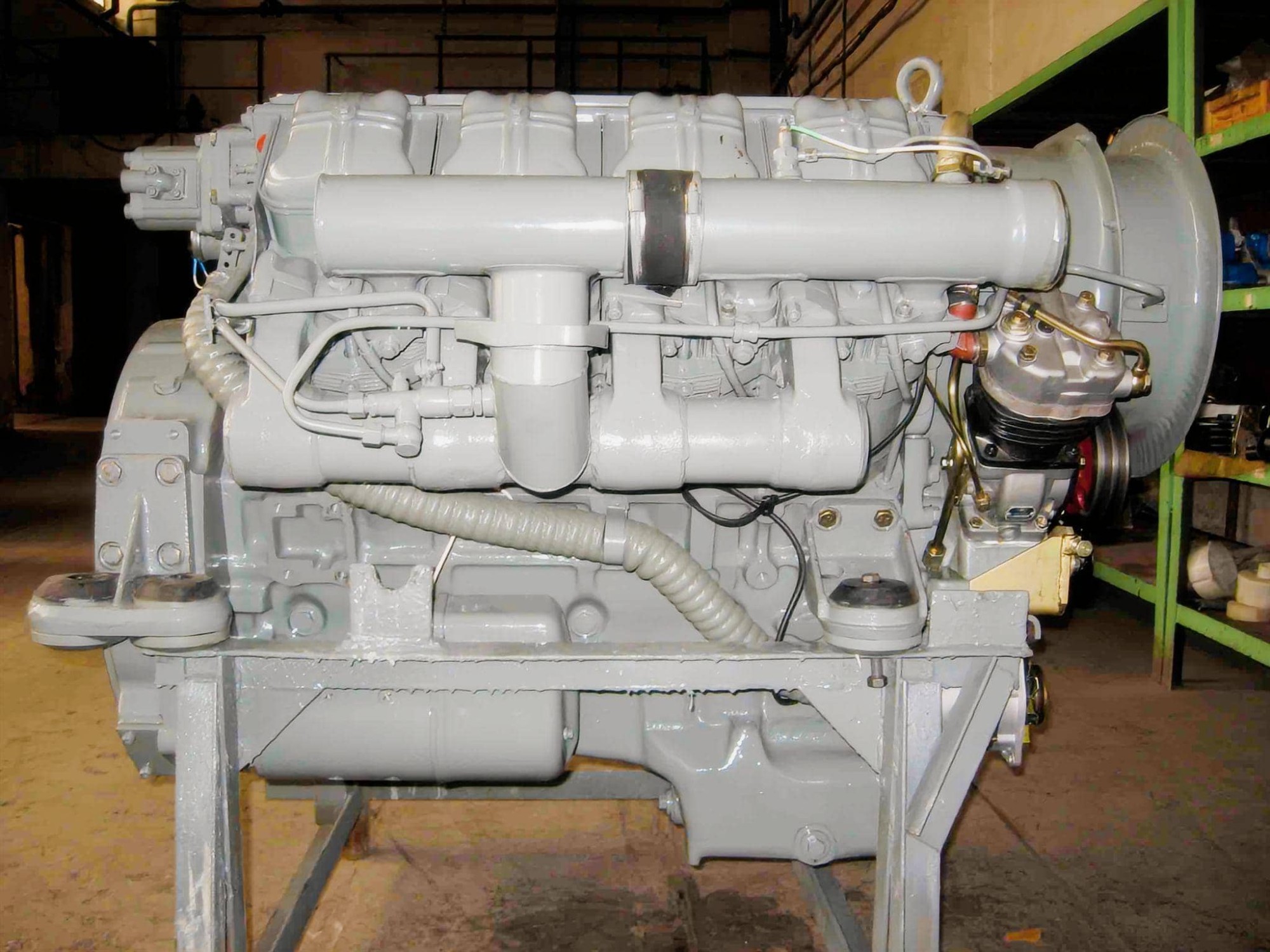

Huachai Deutz F8L413F Vehicle Diesel Engine: Assembly & Technical Guide
The Deutz F8L413F is a naturally aspirated, 12.76-liter V8 air-cooled diesel engine engineered for heavy-duty commercial vehicles, off-highway haulers, and specialized equipment operating in extreme thermal conditions. Manufactured under official license by Huachai (North China Industries Group), the F8L413F eliminates the entire liquid cooling loop—radiator, water pump, hoses, and coolant—delivering high operational reliability where ambient temperatures range from -35°C to +50°C.
HekoPower supplies complete Deutz F8L413F engine assemblies, individual power units, and exact-fit OEM replacement engines for repower projects, fleet overhauls, and industrial machine integration.
Tech Specs of Deutz F8L413F Vehicle Diesel Engine
General Engine Data
Engine Model: Deutz F8L413F-Vehicle Diesel Engine
Type: 8 Cylinders, V Type
Displacement: 12.763 L
Bore * Stroke: 125 * 130
Net Weight (with flywheel and alternator): 770 Kg
Overall Dimension: 1211mm*1038mm*860mm
Key Performance Data
Continue Power As Per ISO3046: 117 kW/1500 rpm, 157 kW/2300 rpm
Intermittent Power As Per ISO3046/1: 165 kW/2500 rpm
Highly Intermittent: 174 kW/2500 rpm
Max. Torque/Rated Speed: 817 N.m @ 1500 rpm
Max. Power/Speed: 188 kW/2500 rpm
Fuel Consumption: 216 g/Kw.h
More Technical Data
Certification: Euro II
Aspiration: Natural Aspirated
Fuel System: Direct Injection Pump
Compression Ratio: 18:1
Starting System: Electronic Starting (12V/24V)
Cooling Method: Air Cooling
Governor Type: Mechanical/Electronic Governor
Product Differentiation: F8L413F vs. Alternative 413 & 513 Models
Selecting the right replacement engine requires understanding structural distinctions within the Deutz air-cooled lineup. Many suppliers treat the 413 and 513 series identically, leading to mounting, cooling, or power mismatches during installation.
F8L413F vs. F6L413F
The 6-cylinder F6L413F (9.57L) shares the same 125 mm bore and 130 mm stroke but produces less total torque (613 N·m max). The V8 F8L413F adds 3.19 liters of displacement, providing the necessary low-end torque required for loaded heavy-duty trucks and mining haulers without adding the physical length of an inline engine.
F8L413F vs. BF8L413FC (Turbocharged Intercooled)
While the forced-induction BF8L413FC generates higher peak output (up to 235 kW), the naturally aspirated F8L413F delivers simpler mechanical operation with fewer failure points. The absence of a turbocharger and charge air cooler reduces exhaust gas temperatures under prolonged low-speed lugging, making the naturally aspirated F8L413F preferred for dusty underground mining and remote construction sites.
F8L413F vs. BF8L513
The 513 series features an increased stroke (132 mm) and modified cooling fin architecture. While the overall footprint is similar, flywheel housings, fan shroud geometries, and oil cooler mountings differ. HekoPower verifies your existing engine serial number (ESN) prior to dispatch to ensure drop-in alignment.
Real-World Application Scenarios
The air-cooled V8 design excels in environments where water-cooled engines suffer from radiator clogging, coolant freezing, or boiling.
Heavy-Duty Off-Highway & Mining Trucks
In underground mining, liquid radiators rapidly clog with slurry and rock dust, causing overheating. The F8L413F uses direct air fin cooling, eliminating 40% of standard engine maintenance routines associated with cooling loops.
All-Terrain Military & Emergency Vehicles
Huachai Deutz engines are widely specified in tactical transport vehicles. Rapid warm-up capability and thermal resilience allow these vehicles to operate immediately under high-throttle demands without warm-up delays or thermal shock risk.
Maintenance & Engine Replacement Guide
Proper care ensures a service life exceeding 15,000 operational hours before major overhauls.
Critical Operational Maintenance Rules
- Air Cooling Fin Cleanliness: Inspect cylinder fins and the axial blower ducting every 250 hours. Dust, oil haze, or debris accumulation between cylinder fins restricts air passage, causing localized cylinder hot spots. Wash fins with solvent or high-pressure air directed from the inside outward.
- Axial Blower Belt Tension: Check the automatic belt tightener or fluid-coupling blower drive every oil change interval. A loose drive belt reduces cooling air mass flow, leading to rapid cylinder head temperature spikes.
- Oil Quality & Filtration: Air-cooled engines rely heavily on engine oil for internal heat dissipation. Use high-thermal-stability 15W-40 heavy-duty diesel oil. Replace oil and oil filters every 250 hours or annually.
Replacement & Retrofit Checklist
When replacing an aging original Deutz or Huachai engine with a fresh HekoPower complete assembly, complete these verification steps:
- Flywheel Housing SAE Size: Confirm whether your application requires SAE 1 or SAE 2 housing dimensions.
- Electrical System Voltage: Specify whether the starter motor and alternator need a 12V or 24V configuration.
- Governor Configuration: Match your vehicle setup—mechanical speed governor for standard truck linkages or electronic governor for precise generator/PTO drive control.
- Oil Pan Design: Select between shallow-well pans for low clearance or deep-well/dual-dip pans for steep-incline off-road vehicle operation.
Why Source Deutz Engines from HekoPower?
HekoPower supplies factory-tested Huachai Deutz engines and genuine replacement components, offering significant technical advantages over general traders:
- Direct Licensing & Genuine Quality: Sourced directly from Huachai, maintaining original German engineering tolerances and material specifications.
- Full Pre-Shipment Bench Testing: Every complete assembly undergoes load-bank and oil-pressure testing before crating, with test reports provided.
- Customized Power Packs: We configure radiator/blower arrangements, air intake positions, and flywheel connections to match your vehicle chassis.
- Comprehensive Spare Parts Inventory: Complete support for overhaul kits, individual cylinder sets, fuel injection pumps, and cooling blowers.
Deutz FL413-Vehicle Diesel Engine Series, original products from Huachai Deutz Engine Plant. This series mainly includes F8L413F-Vehicle Diesel Engine, BF8L413F-Vehicle Diesel Engine, F10L413F-Vehicle Diesel Engine, F12L413F-Vehicle Diesel Engine.
Frequently Asked Questions (FAQ)
What is the power output range of the Deutz F8L413F engine?
The standard vehicle-rated F8L413F delivers 117 kW (157 hp) at 1500 RPM up to 157 kW (210 hp) at 2300 RPM. Peak intermittent configurations reach up to 188 kW depending on governor settings and application needs.
How does an air-cooled engine handle hot desert environments?
Air-cooled engines operate at higher stable cylinder wall temperatures than water-cooled engines. Because the cooling medium is atmospheric air, the temperature differential between the cooling fins and 45°C ambient air remains high, ensuring efficient heat rejection without coolant boiling risks.
Can HekoPower supply a direct replacement for an old Deutz Germany F8L413F?
Yes. Huachai Deutz F8L413F engines share identical mounting dimensions, bolt patterns, and technical specifications with original German-produced 413F units, serving as a direct drop-in replacement.
What is the difference between F8L413F and F8L413FW?
The "W" designation indicates a two-stage combustion system designed for underground mining equipment. It reduces toxic exhaust emissions (CO and NOx) in confined spaces. Standard "F" models feature direct injection for maximum fuel economy in highway and surface applications.
