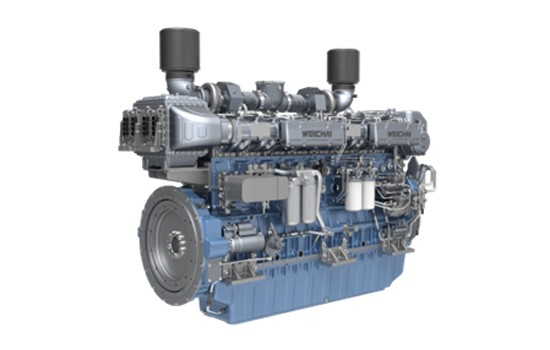

Weichai 8WH17C1251-5 Marine Propulsion Engine: Commercial Specifications, Architecture, and Global Supply
Selecting an industrial-grade main powerplant for a commercial hull dictates a fleet's bottom-line operational efficiency for decades. As a specialized global Weichai marine engine supplier, distributor, and engineering exporter, HekoPower provides the commercial maritime sector with comprehensive technical clarity and end-to-end supply chain transparency. The Weichai 8WH17C1251-5 represents the high-output configuration within the advanced Weichai WH17 marine engine family. Co-developed through a strategic design partnership between the Weichai Group and Germany's powertrain consulting authority, FEV, this medium speed marine engine brings electronic common-rail engine management to demanding commercial maritime operations.
The 8WH17C1251-5 marine propulsion engine is engineered for vessels requiring uninterrupted high-torque performance under a continuous P1 heavy-duty rating. Delivering a calibrated 920 kW marine diesel output—equivalent to a true 1251 Hp marine propulsion engine (or 1251 HP marine engine) — at a rated crankshaft speed of 1500 rpm, this platform integrates a highly responsive electronic common rail marine engine fuel management system. This technical combination eliminates the operational vulnerabilities common to legacy mechanical engines while ensuring full environmental compliance.
Tech Specs of Weichai 8WH17C1251-5
General Engine Data
Engine Model: Weichai 8WH17C1251-5
Cylinder Count: 8 Cylinders in Line
Engine Type: 4-stroke, water cooled, in-line, turbocharged and aftercooled
Total Engine Displacement: 40.31 L
Bore * Stroke: 170×222 (mm)
Net weight: 4600 kg
Overall Dimension: 2917×1147×1805 (mm)
Key Performance Data
Rated Power: 920 kW / 1251 HP
Rated Speed: 1500 RPM
Idle Speed: 500 RPM
Minimum fuel consumption rate: 190 g/kW.h
Oil consumption rate: ≤0.3 g/kW·h
More Technical Data
Certification: IMO Tier II / China Stage II Inland Marine
Aspiration: turbocharged and aftercooled
Starting system: Electrical
Rotation(facing the flywheel) : Counter-clockwise
Fuel system: HPCR
Power rating: P1
Noise: ≤111 dB(A)
Technical Comparisons: Overcoming Commercial Performance Gaps
For procurement executives intending to buy Weichai marine engine assets, comparing technical advantages against legacy heavy-duty platforms or alternative European and American powerplants highlights the structural benefits of the 8WH17 platform.
High-Pressure Common Rail (HPCR) vs. Legacy Mechanical Injection Systems
Older powerplants rely on mechanical unit injection pumps or inline mechanical jerk pumps. These mechanical designs link the fuel injection pressure directly to engine speed. Consequently, at lower speeds or idle, the injection pressure drops, leading to incomplete combustion, visible black smoke, and fuel dilution in the engine oil.
The Weichai HPCR marine engine breaks this dependency. The fuel injection rail pressure is maintained independently of engine RPM by an electronic control module (ECM). This precise timing control delivers a fuel consumption savings of up to 4% to 6% compared to mechanical propulsion units across traditional commercial duty cycles.
High Explosion Pressure and Torque Reserves
The structural design of the Weichai 8WH17 marine engine supports a higher peak explosion pressure (up to 170 bar) than other engines in its displacement class. Combined with a mushroom-shaped wastegate turbocharger system, the engine achieves a torque reserve exceeding 20%. Even when operating at 50% of its rated speed, this engine can access up to 115% of its calibrated torque specification. This ensures quick vessel acceleration and strong low-end thrust when fighting strong head currents or maneuvering under heavy load.
Real-World Commercial Application Scenarios
The 920kW marine propulsion engine specification provides an ideal power-to-weight profile across several light and medium commercial hull designs.
High-Performance Marine Engine for Fishing Boats
In deep-sea trawler and purse seiner operations, the main powerplant is subjected to sudden, severe load shifts when dragging heavily loaded nets. The replacement marine main engine for fishing boats 920kW program favors this 8-cylinder platform because the electronic engine management adapts fuel delivery in milliseconds. This rapid adjustment prevents thermal shocking of the cylinder liners during quick changes in load.
Marine Diesel Engine for Workboats and Pushers
Harbor tugs, mooring workboats, and pushers require high durability and steady multi-axis thrust. The marine diesel engine for workboats configuration delivers excellent low-speed handling because its high torque output prevents stalling when shifting between ahead and astern under heavy strain.
Propulsion Engine for Passenger Ferry and Coastal Cargo Vessels
For fleet managers overseeing a propulsion engine for passenger ferry layout or a marine engine for cargo vessel operation, runtime reliability is a primary financial metric. The 8WH17C1251-5 operates smoothly inside its optimal fuel economy window during long hauls, minimizing fuel costs for coastal transport marine engine runs. Its small footprint also maximizes space within twin-engine catamaran engine rooms.
Engineering Maintenance Guidelines & Component Replacement Tips
HekoPower supports shipboard engineers by offering detailed maintenance strategies that extend equipment life and ensure the engine achieves its rated design life.
Achieving the 20,000-Hour Overhaul Benchmark
The Weichai WH17 series 20000 hours overhaul marine diesel target is achieved through deliberate structural choices:
- Vermicular Graphite Cast Iron Block: The engine block features an advanced grid design that resists deck distortion under extreme firing pressures.
- Individual Cylinder Heads: The "one block, one head" design prevents a head gasket failure from spreading to adjacent cylinders, simplifying top-end repairs.
- Non-Stop Duplex Filtration: Both the fuel delivery and lubrication systems feature changeover duplex filters. This allows engineers to safely swap out clogged filter elements while the engine is fully running under load, avoiding operational downtime.
The "Stormy Wave Mode" Safety Protocol
Standard industrial electronic common rail engines are programmed to shut down automatically if an engine sensor records an out-of-bounds pressure or temperature reading. However, an unexpected engine shutdown during a storm can put a vessel in immediate danger.
The Weichai WH17 series resolves this with its "Stormy Wave Mode" safety protocol. When activated on the bridge terminal during an emergency, the ECM switches to a specialized override logic. It will sound safety alerts but prevent automated engine shutdowns, ensuring the captain maintains propulsion control when navigating hazardous sea states.
Retrofit and Engine Swap Best Practices
When using the 8WH17C1251-5 as a drop-in replacement for older, less efficient engines, HekoPower recommends verifying the following alignment criteria:
- Foundation Bed Stiffness: Verify that existing shipboard engine girders are level and can support the 4,600 kg dry mass without flexing.
- Cooling System Capacity: The engine relies on a dual-circulation freshwater/raw-water heat exchanger with a cast aluminum heat exchanger shell. Ensure the hull's sea-chest intake valves can supply the raw-water pump's required volume.
- Exhaust Backpressure Limits: Ensure exhaust trunking dimensions match the outlet of the turbocharger to prevent high backpressure, which can cause premature turbocharger wear.
Weichai 8WH17 series marine diesel engine, original products from Weichai. This series mainly includes 8WH17C900-1, 8WH17C952-1, 8WH17C1000-2, 8WH17C1156-2, 8WH17C1200-3, 8WH17C1251-5, 8WH17C1360-5.
B2B Procurement FAQs
What factors determine the Weichai 8 cylinder common rail marine engine price?
The Weichai marine engine price depends on specific classification society type-approvals (such as CCS, BV, ABS, or DNV-GL) and your selected accessory configurations, including matching marine gearboxes or remote digital control setups. Contact our commercial sales department for an itemized quotation for a Weichai 8WH17C1251-5 for sale tailored to your project.
Can HekoPower supply authentic Weichai marine engine spare parts?
Yes. As an authorized genuine Weichai marine engine supplier, HekoPower maintains a large inventory of replacement parts. We supply Weichai marine engine spare parts such as common rail electronic injectors, turbocharger repair kits, custom gaskets, cylinder liners, and raw-water cooling pumps to minimize vessel downtime.
Can this high-pressure common rail engine run on Heavy Fuel Oil (HFO)?
No. To protect the micro-precision tolerances of the high-pressure common rail fuel system, the 8WH17C1251-5 must run on standard Marine Diesel Oil (MDO) or Marine Gas Oil (MGO). Running the engine on unblended heavy fuel oil will cause immediate damage to the fuel injectors.
Is HekoPower an authorized exporter and supplier for the entire Weichai marine engine line?
Yes, HekoPower serves as a premier global Weichai marine engine distributor and Weichai marine engine exporter, supplying complete propulsion packages, gensets, and matching marine components worldwide.
