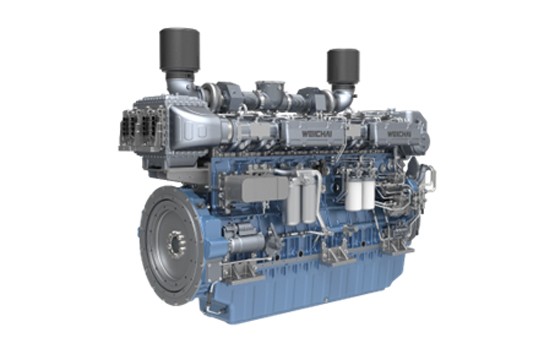

Weichai 8WH17C1156-2 Marine Diesel Engine: The Ultimate 850kW Propulsion Guide for Commercial Vessels
Choosing the right commercial vessel marine engine requires striking a delicate balance between upfront procurement costs, long-term fuel efficiency, and structural reliability under heavy load conditions. The Weichai 8WH17C1156-2 Marine Diesel Engine represents a highly precise midpoint calibration within the celebrated Weichai WH17 Series Marine Engine lineup.
Engineered as a powerful 8 cylinder marine diesel engine, this specific configuration generates a robust 850kW Marine Engine profile, equivalent to a 1156HP marine propulsion engine pulsing at a steady, stable 1200rpm marine propulsion engine speed rating.
As an established, authoritative medium speed marine diesel engine supplier and dedicated Weichai marine diesel engine distributor, HekoPower bridges the gap between raw factory specifications and on-water commercial reality. Below, we break down the engineering metrics, application logic, and maintenance protocols that separate the Weichai 8WH17 marine engine from its competitors, providing an exhaustive Weichai 8WH17C1156-2 specification breakdown for fleet owners worldwide.
Tech Specs of Weichai 8WH17C1156-2
General Engine Data
Engine Model: Weichai 8WH17C1156-2
Cylinder Count: 8 Cylinders in Line
Engine Type: 4-stroke, water cooled, in-line, turbocharged and aftercooled
Total Engine Displacement: 40.31 L
Bore * Stroke: 170×222 (mm)
Net weight: 4600 kg
Overall Dimension: 2917×1147×1805 (mm)
Key Performance Data
Rated Power: 850 kW / 1156 HP
Rated Speed: 1200 RPM
Idle Speed: 500 RPM
Minimum fuel consumption rate: 190 g/kW.h
Oil consumption rate: ≤0.3 g/kW·h
More Technical Data
Certification: IMO Tier II / China Stage II Inland Marine
Aspiration: turbocharged and aftercooled
Starting system: Electrical
Rotation(facing the flywheel) : Counter-clockwise
Fuel system: HPCR
Power rating: P1
Noise: ≤111 dB(A)
In-Depth Engineering Analysis of the Weichai 8WH17C1156-2
The core strength of the Weichai 8WH17C1156-2 lies within its deliberate mechanical architecture. Developed through global engineering alliances, it answers the rising demand for a cost-effective, durable alternative to Caterpillar marine engine configurations or high-cost European counterparts without compromising on raw torque density.
Power Delivery and Displacement Architecture
This Weichai 850kW marine diesel unit is built around a heavy-duty, inline 8-cylinder layout with a generous displacement envelope. The mechanical core features a 170mm bore and 222mm stroke. This long-stroke configuration allows for optimal thermal expansion and high low-end torque generation, meaning your vessel maintains steady propulsion power even when battling heavy head-currents or towing massive payloads. Turning at a controlled 1200 RPM, it sits comfortably in the medium-speed class, significantly lowering mechanical wear cycles compared to high-speed 1800+ RPM engines.
HPCR Common Rail Injection & Fuel Economy Metrics
A primary concern for any fleet operator looking up 8WH17C1156-2 fuel consumption is operational cost over a standard multi-day transit cycle. This configuration utilizes an advanced Weichai HPCR marine engine platform (High-Pressure Common Rail). Unlike traditional mechanical unit injectors, the electronically controlled Weichai common rail marine engine infrastructure maintains high fuel rail pressures regardless of the engine's RPM.
This ensures complete fuel atomization within the cylinder chamber. The resulting Weichai WH17 common rail marine diesel fuel consumption drops down to a minimum economic window of ≤185 g/kW·h. For an 850kW block operating at peak continuous load, this maps out to roughly 2,000 liters of diesel per day—shaving significant overhead off your standard operating margins.
Environmental Compliance and Material Integrity
The engine housing is forged from high-stiffness vermicular graphite cast iron, built to absorb an internal peak explosion pressure of 170 bar. Simultaneously, it serves as an IMO II compliant marine propulsion engine, deploying optimized internal combustion configurations that reduce NOx outputs to meet international maritime boundaries. This makes it a ready-to-deploy Weichai IMO II marine diesel setup for coastal and cross-border commercial corridors.
Real Application Scenarios: Where the 8WH17C1156-2 Excels
The specialized calibration of this engine means it is not a generic, one-size-fits-all block. It delivers maximum ROI when matched to precise marine work cycles.
The Ultimate Marine Engine for Fishing Vessel and Trawler Operations
Deep-sea trawlers experience highly volatile load shifts. While traveling to the fishing grounds, they require speed; while dragging deep-water nets, they require massive, unyielding low-end torque. As a dedicated commercial fishing boat engine Weichai 8WH17C supplier, HekoPower recommends this 8-cylinder unit because its massive 40.31L displacement handles sudden net load surges without choking or smoking, maintaining uniform vessel velocity under heavy drag.
Reliable Marine Propulsion Engine for Workboat and Tug Fleets
Harbor push-tugs and industrial workboats need responsive handling alongside long idling periods mixed with bursts of full-throttle strain. The HPCR system ensures that even when idling for hours in a channel, fuel combustion remains complete. This eliminates carbon buildup inside the exhaust valves, keeping the engine clean and responsive for the moment full power is called up to handle an incoming cargo barge.
Marine Engine for Passenger Ferry and Coastal Cargo Services
For a marine engine for passenger ferry lines or a diesel engine for coastal cargo vessel operators, schedule compliance is everything. The dual-circuit cooling system and dual switchable oil filter networks on the Weichai 8WH17 allow engineers to change filters and perform baseline safety checks while the engine is running, preventing transit delays and maintaining strict public or commercial transport timetables.
Critical Maintenance and Lifecycle Replacement Protocols
To ensure you achieve the full lifetime promise of your genuine Weichai WH17 marine engine, operators must adhere to rigorous, preventative upkeep cycles.
Standard Service Intervals and Fluid Changes
- Every 250 Hours: Inspect the common rail fuel lines, drain the water separator element, and replace primary fuel filters.
- Every 500 Hours: Perform a full engine lube oil flush and replace oil filter canisters. HekoPower stocks the precise, original-equipment factory filters required to keep your warranty valid.
- Every 2,000 Hours: Check valve clearances and test injector pressure patterns to ensure your fuel consumption stays at peak efficiency.
Sourcing Critical Spare Parts via HekoPower
When a vessel faces unexpected downtime, every hour sitting at a pier costs thousands in lost freight charges. As an authorized Weichai 1156HP marine engine supplier, HekoPower maintains an expansive inventory of critical replacement parts for the 8WH17 platform:
- High-pressure common rail fuel pumps and electronic injectors.
- Cylinder liners, piston rings, and main rod bearings.
- Turbocharger assemblies and integrated sea-water heat exchangers.
Weichai 8WH17 series marine diesel engine, original products from Weichai. This series mainly includes 8WH17C900-1, 8WH17C952-1, 8WH17C1000-2, 8WH17C1156-2, 8WH17C1200-3, 8WH17C1251-5, 8WH17C1360-5.
Frequently Asked Questions (FAQ)
How can I buy a Weichai 8WH17C1156-2 marine engine online safely?
While heavy machinery transactions are finalized through official commercial invoices, you can initiate the process to buy Weichai 8WH17C1156-2 marine engine online by submitting your vessel schematics and transmission parameters through the HekoPower RFQ portal. Our marine engineers will match the engine's output curve to your existing gearbox ratios to ensure optimal shaft performance.
What is included in the Weichai 8WH17C1156-2 price and specification sheet from HekoPower?
Our comprehensive pricing document includes the baseline engine block, matching control panel assemblies, remote monitoring links, factory-certified test run logs, and explicit documentation validating its position as a Weichai IMO Tier II marine engine 850kW supplier certified option.
Can this engine replace an older Caterpillar or Cummins unit without major hull modifications?
Yes. Because it features an inline-8 configuration rather than a wide V-block layout, it boasts a narrow physical footprint. HekoPower provides custom engine mount adapter kits to ease the alignment process, making it a highly streamlined alternative to Caterpillar marine engine updates during mid-life vessel refits.
