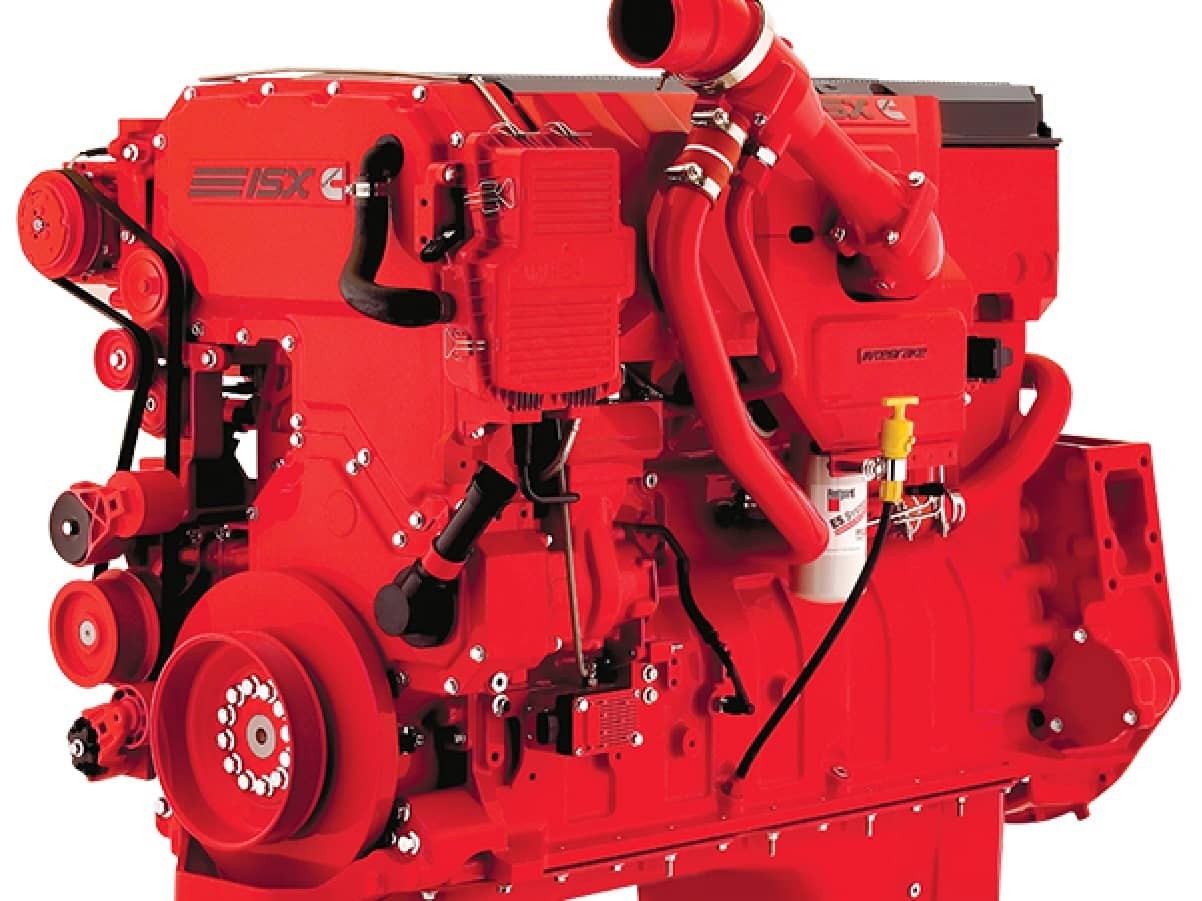

Cummins ISX 600 HP Heavy-Duty Diesel Engine Assembly
Moving from mid-tier 450 HP or 500 HP ISX configurations to the 600 HP (441 kW) output tier changes engine thermal and mechanical dynamics. Lower-rated ISX15 engines prioritize fleet fuel efficiency under standard highway loads. The ISX 600 is engineered specifically for heavy haulers requiring continuous torque output up to 2,050 lb-ft at 1,200 RPM. Achieving this rating requires specific ECM fuel mapping, increased oil cooler capacity, and reinforced cylinder head sealing to sustain peak cylinder pressures without thermal derating.
Legacy Cummins ISX engines utilized dual overhead camshafts (DOHC)—one controlling valve timing and the other driving mechanical fuel injectors. Late-model ISX 600 configurations transitioned to a single overhead camshaft paired with the high-pressure XPI common rail fuel injection system. The XPI setup operates independently of engine speed, delivering multiple precise injection events per combustion cycle at pressures exceeding 30,000 PSI. This delivers cleaner combustion, reduced engine noise, and immediate throttle response under heavy pull, setting it apart from older mechanical injector platforms found on competitor spec sheets.
Tech Specs of DCEC Cummins ISX 600
General Engine Data
Engine Model: Cummins ISX 600
Type: 6 Cylinders in Line
Displacement: 15 L
Net Weight (with flywheel & alternator): 1344 Kg
Key Performance Data
Rated Power: 441 kW/600HP
Rated Speed: 2000 rpm
Max. Torque/Speed: 2237 N.m @ 1200 rpm
Clutch Engagement Torque: 1356 N.m
More Technical Data
Certification: Euro III
Aspiration: Turbocharged/Charge Air Cooled+CEGR
Fuel System: Cummins XPI Fuel System/ECM
Emission Method: DPF/Aftertreatment
Starting System: Electrical Starting Motor 24V
Lowest Starting Temp Without auxiliary system: -15℃/-30℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 23.1 L
Heavy-Haul Application Scenarios & Driveline Matching
Severe-Duty Logistics and Heavy Equipment Transport
Deploying a 600-horsepower diesel engine requires chassis and application alignment. The Cummins ISX 600 is intended for high gross combination weight rating (GCWR) vehicles—including multi-axle heavy haulers, specialized equipment transporters, logging trucks, and mining support vehicles. At these weights, engine braking capability is as critical as forward traction. The integrated Intebrake system on the ISX 15-liter block generates over 600 braking horsepower, protecting service brakes during steep mountain descents.
Transmission, Axle, and Cooling Integration
Installing an ISX 600 replacement engine demands verification of surrounding chassis components. Pairing a 2,050 lb-ft torque engine with standard-duty 13-speed manual transmissions or undersized cooling packages causes rapid driveline wear and engine overheating. HekoPower advises verifying that your truck chassis features a high-capacity radiator (minimum 1,400 sq. in. frontal area), heavy-duty 18-speed manual or rated automated manual transmission (AMT), and high-torque driveshafts rated for severe-duty applications.
Maintenance, ESN/CPL Matching, and Replacement Tips
ESN and CPL Verification Prior to Ordering
To ensure a direct drop-in fit, buyers must identify their original Engine Serial Number (ESN) and Control Parts List (CPL) number. Cummins produced the ISX platform across multiple emissions eras (CM870, CM871, CM2250, and CM2350). The CPL number dictates the exact internal components used—including piston bowl geometry, turbocharger part numbers, injector flow rates, and ECM harness connections. Supplying your ESN to HekoPower allows our technical team to match your replacement ISX 600 assembly exactly to your vehicle's wiring harness and frame mounts.
Preserving the High-Pressure XPI Fuel System
Fuel contamination is the primary cause of premature XPI system failure. Operating at extreme injection pressures means fine particulate matter or water ingress quickly erodes injector needles and high-pressure pump plungers. Operators should enforce strict fuel maintenance by installing 2-micron primary fuel filters with integrated water separators. Replacing filters at designated intervals prevents internal fuel leakage, hard starting, and cylinder washdown.
Lubrication Schedule and Oil Capacity
The 15-liter ISX engine block holds approximately 14 gallons (53 liters) of engine oil. High-horsepower pulling creates elevated soot loads and oil shear. Utilizing API CK-4 heavy-duty engine oil and executing fluid sampling every 15,000 miles monitors fuel dilution and soot suspension, protecting main bearings and camshaft lobes from accelerated wear.
Common Misconceptions Regarding the ISX 600 HP Platform
Misconception 1: Software Flashes Can Safely Turn an ISX 450 Into an ISX 600
A common mistake among fleet operators is assuming that an ISX 450 or ISX 500 engine can be upgraded to 600 HP simply by reflashing the ECM software. While the physical block dimensions are identical, true factory-rated ISX 600 engines utilize CPL-specific heavy-duty pistons, distinct turbocharger turbine wheels, and upgraded oil cooling nozzles. Flashing high-horsepower software onto lower-rated internal hardware causes excessive exhaust gas temperatures (EGTs), cracked piston crowns, and turbocharger failure.
Misconception 2: Higher Horsepower Always Leads to Excessive Fuel Consumption
While an ISX 600 consumes more fuel at wide-open throttle than a smaller engine, it often achieves better fuel economy under severe loads. When pulling 100,000+ lbs, a lower-horsepower engine operates continuously at 100% load capacity with frequent downshifting. The ISX 600 provides sufficient torque to remain in high gear at lower engine speeds (1,200–1,400 RPM), reducing total engine revolutions and overall fuel burn per ton-mile.
Cummins ISX Engine Series Navigation & Model Compatibility
Selecting the ideal replacement engine requires matching your payload requirements with the correct output rating. While the 600 HP rating offers maximum pulling capacity for heavy haulers, HekoPower supplies complete engines, short blocks, and long blocks across the entire ISX family to meet diverse transport needs and budget parameters.
DCEC ISX Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes ISX 475, ISX 525, ISX 600.
Frequently Asked Questions (FAQ)
What is the exact power and torque rating of the Cummins ISX 600?
The Cummins ISX 600 delivers 600 horsepower (441 kW) at 2,000 RPM, producing a maximum torque output of 2,050 lb-ft at 1,200 RPM.
How does HekoPower ensure direct fitment for my replacement ISX 600 engine?
HekoPower cross-references your vehicle's original Engine Serial Number (ESN) and CPL against OEM build sheets. This guarantees that ECM pinouts, turbocharger orientations, flywheel housings, and engine mounts match your truck chassis precisely.
What is the lead time and export packaging standard for complete engines?
Complete ISX 600 engines undergo dyno inspection, fluid drainage, anti-corrosion treatment, and mounting inside export-standard fumigated wooden crates. Typical order processing and dispatch lead time is around 10 business days.
Does HekoPower supply individual ISX replacement components alongside complete engines?
Yes. In addition to complete drop-in engine assemblies, HekoPower supplies long blocks, short blocks, XPI fuel injectors, VGT turbochargers, water pumps, oil coolers, and full overhaul rebuild kits.
