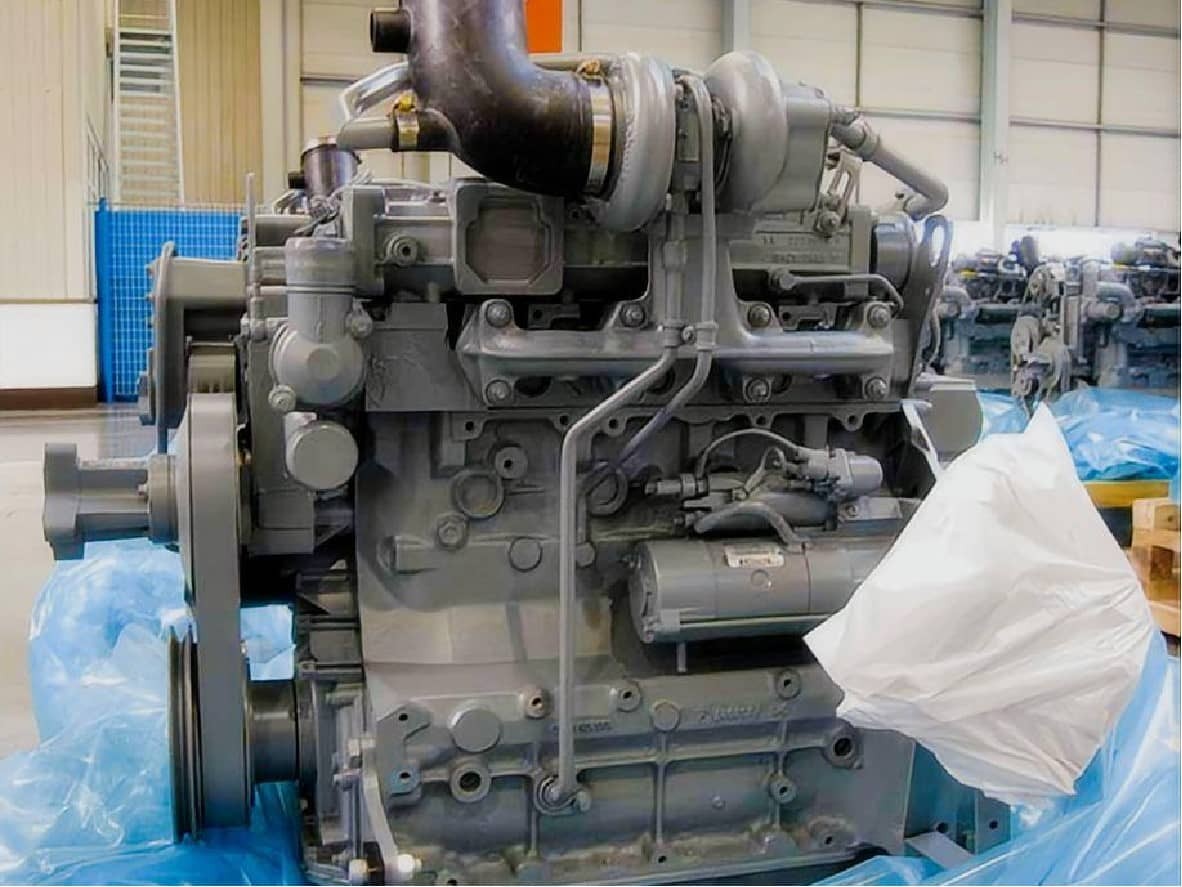

Genuine Deutz BF4M2012 Generator Engine: Industrial Genset Power
Finding a reliable prime power generator engine requires looking beyond basic datasheets. The Dalian Deutz BF4M2012 engine is a commercial-grade, 4-cylinder, 4.04-liter turbocharged powerhouse. It provides dependable mechanical fuel injection performance for global applications.
As an established China Deutz BF4M2012 supplier, HekoPower sources original engines directly from the production line. This ensures your project benefits from authentic manufacturing standards, correct tolerances, and factory-level support.
Tech Specs of Dalian Deutz BF4M2012
General Engine Data
Engine Model: Deutz BF4M2012
Type: 4 Cylinders, in Line
Displacement: 4.04 L
Bore * Stroke: 101 * 126
Overall Dimension: 1393mm*733mm*971mm
Net Weight: 530 Kg
Key Performance Data
Rated Power: 60 kW
Max. Torque/Speed: 390 N.m @ 1500 rpm
Rated Speed: 1500 rpm
Specific Fuel Consumption: 227 g/kW.h
Net Frequency: 50Hz
Noise db(A): ≤ 113
More Technical Data
Certification: Tier II
Aspiration: Turbocharged & Intercooling
Fuel System: Mechanical Unit Pump in Line
Cooling Method: Water Cooled
Electrical System (Starter Motor/Alternator): Electronic Starting (24V)
Compression Ratio: 19:1
Governor Type: Mechanical Governor
50Hz vs. 60Hz Operating Profiles
This water-cooled Deutz generator engine handles dual-frequency operations easily. For international power grids running at 50Hz, the engine runs at a steady 1500 RPM to deliver high torque efficiency. For North American or specialized industrial systems, it scales up to 1800 RPM at 60Hz.
Running at 1500 RPM optimizes fuel economy and reduces cylinder wear during continuous duty cycles. At 1800 RPM, the engine maximizes its transient response, which is ideal for sudden electrical load changes.
Power Ratings and Fuel Optimization
When configured for standby generator engine duty, the engine easily delivers a stable 60kW standby power rating. For continuous, long-term operations, it functions as a reliable prime power generator engine.
Engineers favor this model because of the optimized Deutz BF4M2012 fuel consumption curve. The mechanical governor system injects fuel precisely based on load demand. This design avoids the electronic complexity of common-rail systems, making it highly resilient to varying fuel qualities in remote regions.
Technical Comparison: BF4M2012 vs. Competitor Alternatives
Choosing between medium-range industrial generator engines requires looking closely at their mechanical designs.
Deutz BF4M2012 vs. Cummins 4BTA3.9
Engineers frequently compare the 4.04L Deutz BF4M2012 with the Cummins 4BTA3.9-G2. While the Cummins 3.9L engine is popular globally, the Deutz BF4M2012 has a slight displacement advantage at 4.04 liters. This larger displacement provides better thermal headroom when handling heavy inductive loads, such as starting large electric motors.
Furthermore, the Deutz unit uses an internal oil cooling system that regulates block temperature more evenly than older Cummins layouts. This design minimizes the risk of local hot spots in the cylinder head.
Fuel System: Mechanical Governor vs. Electronic Injection
Unlike newer common-rail engines that require ultra-low sulfur diesel and high-end diagnostic computers, this mechanical fuel injection generator engine uses a robust inline injection pump. The mechanical governor reacts to load drops by adjusting the throttle linkage directly.
This simple design makes it the perfect backup power generator engine for regions where electronic diagnostic support is unavailable.
Real-World Applications & Field Scenarios
The design of the BF4M2012 makes it a top choice for demanding commercial and industrial backup systems.
Mining & Remote Construction Sites
In dusty mining operations, electronics often fail first. The mechanical governor and robust physical build of the BF4M2012 make it highly reliable in these dirty environments. Its high-capacity air filtration system and heavy-duty water cooling handle ambient temperatures above 40 degrees Celsius without derating performance.
Data Center Backup & Medical Facilities
For critical infrastructure, standby generator engine systems must start and accept full load in under ten seconds. The turbocharged intake of this 4-cylinder engine provides fast air induction. This allows the generator set to stabilize frequency quickly when the main power grid fails.
Maintenance, Lifecycle, & Engine Replacement Tips
To get a 20,000-hour service life from your machine, you must follow strict maintenance procedures and understand your replacement options.
Preventative Maintenance Schedule
Daily checks must focus on oil levels and cooling water purity. Because this is a water-cooled system, using the correct coolant-to-water ratio prevents cavitation inside the cylinder sleeves.
Replace the primary fuel filter every 250 operating hours. If you operate in high-humidity areas, install a water separator to protect the mechanical injectors from corrosion.
Choosing Between an Overhaul and a Replacement Engine
When an engine reaches the end of its normal service cycle, operators face a choice: buy a complete replacement engine or rebuild the existing block.
- The Overhaul Kit Path: If the engine block and crankshaft are structurally sound, using a genuine BF4M2012 overhaul kit (containing new liners, pistons, rings, and main bearings) is highly cost-effective.
- The Complete Replacement Path: If the engine suffered a major failure, such as a broken connecting rod or a cracked block, installing a complete Dalian Deutz BF4M2012 replacement engine is the safest option. It minimizes system downtime and restores factory-standard reliability immediately.
Sourcing Genuine Engines: The HekoPower Advantage
The market is flooded with low-quality copycat parts and poorly rebuilt blocks sold as new. When buying a Deutz BF4M2012 engine, verifying its origin is critical.
The Problem with "Assembled" Engines
Many budget suppliers buy bare engine blocks and assemble them using cheap, non-authorized components. These hybrid units often fail under heavy load because of inconsistent metallurgy.
HekoPower only delivers authentic engines built to original factory standards. Each unit carries a verifiable factory serial number, ensuring all internal parts meet strict material guidelines.
Direct Wholesale Supply from China
As a direct engine exporter, HekoPower manages the entire logistical process from the factory floor directly to your port of entry. We coordinate proper wood-crate packaging, rust-preventative coatings, and export documentation to prevent shipping damage and customs delays.
Deutz BFM2012-Generator Engine Series, original products from Dalian Deutz Engine Plant. This series mainly includes Deutz BF4M2012, Deutz BF4M2012C, Deutz BF6M2012C. In accordance with the criteria of Machinery Safety Directive 2006/42, movable elements such as distribution belts, fans, and parts that acquire high temperatures during operation, such as exhaust manifolds, have their respective safeguards. Before being delivered, the generator is thoroughly checked at the factory. Voltage, frequency, and load are all tested, as well as the appropriate operation of warnings and the influence of engine oil temperature on stop.
Frequently Asked Questions
What are the exact dimensions of the Deutz BF4M2012 engine?
The standard dry dimensions are approximately 895mm in length, 630mm in width, and 850mm in height. These compact dimensions make it easy to drop into standard soundproof generator enclosures.
Can this engine run on biodiesel?
It can run on low-percentage biodiesel blends (up to B20) if you monitor the fuel filters closely. Biodiesel tends to loosen deposits inside the fuel system, which requires more frequent filter changes early on.
How does the mechanical governor handle sudden load changes?
The mechanical governor adjusts the fuel rack within milliseconds of a speed drop. It meets standard class G2 governing requirements, which is the baseline standard for commercial generator applications.
What is included in a complete replacement engine from HekoPower?
Our complete engines ship fully assembled from the oil pan to the cylinder head cover. This setup includes the fuel injection pump, starter motor, charging alternator, and water pump. It is ready to connect to your alternator mount.
