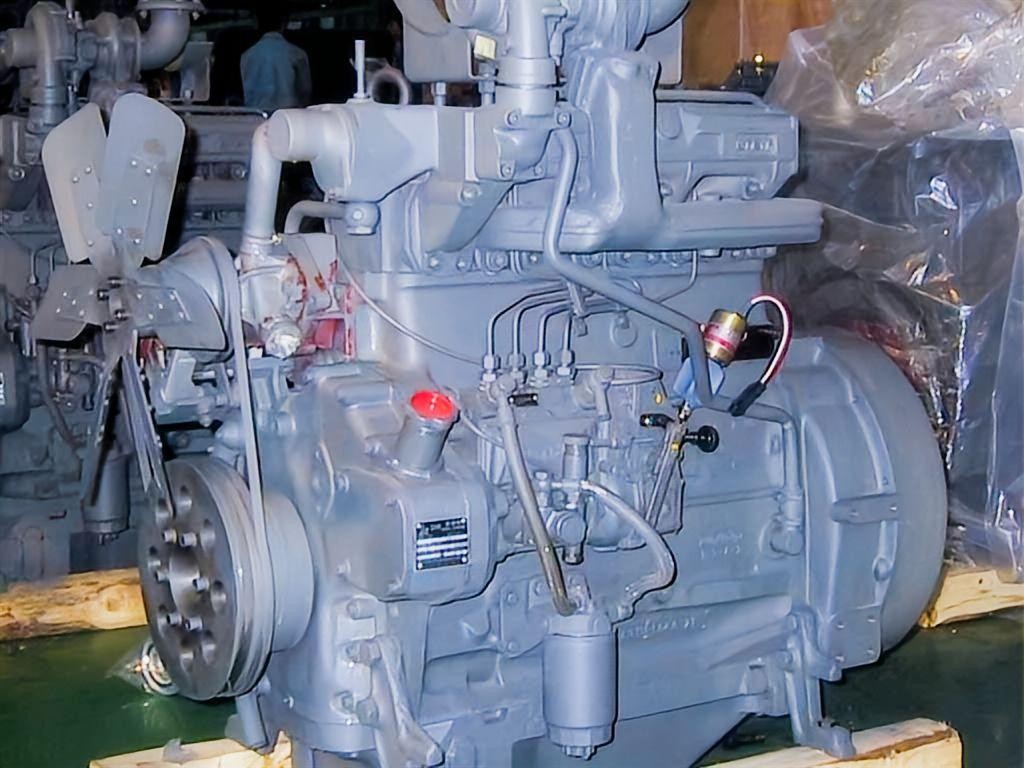

Deutz TD226B-4D Diesel Engine for Generator Sets
The Deutz TD226B-4D diesel engine is a specialized 4.16L, 4-cylinder prime mover engineered specifically for generator drives. Designed to operate at fixed speeds, it delivers a steady 60kW at 1500rpm (50Hz) or 69kW at 1800rpm (60Hz).
Because generator operation requires immediate load acceptance and stable frequency control, this turbocharged generator engine provides the necessary torque density for both prime power and standby applications. As a Deutz 226B 4-cylinder generator engine, it shares the proven block design of the 226B family but is calibrated strictly for continuous power generation rather than variable-speed industrial or automotive use.
HekoPower supplies the complete TD226B-4D diesel engine assembly, ensuring equipment builders and maintenance teams receive a drop-in ready unit. We source genuine Weichai Deutz engines, providing a direct replacement path for aging field units.
Tech Specs of Deutz TD226B-4D
General Engine Data
Engine Model: Deutz TD226B-4D
Type: 4 Cylinders, in Line
Displacement: 4.16 L
Bore * Stroke: 105 * 120
Overall Dimension: 1281mm*592mm*1357mm
Key Performance Data
Rated Power/Standby Power(1500 RPM): 60 kW, 66 kW
Rated Power/Standby Power(1800 RPM): 69 kW, 77 kW
Rated Speed: 1500/1800 rpm
Specific Fuel Consumption: 208 g/kW.h
More Technical Data
Certification: Euro II
Aspiration: Turbocharged
Governor Type: Mechanical/Electrical
Cooling Method: Water Cooled
Electrical System (Starter Motor/Alternator): Electronic Starting (24V)
Flywheel Casing: SAE1, SAE2
Technical Comparisons: TD226B-4D vs. Naturally Aspirated Models
Buyers often weigh the TD226B-4D against naturally aspirated alternatives within the 4-cylinder class. The primary differentiator is the turbocharger.
The "T" in TD226B-4D indicates a turbocharged diesel engine. This forced air induction allows the 4.16L generator engine to produce 60kW of prime power. A naturally aspirated engine of the exact same displacement would struggle to produce 45kW.
The turbocharger also improves efficiency at altitude. Naturally aspirated engines lose roughly 3% of their power for every 1,000 feet of elevation due to thinner air. The turbocharged TD226B-4D compensates for this by compressing the intake air, maintaining its 60kW output at much higher altitudes before experiencing significant derating.
Furthermore, the TD226B-4D offers superior transient response. When a heavy electrical load is suddenly applied to the generator, the turbo spooling provides the rapid torque increase necessary to prevent frequency dips, a critical requirement for a standby generator engine protecting sensitive electronics.
Mechanical vs. Electronic Governors
The TD226B-4D is available with different speed control mechanisms. The standard configuration often utilizes a TD226B-4D mechanical governor. This setup is highly robust, simple to maintain, and ideal for basic prime power applications in harsh environments where electronic sensors might be vulnerable to extreme dust or moisture.
However, for applications requiring strict frequency regulation, such as paralleling multiple generators or powering telecommunications equipment, a TD226B-4D electronic governor is preferred. The electronic system provides faster, more precise throttle adjustments, keeping the engine locked precisely at 1500rpm or 1800rpm regardless of load fluctuations.
Real-World Application Scenarios
The TD226B-4D industrial generator engine is deployed globally across sectors requiring reliable, mid-range power.
In agricultural settings, a TD226B-4D 60kW engine is frequently used as a prime power source for irrigation pumps and remote processing facilities off the main grid. The water-cooled diesel generator engine design is vital here, allowing the unit to run continuously under the hot sun without overheating.
In the commercial sector, the 66kW standby generator engine rating is the focus. Office buildings, small clinics, and retail centers utilize this engine as a backup power source. In these scenarios, the engine sits dormant but must start instantly and accept full load within seconds of a grid failure.
Marine auxiliary power is another common application. While the engine itself is a land-based design, marinized versions of the Deutz 226B 4-cylinder generator engine provide shipboard electrical power, benefiting from the compact TD226B-4D dimensions in tight engine rooms.
Maintenance and Replacement Tips
Maximizing the lifespan of a Deutz TD226B-4D diesel generator engine requires adhering to a strict maintenance schedule.
Oil and filter changes are paramount. The turbocharged nature of the engine means the oil must endure high temperatures in the turbo bearings. Using high-quality diesel engine oil and adhering to the manufacturer's interval prevents premature wear.
Coolant maintenance is equally critical for a water-cooled engine. Ensure the coolant mixture provides adequate anti-freeze and anti-boil protection, and regularly inspect the water pump and belts. A failure in the cooling system will rapidly destroy a prime power engine running under load.
When it comes time for an overhaul, HekoPower operates as a comprehensive China TD226B-4D engine supplier. We provide not only the complete TD226B-4D replacement generator engine but also act as a dedicated TD226B-4D spare parts supplier.
When replacing an aging unit, carefully check the Deutz TD226B-4D engine cross reference Weichai WP4D66E200 to ensure compatibility with your existing control panel and alternator. Always verify the flywheel casing (SAE1 or SAE2) matches your current setup to avoid coupling issues during installation.
Deutz 226B-Generator Engine Series
Deutz 226B-Generator Engine Series, original products from Weichai Power Engine Plant. This series mainly includes Deutz D226B-3D, Deutz TD226B-3D, Deutz D226B-4D, Deutz TD226B-4D, Deutz TD226B-6D, Deutz TBD226B-6D. In accordance with the criteria of Machinery Safety Directive 2006/42, movable elements such as distribution belts, fans, and parts that acquire high temperatures during operation, such as exhaust manifolds, have their respective safeguards. Before being delivered, the generator is thoroughly checked at the factory. Voltage, frequency, and load are all tested, as well as the appropriate operation of warnings and the influence of engine oil temperature on stop.
Frequently Asked Questions (FAQs)
What is the difference between the 60kW and 69kW rating for the TD226B-4D?
The power output is determined by the engine speed. The TD226B-4D produces 60kW of prime power when running at 1500rpm (for 50Hz electrical systems). If the engine is governed to run at 1800rpm (for 60Hz systems), the prime power output increases to 69kW.
Can I use a TD226B-4D engine for a water pump?
While the TD226B-4D is specifically calibrated as a generator drive engine (constant speed), similar variants in the 226B family are used for industrial pump drives. However, you must ensure the governor is set up for variable speed if the pump requires it, rather than the fixed 1500/1800rpm setup of the genset model.
Is the Weichai WP4G a direct bolt-in replacement for my old Deutz TD226B-4D?
Yes. The Weichai WP4G (and WP4D series) are built on the exact same architecture as the original licensed Deutz 226B engines. The footprint, mounting locations, and vital dimensions are identical, making it the standard TD226B-4D generator engine replacement.
Where can I find the TD226B-4D engine price for a bulk order?
As a TD226B-4D wholesale engine distributor, HekoPower provides customized quoting based on volume and shipping requirements. Please contact our sales team directly for current genuine Weichai Deutz TD226B-4D engine assembly wholesale pricing.
