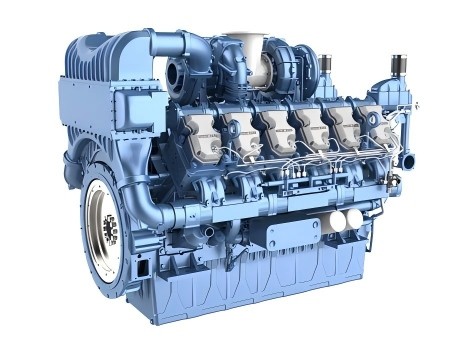

Weichai 12WH17C2203-5 Marine Engine: The Ultimate 1620kW Propulsion Solution
The Weichai 12WH17C2203-5 stands as a pinnacle of engineering within the celebrated Weichai WH17 series engine family. Delivering a calibrated 1620kW marine diesel engine output—equivalent to a commanding 2203 HP propulsion engine package—this Weichai 12 cylinder marine diesel engine is purpose-built to handle the unforgiving environments of modern commercial maritime operations. Operating at a steady marine main engine 1500rpm baseline, it perfectly balances raw power with optimized thermal efficiency.
As an authorized, trusted Weichai marine engine distributor and global Weichai marine engine exporter, HekoPower supplies the authentic Weichai 12WH17C2203-5 for sale, complete with factory certifications, competitive wholesale pricing, and end-to-end technical support. Whether you are repowering an aging fleet or outfitting a new build, this medium speed marine engine provides the mechanical resilience your operations demand.
Tech Specs of Weichai 12WH17C2203-5
General Engine Data
Engine Model: Weichai 12WH17C2203-5
Cylinder Count: 12 Cylinders in Line
Engine Type: 4-stroke, water cooled, in-line, turbocharged and aftercooled
Total Engine Displacement: 54.48 L
Bore * Stroke: 170×220（mm）
Net weight: 5300 kg
Overall Dimension: 2256×1331×1856 (mm)
Key Performance Data
Rated Power: 1620 kW / 2203 HP
Rated Speed: 1500 RPM
Idle Speed: 650±30 RPM
Minimum fuel consumption rate: ≤200 g/kW.h
Oil consumption rate: ≤0.3 g/kW·h
More Technical Data
Certification: IMO Tier II / China Stage II Inland Marine
Aspiration: turbocharged and aftercooled
Starting system: Electrical
Rotation(facing the flywheel) : Counter-clockwise
Fuel system: HPCR
Power rating: P2
Noise: ≤111 dB(A)
Advanced Engineering
The Weichai 12WH17 marine engine represents a massive leap forward in heavy-duty powertrain design. Unlike standard engines that suffer from turbo-lag and efficiency drops under varying loads, this unit is engineered for continuous reliability.
Unique Weichai 4 Turbocharger Marine Engine 12WH17 Configuration
A defining characteristic of the 12WH17C2203-5 model is its specialized Weichai 4 turbocharger marine engine 12WH17 induction system. By utilizing four independent, pulse-optimized turbochargers, the engine achieves rapid transient response times. This allows the vessel to generate maximum torque quickly at lower engine speeds, providing superior maneuvering capabilities in rough seas or tight harbors.
Electronic Common Rail and Fuel Efficiency
At the heart of its fuel-saving capabilities is the electronic common rail marine engine architecture. This high-pressure HPCR marine engine system forces fuel into the cylinders at extreme pressures, creating an ultra-fine mist that burns cleanly and completely.
Compliance with IMO II Marine Diesel Engine Standards
Environmental regulations demand strict emission controls without sacrificing total horsepower. The IMO II marine diesel engine certification ensures that this high power marine diesel engine reduces nitrogen oxide emissions significantly. It meets both international maritime laws and China Stage II requirements, safeguarding your vessel’s compliance across global trade routes.
High Power Marine Engine Comparison: Weichai vs. Competitors
When choosing a heavy duty marine propulsion engine, vessel owners frequently evaluate the Weichai 12WH17C2203-5 vs Cummins marine engine, as well as alternative options from Japanese manufacturers like Yanmar and Mitsubishi. Below is a professional market comparison demonstrating why this unit ranks as the best 1500rpm marine diesel engine value proposition for global commercial fleets.
Weichai 12WH17C2203-5 vs. Cummins Marine Engine
While Cummins offers excellent high-speed options, the Weichai medium speed marine engine architecture provides a heavier, more structurally rigid engine block. The Weichai 12WH17 features a 170mm bore and 200mm stroke, offering superior low-end torque compared to similarly rated high-speed Cummins units. Furthermore, the Weichai 12WH17C2203-5 price presents a substantially lower initial capital expenditure (CAPEX) with more affordable long-term component costs.
Weichai vs. Yanmar Marine Engine
Yanmar engines are highly respected for light-to-medium displacement crafts, but they often fall short in pure, sustained bollard pull capacity compared to a Weichai 2203HP marine engine. The integrated quad-turbo configuration on the Weichai gives it a distinctive edge over Yanmar's standard twin-turbo setups in this specific power band (1500–1700 kW).
Weichai vs. Mitsubishi Marine Diesel
Mitsubishi provides reliable heavy industrial engines, but their global parts lead times can occasionally stall commercial operations. As a prominent China marine diesel engine manufacturer, Weichai boasts an unparalleled supply chain. Choosing HekoPower as your supplier ensures that your Weichai 12WH17 overhaul period and parts supplier logistics run seamlessly without costly port delays.
Real-World Commercial Application Scenarios
The Weichai marine propulsion engine is highly adaptable, proving its value across diverse commercial maritime industries.
2203 HP Marine Engine for Commercial Bulk Carrier and Cargo Vessels
For fleet operators deploying a marine propulsion engine for cargo vessel routes, reliability directly influences profitability. The 1620kW P2 rating marine propulsion engine configuration is designed for intermittent heavy duty, allowing cargo carriers to maintain cruising speeds efficiently against head currents while retaining the extra power reserves needed for heavy acceleration.
High-Yield Fishing Boat Propulsion Engine and Trawlers
In deep-sea fishing, an engine must endure hours of low-speed idling followed by immediate, maximum-power cruising when heading back to port with catch. The fishing boat propulsion engine setup ensures that a marine engine for fishing vessel or a heavy-duty marine engine for trawler boat will not experience carbon buildup, thanks to its responsive electronic injection timing.
Offshore Vessels, Workboats, and Passenger Ferries
Time-sensitive offshore operations demand uncompromised performance. This engine is widely utilized as an:
- Offshore vessel marine engine for handling platform supply logistics.
- Marine engine for offshore support vessel duties requiring high station-keeping precision.
- Medium speed diesel engine for workboat operations (tugs, pushers, and salvage vessels).
- Marine diesel engine for passenger ferry lines prioritizing smooth, low-vibration operation.
Maintenance Guidelines and Long-Term Reliability
Maximizing the lifecycle of your Weichai WH17 series engine requires adhering to structured maintenance protocols. Because HekoPower acts as your long-term operational partner, we provide complete transparency regarding the Weichai marine engine overhaul interval.
Extending the Weichai Marine Engine Overhaul Interval
The 12WH17C2203-5 is engineered with a class-leading 20,000-hour major overhaul cycle. To hit this target safely, operators must maintain rigorous fluid management:
- Fuel Quality Control: Given the tight tolerances of the electronic common rail 1500rpm marine engine injectors, ensure that primary fuel-water separators are drained daily.
- Lubrication Upkeep: Only use marine-grade oils that meet Weichai's precise viscosity and additive specifications to protect the quad-turbo bearings.
- Cooling Inspections: Regularly check the sacrificial zinc anodes inside the raw-water heat exchanger to halt galvanic corrosion.
Sourcing Certified Components via HekoPower
When components eventually reach their service limits, avoiding counterfeit parts is paramount. HekoPower is your verified Weichai 12WH17C2203-5 supplier for OEM components, providing rapid dispatch on cylinder liners, piston crowns, fuel injectors, and turbocharger rebuild kits to keep your downtime to an absolute minimum.
Weichai 12WH17 series marine diesel engine, original products from Weichai. This series mainly includes 12WH17C1224-2, 12WH17C1360-2, 12WH17C1496-2, 12WH17C1564-5, 12WH17C1700-5, 12WH17C1836-5, 12WH17C1972-5, 12WH17C2203-5.
Frequently Asked Questions (FAQs)
What is the exact price of the Weichai 12WH17C2203-5 engine?
The Weichai 12WH17C2203-5 price varies depending on the marine gearboxes required, classification society certificates (such as CCS, BV, ABS), and optional auxiliary controls. Please contact HekoPower directly for a personalized quote.
Can this engine replace an older Cummins or Caterpillar model?
Yes. The Weichai 2203Ps propulsion engine footprint can be adapted to replace western alternatives. HekoPower provides comprehensive dimensional layouts and engineering consultations to make your vessel repowering project straightforward.
What does the "P2" power rating mean in practice?
The 1620kW P2 rating marine propulsion engine designation means the engine is optimized for applications that require maximum power for a limited number of hours per day, with the remainder of the operating time spent at or below rated cruising speeds—making it perfect for commercial workboats and fishing vessels.
How does HekoPower handle international shipping and customs?
As an experienced Weichai marine engine exporter, HekoPower manages heavy-industrial maritime logistics worldwide. We handle custom sea freight packaging, export compliance paperwork, and safe transit directly to your designated shipyard.
For detailed engineering consultations, access to the full Weichai 12WH17C2203-5 specifications, or to buy Weichai 2203HP marine engine packages, contact the HekoPower commercial sales team today.
