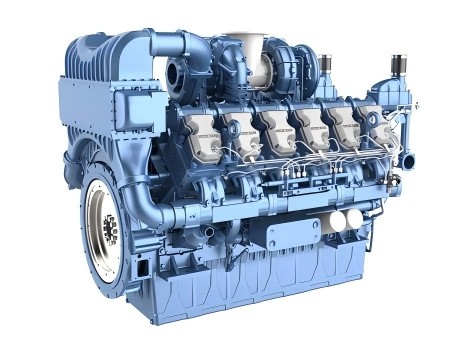

Weichai 12WH17C1224-2 Marine Propulsion Engine: The Ultimate 900kW Heavy-Duty Solution for Commercial Vessels
The global maritime industry demands propulsion systems that strike an absolute balance between unyielding thermal efficiency, low operational overheads, and compliance with increasingly stringent environmental frameworks. The Weichai 12WH17C1224-2 Marine Engine represents the pinnacle of medium speed marine diesel engine engineering, custom-built to anchor heavy-duty operations. Generating a robust 900kW (1224 Ps / 1224 HP) at a rated speed of 1200 rpm, this V-type 12-cylinder workhorse has quickly emerged as the preferred choice for commercial operators worldwide.
As an authorized, global Weichai marine engine supplier, HekoPower delivers not only the core physical machinery but also integrated, end-to-end engineering, custom gearbox pairings, and complete lifecycle technical support. Whether you operate an offshore engineering vessel, a deep-sea fishing trawler, or a coastal cargo vessel, the Weichai 12WH17 series delivers continuous, reliable marine power solutions engineered to maximize your vessel's profitability and uptime.
Tech Specs of Weichai 12WH17C1224-2
General Engine Data
Engine Model: Weichai 12WH17C1224-2
Cylinder Count: 12 Cylinders in Line
Engine Type: 4-stroke, water cooled, in-line, turbocharged and aftercooled
Total Engine Displacement: 54.48 L
Bore * Stroke: 170×220（mm）
Net weight: 5300 kg
Overall Dimension: 2256×1331×1856 (mm)
Key Performance Data
Rated Power: 900 kW / 1224 HP
Rated Speed: 1200 RPM
Idle Speed: 650±30 RPM
Minimum fuel consumption rate: ≤200 g/kW.h
Oil consumption rate: ≤0.3 g/kW·h
More Technical Data
Certification: IMO Tier II / China Stage II Inland Marine
Aspiration: turbocharged and aftercooled
Starting system: Electrical
Rotation(facing the flywheel) : Counter-clockwise
Fuel system: HPCR
Power rating: P1
Noise: ≤111 dB(A)
High-Pressure Common Rail (HPCR) System and Air-Handling Efficiency
At the core of the Weichai HPCR marine diesel engine is its advanced electronic fuel injection infrastructure. The system maintains ultra-high fuel rail pressures independently of engine speed. This enables precise control over multi-stage injection profiles, including pre-injection, main injection, and post-injection parameters.
By atomizing fuel particles down to the micron level, the engine achieves clean combustion even at lower RPM bands. This directly addresses the traditional carbon-buildup issues experienced by older mechanical marine engines during extended low-load operations.
Complementing this fuel precision is a pulse-supercharged quad-turbocharger configuration. The intake air manifold is optimized to distribute equal air mass to all 12 cylinders, ensuring uniform thermal loading. This intelligent air-management loop ensures that the 900 kW 1200 rpm common rail marine engine responds rapidly to sudden torque loads, providing crisp throttle response when maneuvering in restricted waterways or facing heavy currents.
Benchmarking the Weichai 12WH17 Series against International Standards
When sourcing a new propulsion plant or preparing for a vessel repower project, maritime procurement managers frequently analyze alternatives. Understanding how the Weichai medium speed marine engine compares directly against traditional American and Japanese alternatives highlights its strong value proposition.
Weichai vs Cummins Marine Engine (e.g., KTA38-M / QSK38 Series)
The Cummins QSK38 and KTA38 series are common sights in the 900kW propulsion market. However, when comparing Weichai vs Cummins marine engine configurations, distinct structural philosophies emerge.
The Cummins units typically operate at higher speeds—often between 1600 rpm and 1800 rpm—to reach similar power outputs. This higher-rated speed inherently increases linear piston velocity and hastens structural wear over long, uninterrupted deployments.
In contrast, the Weichai 12WH17C1224-2 delivers its 900kW at a conservative 1200 rpm. This medium-speed profile dramatically reduces structural vibrations and lowers thermal fatigue on main bearings. Furthermore, the Weichai WH17 platform boasts a larger physical displacement (54.48L versus Cummins’ 38L), providing higher torque reserves under heavy loading profiles without over-stressing internal components. For a commercial workboat diesel engine operating thousands of hours per year, Weichai's low-RPM approach offers distinct advantages for structural longevity.
Weichai vs Yanmar Marine Diesel (e.g., 6EY17W / 6EY22AW)
Japanese designs like Yanmar are highly regarded for their build quality, but they often come with steep initial procurement premiums and expensive spare parts supply lines. When evaluated through the lens of a Weichai vs Yanmar marine diesel analysis, Weichai emerges as a compelling, modern alternative.
Yanmar medium-speed models often utilize inline 6-cylinder layouts that require significantly more engine room length. The V-12 configuration of the Weichai 12WH17 series packs its 1224 HP into a more compact footprint (2256mm length), freeing up vital space for fish holds, cargo areas, or auxiliary equipment.
Additionally, as an active global Weichai marine engine distributor, HekoPower can deliver complete propulsion setups—including the engine, customized control panels, and classification certificates—at a highly competitive price point, optimizing your initial capital expenditure.
Real-World Application Scenarios and Vessel Integration
The mechanical properties of the Weichai propulsion diesel engine make it a versatile asset across diverse marine sectors. Its high torque density and flat fuel consumption curves fit several key operational profiles.
Heavy-Duty Performance as a Commercial Fishing Boat Engine
For deep-sea longliners and ocean-going trawlers, the propulsion system dictates the success of the voyage. Operating as a fishing boat engine, the 12WH17C1224-2 must handle two opposing operational profiles: high-speed transit to the fishing grounds and low-speed, high-drag trawling while pulling massive nets.
The engine's flat fuel curve (retaining maximum efficiency down to ≤185 g/kW·h) ensures that operators save fuel during long-distance cruising. When the nets hit the water, the 12-cylinder platform delivers steady torque to maintain steady trawling speeds without overloading the thermal cooling loops.
Rigorous Demands as a Workboat and Engineering Vessel Diesel Engine
Engineering vessels, anchor handlers, and split-hopper barges face harsh environments. Operating as a Weichai marine diesel engine for engineering vessels 900kW, this model handles rapid load swings when stabilizing vessels or operating heavy deck machinery via front-end Power Take-Off (PTO) units.
The high-rigidity engine block, cast from specialized vermicular graphite iron, dampens structural torsional stress. This makes it an ideal engine for patrol boats and heavy workboats that regularly push through turbulent coastal waters.
Continuous Efficiency as a Coastal Cargo Vessel Propulsion Plant
For short-sea shipping and coastal bulk carriers, reliability is tied directly to delivery schedules. The marine diesel engine for coastal vessel configurations must run continuously for days on end.
The 12WH17C1224-2 engine's IMO Tier II compliance allows it to operate freely within coastal emission control areas without the need for expensive after-treatment systems like Selective Catalytic Reduction (SCR), reducing both weight and system complexity.
Lifecycle Maintenance, Component Replacement, and Logistics Support
Operational profitability is determined long after the initial purchase; it depends heavily on maintenance predictability and parts availability. HekoPower supports fleet managers with structural data and reliable logistics pipelines to minimize vessel downtime.
The 20,000-Hour Overhaul Structural Benchmark
A major advantage of this series is the Weichai 12WH17 series overhaul interval 20000h. While high-speed marine engines often require complete overhauls at 10,000 to 12,000 hours, the WH17 platform’s medium-speed design doubles that lifespan under standard maintenance protocols.
To achieve this 20,000-hour benchmark, Weichai utilizes wet cylinder liners with specialized anti-polishing scraping carbon rings. This design minimizes liner wear and maintains optimal oil film stability on the cylinder walls over years of service.
Preventative Maintenance Guidelines for Ship Engineers
To maximize the service life of your engine, HekoPower's engineering team recommends adhering to a structured maintenance timeline:
- Every 250 Operating Hours: Inspect the high-pressure fuel rail connections, clean the primary centrifugal bypass oil filters, and check the automated air-start valve alignment.
- Every 1,000 Operating Hours: Change the primary lubricating oil, replace all fuel filtration cartridges, and verify the valve lash clearances on all 12 cylinder heads.
- Every 5,000 Operating Hours: Pull and test the common rail fuel injectors for correct spray atomization and pressure sealing. Inspect the turbocharger bearing clearances.
- Every 10,000 Operating Hours: Perform a non-destructive inspection of the flexible dampening couplings and replace the internal sacrificial zinc anodes inside the raw-water heat exchangers.
12WH17C1224-2 Replacement Parts and Dimensional Planning
When performing scheduled overhauls or emergency repairs, utilizing genuine parts is critical to maintaining class certifications and factory warranties. HekoPower stocks a comprehensive inventory of 12WH17C1224-2 replacement parts and dimensions components ready for global dispatch, including:
- Cylinder head assemblies and pre-tested valves
- Monoblock pistons with specialized 3-ring geometric layouts
- Common rail injectors and high-pressure fuel supply pumps
- Main crankshaft bearing shells and custom gasket overhaul kits
Our specialized logistics network ensures that whether your vessel is docked in Singapore, Rotterdam, Houston, or Qingdao, replacement parts can be dispatched swiftly to minimize port fees and out-of-service penalties.
Strategic Sourcing and Commercial Quotation Framework
Navigating the procurement of a commercial vessel engine requires transparent pricing structures and technical validation. As a customer-focused distributor, HekoPower optimizes this purchasing process from the initial inquiry to final sea trials.
Demystifying the Weichai 12WH17C1224-2 Price
When searching for a competitive Weichai 12WH17C1224-2 price, it is important to look beyond the cost of the bare engine block. A complete, seaworthy propulsion package requires several integration components, including:
- Marine classification society certifications (such as CCS, BV, ABS, or GL)
- Integrated marine gearbox pairings (such as Advance HC or Twin Disc series)
- Front-end power take-off (PTO) assemblies for auxiliary hydraulics
- Localized control monitoring screens and remote bridge throttle networks
HekoPower provides comprehensive, itemized quotes tailored to your vessel’s specific drawings. By sourcing through an established distributor, you gain access to bulk pricing advantages and factory-backed warranty protections that independent traders cannot provide.
Secure a Factory-Backed Weichai Propulsion Engine Quotation
Are you planning a new shipbuilding project or scheduling a repower for an older coastal hull? Contact HekoPower today to receive a personalized, comprehensive Weichai propulsion engine quotation. Our team of marine power engineers will evaluate your vessel's displacement, desired cruising speed, and propeller shaft dimensions to deliver an optimized propulsion solution.
Weichai 12WH17 series marine diesel engine, original products from Weichai. This series mainly includes 12WH17C1224-2, 12WH17C1360-2, 12WH17C1496-2, 12WH17C1564-5, 12WH17C1700-5, 12WH17C1836-5, 12WH17C1972-5, 12WH17C2203-5.
Frequently Asked Questions (FAQs)
What classification certifications are available for the Weichai 12WH17C1224-2?
As a global Weichai marine engine supplier, HekoPower delivers engines certified by major international classification societies, including the China Classification Society (CCS), Bureau Veritas (BV), American Bureau of Shipping (ABS), and DNV-GL. Please specify your required class approval during the initial quotation process so we can ensure compliance.
How does the common rail system handle varying marine fuel qualities?
The Weichai common rail marine engine is equipped with multi-stage fuel filtration arrays featuring integrated water-separation units. While the high-pressure system requires clean diesel to protect injection tolerances, our advanced filtration setup enables the engine to run reliably on standard marine gas oil (MGO) and marine diesel oil (MDO), protecting your fuel system components from accelerated wear.
Can this engine replace an older mechanical Cummins or Caterpillar engine?
Yes, the 12WH17C1224-2 serves as an excellent Weichai marine engine alternative for older, high-maintenance mechanical engines. Because it delivers high torque at 1200 rpm, it often integrates well with existing shaft lines and large-diameter propellers. HekoPower provides complete engineering support, including dimensional adaptation blueprints, to ensure smooth engine room installation.
What is included in the standard HekoPower supply scope?
Our typical supply scope for the Weichai 12WH17C1224-2 for sale includes the core diesel engine, a dual-circuit heat exchanger cooling network, air-starting tanks, common-rail injection wiring harnesses, local and bridge digital instrument panels, factory testing documentation, and a comprehensive onboard emergency spare parts kit. Optional marine gearboxes and PTO attachments can be integrated upon request.
