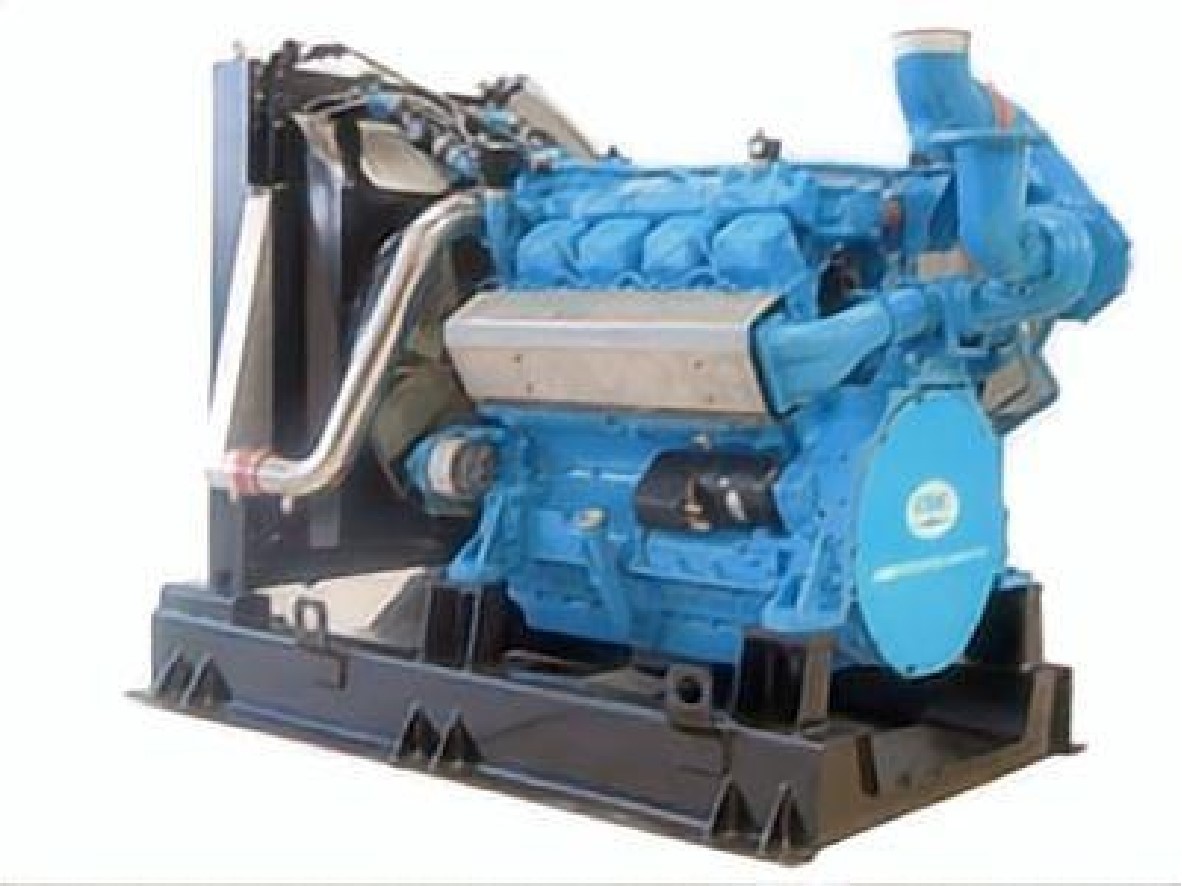

HND Deutz TD234V6 and TBD234V6 Generator Drive Engines
Finding the right power unit for mid-range power generation requires striking a balance between physical size, fuel efficiency, and raw output. The Henan Diesel Engine TD234V6 genset power series delivers exactly that. Designed around a robust 10.8L V6 diesel engine block, this platform is a favorite among generator manufacturers and end-users alike.
As an experienced HND TBD234V6 engine supplier, HekoPower understands that buying a diesel engine is a major investment. You are not just buying a piece of iron; you are securing reliable power for critical infrastructure. Let us break down what makes this specific V6 configuration so effective for modern power generation.
Tech Specs of Deutz TD234V6
General Engine Data
Engine Model: Deutz TD234V6 - Generator Engine
Type: 6 Cylinders, V Type
Displacement: 10.8 L
Bore * Stroke: 128 * 140
Wet Weight (with heat exchanger): 1230 Kg
Overall Dimension: 1847mm*1130mm*1587mm
Key Performance Data
Rated Power(1500 RPM): 116 kW
Rated Power(1800 RPM): 132 kW
Rated Speed: 1500/1800 rpm
Idle Speed: 650 rpm
Fuel Consumption: ≥ 210 g/kW.h
More Technical Data
Certification: Euro II
Aspiration: Turbocharged
Compression Ratio: 15:1
Electrical System (Starter Motor/Alternator): Electrical Start (24V)
Cooling Method: Water Cooled
Ignition Sequence: A1-B2-A3, B1-A2-B3
Fuel System: Direct Injection Pump
Technical Comparison: TD234V6 versus TBD234V6
Many buyers ask us about the exact differences between the TD and TBD variants of this 6-cylinder V-type diesel engine. While they share the exact same 128mm bore and 140mm stroke, their air handling systems create distinct performance categories.
The Deutz TD234V6 generator engine relies on a standard exhaust gas turbocharger. This setup efficiently pushes fresh air into the cylinders. It provides a highly reliable output range typically sitting between 116kW and 132kW, depending on the speed setting. This makes it an ideal match for straightforward prime power applications where extreme load spikes are rare.
On the other hand, the TBD234V6 turbocharged diesel generator engine introduces an intercooler, also known as a charge air cooler. When you compress air with a turbocharger, it heats up and expands. The intercooler cools that compressed air down before it enters the intake manifold. Colder air is denser, allowing the engine to pack more oxygen and fuel into the exact same cylinder volume.
Because of this thermal management, the Deutz TBD234V6 generator engine easily reaches much higher power nodes. You will commonly see this variant configured as a TBD234V6 186kW generator engine, a 222kW generator drive engine, or even pushed to a TBD234V6 242kW power generation engine for specific high-demand environments.
Common Misconceptions About the 234 Series
The MWM Compatibility Question
A frequent misconception in the market revolves around HND Deutz TD234V6 vs MWM TBD234V6 compatibility. Some buyers worry that engines manufactured by Henan Diesel (HND) in China will not fit their older European-built generator sets.
The reality is that HND manufactures these engines under an official license originally established with MWM. The core architecture, mounting points, and internal tolerances are strictly matched to the original blueprints. If you need a Deutz-MWM TBD234V6 replacement engine to bring an aging generator back to life, the HND model is a seamless drop-in solution.
Mechanical Injection is Not "Outdated"
Another common misunderstanding is that mechanical fuel injection is a legacy technology that should be avoided. The TBD234V6 mechanical fuel injection engine actually offers distinct advantages, particularly for a standby generator.
Electronic common rail systems are incredibly sensitive to fuel contamination. By contrast, the mechanical direct injection diesel engine setup on the 234 series is highly forgiving of poor fuel quality. Furthermore, mechanical systems have zero reliance on complex electronic control units. In remote locations or harsh industrial sites, a mechanical pump is far easier to troubleshoot and repair without specialized diagnostic laptops.
Real-World Application Scenarios
The versatility of the 10.8L V6 architecture allows it to power a wide variety of equipment.
Remote Mining and Construction
A popular application is using the Deutz TBD234V6 engine for 1500rpm generator applications at remote mining camps. At 1500rpm, the engine produces stable 50Hz power. The engine's structural rigidity handles the continuous vibration of heavy industrial sites effortlessly. Furthermore, its impressive fuel consumption rate of 210 g/kWh at 1500rpm helps site managers drastically reduce fuel transport costs over the lifespan of a project.
Coastal and Marine Backup Power
We frequently supply the TBD234V6 water cooled generator engine for port facilities and coastal standby power. Because the block is heavily reinforced, it handles the rapid start-up sequences required during unexpected grid failures. Whether it is configured as a TBD234V6 engine for a 150kW generator or tuned higher for a 200kW generator, the water-cooling system ensures internal temperatures remain stable even during long emergency run times.
Space-Restricted Canopy Installations
Engineers often face tight footprint constraints when upgrading old equipment. The Deutz TD234V6 dimensions are 1847x1130x1587 mm. This compact, V-shaped footprint allows it to easily replace bulky, older inline-6 engines without requiring modifications to the generator canopy. This saves both fabrication time and money for the end user.
Essential Maintenance and Replacement Tips
Maximizing the lifespan of your TBD234V6 diesel engine for a standby generator requires strict adherence to maintenance schedules.
Always pay close attention to the 24V electronic starting diesel generator drive system. Standby generators sit idle for long periods. If the battery bank degrades, the starter motor will not receive adequate voltage, leading to excessive heat buildup and eventual failure of the starter itself. Inspect battery connections and trickle chargers monthly.
Fuel system hygiene is equally critical. Even though the mechanical injection is robust, water is the enemy of any diesel fuel pump. Install heavy-duty primary water separators before the engine's main fuel filters. When replacing parts, always source your components from a verified TBD234V6 engine spare parts supplier like HekoPower to ensure proper sealing and pressure retention.
Finally, keep an eye on valve clearances. The 128mm bore 140mm stroke engine generates immense internal pressures. We recommend checking and adjusting the valve lash after the first 500 hours of operation. This simple procedure prevents premature wear on the valvetrain and ensures optimal combustion efficiency.
Exploring the Broader Engine Family
While the V6 configuration offers an exceptional balance of size and power for the 150kVA to 225kVA range, we understand that power generation projects vary wildly in scale. Sometimes a facility expansion means your next project will demand significantly higher power nodes, requiring a larger cylinder count to handle the load safely.
Conversely, you might have smaller auxiliary power needs that call for a more compact footprint. To accommodate these diverse industrial requirements, the manufacturer provides a complete lineup built on this proven architecture.
Deutz TBD234-Generator Engine Series, original products from Henan Diesel Engine Plant (HND). This series mainly includes Deutz TD234V6, Deutz TBD234V6, Deutz TD234V8, Deutz TBD234V8, Deutz TBD234V12.
Frequently Asked Questions (FAQs)
Can the TBD234V6 operate at both 50Hz and 60Hz?
Yes. The engine speed directly dictates the frequency of the alternator. We can configure the HND TBD234V6 50Hz diesel generator engine to run at 1500rpm. If your region or application requires 60Hz power, the governor is adjusted to run as a TBD234V6 60Hz generator engine at 1800rpm.
Is this a suitable Deutz TD234V6 engine replacement for a 150kVA generator?
Absolutely. The TD234V6 output perfectly matches the alternator requirements for a 150kVA prime power setup. Its compact dimensions make it highly suitable for dropping into an existing 150kVA sound-attenuated enclosure.
Where can I buy TBD234V6 diesel engine units and parts?
As a leading China TBD234V6 diesel engine supplier, HekoPower provides complete engine assemblies, short blocks, and individual replacement components. Whether you are looking for a TBD234V6 generator engine for sale or need to overhaul an existing unit, we can ship directly to your facility.
How does the pricing compare to European-built models?
The TBD234V6 generator engine price offers significant cost savings compared to sourcing legacy European stock, without sacrificing build quality or reliability. Because HND produces these under official licensing using modern manufacturing techniques, you get exceptional value and a lower total cost of ownership. Contact our sales team with your required kW output for an exact quote.
