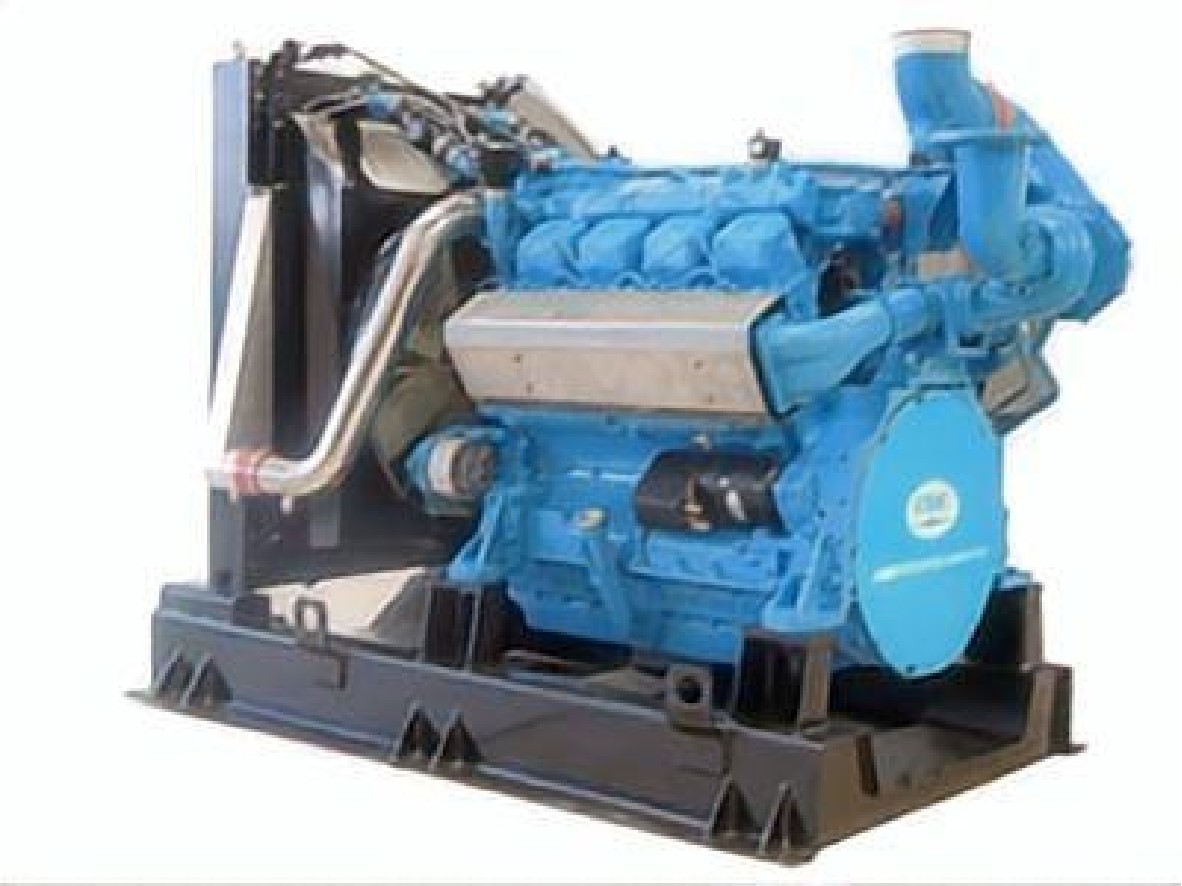

Deutz TBD234V6 Generator Engine: Reliable 186kW-242kW Power
The Deutz TBD234V6 generator engine is a heavy-duty powerhouse engineered for continuous and standby power generation. Built under the exacting standards of the Henan Diesel Engine Plant TBD234 series, this model leverages legacy MWM technology to deliver stable electricity in demanding environments. HekoPower supplies this genuine Deutz TBD234V6 engine for sale to OEMs, procurement managers, and engineering firms requiring a resilient 6 cylinder Deutz diesel generator engine.
Whether you are packaging a new canopy or sourcing a Deutz TBD234V6 replacement generator engine for an existing site, this V6 model offers a superior power-to-weight ratio compared to traditional inline blocks.
Engineering Heritage of the HND Deutz TBD234V6
The foundation of the TBD234V6 genset engine lies in its MWM (Motoren-Werke Mannheim) lineage. Deutz acquired MWM and integrated its highly successful medium-speed and high-speed diesel designs. Today, the HND Deutz TBD234V6 is manufactured in China under strict licensing, ensuring it matches European performance criteria while remaining highly cost-effective for global buyers.
This specific MWM Deutz TBD234V6 diesel engine utilizes a robust V-angle cylinder block. This design choice minimizes engine vibration during operation and significantly reduces the overall footprint of the genset.
Tech Specs of Deutz TBD234V6 Generator Engine
General Engine Data
Engine Model: Deutz TBD234V6-Generator Engine
Type: 6 Cylinders, V Type
Displacement: 10.8 L
Bore * Stroke: 128 * 140
Overall Dimension: 1850mm*1100mm*1600mm
Key Performance Data
Rated Power(1500 RPM): 186 kW
Rated Power(1800 RPM): 222 kW
Rated Power(2100 RPM): 242 kW
Rated Speed: 1500/1800/2100 rpm
Idle Speed: 650 rpm
Fuel Consumption: ≥ 198 g/kW.h
Intermittent Power/Speed (kW/rpm): 205/1500,244/1800, 266/2100, 272/2300
More Technical Data
Certification: Euro II
Aspiration: Turbocharged
Compression Ratio: 15:1
Electrical System (Starter Motor/Alternator): Electrical Start (24V)
Cooling Method: Water Cooled
Ignition Sequence: A1-B2-A3, B1-A2-B3
Fuel System: Direct Injection Pump
Fuel Consumption and Efficiency
Operational expenditure is heavily dictated by the TBD234V6 fuel consumption rate. This direct injection diesel generator engine utilises a highly pressurised fuel delivery system to atomize diesel efficiently. The direct injection process ensures complete combustion, lowering exhaust temperatures and maximizing mechanical energy output. As a result, the Deutz TBD234V6 fuel consumption remains exceptionally competitive within its power class, reducing fuel storage requirements for remote sites.
Technical Comparisons: V6 vs. Inline Configurations
A common query from procurement teams is whether to choose a V6 or an inline-6 engine for a 200kVA to 250kVA generator. The Deutz 234 series generator engine utilizes the V6 layout specifically to save longitudinal space.
Inline engines in this power band are inherently longer, which can be problematic for mobile trailer-mounted generators. The V6 block of the HND Deutz TBD234V6 generator engine concentrates the mass centrally. This improves the balance of the generator set on its anti-vibration mounts. Furthermore, the shorter crankshaft in the V6 reduces torsional vibration, leading to a longer lifespan for the main bearings and the coupled alternator.
Real-World Application Scenarios
The Deutz TBD234V6 diesel generator engine is engineered for versatility. Its rapid transient response makes it suitable for environments where power loads fluctuate suddenly.
Deutz TBD234V6 Engine for Hospital Backup Generator
Medical facilities require uninterrupted power transitions. The Deutz TBD234V6 engine for standby generator applications accepts block loads rapidly. When the mains power fails, this engine powers up and stabilizes frequency quickly, ensuring life-saving medical equipment remains online without dangerous voltage dips.
Deutz TBD234V6 Engine for Telecom Generator Sets
Remote telecommunication towers operate in isolated regions where grid power is nonexistent. The Deutz TBD234V6 for land-use stationary generator setups is ideal here because of its reliability. Telecom operators favor this engine because its large oil sump and efficient cooling system permit extended autonomous run times between service intervals.
Deutz TBD234V6 Generator Engine for Industrial Applications
Factories and mining camps rely on the Deutz TBD234V6 backup power diesel engine to protect production lines. Whether powering heavy conveyor belts or industrial HVAC systems, the engine's turbocharged aspiration ensures it does not choke under sudden inductive loads caused by large electric motors starting up.
Maintenance Guidelines and Overhaul Period
A strict maintenance schedule dictates the longevity of any Deutz TBD234V6 engine for emergency power system applications. The Deutz TBD234V6 maintenance manual prescribes routine checks of the valve clearances and injector pressure testing at specific intervals.
The Deutz TBD234V6 overhaul period typically approaches 10,000 to 12,000 operating hours when subjected to standard prime power usage and clean fuel. To achieve this, operators must ensure the air filtration system is never compromised and that the water-cooling circuit is flushed annually to prevent scale buildup.
Misconceptions About Spare Parts Availability
There is a false misconception in the market that HND-manufactured MWM legacy engines suffer from poor aftermarket support. This is entirely incorrect. Because the TBD234 series has been a cornerstone of global industrial power for decades, Deutz TBD234V6 spare parts availability is excellent.
As a dedicated Deutz TBD234V6 engine parts supplier, HekoPower stocks everything from routine service kits to major overhaul components. You do not need to worry about long downtimes when replacing pistons, liners, or main bearings.
Procurement from a Trusted HND Supplier
Sourcing heavy machinery requires a reliable partner. HekoPower is a premier Deutz TBD234V6 generator engine supplier China relies on for export quality. We supply the wholesale HND Deutz TBD234V6 engine directly to international buyers, ensuring you receive factory-fresh units.
We protect your investment with a comprehensive 12-month warranty. As an established HND TBD234V6 engine wholesale supplier, we offer flexible payment terms including T/T and L/C to accommodate international trade requirements. Most importantly, our optimized supply chain ensures a rapid lead time of 15-20 business days from order confirmation to dispatch.
Deutz TBD234-Generator Engine Series, original products from Henan Diesel Engine Plant (HND). This series mainly includes Deutz TD234V6, Deutz TBD234V6, Deutz TD234V8, Deutz TBD234V8, Deutz TBD234V12.
Frequently Asked Questions (FAQs)
What is the current Deutz TBD234V6 diesel engine price?
Engine pricing fluctuates based on global raw material costs, order volume, and specific emission compliance configurations. As a wholesale supplier, HekoPower offers highly competitive pricing. Please contact our sales team with your exact destination port for an accurate CIF quotation.
Is it safe to buy Deutz TBD234V6 generator engine units online?
Yes, provided you are dealing with a verified distributor. HekoPower guarantees that every unit sold is a genuine Deutz TBD234V6 engine for sale, complete with factory testing certificates and original serial numbers.
Can this engine run on high-sulfur diesel?
While the mechanical direct injection system is more tolerant of varying fuel qualities than modern common-rail electronic engines, high sulfur content will degrade engine oil faster. If operating in regions with poor fuel quality, we recommend shortening your oil change intervals and installing heavy-duty water separators.
How do I know if I need the 1500rpm or 1800rpm version?
This is dictated by your country's electrical grid standard. If your regional grid operates at 50Hz (common in Europe, Asia, and Africa), you require the Deutz TBD234V6 1500rpm generator engine. If your grid is 60Hz (common in the Americas), you must order the 1800rpm configuration.
