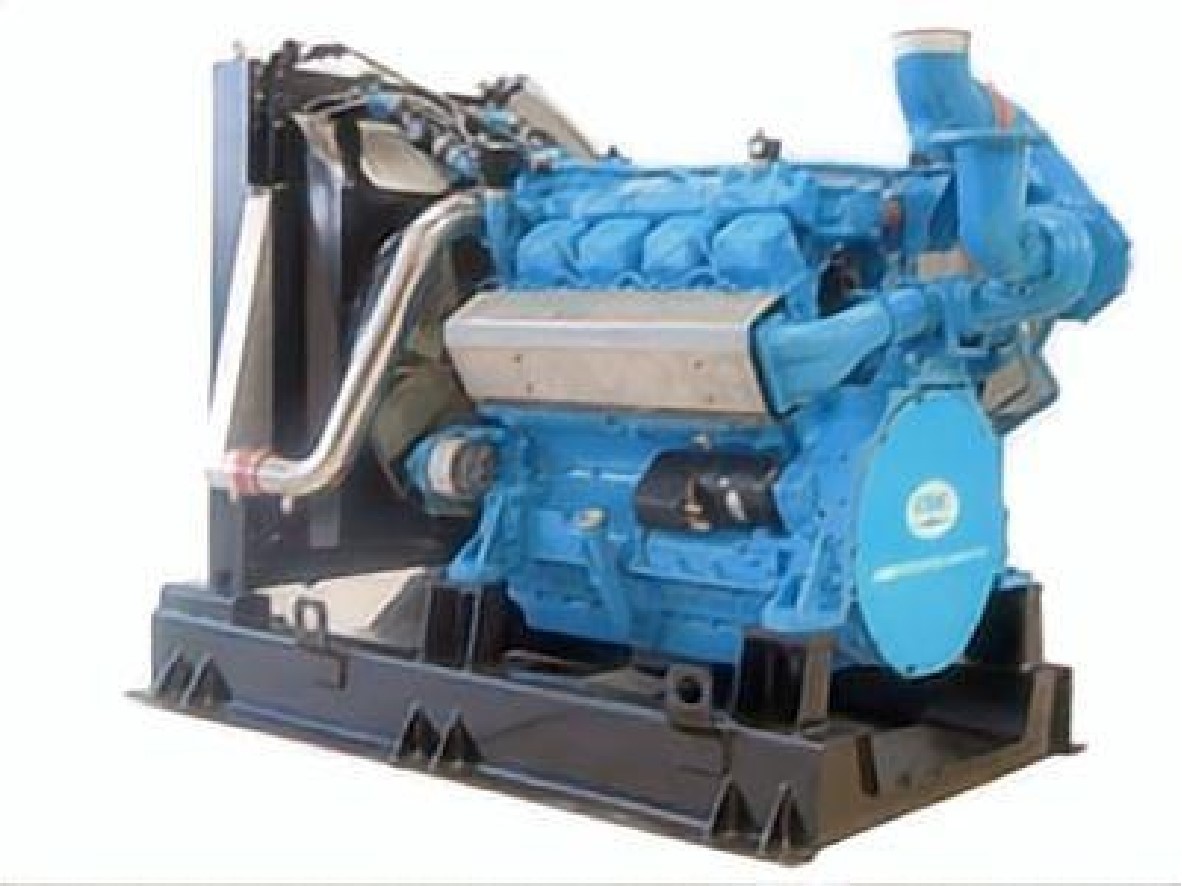

Deutz TBD234V8 Generator Engine
The Deutz TBD234V8 generator engine represents a benchmark in heavy-duty industrial power. Manufactured under license by the Henan Diesel Engine Plant (HND), this unit is engineered specifically for high-demand power generation. It is a 14.4L Deutz 8-cylinder V-type diesel engine designed to deliver consistent mechanical output across diverse environments. As a professional engine supplier, HekoPower provides this TBD234V8 complete generator engine for both OEM generator set assembly and aftermarket replacement projects.
Whether you require a TBD234V8 249 kW diesel engine for continuous operation or a TBD234V8 323 kW generator engine for rapid standby response, this power plant delivers. HekoPower supplies the complete engine assembly for generator integration, ensuring that our clients receive authentic HND Deutz TBD234V8 parts and engine units ready for immediate deployment.
Tech Specs of Deutz TBD234V8 Generator Engine
General Engine Data
Engine Model: Deutz TBD234V8-Generator Engine
Type: 8 Cylinders, V Type
Displacement: 14.4 L
Bore * Stroke: 128 * 140
Overall Dimension: 1847mm*1130mm*1587mm
Net Weight: 1230 Kg
Key Performance Data
Rated Power(1500 RPM): 249 kW
Rated Power(1800 RPM): 296 kW
Rated Power(2100 RPM): 323 kW
Rated Speed: 1500/1800/2100 rpm
Idle Speed: 650 rpm
Fuel Consumption: ≥ 201 g/kW.h
Intermittent Power/Speed (kW/rpm): 405 kW/2200rpm; 445 kW/2265 rpm; 465 kW/2300 rpm
More Technical Data
Certification: Euro II
Aspiration: Turbocharged
Compression Ratio: 15:1
Electrical System (Starter Motor/Alternator): Electrical Start (24V)
Cooling Method: Water Cooled
Ignition Sequence: A1-B2-A3-b1, A4-B3-A2-B4
Fuel System: Direct Injection Pump
Technical Comparisons of the TBD234V8 Engine
When selecting a prime mover for a 312.5 kVA generator, engineers often compare the TBD234V8 against similarly sized inline-six engines. The differences in architecture and fueling methodology offer distinct advantages for the Deutz V8 design.
V-Type Block Versus Inline Engine Configurations
The TBD234V8 8 cylinder V engine offers a significantly shorter overall length compared to a 14-liter inline-six alternative. This reduced engine dimension requires a smaller installation footprint. The shorter forged crankshaft within the V8 block also exhibits superior torsional rigidity. This inherent stiffness drastically reduces rotational vibration harmonics when the engine runs continuously at a TBD234V8 rated speed of 1500 rpm or 1800 rpm. Generator assemblers benefit directly from this design, as it requires less complex vibration isolation mounting on the base frame.
Mechanical Fuel Injection System Advantages
Modern power generation engines frequently utilize electronic common-rail fuel systems. However, the TBD234V8 fuel injection system relies on a highly durable mechanical inline block pump. In remote industrial sites, diesel fuel quality can vary wildly, often containing moisture or high sulfur levels. Electronic injectors fail rapidly under these conditions. The mechanical injection pump on the Deutz TBD234V8 tolerates lower-tier fuels with ease. It maintains highly accurate fuel delivery and governor response without relying on fragile electronic control units or sensitive pressure sensors.
Output and Thermal Efficiency Differences
Many competing engines struggle to maintain stable TBD234V8 engine weight-to-power ratios without excessive turbo lag. Because this HND Deutz TBD234V8 utilizes twin turbochargers paired with a highly efficient charge air cooler, it feeds dense, oxygen-rich air directly into the combustion chambers. This results in exceptional block-load acceptance. The engine recovers its rated frequency rapidly when large electrical motors or heavy industrial loads are suddenly switched on.
Real Application Scenarios for the TBD234V8
The versatility of the Deutz TBD234V8 G-drive engine allows it to serve multiple roles across the global power generation sector. HekoPower supplies this specific model to clients operating in highly varied environments.
50Hz Prime Power Generation Facilities
For standard grid requirements, the TBD234V8 249 kW 1500 rpm configuration acts as a reliable prime power source. It is frequently coupled with alternators to build a TBD234V8 400V 50Hz generator engine package. Mining camps, remote agricultural processing plants, and off-grid construction sites rely on this setup. Operating continuously at 1500 rpm, the engine achieves an optimized TBD234V8 fuel consumption rate, ensuring that operational overhead remains low even during 24/7 run cycles.
Emergency Standby and 60Hz Power
Facilities requiring 60Hz power utilize the TBD234V8 296 kW 1800 rpm variant. Data centers, hospitals, and municipal water treatment plants depend on this engine for immediate emergency backup. The mechanical governor reacts instantly to utility grid failures, pushing the TBD234V8 296 kW diesel engine to full rated power in seconds. For extreme peak-shaving applications, the engine can be configured as a TBD234V8 323 kW 2100 rpm engine, offering maximum power density for short-duration load demands.
Maintenance, Overhaul, and Replacement Tips
Maximizing the lifespan of your HND TBD234V8 generator engine requires strict adherence to operating parameters and scheduled maintenance routines. HekoPower highly recommends establishing a preventative maintenance ledger.
Regular Servicing and Fuel Management
Operators must monitor the Deutz TBD234V8 fuel consumption and dimensions of operational exhaust temperatures daily. A sudden spike in exhaust temperature often indicates a fouled mechanical injector or restricted charge air cooler. Engine oil and bypass filters should be changed every 250 operating hours. When conducting valve lash adjustments, mechanics should carefully inspect the rocker arm lubrication ports. Maintaining a clean TBD234V8 cooling system is equally critical; always use distilled water mixed with a high-quality supplemental coolant additive to prevent cylinder liner cavitation.
Sourcing TBD234V8 Replacement Generator Engines
When an existing engine exceeds its overhaul limits, sourcing a TBD234V8 replacement generator engine is often more cost-effective than a complete frame-up rebuild. HekoPower operates as a direct TBD234V8 generator engine supplier, providing factory-fresh replacements. When swapping the engine assembly for a generator, verify the flywheel housing SAE dimensions and the flexible coupling condition to ensure seamless mating with your existing alternator.
Addressing Common Misconceptions About the Engine
A frequent misconception is that HND-manufactured engines differ internally from European-built units. This is entirely false. The Henan Diesel Engine Plant TBD234V8 is built using official licensed blueprints and original tooling specifications. Every internal component, from the piston rings to the crankshaft bearings, mirrors the exact technical standards of the original design. Another misconception involves the TBD234V8 rated power; some operators assume the 323 kW rating can run continuously. The 323 kW output is strictly a standby rating for brief emergencies, while the 249 kW output is the true continuous prime rating.
Deutz TBD234 Series Engine Lineup
To ensure you select the correct power node for your specific electrical load requirements, HekoPower offers the entire family of HND Deutz engines. The TBD234 architecture spans multiple cylinder configurations, allowing clients to scale their generator sets while maintaining a unified parts inventory. We maintain a comprehensive catalog to support your procurement needs.
Deutz TBD234-Generator Engine Series, original products from Henan Diesel Engine Plant (HND). This series mainly includes Deutz TD234V6, Deutz TBD234V6, Deutz TD234V8, Deutz TBD234V8, Deutz TBD234V12.
Frequently Asked Questions (FAQs)
What is the exact displacement of the Deutz TBD234V8?
The engine features a total swept volume of 14.4 liters, achieved through its 8-cylinder V-type block and a 128 mm by 140 mm bore and stroke.
What size generator set is suitable for this engine?
The TBD234V8 industrial generator engine perfectly matches alternators requiring 250 kW to 300 kW of mechanical input, typically yielding a 312.5 kVA prime power generator set at 50Hz.
Is this engine suitable for continuous daily operation?
Yes. The Deutz TBD234V8 249KW 1500RPM generator specifications are specifically designed for continuous, prime power applications in harsh industrial environments.
Where can I find a Deutz TBD234V8 generator engine wholesale price?
As a specialized engine supplier, HekoPower provides competitive wholesale pricing for complete engines, G-drive assemblies, and genuine HND spare parts. You can contact our sales team directly for a tailored quote.
