Details

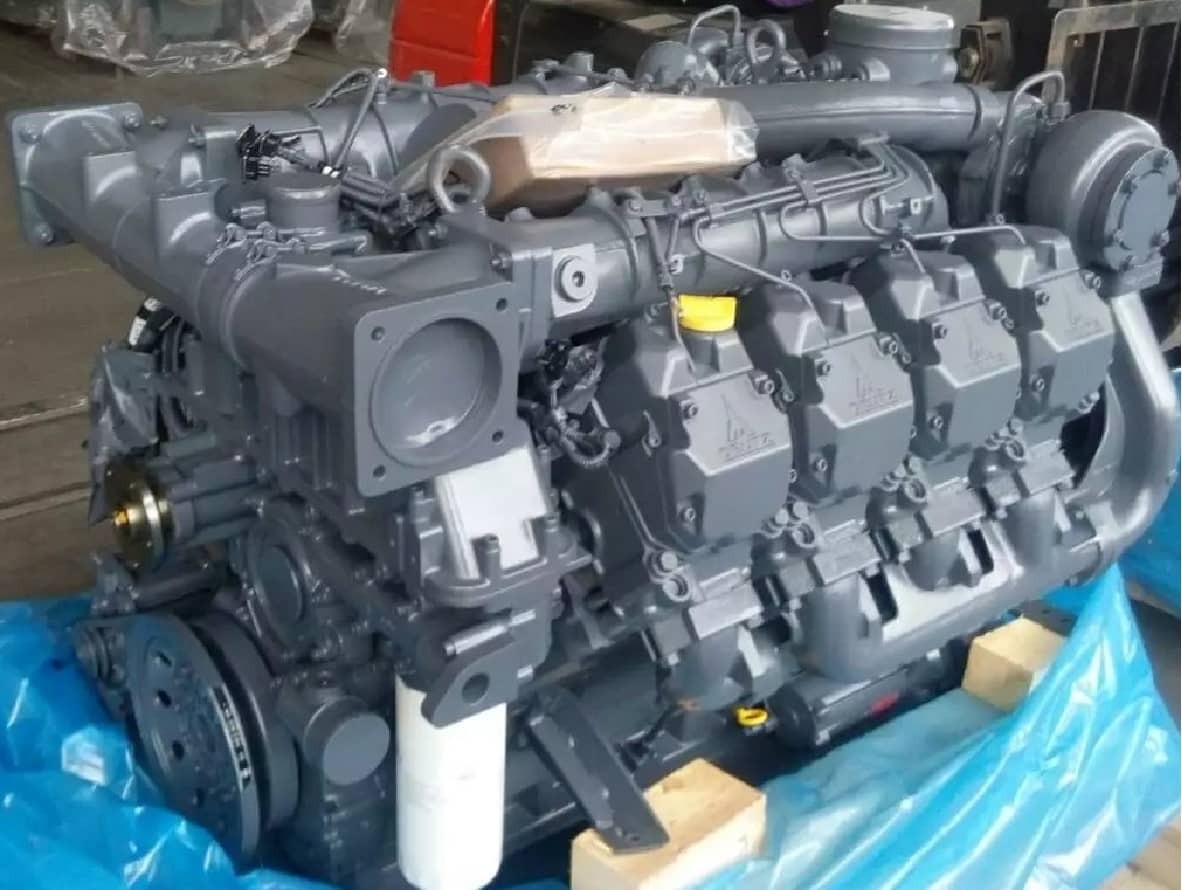

Deutz TCD2015V08-Construction Diesel Engine
Original Deutz licence plant, new machines at absolute wholesale prices.
HekoPower Group is the reliable choice.
Our partner Deutz, With 160 years of heritage, is one of the world’s leading manufacturers of innovative drive systems. Hebei Huabei Diesel Engine Company("Huachai"), Huachai Deutz Engine Plant is Deutz License Plant in China, which has successively introduced the technology of Deutz AG since 1979, including the B/FL413/513, BFM1015, TCD2015, TCD12.0/16.0, HC4132, HC6132 series.
Deutz TCD2015V08-Construction Diesel Engine could be available for Heavy Truck, Excavator, Vehicles, Road roller, Bulldozer, Crane, water pump, Construction machinery and Industrial Engine power pack.
Technical Specifications
General Engine Data
Engine Model: Deutz TCD2015V08-Construction Diesel Engine
Type: 8 Cylinders, V Type
Displacement: 15.874 L
Bore * Stroke: 132 * 145
Net Weight (with flywheel and alternator): 1260 Kg
Overall Dimension: 1395mm*945mm*1196mm
Key Performance Date
Rated Power: 360-500 kW
Rated Speed: 2100 rpm
Max Torque/Speed: 2890 N.m @ 1300 rpm
Min Fuel Consumption @ Full Load: 195 g/Kw.h
Idle Speed: 600 rpm
More Technical Data
Certification: Euro III
Aspiration: Turbocharged & Intercooled
Fuel System: Electronic Unit Pump, Direct Injection
Cooling Method: Water Cooled
Engine Alternator: 3-phase alternator, 28V/55A
Electrical System (Starter Motor/Alternator): Mechanical/Electronic Start (24V/9kW)
Compression Radio: 17.5:1
Deutz TCD-Construction Diesel Engine Series
Deutz TCD-Construction Diesel Engine Series, original products from Huachai Deutz Engine Plant. This series mainly includes TCD2015V06, TCD2015V08, TCD2012-L4 (138HP), TCD2012-L4 (160.9HP), TCD4.1-L4, TCD2012-L6 (208HP), TCD2012-L6 (252.1HP), TCD6.1-L6.
