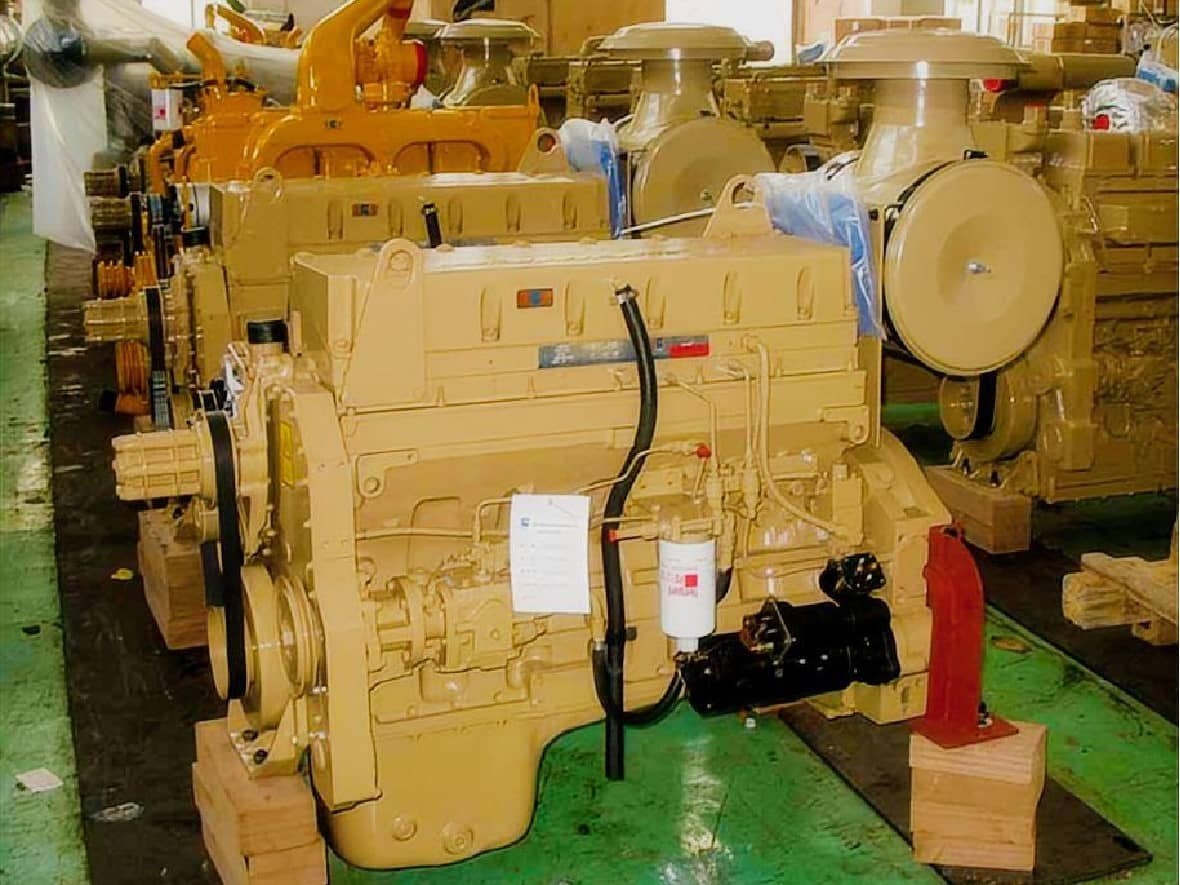

Cummins QSM11-G1 Generator Drive Engine Assembly
The Cummins QSM11-G1 is a heavy-duty diesel engine engineered specifically for prime and standby power generation applications. As a prominent engine supplier, Hekopower provides the original Chongqing Cummins QSM11-G1 engine assembly directly from the CCEC factory. This 10.8-liter, six-cylinder in-line engine utilizes advanced combustion technology to deliver reliable mechanical power for critical infrastructure grids.
Finding an authentic CCEC QSM11-G1 G-Drive engine with predictable lead times can be challenging for international genset manufacturers. Many global buyers face trade risks involving counterfeit components or remanufactured blocks marketed as brand new. Hekopower eliminates these challenges. We provide fully verified, factory-fresh Cummins M11 series generator engines complete with original manufacturing certificates, official testing logs, and full export compliance documentation.
Tech Specs of Cummins QSM11-G1
General Engine Data
Engine Model: Cummins QSM11-G1
Type: 6 Cylinders in Line, 4 Stroke Diesel
Displacement: 10.8 L
Bore * Stroke: 125 * 147
Net Weight: 1007 Kg
Overall Dimension: 1306mm*914mm*1280mm
Key Performance Data
Rated Power/Standby Output(1500 rpm): 234 kW/314HP, 257 kW/345HP
Rated Power/Standby Output(1800 rpm): 268 kW/359HP, 295 kW/395HP
Rated Speed: 1500/1800 rpm
Low Idle Speed: 675-750 rpm
Fuel Consumption @ Rated Power: 56 L/hr
Continuous Output/Speed(1500 rpm): 199 kW/267HP @ 1500 rpm
Continuous Output/Speed(1800 rpm): 228 kW/305HP @ 1800 rpm
More Technical Data
Fuel System: Cummins PT Pump, Direct Injection
Aspiration: Turbocharged/Charge Air Cooled
Compression Radio: 16.3:1
Lowest Starting Temp (Without auxiliary system): -12℃
Cooling Method: Water Cooled
Governor Type: Electronic Control
Engine Coolant Volume: 9.5 L
Electrical System (Starter Motor/Alternator): 24V
Emission Standard: Euro II
Technical Analysis of the QSM11-G1 Power Architecture
Understanding the internal design of the Cummins QSM11-G1 generator drive engine reveals why it remains a benchmark for industrial reliability. The core architecture relies on an advanced electronic control system paired with a highly durable mechanical structural block.
Cummins QSM11-G1 Governor Type and Electronic Control System
Unlike older mechanical engines in the M11 series, the QSM11-G1 features a full authority electronic control system. This setup uses a proprietary Cummins electronic governor to monitor engine parameters in real time. The electronic control module constantly adjusts fuel injection timing and pressure based on load changes. This precise monitoring ensures immediate transient response when a heavy electrical load hits the generator set. It maintains tight frequency control, which protects sensitive electronics down the line.
QSM11-G1 Diesel Engine Emissions Standards Compliance
Environmental compliance dictates global equipment deployment. The QSM11-G1 design balances high power density with strict emissions control. The advanced in-cylinder combustion technology limits particulate matter and nitrogen oxide output. The engine meets international industrial emission standards without requiring complex, high-maintenance exhaust after-treatment systems. This makes the power plant easier to install in regions with evolving environmental regulations.
Cummins QSM11-G1 Fuel Consumption Rate at 100% Load
Fuel economy directly impacts the total cost of ownership for a diesel generator. The Cummins QSM11-G1 fuel consumption stabilizes at an optimized curve due to its high-pressure unit injectors. At a 100% load factor operating at 1500RPM, the engine maintains excellent thermal efficiency. Precise data regarding Cummins QSM11-G1 fuel consumption allows plant operators to calculate accurate operational fuel budgets. It also helps design appropriately sized sub-base fuel storage tanks for continuous operation.
Power Ratings and System Integration
Matching the correct engine rating to your alternator is critical to avoid premature component fatigue or system wet-stacking.
Cummins QSM11-G1 Standby vs Prime Power Rating
The QSM11-G1 1500rpm diesel engine serves two primary duty cycles. The prime power rating suits applications where no reliable utility grid exists. It allows for variable load operations with unlimited annual run hours, alongside a ten percent overload capability for emergency intervals. Conversely, the Cummins QSM11-G1 standby diesel engine rating applies to emergency backup systems. Under standby parameters, the engine runs at maximum output for the duration of a utility outage, but no overload capability is permitted.
QSM11-G1 Engine Spec Sheet for 300kVA Generator
When building a 50Hz electrical system, this QSM11-G1 50Hz engine provides the exact mechanical output needed to drive a 300kVA generator set. It delivers stable performance parameters that align perfectly with standard three-phase industrial alternators.
The structural specifications must guide your canopy engineering:
- Cummins QSM11-G1 Engine Dimensions: 1313 mm × 943 mm × 1185 mm
- Cummins QSM11-G1 Engine Weight: Approximately 984 kg (Dry weight)
Integrating this structural data into your layout design ensures adequate airflow, correct vibration isolation mount placement, and proper radiator ducting alignment.
Cummins QSM11-G1 with Stamford Alternator Integration
For premium power solutions, pairing the Cummins QSM11-G1 industrial power engine with a genuine Stamford alternator creates a highly reliable combination. This specific pairing is favored by engineering firms globally due to shared international service networks. Whether configuring a Cummins QSM11-G1 open type genset engine for indoor plant rooms or a soundproof enclosed unit for outdoor installation, this configuration delivers reliable voltage regulation and clean sinewaves.
Real Application Scenarios for the QSM11-G1 Engine
The high thermal efficiency and fast block-loading capability of this heavy duty diesel engine make it ideal for critical infrastructure.
Cummins QSM11-G1 for Data Center Backup
Data centers require absolute power continuity; even a microsecond voltage drop can corrupt global cloud infrastructure. The Cummins QSM11-G1 diesel genset engine acts as a reliable safeguard. Its fast transient response allows the emergency power system to achieve full rated voltage and frequency within seconds of a primary grid failure. This swift response ensures a seamless transition before uninterruptible power supply (UPS) batteries deplete.
Cummins QSM11-G1 Hospital Standby Engine
Healthcare facilities depend on emergency power to maintain life-support apparatus, operating room climate control, and critical monitoring networks. The QSM11-G1 hospital standby engine provides the necessary reliability for these environments. The integrated jacket water heaters keep the engine block warm, ensuring immediate start-up execution and stable load adoption under freezing ambient conditions.
Cummins QSM11-G1 Telecom Backup Power Engine
Remote telecommunication hubs demand power plants that can run reliably without constant oversight. The QSM11-G1 serves as an ideal telecom backup power engine due to its long service intervals and robust diagnostics. The integrated electronic safety systems protect the block against low oil pressure or high coolant temperatures, automatically shutting down the unit to prevent major component failure during unstaffed operations.
Cummins QSM11-G1 for Industrial Generator Set Duty
From manufacturing facilities to remote mining operations, industrial sectors rely heavily on continuous power to maintain production margins. The QSM11-G1 for industrial generator set operations provides a rugged mechanical platform capable of enduring dusty environments, variable load shifts, and prolonged run schedules common in heavy industry.
Maintenance and Long-Term Operation Guidelines
Following original factory maintenance schedules ensures your QSM11-G1 engine reaches its planned operational lifespan without major overhauls.
Preventative Lifecycle Maintenance Schedules
The Cummins QSM11-G1 requires scheduled oil and filter changes every 250 to 500 operating hours, depending on fuel quality and environmental dust factors. Operators must use high-quality fleetguard filters and multi-grade lubricating oil that meets Cummins Engineering Standards. Regularly inspecting the cooling system, testing coolant anti-corrosion additive levels, and checking drive belt tension will prevent unexpected thermal shutdowns during emergency operations.
Sourcing Cummins QSM11-G1 OEM Supplier China Parts
When components eventually wear down, using genuine parts is essential to maintain engine performance and protect your warranty. As a comprehensive Cummins QSM11-G1 OEM supplier China partner, Hekopower maintains stock of critical components, including fuel injectors, turbochargers, water pumps, and upper gasket kits. Using authentic replacement parts ensures proper mechanical fit and maintains original emissions compliance profiles.
B2B Procurement, Inspection, and Export Logistics
Navigating industrial engine sourcing requires deep supply chain transparency, strict quality oversight, and robust export logistics.
Where to Buy Authentic Cummins QSM11-G1 in China
Hekopower operates as a trusted industrial engine supplier, sourcing equipment directly from authorized production channels in China. We offer genuine Chongqing Cummins QSM11-G1 blocks, ensuring every engine bears a verified factory nameplate, unique serial number, and uncompromised internal components. International buyers can easily verify their engine's build sheet history through the official Cummins global tracking database.
Cummins QSM11-G1 Price and Lead Time Structures
B2B procurement schedules depend on clear capital budgeting and predictable supply timelines. The genuine Cummins QSM11-G1 price varies based on your required configuration, particularly your choice of cooling radiator type, electrical system voltage (12V or 24V), and control panel specifications. As a dedicated Cummins QSM11-G1 wholesale supplier, Hekopower leverages direct factory relationships to provide competitive pricing and steady production priority. This strategy helps mitigate the long lead times common among domestic trading intermediaries.
Cummins QSM11-G1 Export Packaging Dimensions
Safe maritime transport requires specialized heavy-machinery packaging. Hekopower prepares each QSM11-G1 unit using export-grade, ISPM-15 compliant fumigated wooden cases. The average shipping enclosure measures roughly 1600 mm × 1150 mm × 1450 mm. We apply heavy-duty rust preventatives to all exposed shafts, seal all intake and exhaust ports with moisture-proof caps, and wrap the entire block in heavy-gauge VCI anti-corrosion film to protect it from sea spray during transport.
Original Cummins QSM11-G1 Engine with Sea Shipping Certificate
Our logistics team handles all complex export declarations at major Chinese ports. Every original CCEC QSM11-G1 for sale leaves our facility backed by an export documentation package. This package includes the original bill of lading, commercial invoices, packing lists, and the essential factory certificate of conformity. We ensure your local customs clearance processes proceed smoothly without unexpected delays.
Cummins QSM11-G Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes QSM11-G1, QSM11-G2, QSM11-G3, QSM11-G4.
QSM11-G1 Engineering Frequently Asked Questions
What is the exact displacement of the Cummins QSM11-G1?
The engine features a total displacement of 10.8 liters through an inline 6-cylinder layout. This displacement provides excellent torque characteristics and stable block-loading capacity across its power range.
Can I access a full Cummins QSM11-G1 specification PDF?
Yes, Hekopower supplies the complete Cummins QSM11-G1 datasheet and factory spec sheets to engineering teams during the project design phase. Contact our technical sales desk to get the official documentation for your specific generator set design.
What type of fuel system does the CCEC QSM11-G1 use?
The engine uses the Cummins CELECT fuel system, an advanced high-pressure electronic unit injection setup. This system optimizes fuel atomization, which improves fuel economy and reduces exhaust smoke.
Is the QSM11-G1 engine suitable for 60Hz generator configurations?
The QSM11-G1 model is specifically optimized for 1500RPM, 50Hz electricity generation applications. If your project requires a 1800RPM, 60Hz power profile, our engineering team can recommend a matching Cummins engine alternative from our product catalog.
