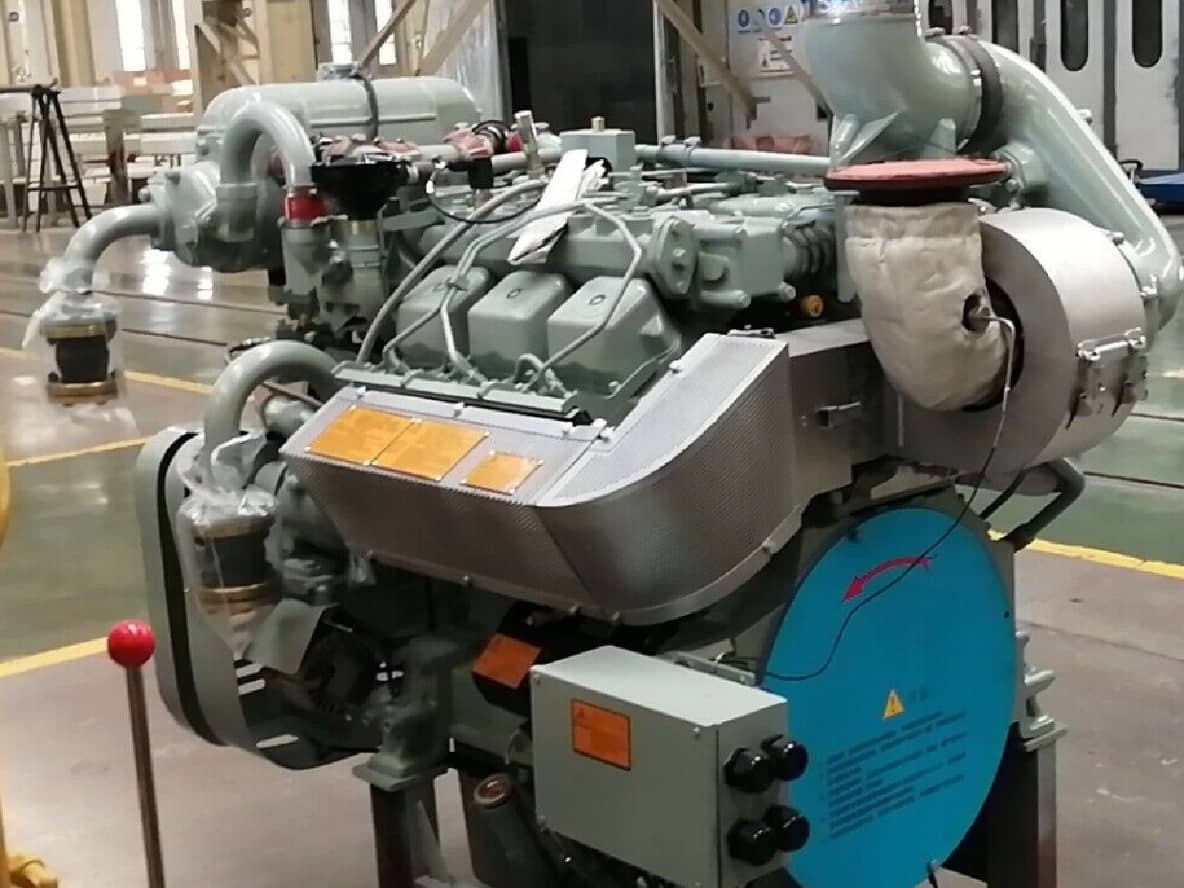

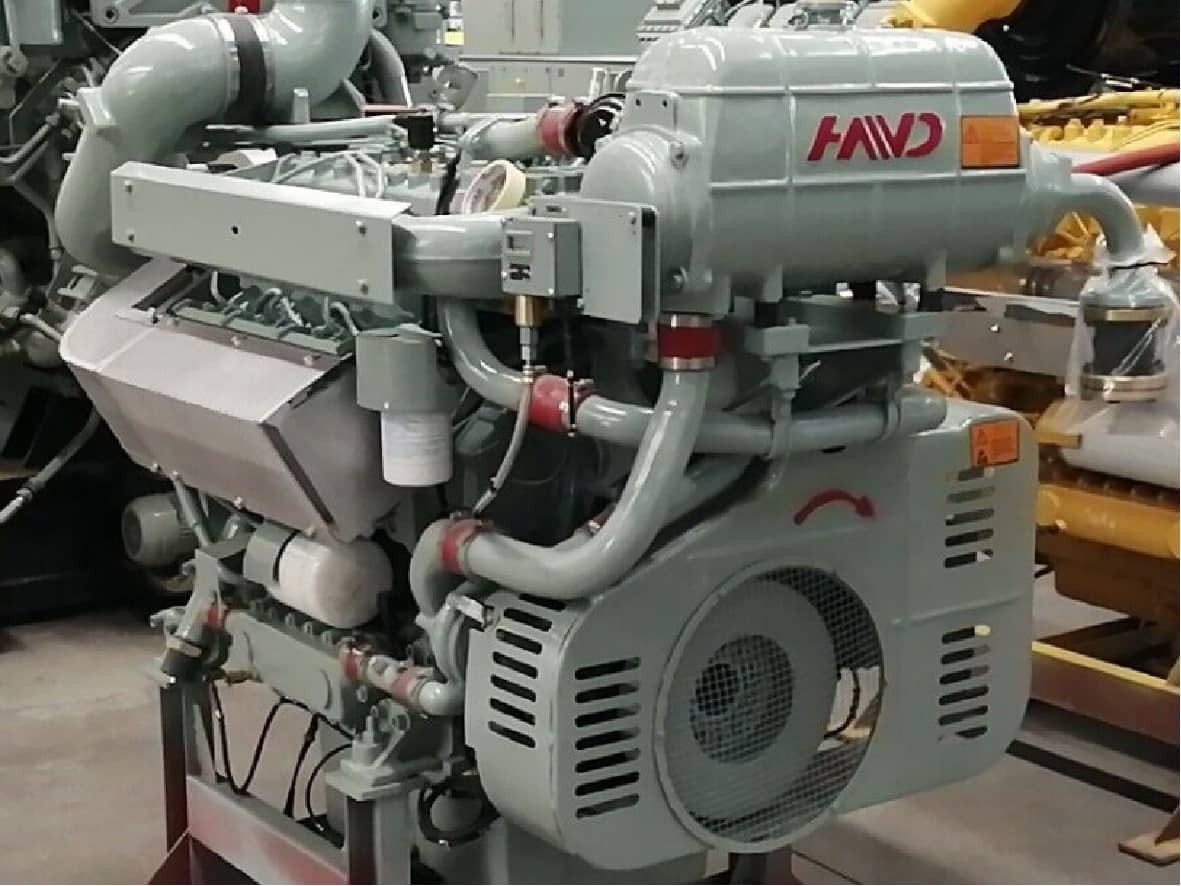

Deutz TBD234V6 250HP Marine Engine
As a leading Deutz ship engine supplier, HekoPower provides the genuine Deutz TBD234V6 250HP marine engine, engineered for heavy-duty maritime operations. Manufactured by the Henan Diesel Engine Plant (HND) under an official Deutz technology license, the TBD234 series marine engine is globally recognised for its durability, compact V-block design, and exceptional load-bearing capabilities.
Whether you are outfitting a new commercial vessel or looking for a reliable Deutz marine engine for vessel replacement, the TBD234V6 delivers consistent power. When you buy a Deutz TBD234V6 250HP marine engine from HekoPower, you are backed by a comprehensive 12-month warranty, secure payment options (T/T, L/C, Western Union), and a competitive lead time of 15 to 30 business days.
Tech Specs of Deutz TBD234V6 250HP
General Engine Data
Engine Model: Deutz TBD234V6-250HP
Type: 6 Cylinders, V Type, 4 Stroke
Displacement: 10.9 L
Bore * Stroke: 128 * 140
Wet Weight (with heat exchanger): 1300 Kg
Overall Dimension: 1660mm*988mm*1582mm
Key Performance Data
Rated Power: 186 kW/250 HP
Rated Speed: 1500 rpm
Min. Speed at Full Load: 1000 rpm
Low Idle Speed: 650 rpm
Fuel Consumption: 205 g/kW.hr
More Technical Data
Certification: CCS/IMO Certificates
Aspiration: Turbocharged and Intercooled
Max. Combustion Pressure: 15 MPa
Compression Ratio: 15:1
Starting Method: Electrical Start (24V)
Cooling Method: Water Cooled
Ignition Sequence: A1-B2-A3, B1-A2-B3
Real Application Scenarios for the 250HP Propulsion Engine
The Deutz commercial marine engine line is not built for light recreational use; it is designed for demanding, continuous workloads.
Deutz TBD234V6 Engine for Fishing Boat Applications: Fishing trawlers require engines that can handle sudden load changes when hauling heavy nets. The mechanical governor and high-pressure fuel pump on the TBD234V6 respond instantly to throttle adjustments, preventing stalling during critical winching operations.
Deutz TBD234V6 Engine for Workboat and Tug Use: Harbour workboats and small tugs rely on low-end torque. Because the minimum speed at full load is a steady 1000 rpm, operators have immense pulling power at their disposal without over-revving the engine.
Overall, as a 250HP marine diesel engine for commercial vessels, it is widely trusted in passenger ferries, cargo barges, and inland waterway transport ships where downtime directly results in lost revenue.
Technical Comparisons: Why Choose the TBD234V6?
When comparing the Deutz TBD234V6 250 horsepower propulsion engine to similar inline-six models from competing brands, the primary advantage is the V6 configuration. The 60-degree V-angle creates a shorter, more rigid crankshaft. This reduces torsional vibration through the hull of the ship, leading to a much smoother ride for passengers and less structural fatigue on the vessel.
Additionally, unlike modern common-rail engines that rely heavily on sensitive electronics, the mechanical injection system on the Deutz TBD234V6 is highly resilient to lower-quality diesel fuels often found in remote ports. This mechanical simplicity makes the Deutz TBD234V6 turbocharged diesel engine specifications highly attractive for operators who need to perform maintenance at sea without specialised diagnostic laptops.
Replacement Parts and Maintenance for Deutz TBD234V6
Routine maintenance is the key to maximising the lifespan of any marine propulsion system. As a dedicated Deutz TBD234V6 engine supplier, HekoPower does not just sell whole engines; we are a comprehensive Deutz TBD234V6 spare parts supplier.
Effective Deutz TBD234V6 marine engine maintenance revolves around monitoring the cooling system and the fuel delivery mechanism. Operators should regularly inspect the raw water pump impellers and clean the heat exchanger tube bundles to prevent overheating. Valve lash adjustments should be performed according to the factory schedule to maintain compression.
When it comes time for a major Deutz TBD234V6 overhaul service, HekoPower supplies everything from cylinder liners and piston rings to main bearings and complete gasket kits. Using genuine Deutz TBD234V6 replacement parts ensures that the ignition sequence (A1-B2-A3, B1-A2-B3) remains perfectly timed and the engine returns to its factory performance baseline.
Common Misconceptions About the TBD234 Series
A frequent misconception in the maritime industry regards the manufacturing origin of the engine. Buyers often ask if an engine built by the Henan Diesel Engine Plant (HND) is a "true" Deutz.
The reality is that HND is an official, licensed manufacturer for Deutz AG. The HND TBD234V6 is built using the exact same Deutz technology, metallurgy standards, and rigorous quality control processes as engines manufactured in Germany. Buying from a Deutz TBD234V6 250HP engine supplier in China like HekoPower simply means you are accessing the same world-class European engineering at a significantly more competitive price point, backed by massive factory production capacity.
Deutz TBD234-Marine Propulsion Series, Marine Propulsion Diesel Engines for commercial and recreational applications, original products from Henan Diesel Engine Plant (HND). This series mainly includes Deutz TBD234V6-250HP, Deutz TBD234V6-300HP, Deutz TBD234V8-340HP, Deutz TBD234V8-400HP, Deutz TBD234V12-500HP, Deutz TBD234V12-600HP.
Frequently Asked Questions (FAQ)
Is this a CCS/IMO certified Deutz marine engine 250HP?
Yes, the engines we supply come with official CCS (China Classification Society) and IMO (International Maritime Organization) certificates. This ensures the engine meets strict international maritime safety and emission regulations, allowing your vessel to operate legally in global commercial waters.
What are the Deutz TBD234V6 common problems?
Because of its robust mechanical design, fundamental failures are rare. Most reported issues stem from poor fuel filtration or neglecting the marine cooling system. Failing to drain water from the fuel-water separator can damage the high-pressure injection pump. Similarly, operating in highly silted waters without cleaning the sea strainer can lead to restricted raw water flow and elevated operating temperatures.
What is the Deutz TBD234V6 diesel engine price?
Because marine engines are frequently customized with specific gearboxes, heat exchangers, and control panels based on the vessel's architecture, the final price can vary. As a direct Deutz TBD234V6 replacement engine supplier, HekoPower guarantees highly competitive wholesale pricing. Please contact our sales team with your vessel's specifications for an exact, tailored quotation.
