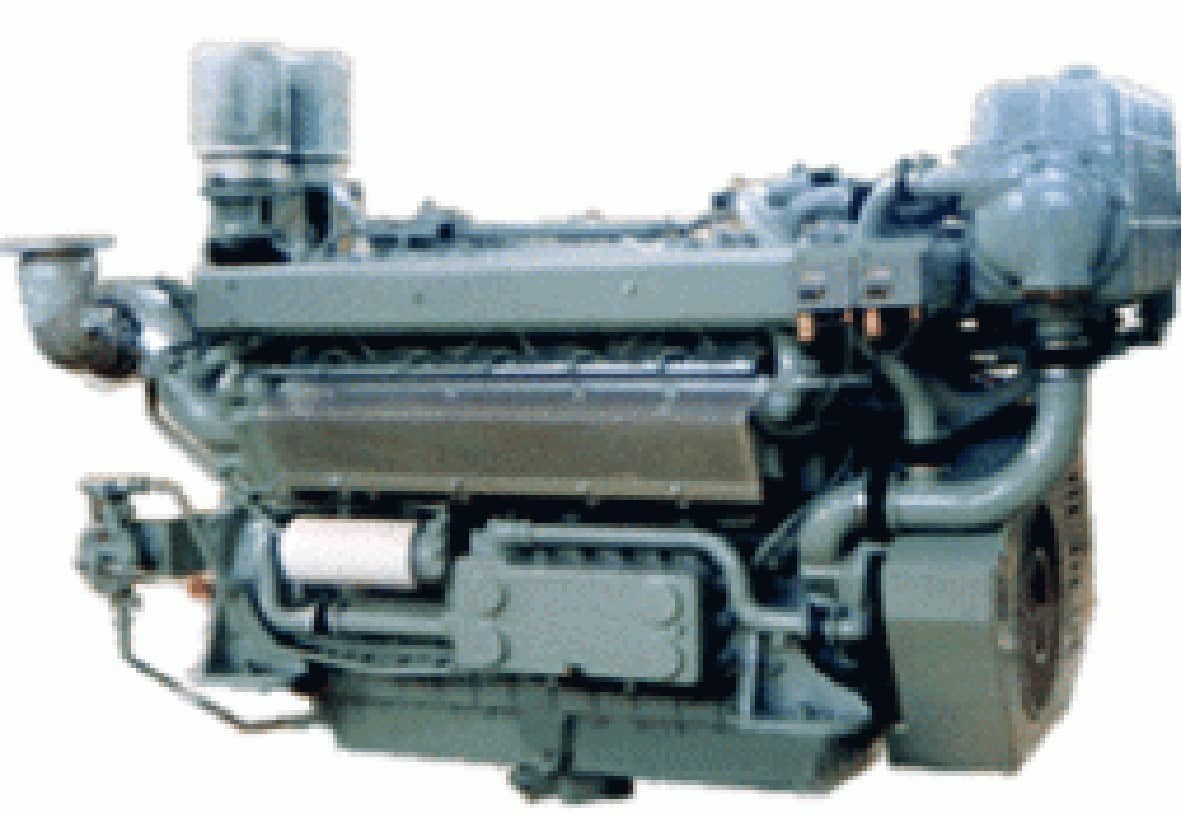

HND Deutz TBD234V12 600HP Marine Engine: Heavy-Duty Propulsion (444kW @ 1800rpm)
When outfitting a commercial vessel, reliable continuous power is the only metric that matters. Built utilizing German MWM licensed technology, the Deutz TBD234V12 marine engine is a 21.6L, 12-cylinder diesel workhorse designed for demanding maritime environments. Manufactured by the Henan Diesel Engine Plant (HND), this specific configuration delivers a rated 444kW (600HP) at 1800rpm.
HekoPower provides the complete HND TBD234V12 engine assembly, custom gearbox pairings, and a comprehensive inventory of genuine replacement parts to ensure your vessel stays on the water, not in the drydock.
Tech Specs of Deutz TBD234V12
General Engine Data
Engine Model: Deutz TBD234V12-600HP
Type: 12 Cylinders, V Type, 4 Stroke
Displacement: 21.6 L
Bore * Stroke: 128 * 140
Wet Weight (with heat exchanger): 2200 Kg
Overall Dimension: 2314mm*1314mm*1555mm
Key Performance Data
Rated Power: 444 kW/600 HP
Rated Speed: 1800 rpm
Lubricant Oil Consumption: ≤1.4 g/kW.h
Low Idle Speed: 650 rpm
Fuel Consumption: 205 g/kW.hr
More Technical Data
Certification: CCS/IMO Certificates
Aspiration: Turbocharged and Intercooled
Fuel System: High Pressure Fuel Pump
Compression Ratio: 15:1
Starting Method: Electrical Start (24V)
Cooling Method: Water Cooled
Ignition Sequence: A1-B5-A5-B3-A3-B6, A6-B2-A2-B4-A4-B1
Real-World Marine Application Scenarios
Choosing the right marine propulsion engine replacement dictates the operational efficiency of your vessel. The 600HP marine engine configuration is specifically calibrated for continuous heavy-duty cycles rather than intermittent recreational use.
For tugboats and workboats, the TBD234V12 excels at delivering high low-end torque. Pushing barges or maneuvering large vessels in port requires an engine that can handle rapid load changes without stalling or overheating.
In commercial fishing boats, operators depend on the mechanical speed governor and high-pressure fuel pump to maintain steady RPMs during trawling operations. The fuel consumption rate of 205 g/kWh at the rated 444kW output keeps operational overhead manageable during multi-week offshore trips.
This engine is also a standard choice for inland cargo vessels and passenger ferries. Its compact V12 footprint allows it to fit into tighter engine rooms where inline-6 engines of similar horsepower simply would not fit, while the water-cooled charge air cooler ensures safe ambient temperatures below deck.
Technical Comparisons: Understanding the 444kW / 1800rpm Configuration
A frequent challenge for purchasing managers is selecting the correct rating within the TBD234 series. HND produces this 12-cylinder diesel engine in multiple power bands, but the 444kW (600HP) at 1800rpm version holds a specific operational advantage over both lower-rated V12s and smaller V8 setups.
TBD234V12 444kW vs. 373kW (1500rpm)
While the 373kW configuration is frequently utilized for marine auxiliary power and generator sets running at a constant 1500rpm (50Hz), the 444kW version is tuned specifically for propulsion. The higher 1800rpm limit allows for a wider usable power band when accelerating heavy displacement hulls.
V12 (600HP) vs. V8 (400HP) Platforms
When comparing the TBD234V8 to the TBD234V12, the V12 naturally introduces a longer block and a wet weight of 2200 kg (with heat exchanger). However, the 12-cylinder firing sequence (A1-B5-A5-B3-A3-B6, A6-B2-A2-B4-A4-B1) provides significantly smoother power delivery and less torsional vibration on the propeller shaft than a pushed V8. If your vessel's displacement requires over 500HP for cruising speed, upgrading to the unstressed 600HP V12 yields better long-term reliability and lower exhaust gas temperatures.
Routine Maintenance and Overhaul Planning
Heavy-duty marine engines require stringent maintenance schedules to achieve their projected lifespan. The Deutz MWM TBD234 V12 marine motor is highly regarded for its serviceability, largely due to individual cylinder heads that allow engineers to service a single cylinder without removing the entire block assembly.
Cooling System Upkeep
This turbocharged intercooled marine engine utilizes an indirect cooling system. Proper maintenance of the keel cooling or heat exchanger setup is critical. Marine operators must regularly inspect the raw water self-priming centrifugal pump impellers. Scale buildup in the fresh-water expansion tank or the water-cooled cylinder liners will quickly lead to localized overheating.
Fuel System and Injectors
The mechanical block-type injection pump is highly tolerant of varying global fuel qualities. However, maintaining the duplex fuel filter system is mandatory. We recommend calibrating the high-pressure fuel pump and inspecting injectors every 3,000 hours to maintain the optimal 205 g/kWh fuel consumption rate and prevent piston crown washing.
Replacement Parts and Complete Overhaul Kits
When it is time for a major rebuild, piecing together aftermarket components often leads to failure. HekoPower supplies complete Deutz TBD234V12 engine overhaul kits, including OEM light-alloy pistons, CrMo-steel crankshaft bearings, wear-resistant centrifugal cast iron cylinder liners, and 24V electric starter systems. For older vessels facing catastrophic failure, purchasing a brand new TBD234V12 600HP replacement engine is often more cost-effective than a complete teardown and rebuild, minimizing costly vessel downtime.
Avoiding Common Misconceptions During Purchase
Engineers and buyers frequently encounter outdated or inaccurate information when sourcing HND marine diesel engines.
One major misconception surrounds the "Deutz MWM" branding. Henan Diesel Engine Plant (HND) acquired the official manufacturing license for the 234 series in 1985. An HND TBD234V12 is an exact, authorized continuation of the German MWM Licensed Technology, not a reverse-engineered clone. All parts are 100% interchangeable with original European MWM 234 series blocks.
Another common error involves gearbox matching. The engine's output of 1800rpm must be properly stepped down depending on your propeller diameter and pitch. When you replace a Deutz TBD234V12 marine engine, ensure your supplier calculates the correct reduction ratio (commonly paired with Advance/ZF gearboxes in 3:1 to 4.5:1 ratios) rather than just dropping in the bare engine. HekoPower provides complete HND Deutz TBD234V12 marine main engine with gearbox assembly packages tailored to your hull.
While the 600HP V12 model serves as our flagship heavy-duty solution, vessels with different displacement requirements or engine room space constraints may require a different configuration from the HND production line. HekoPower supports the entire spectrum of this engine family to ensure exact power-to-weight matching.
Deutz TBD234-Marine Propulsion Series, Marine Propulsion Diesel Engines for commercial and recreational applications, original products from Henan Diesel Engine Plant (HND). This series mainly includes Deutz TBD234V6-250HP, Deutz TBD234V6-300HP, Deutz TBD234V8-340HP, Deutz TBD234V8-400HP, Deutz TBD234V12-500HP, Deutz TBD234V12-600HP.
Frequently Asked Questions (FAQ)
What marine certifications does this engine hold?
The Deutz TBD234V12 marine diesel engine comes standard with CCS (China Classification Society) certification and meets IMO Tier II emissions standards, ensuring compliance for international cargo vessels and commercial fishing boats.
What are the exact TBD234V12 marine engine dimensions and weight?
The overall dimensions are 2314mm (Length) x 1314mm (Width) x 1555mm (Height). The wet weight, including the heat exchanger, is 2200 kg. Ensure your engine room hatch and engine mounts can accommodate this footprint before ordering.
Can this engine be used as a marine generator?
While the engine block is identical, the 444kW/1800rpm calibration is optimized for marine propulsion. If you need Deutz V12 engines for marine auxiliary power or gensets, we will supply the 1500rpm constant-speed configuration equipped with electronic governors to maintain a stable 50Hz frequency.
Do you supply replacement parts for legacy MWM TBD234V12 engines?
Yes. As a leading HND marine engine supplier in China, we supply TBD234V12 engine parts and complete assemblies that serve as direct drop-in replacements for aging European-built MWM motors on tugboats and workboats.
