HC8V540/18C
Original Deutz licence plant, new machines at absolute wholesale prices.
HekoPower Group is the reliable choice.
Our partner Deutz, With 160 years of heritage, is one of the world’s leading manufacturers of innovative drive systems. Hebei Huabei Diesel Engine Company("Huachai"), Huachai Deutz Engine Plant is Deutz License Plant in China, which has successively introduced the technology of Deutz AG since 1979, including the B/FL413/513, BFM1015, TCD2015, TCD12.0/16.0, HC4132, HC6132 series.

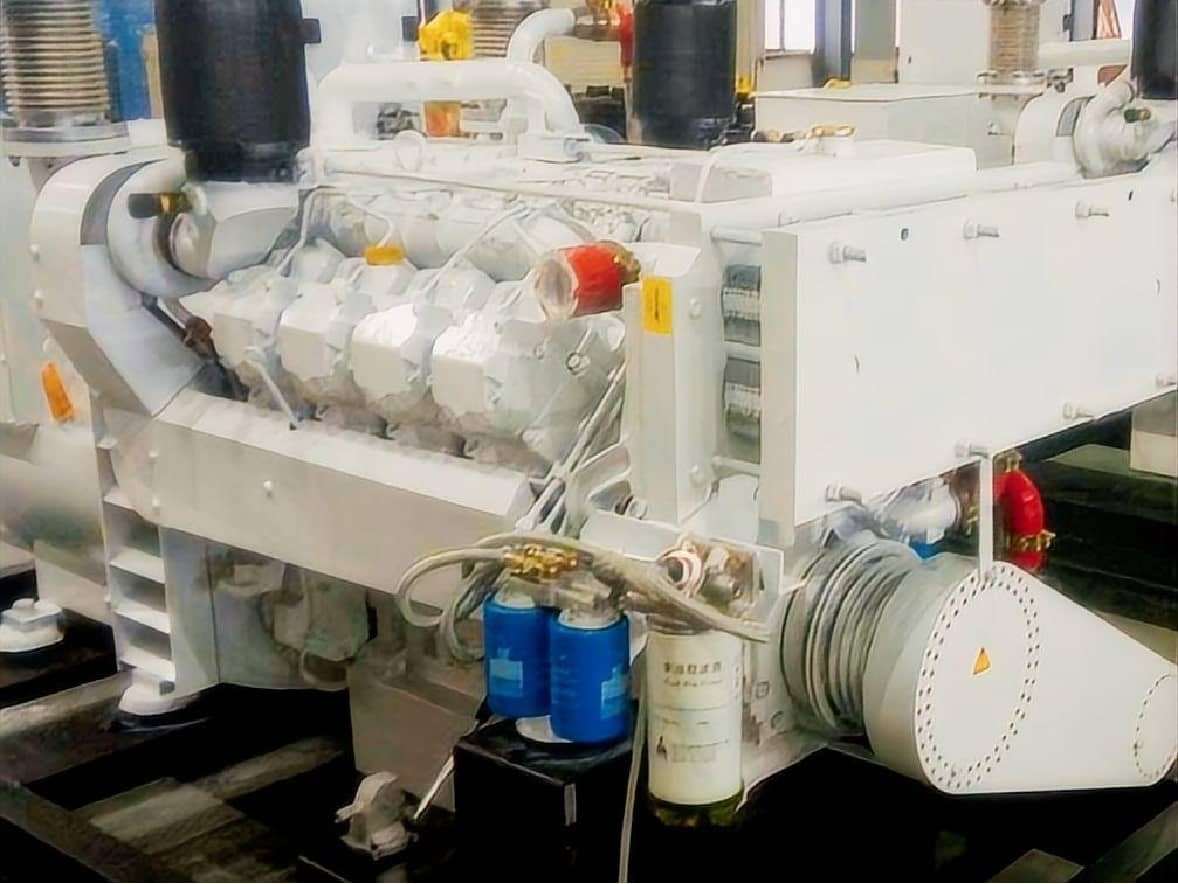

The Deutz HC8V540/18C is an 8-cylinder, V-type, 4-stroke marine engine with a displacement of 15.874 L, featuring a bore and stroke of 132 mm and 145 mm. It delivers a rated power of 397 kW (540 HP) at 1800 rpm, with a low idle speed of 550 rpm and a fuel consumption of ≥195 g/kWh at running speed. The engine has been fitted with a turbocharger and intercooler, and has a compression ratio of 16.5:1. It also uses an EUP fuel system. The engine has been certified by ZY, CCS and IMO, and features an electrical start (28.5V/55A), with a cooling method based on a heat exchanger and water-air intercooler. The engine has a lubricant capacity of approximately 47 L, a flywheel size of 14" (SAE1), and operates continuously. Its net weight is 1300 kg, and its overall dimensions are 1727 mm * 1119 mm * 1204 mm.
Technical Specifications
General Engine Data
Engine Model: Deutz HC8V540/18C
Type: 8 Cylinders, V type, 4 stroke
Displacement: 15.874 L
Bore * Stroke: 132 * 145
Net Weight (with flywheel and alternator): 1300 Kg
Overall Dimension: 1727mm*1119mm*1204mm
Key Performance Date
Rated Power: 397 kW/540 HP
Rated Speed: 1800 rpm
Low Idle Speed: 550 rpm
Fuel Consumption (Running Speed): ≥ 195 g/kW.h
More Technical Data
Certification: ZY/CCS/IMO Certificates
Aspiration: Turbocharged and Intercooled
Fuel System: EUP
Compression Ratio: 16.5:1
Starting Method: Electrical Start (28.5V/55A)
Cooling Method: Heatexchanger and Water-air Intercooler
Governor Type: Electronic/Mechanical
Lubricant Capacity: Around 47 L
Flywheel Size/ Housing: 14", SAE1
Running Type: Continuous
Deutz HC8V/C-Marine Propulsion Series
Deutz HC8V/C-Marine Propulsion Series, Marine Propulsion Diesel Engines for commercial and recreational applications, original products from Huachai Deutz Engine Plant. This series mainly includes HC8V480/15C, HC8V500/15C, HC8V510/15C, HC8V520/15C, HC8V540/15C, HC8V520/18C, HC8V540/18C, HC8V550/18C, HC8V560/18C, HC8V580/18C, HC8V600/18C.
