Details
HC8V500/15C
Original Deutz licence plant, new machines at absolute wholesale prices.
HekoPower Group is the reliable choice.
Our partner Deutz, With 160 years of heritage, is one of the world’s leading manufacturers of innovative drive systems. Hebei Huabei Diesel Engine Company("Huachai"), Huachai Deutz Engine Plant is Deutz License Plant in China, which has successively introduced the technology of Deutz AG since 1979, including the B/FL413/513, BFM1015, TCD2015, TCD12.0/16.0, HC4132, HC6132 series.

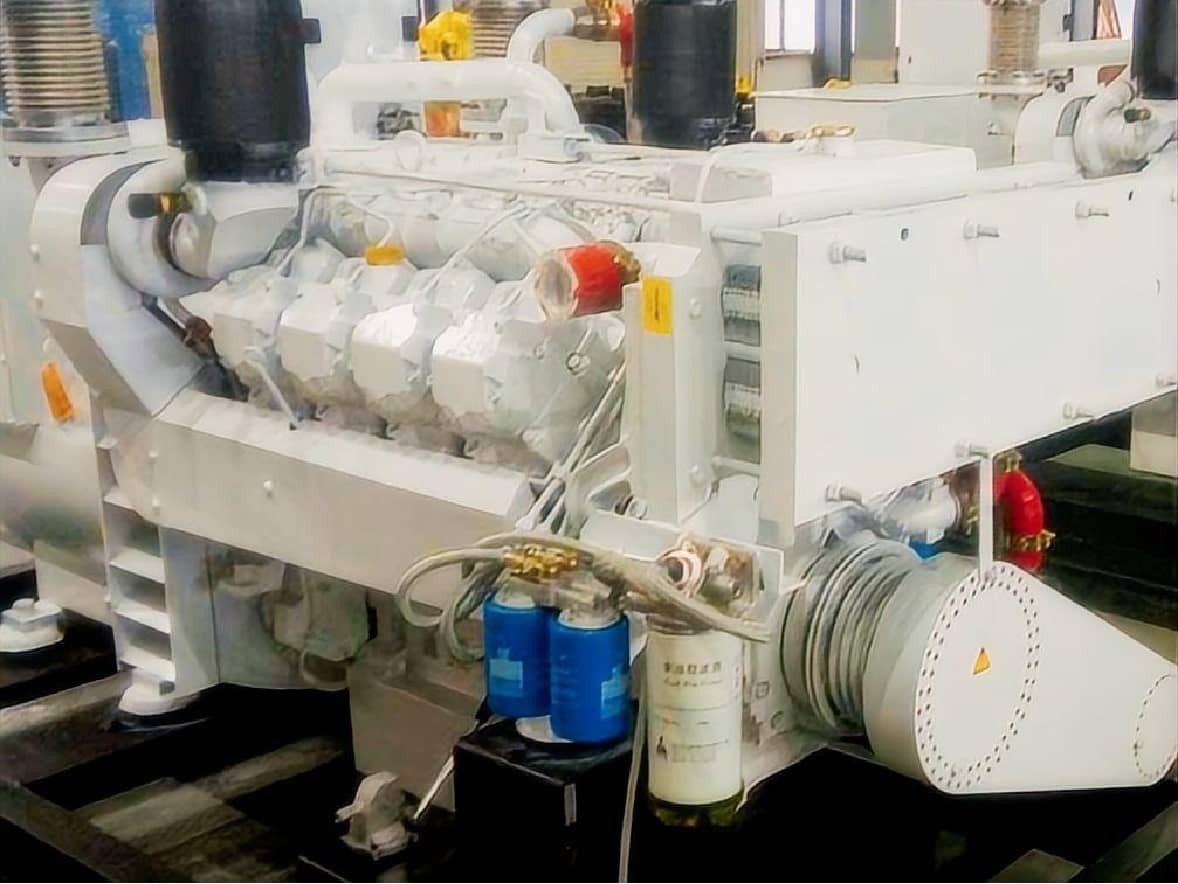

HC8V500/15C Marine Engine could be widely used on boats, fishing boats, yachts, motorboats, tug boats, cargo ships, passenger ships, barges, etc.
Technical Specifications
General Engine Data
Engine Model: Deutz HC8V500/15C
Type: 8 Cylinders, V type, 4 stroke
Displacement: 15.874 L
Bore * Stroke: 132 * 145
Net Weight (with flywheel and alternator): 1300 Kg
Overall Dimension: 1727mm*1119mm*1204mm
Key Performance Date
Rated Power: 368 kW/500 HP
Rated Speed: 1500 rpm
Low Idle Speed: 550 rpm
Fuel Consumption (Running Speed): ≥ 195 g/kW.h
More Technical Data
Certification: ZY/CCS/IMO Certificates
Aspiration: Turbocharged and Intercooled
Fuel System: EUP
Compression Ratio: 16.5:1
Starting Method: Electrical Start (28.5V/55A)
Cooling Method: Heatexchanger and Water-air Intercooler
Governor Type: Electronic/Mechanical
Lubricant Capacity: Around 47 L
Flywheel Size/ Housing: 14", SAE1
Running Type: Continuous
Deutz HC8V/C-Marine Propulsion Series
Deutz HC8V/C-Marine Propulsion Series, Marine Propulsion Diesel Engines for commercial and recreational applications, original products from Huachai Deutz Engine Plant. This series mainly includes HC8V480/15C, HC8V500/15C, HC8V510/15C, HC8V520/15C, HC8V540/15C, HC8V520/18C, HC8V540/18C, HC8V550/18C, HC8V560/18C, HC8V580/18C, HC8V600/18C.
