Details

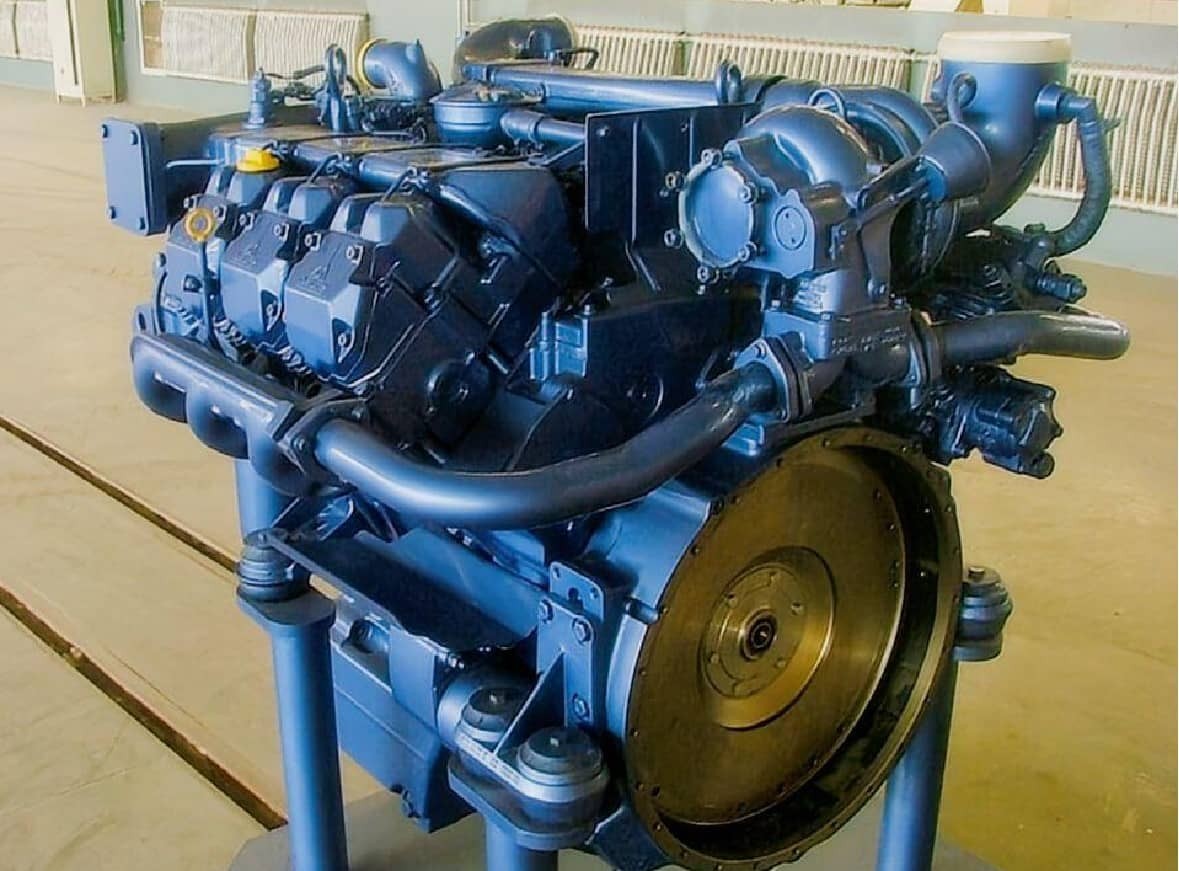

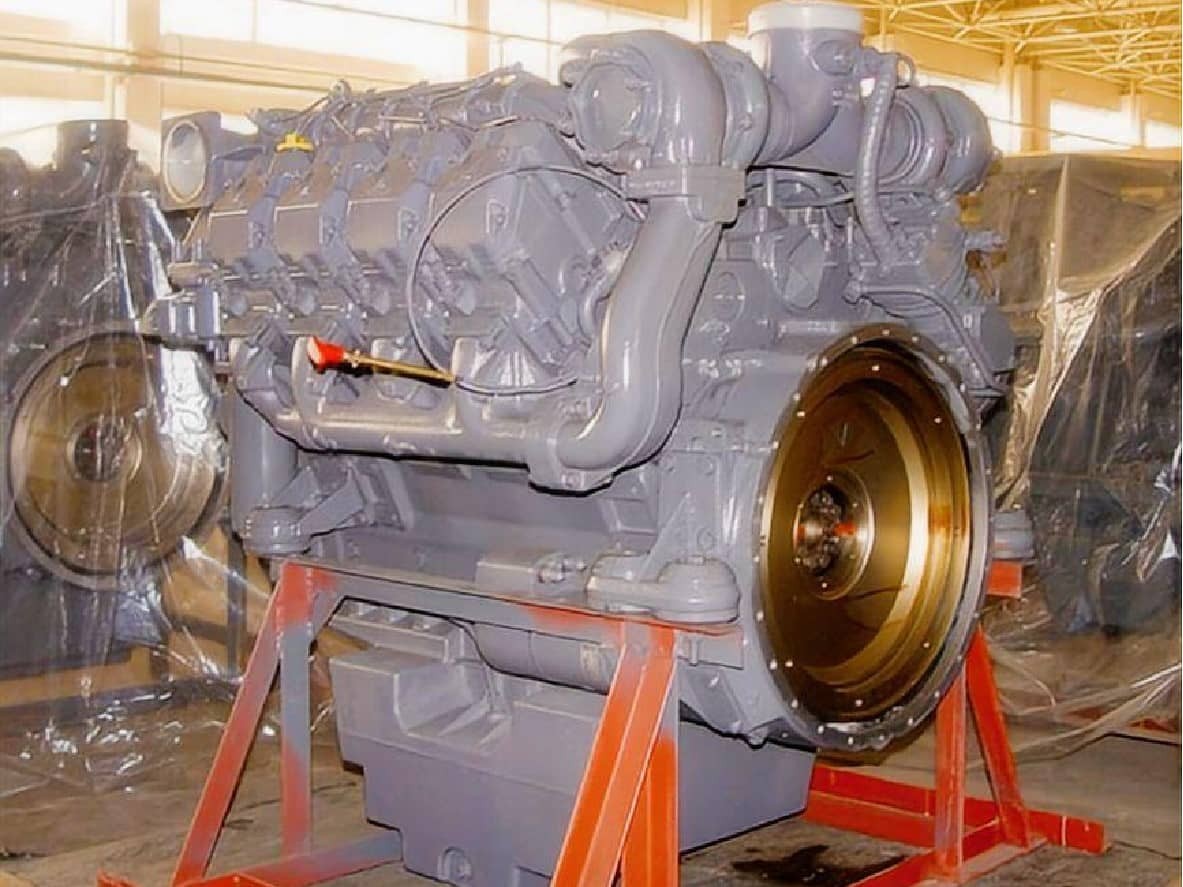

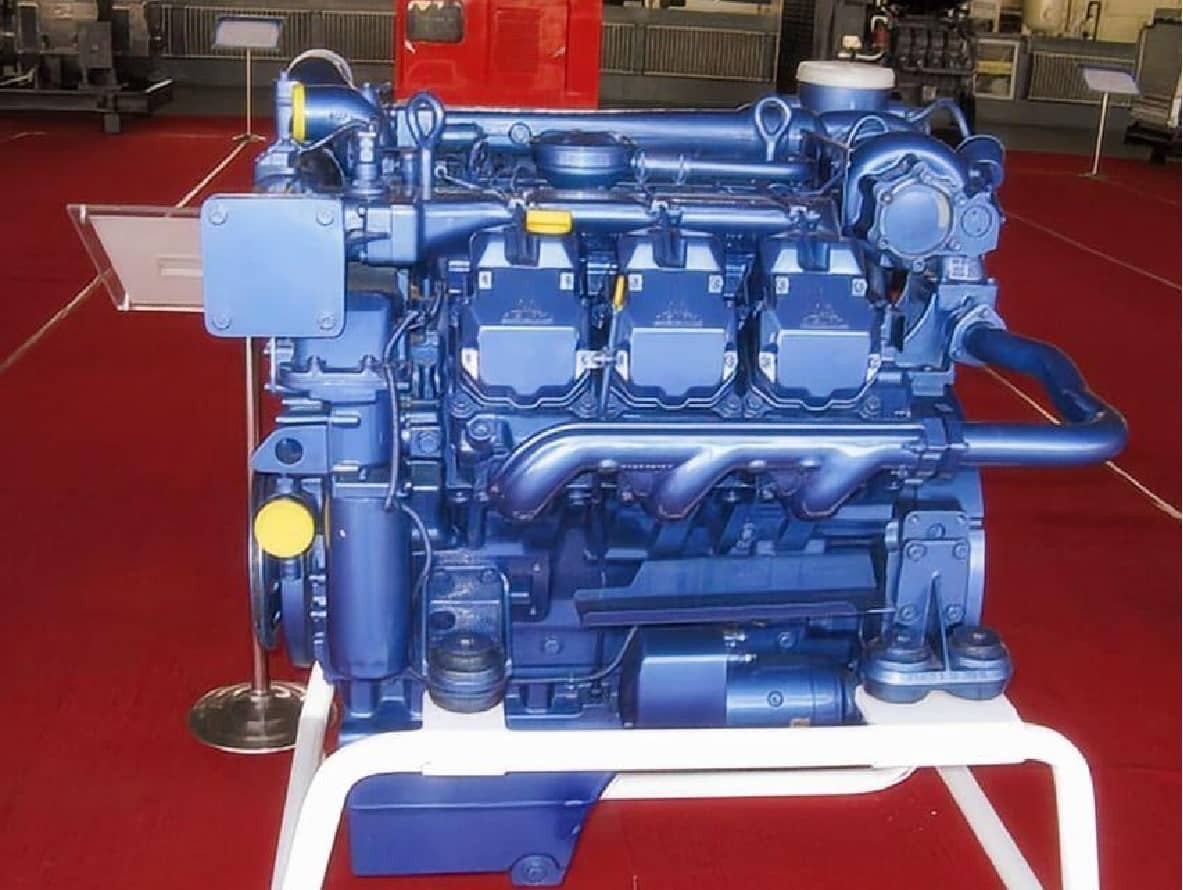

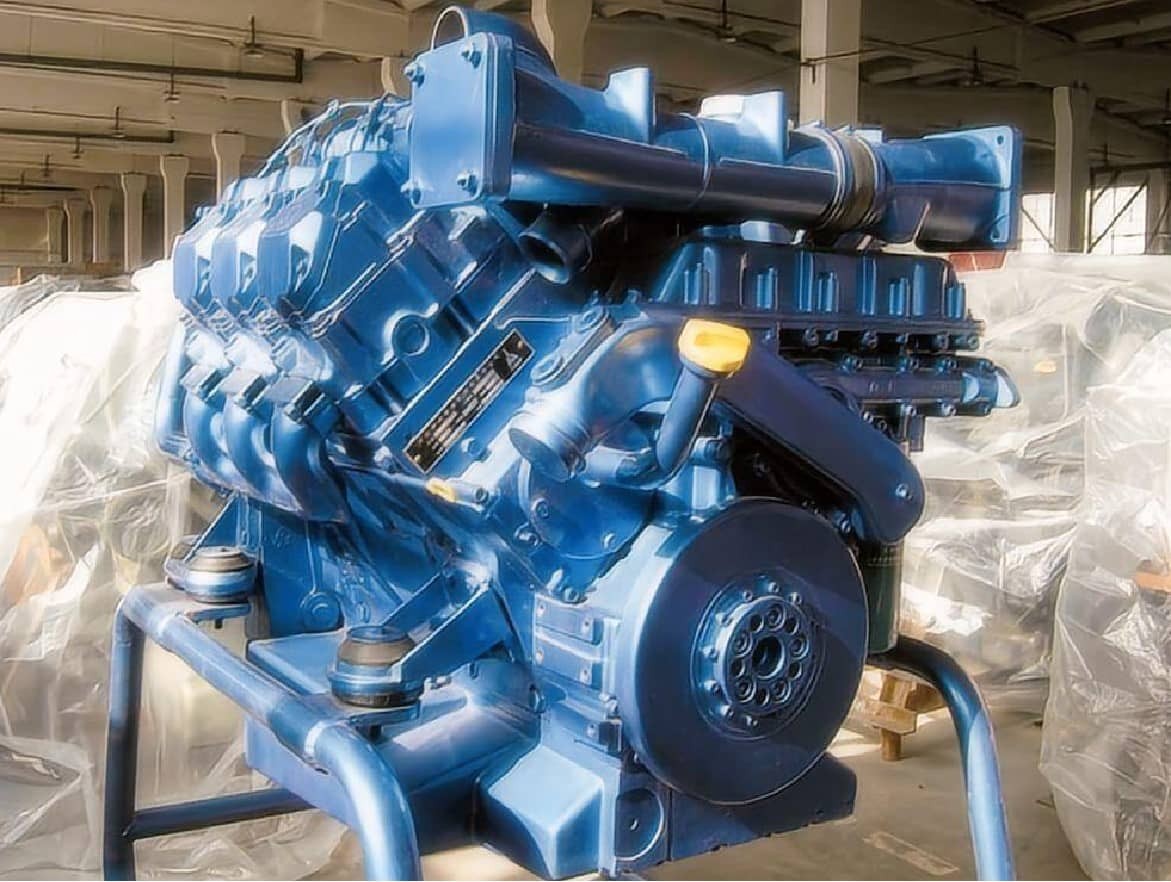

Genuine Huachai Deutz BF6M1015 Construction Diesel Engine
HekoPower is a direct supplier and exporter of brand-new, genuine Huachai Deutz BF6M1015 complete engine assemblies and factory-certified OEM replacement units. Engineered under license from Deutz AG by North China Industries Group (Huachai), the BF6M1015 is an 11.9-liter, 90° V6 water-cooled, turbocharged industrial diesel engine.
Whether you are performing a complete repower on heavy construction equipment or sourcing wholesale complete assemblies for field operations, HekoPower provides verified serial-number-matched engines, fast global dispatch, and technical engineering support.
Tech Specs of Huachai Deutz BF6M1015
General Engine Data
Engine Model: Deutz BF6M1015-Construction Diesel Engine
Type: 6 Cylinders in Line
Displacement: 11.906 L
Bore * Stroke: 132 * 145
Net Weight (with flywheel and alternator): 850 Kg
Overall Dimension: 1043mm*932mm*1174mm
Key Performance Data
Rated Power/Standby Power: 223-240 kW
Rated Speed: 1900/2100 rpm
Max Torque/Speed: 1420 N.m @ 1300 rpm
Min Fuel Consumption @ Full Load: 209 g/Kw.h
Idle Speed: 600 rpm
Continue Power as Per ISO3046/1(IFCN): 214 kw @ 2100 rpm
More Technical Data
Certification: Euro II
Aspiration: Turbocharged
Fuel System: Electronic Unit Pump, Direct Injection
Cooling Method: Water Cooled
Electrical System (Starter Motor/Alternator): Mechanical/Electronic Start (24V/6.6kw)
Engine Alternator: 3-phase alternator, 28V/55A
Compression Radio: 16.5:1
BF6M1015 vs. BF6M1015C Mounting & Technical Differences
While both models share the same 11.9L engine block and flywheel housing interfaces (typically SAE 1 or SAE 2), key mechanical differences affect installation:
- Intercooler Plumbing: The BF6M1015 relies on direct turbocharger-to-intake manifold piping. The BF6M1015C incorporates an air-to-air charge air cooler (CAC), requiring external radiator housing modifications and secondary intake ducting.
- Fuel Injection Calibration: The BF6M1015C uses updated Electronic Unit Pump (EUP) timing maps to deliver higher peak torque at lower RPMs without thermal overload.
- Mounting Footprint: Overall length and width remain identical (1,040 mm × 940 mm), but the intercooled variant increases vertical engine height by approximately 65 mm due to top-mounted air piping.
Real-World Heavy Machinery Application Scenarios
The Huachai Deutz BF6M1015 engine delivers high torque density in a compact 90° V6 footprint, making it the preferred power plant across heavy construction, earthmoving, and mining fleets.
Mobile Cranes & All-Terrain Cranes (50t – 100t Class)
- Equipment Types: SANY, XCMG, and Zoomlion mobile cranes.
- Duty Cycle Demand: Variable load demand with high torque requirements at lower engine speeds during hydraulic lift operations.
- Why BF6M1015: Compact V6 dimensions fit narrow crane chassis engine bays, while the governor maintains steady oil pressure during steep hydraulic demands.
Excavators & Heavy Wheel Loaders (30t – 45t Operating Weight)
- Equipment Types: Crawler excavators, large wheel loaders, and heavy bulldozers.
- Duty Cycle Demand: Continuous high-rpm duty cycles under severe dust, shock loading, and high ambient vibration.
- Why BF6M1015: Individual cylinder heads allow localized maintenance without pulling the entire manifold assembly, reducing field downtime on job sites.
Mining Trucks & Heavy Road Rollers
- Equipment Types: Underground haulers, rigid dump trucks, and heavy vibratory compactors.
- Duty Cycle Demand: Prolonged low-speed high-torque operation under continuous heat buildup.
- Why BF6M1015: High-efficiency water cooling jacket prevents thermal breakdown during 24/7 continuous mining cycles.
Engine Maintenance, Overhaul, & Replacement Guide
To maximize engine life beyond 12,000 operational hours, routine maintenance must strictly follow factory fluid and interval specifications.
Service Interval Checklist
- Every 250 Hours: Replace engine oil and primary fuel filter. Inspect drive belt tensioner.
- Every 500 Hours: Replace secondary fuel filter/water separator, clean EUP unit injectors, and inspect air intake hoses for micro-cracks.
- Every 1,000 Hours: Check valve clearances (Intake: 0.30 mm, Exhaust: 0.50 mm cold). Inspect turbocharger radial and axial shaft play.
- Every 3,000 Hours: Flush engine cooling jacket, replace thermostat, and test fuel injector opening pressure.
Complete Engine Replacement vs. Field Overhaul: Decision Framework
When a fleet engine experiences severe blow-by, crankshaft scoring, or block porosity, equipment managers must decide between rebuilding or replacing the complete assembly:
Choose a Field Overhaul (In-Frame Rebuild) if:
- The engine block, crankcase, and crankshaft are free from structural cracks or warping.
- Downtime tolerance allows 5–7 days for teardown, parts sourcing (pistons, liner kits, bearings, gasket sets), and reassembly.
- Total rebuild costs (parts + specialized labor) remain below 45% of a new replacement unit.
Choose a Complete Engine Assembly Replacement if:
- The crankshaft is fractured, or major crankcase scoring has occurred.
- Job site penalties for equipment downtime exceed $2,000/day.
- The existing unit has undergone more than two previous major overhauls. A pre-tested factory assembly from HekoPower drops into place within 8–12 hours, ensuring instant operational recovery.
Why Source Huachai Deutz Engines from HekoPower?
Unlike trading intermediaries who lack technical validation capabilities, HekoPower operates as a dedicated industrial engine exporter and engineering supplier.
- 100% Genuine & Traceable: Every Huachai Deutz engine carries original factory nameplates, laser-etched serial numbers, and factory quality clearance certificates.
- Pre-Shipment Dyno Testing: Before crating, complete assemblies undergo load-bank dyno testing to verify oil pressure, fuel consumption, and thermal stability.
- Comprehensive Spare Parts Coverage: We supply complete long blocks, short blocks, OEM turbochargers, fuel injectors, water pumps, and overhaul kit assemblies worldwide.
- Global Logistics & Export Packaging: Engines are shipped in heavy-duty export timber crates with anti-corrosion VCI barrier lining to withstand long ocean freight transport.
Deutz BFM1015-Construction Diesel Engine Series, original products from Huachai Deutz Engine Plant. This series mainly includes BF6M1015, BF6M1015C, BF6M1015CP, BF8M1015C, BF8M1015CP.
Frequently Asked Questions (FAQ)
What is the difference between a Huachai Deutz engine and a standard Deutz AG engine?
Huachai Deutz engines are manufactured in China by Shijiazhuang Huachai Power Co., Ltd. under official license from Deutz AG (Germany). They use genuine Deutz technical drawings, metallurgical standards, and tooling. They offer identical performance and installation dimensions at a significantly lower capital cost.
How do I confirm that a replacement BF6M1015 engine will fit my machine?
Check your existing engine nameplate for the exact model designation, arrangement number, and flywheel housing SAE sizing (usually SAE 1). Provide your old engine serial number to HekoPower's engineering team, and we will cross-reference the mounting dimensions, PTO requirements, and oil pan layout before shipping.
Can HekoPower supply both 12V and 24V electrical starter systems for the BF6M1015?
Yes. We customize complete engine assemblies with either 12V or 24V starter motors and alternators to align directly with your construction equipment’s electrical architecture.
What is the average lead time for a complete BF6M1015 engine assembly?
Standard engine configurations are maintained in stock and ship within 3 to 5 business days. Customized units (specific flywheel cutouts, specialized oil pans, or custom auxiliary pulleys) typically ship within 10 to 14 days.
