Details

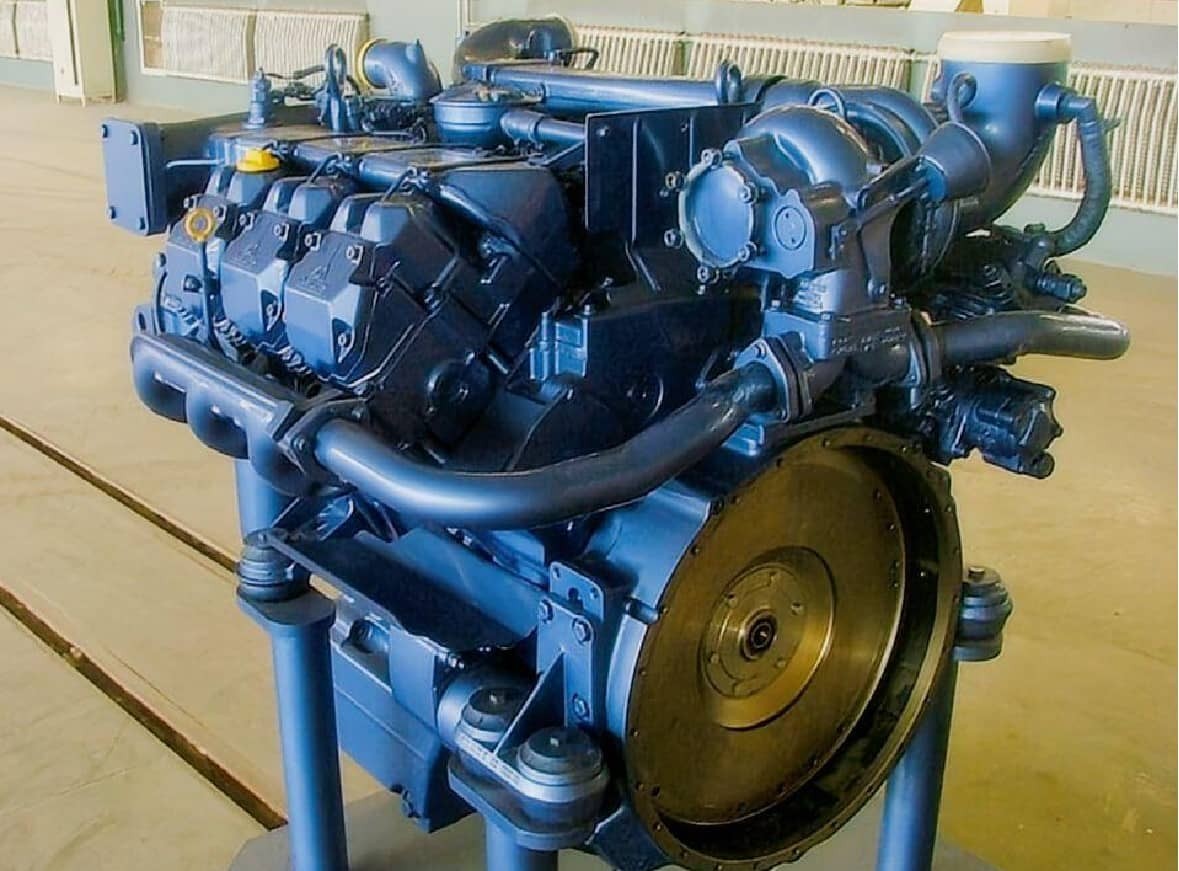

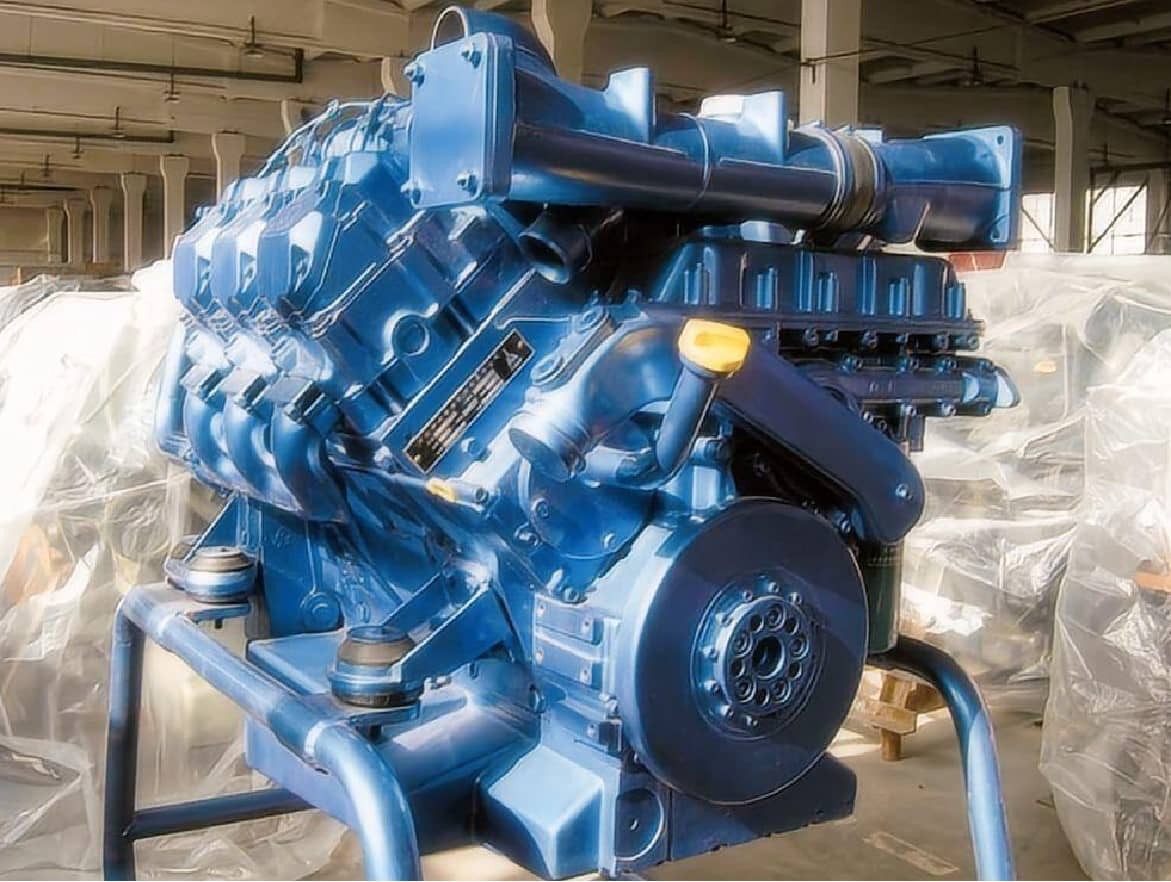

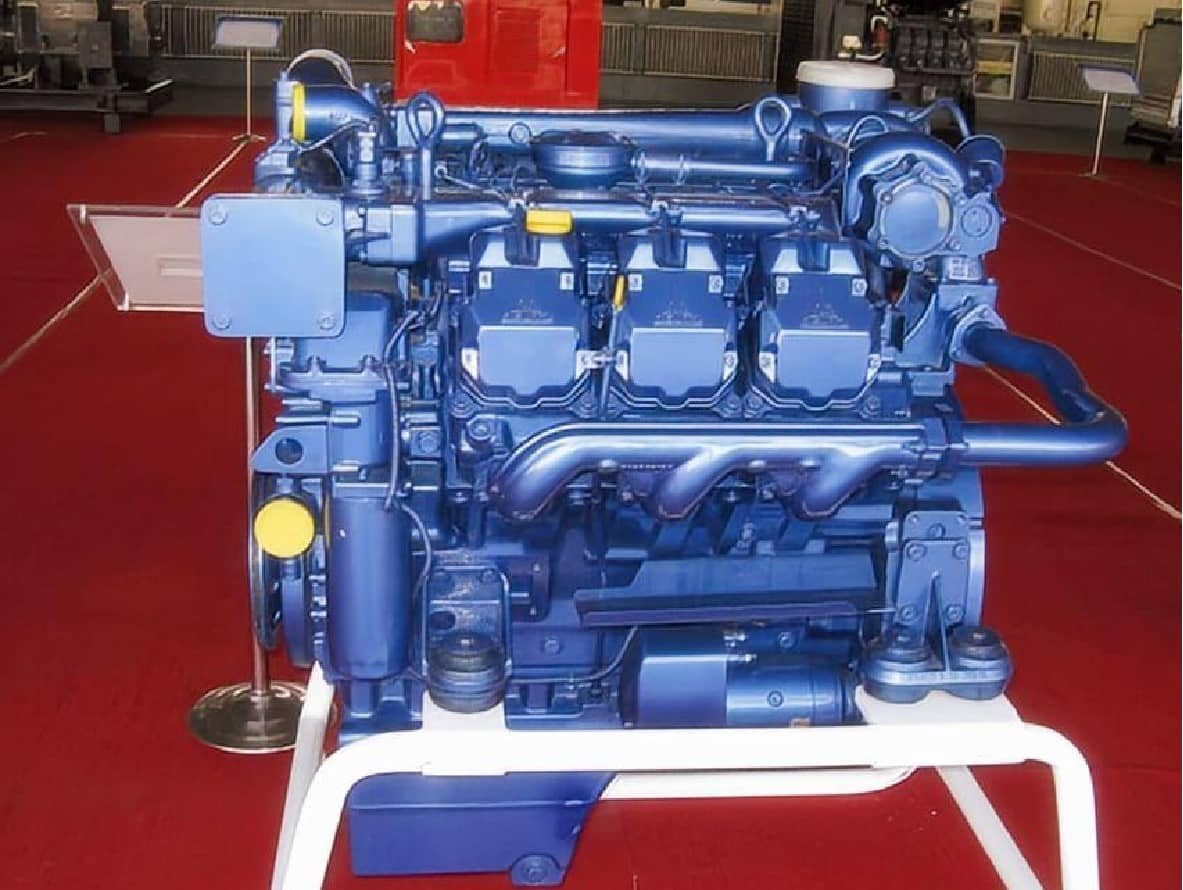

Deutz BF8M1015C Engine Assembly (400kW V8) for Heavy Construction Equipment
At HekoPower, we supply original and Huachai-Deutz licensed BF8M1015C complete engine assemblies, bare engines, and replacement power units. The Deutz BF8M1015C is a 15.974-liter, water-cooled V8 turbocharged diesel engine engineered specifically for extreme heavy-duty applications.
Delivering a rated power of 400 kW (536 HP) at 2100 rpm and a peak torque of 2640 Nm at 1400 rpm, this V8 workhorse powers large mobile cranes, mining trucks, heavy excavators, and industrial generator sets globally.
Tech Specs of Deutz BF8M1015C
General Engine Data
Engine Model: Deutz BF8M1015C-Construction Diesel Engine
Type: 8 Cylinders, V Type
Displacement: 15.974 L
Bore * Stroke: 132 * 145
Net Weight (with flywheel and alternator): 1060 Kg
Overall Dimension: 1151mm*955mm*1174mm
Key Performance Data
Rated Power/Standby Power: 364-400 kW
Rated Speed: 1900/2100 rpm
Max Torque/Speed: 2640 N.m @ 1200 rpm
Min Fuel Consumption @ Full Load: 200 g/Kw.h
Idle Speed: 600 rpm
Continue Power as Per ISO3046/1(IFCN): 348/383 kw @ 2100 rpm
More Technical Data
Certification: Euro II
Aspiration: Turbocharged & Intercooled
Fuel System: Electronic Unit Pump, Direct Injection
Cooling Method: Water Cooled
Electrical System (Starter Motor/Alternator): Mechanical/Electronic Start (24V/6.6kw)
Engine Alternator: 3-phase alternator, 28V/55A
Compression Radio: 17:1
Technical Deep-Dive: BF8M1015C vs. BF8M1015CP
Equipment managers frequently confuse the BF8M1015C with its sibling, the BF8M1015CP. Selecting the wrong variant leads to electronic compatibility issues and unexpected downtime.
Injection & Control Architecture
- BF8M1015C: Utilizes mechanical individual injection pumps (PFR type) paired with a traditional mechanical governor. This setup tolerates variable fuel quality in remote mining and construction zones without triggering ECU fault codes.
- BF8M1015CP: Features Electronic Unit Pump (EUP) technology managed by an electronic engine control unit (ECU). It offers slightly better fuel economy and tighter emissions management but requires clean low-sulfur fuel and specialized diagnostic tools.
Thermal & Mechanical Load Capacity
The "P" variant includes upgraded internal cooling ducts inside the piston crowns and reinforced cylinder heads to accommodate higher peak cylinder pressure. If you are swapping an older mechanical C-type engine, sticking with the standard BF8M1015C assembly simplifies wiring harness integration and eliminates ECU remapping costs.
Real World Application Scenarios & Equipment Fitment
The 15.974L V8 engine delivers rapid torque buildup low in the RPM curve, making it ideal for high-inertia start-ups and variable resistance operating environments.
Mobile Cranes & All-Terrain Cranes
In 100-ton to 180-ton mobile cranes (such as XCMG, Zoomlion, or Sany units), the BF8M1015C provides steady power for both road transport and hydraulic crane operations. Its high torque at 1,400 rpm allows smooth hydraulic pump drive performance without bogging down during heavy boom lifts.
Mining Dump Trucks & Large Excavators
Rigid dump trucks and 50-to-70-ton excavators demand continuous high load factors. The 90° V8 design lowers the center of gravity and minimizes vibrational resonance across the machine frame, extending the life of hydraulic line couplings and engine mounts.
Heavy Industrial Power Units & Dredging
Outside of earthmoving, the BF8M1015C operates stationary water pumps, rock crushers, and primary power generators where continuous 400kW output under hot ambient conditions is mandatory.
Engine Maintenance, Installation, and Overhaul Guide
Proper installation and preventive maintenance dictate whether a Deutz engine reaches 15,000 operational hours or fails prematurely.
Installation & Flywheel Alignment Tips
- SAE Flywheel Housing Match: Always verify your transmission or hydraulic pump drive coupling match. The BF8M1015C standard build features an SAE 1 housing. Ensure crankshaft endplay (axial clearance) is checked post-coupling to avoid thrust bearing failure.
- Cooling System Venting: Bleed air completely from the top of the V-bank water jacket during the initial coolant fill. Entrapped air pockets cause localized cylinder head cracking around the injector sleeves.
Essential Overhaul & Service Parts
When ordering replacement parts or overhaul kits from HekoPower, supply your engine serial number (ESN) located on the crankcase nameplate. Key replacement items include:
- In-frame overhaul kits (cylinder liners, pistons, rings, wrist pins, main bearings).
- Individual fuel injection pumps (PFR series) and pencil injectors.
- Twin turbochargers and charge air cooler pipe seals.
- Complete gasket sets with metal-layered head gaskets.
Why Source Deutz Engines from HekoPower?
HekoPower bridges the gap between factory production and end-user job site demands. We specialize in providing complete industrial power solutions tailored to heavy machinery operators worldwide.
- Verified Authenticity: We supply genuine original Deutz as well as licensed Huachai-Deutz complete engine assemblies with full factory traceability.
- Pre-Shipment Testing: Every complete engine assembly undergoes a strict dyno test run at our facility to verify oil pressure, coolant flow, fuel consumption, and full-load torque output before packing.
- Export Packing: Engines are treated with rust inhibitors, vacuum-sealed, and secured in export-grade steel-reinforced wooden crates suitable for long ocean freight voyages.
- Rapid Lead Times: We maintain active warehouse inventory for high-demand configurations, minimizing machine downtime compared to standard 12-week factory orders.
Deutz BFM1015-Construction Diesel Engine Series, original products from Huachai Deutz Engine Plant. This series mainly includes BF6M1015, BF6M1015C, BF6M1015CP, BF8M1015C, BF8M1015CP.
Frequently Asked Questions (FAQ)
What is the average fuel consumption rate for the Deutz BF8M1015C?
Specific fuel consumption for the BF8M1015C at rated power (400 kW @ 2100 rpm) is approximately 198 g/kWh. At optimal torque range (1400–1600 rpm), fuel efficiency improves significantly, burning around 193 g/kWh under stable load conditions.
Can I replace a Huachai Deutz BF8M1015C with an original German Deutz unit?
Yes. Huachai Deutz manufactures the 1015 series under official license using identical casting blueprints, mounting dimensions, and performance curves. Mechanical components and complete assemblies are fully interchangeable.
How do I troubleshoot low oil pressure on a cold BF8M1015C engine?
First, verify oil viscosity matches your ambient operating temperature (typically 15W-40 for standard climates). Check the oil pressure relief valve located near the oil cooler base for stuck debris or spring fatigue. If pressure drops only when warm, inspect main bearing wear and oil pump internal tolerances.
What is included in a HekoPower "Complete Engine Assembly"?
A complete engine assembly includes the engine block, cylinder heads, crankshaft, pistons, water pump, oil pump, turbochargers, fuel injection system (pumps and injectors), intake/exhaust manifolds, flywheel, starter motor, and alternator. It arrives ready to be mounted and filled with fluids.
