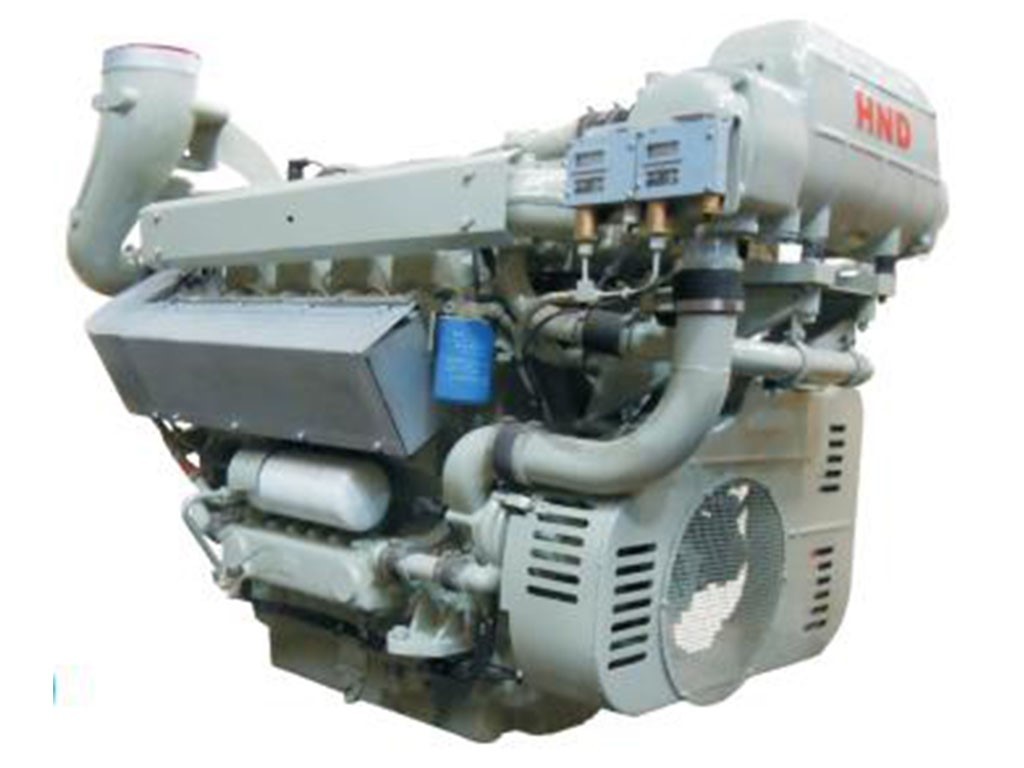

Deutz TD234V8 Construction Diesel Engine (165 kW / 1500 RPM)
The Deutz TD234V8 construction diesel engine is a heavy-duty 14.4-liter, 8-cylinder V-type engine built for continuous operation under severe site conditions. Manufactured by Henan Diesel Engine Plant (HND) under original DEUTZ-MWM license technology, this engine combines compact structural dimensions with high torque performance.
At HekoPower, we supply complete, brand-new HND Deutz TD234V8 engines directly from China for equipment manufacturers, engine rebuilders, and fleet operators worldwide. Whether you are assembling a custom industrial power pack or replacing an aged engine in existing machinery, the TD234V8 provides an economical, mechanical-governor solution without complex electronics.
Tech Specs of Deutz TD234V8 Construction Diesel Engine
General Engine Data
Engine Model: Deutz TD234V8-Construction Diesel Engine
Type: 8 Cylinders, V Type
Displacement: 14.4 L
Bore * Stroke: 128 * 140
Ignition Sequence: A1-B2-A3-B1, A4-B3-A2-B4
Key Performance Data
Continuous Power/Speed (kw/rpm): 165kW/1500 rpm
Intermittent Power/Speed (kw/rpm): 190kW/1800 rpm
Minimum Speed At Full Load: 1000 rpm
Idle Speed: 650 rpm
Fuel Consumption rate/ mean effective pressure at the MCFN power (g/kW.h/MPa): 210/092 @1500rpm, 213/0.88@1800 rpm
More Technical Data
Certification: Euro II
Fuel System: Direct Injection Pump
Governor Type: Mechanical Governor
Aspiration Method: Natural Intake
Turning: Contrarotate (face to flywheel)
Cooling Method: Water Cooled
Compression Radio: 15:1
Real Application Scenarios in Construction and Engineering
Selecting the right engine requires matching the operating duty cycle with the correct power rating. The HND Deutz TD234V8 diesel power pack delivers dual-rating versatility depending on your machinery's demand.
Heavy Construction Pump Skids
High-volume water discharge pumps and slurry pumps require consistent, uninterrupted torque. The TD234V8 continuous rating of 165 kW at 1500 RPM matches standard 50 Hz industrial pump drive speeds. Its 14.4-liter displacement provides high low-end torque, preventing engine stalling when fluid density fluctuates during excavation or dredging operations.
Stationary Rotary Drilling Rigs and Crushers
For engineering equipment that demands variable throttle response, the TD234V8 offers an intermittent rating of 190 kW at 1800 RPM. Rotary drill rigs, jaw crushers, and concrete pumping stations benefit from the engine's mechanical governor, which reacts immediately to load spikes without triggering electronic fault codes.
Technical Comparison: Deutz TD234V8 vs. TBD234V8
A frequent point of confusion among buyers is the difference between the TD234V8 and TBD234V8 engine models. Choosing the wrong model can lead to installation mismatches and cooling system failures.
Turbocharging vs. Intercooling Configuration
The letter "T" in TD234V8 designates turbocharging, while "B" in TBD234V8 indicates the addition of a charge air cooler (intercooler). The TD234V8 165kW diesel engine relies on direct turbocharged air intake without a intercooler circuit. This design reduces mechanical complexity, makes the engine package lighter, and eliminates the need for external intercooler radiator plumbing on compact construction rigs.
Output Ratings and Space Requirements
Because the TBD234V8 includes charge air cooling, it achieves higher power outputs (often reaching 255 kW or higher). However, the TD234V8 industrial diesel engine is engineered specifically for applications where 165 kW to 190 kW is sufficient. The absence of intercooling hardware gives the TD234V8 a smaller engine bay footprint, making it easier to install inside narrow machinery housings where airflow and mounting space are restricted.
Maintenance and Replacement Tips for Equipment Owners
Replacing a worn engine or maintaining an active DEUTZ-MWM TD234V8 replacement engine requires strict adherence to mechanical checks.
Pre-Installation Engine Alignment
When installing a new TD234V8 engine onto an existing construction frame, check flywheel alignment and engine mount dampening. The V8 cylinder arrangement generates distinct rotational balance forces. Using worn rubber mounts or misaligned drive shafts will transmit excessive vibration to the hydraulic pumps, damaging input shaft seals.
Fuel System and Mechanical Governor Setup
The TD234V8 utilizes a mechanical block-type injection pump with direct injection. Always flush fuel supply lines and install fresh duplex fuel filters before starting a newly installed engine. Ensure the mechanical governor linkage moves freely across the entire throttle range. Air trapped in the fuel gallery will cause speed hunting at idle (650 RPM) and uneven governor reaction under full load.
Cooling Circuit Inspections
Because the TD234V8 uses a water-cooled jacket with an indirect heat exchanger setup, check the fresh water circulation pump and raw water pump impellers every 500 operating hours. Scale buildup inside the cylinder liner water passages reduces heat dissipation, leading to premature piston ring wear.
Common Misconceptions Regarding the Deutz TD234V8
Understanding these operational realities helps avoid costly ordering mistakes and unexpected downtime.
Misconception 1: "TBD234 Parts Always Fit the TD234 Engine"
While the cylinder liners (128 mm bore) and pistons (140 mm stroke) share basic dimensional standards, intake manifolds and exhaust piping differ significantly between TD and TBD models. The TD234V8 uses specific uncooled or cooled exhaust manifolds depending on the build code, which do not match the intercooled intake manifolds of the TBD series.
Misconception 2: "Higher RPM Yields Better Pumping Performance"
Operating the TD234V8 at 1800 RPM for continuous pump duties increases fuel consumption without providing operational gains. The engine achieves its highest fuel efficiency (210 g/kW.h) at its 1500 RPM continuous power rating. Running continuous equipment at 1500 RPM extends engine oil life and reduces valve train wear.
Misconception 3: "Electronic Governors are Always Superior to Mechanical Governors"
In remote construction sites, electrical systems are vulnerable to dust, moisture, and welding voltage spikes. The mechanical governor on the TD234V8 heavy duty diesel engine operates entirely without sensors, wiring harnesses, or ECUs, making it reliable in extreme job-site conditions.
Deutz TBD234 Series Engine Lineup
To assist machinery operators with fleet standardization, HekoPower provides complete engines and replacement units across the full product family.
Deutz TBD234-Construction Diesel Engine Series, original products from Henan Diesel Engine Plant (HND). This series mainly includes TBD234V6-Construction Diesel Engine, TD234V8-Construction Diesel Engine, TBD234V8-Construction Diesel Engine, TBD234V12-Construction Diesel Engine, TD234V6-Construction Diesel Engine, TD234V8-Construction Diesel Engine.
Frequently Asked Questions (FAQ)
Is the HND Deutz TD234V8 compatible with older DEUTZ-MWM machinery?
Yes. Henan Diesel Engine Plant (HND) produces these engines under official DEUTZ-MWM license agreements introduced in 1985 and 1999. Mounting points, flywheel housing dimensions, and bell housing bolt patterns align directly with original German DEUTZ-MWM 234 series engines.
What emissions standard does the Deutz TD234V8 meet?
The standard TD234V8 engine meets Euro II emissions standards. Its direct-injection mechanical fuel system makes it ideal for export markets, mining operations, and off-grid construction projects where low-sulfur diesel fuel is not consistently available.
How does HekoPower verify engine configuration before shipment?
As an experienced engine supplier, HekoPower verifies the engine model plaque, flywheel housing size, PTO shaft specification, and governor type against your existing equipment photos or engine serial numbers before dispatch. Every unit undergoes bench testing to ensure oil pressure and speed governing meet specifications prior to export packaging.
