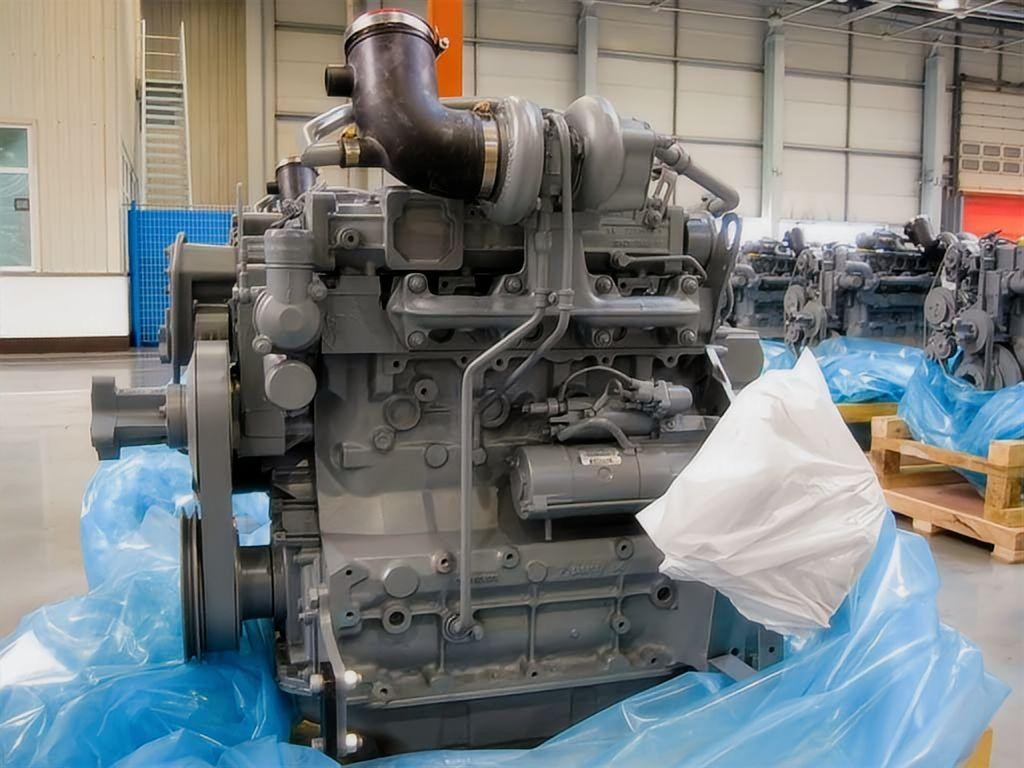

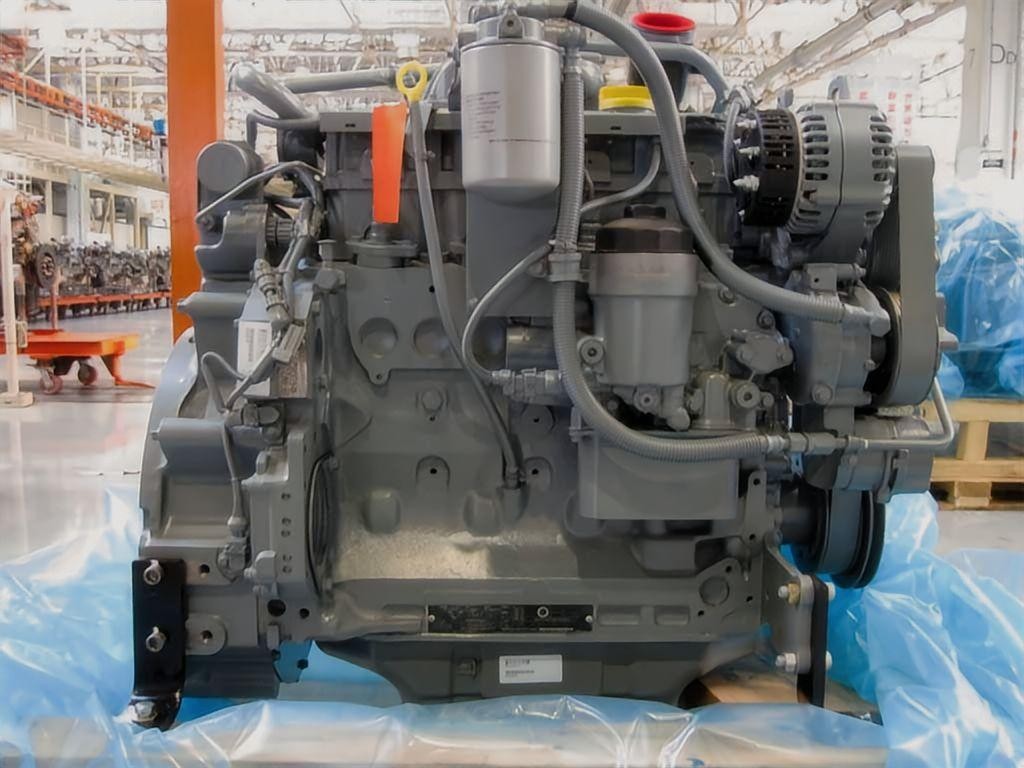

Deutz BF4M2012-C Construction Diesel Engine: Complete Technical & Procurement Guide
Choosing the right replacement power unit for heavy machinery determines your equipment's uptime and operating costs. The Deutz BF4M2012-C engine is a premier 4-cylinder, water-cooled, turbocharged power unit engineered specifically for demanding industrial applications.
As an established OEM Deutz BF4M2012-C supplier in China, HekoPower provides global contractors, fleet managers, and parts distributors with genuine, factory-tested Dalian Deutz BF4M2012-C engines. Whether you need a brand-new complete assembly or are seeking a reliable Deutz BF4M2012-C excavator replacement engine, understanding the technical characteristics of this series prevents costly compatibility errors.
Tech Specs of Deutz BF4M2012-C
General Engine Data
Engine Model: BF4M2012-C-Construction Diesel Engine
Type: 4 Cylinders, in Line
Displacement: 4.03 L
Bore * Stroke: 101 * 126
Overall Dimension: 742mm*643mm*741mm
Net Weight (with flywheel & alternator): 391 Kg
Key Performance Data
Rated Power: 88 kW
Max. Torque/Speed: 550 N.m @ 1400 rpm
Rated Speed: 2200 rpm
Min Fuel Consumption @ Full Load: 202 g/Kw.h
Idle Speed: 800 rpm
Mean Piston Speed: 10.5 m/s
More Technical Data
Certification: Euro II
Aspiration: Turbocharged & Charge Air Coller
Fuel System: Electronic Unit Pump
Cooling Method: Water Cooled
Electrical System (Starter Motor/Alternator): Electronic Starting (24V)
Compression Ratio: 19:1
Power Ratings and Speed Variations
Depending on your machine's hydraulic demand and duty cycle, this engine is configured in two primary outputs:
- 88 kW (118 hp) at 2200 rpm: Optimized for standard hydraulic systems, offering a balanced fuel consumption profile.
- 103 kW (138 hp) at 2500 rpm: Tuned for high-speed hydraulic cycles, providing maximum torque recovery under peak load conditions.
Technical Comparisons: Understanding the Engineering Differences
Buyers often struggle to differentiate between different generations of the Deutz 2012 series. Standard competitor sites overlook these crucial engineering variations, leading to ordering errors.
BF4M2012 vs BF4M2012-C
The presence of the "C" suffix denotes the inclusion of an integrated charge air cooler (intercooler).
While the base BF4M2012 relies purely on standard turbocharging, the turbocharged Deutz BF4M2012-C routes compressed intake air through an air-to-air cooler. Cooling the intake air increases its density, allowing more oxygen into the combustion chamber. This optimization raises the maximum output from roughly 74 kW on the base model to the high-performance Deutz BF4M2012-C 103 kW diesel engine configuration, while reducing thermal stress on the cylinder heads.
BF4M2012C vs BF4M2012-C
Be careful with catalog typos. In some regional parts manuals, the hyphen is omitted (written as BF4M2012C). Mechanically, they refer to the same family. However, you must verify whether your unit uses the legacy mechanical governor or the newer electronic control system.
Mechanical vs Electronic BF4M2012 Engines
Early iterations of this engine used a fully mechanical fuel injection pump. Modern variants run on a semi-electronic system powered by the Deutz Electronic Unit Pump (EUP) system.
The electronic variant offers precise injection timing and improved diagnostics, but it requires a basic wiring harness integration. If you are replacing an older mechanical unit, contact HekoPower engineers to ensure your machine's wiring harness supports the electronic governor transition.
Real-World Construction Applications
The 4-cylinder Deutz construction diesel engine is highly regarded because it delivers peak torque at lower engine speeds (RPM), which directly benefits heavy hydraulic systems.
Deutz BF4M2012-C Excavator Engine
Excavators subject engines to sudden, violent load spikes as the bucket digs into heavy clay or rock. The fast governor response of the BF4M2012-C ensures the hydraulic pumps receive consistent input speed, preventing the machine from stalling or bogging down during deep digs.
Deutz BF4M2012-C Road Roller Engine
Soil compactors and asphalt rollers require steady engine speeds to power the heavy internal eccentric vibrators. The Deutz BF4M2012C 2200rpm engine for road roller setups provides the precise RPM holding required to maintain consistent vibration frequencies across the soil surface.
Additional Machinery Integrations
Beyond excavation and compaction, this robust power pack is commonly installed in:
- Wheel Loaders: Delivering high tractive force at low travel speeds.
- Mobile Cranes: Supplying reliable power for heavy hydraulic winches and boom extensions.
- Bulldozers: Utilizing the broad torque curve to push heavy loads without constant gear shifting.
Maintenance, Troubleshooting, and System Replacement
As a dedicated China Deutz BF4M2012-C exporter, we believe that providing post-sale technical support is just as important as supplying the physical engine. Below are critical maintenance guidelines to protect your investment.
Electronic Unit Pump (EUP) Service
The fuel system of the Deutz BF4M2012-C electronic unit pump engine operates under extreme pressures. Because each cylinder has its own dedicated injection pump driven directly by the camshaft, fuel cleanliness is critical.
- Problem: Fuel starvation, hard starting, or black exhaust smoke.
- Solution: Inspect individual unit pumps for plunger wear. Always replace fuel filters at 250-hour intervals and install a high-efficiency water separator before the primary lift pump.
Managing Cylinder Head Thermal Stress
Because the BF4M2012-C outputs up to 103 kW from a compact 4.03-liter displacement, managing engine temperature is essential.
- Coolant Mixture: Maintain a strict 50/50 glycol-to-water ratio. Pure water causes localized boiling and cavitation damage around the wet cylinder liners.
- Thermostat Care: Never run the engine without a thermostat to solve overheating problems. Removing the thermostat disrupts the bypassed cooling loop, causing the block to heat unevenly.
Checking Fuel Consumption and Smoke Color
- Blue Smoke: Indicates oil bypass. Inspect the turbocharger shaft seals and valve guide seals.
- White Smoke: Unburnt fuel or coolant entering the chamber. Verify injection pump timing and inspect for a blown cylinder head gasket.
- Excessive Black Smoke: Air restriction. Clean the intercooler core and check for boost leaks between the turbocharger and the intake manifold.
Deutz BFM2012-Construction Diesel Engine Series, original products from Dalian Deutz Engine Plant. This series mainly includes Deutz BF4M2012, Deutz BF4M2012C, Deutz BF4M2012-C, Deutz BF6M2012C, Deutz BF6M2012-C.
Frequently Asked Questions
What is the average Deutz BF4M2012C diesel engine price?
Pricing varies based on the configuration (88 kW vs 103 kW), the scope of supply (bare long-block versus fully dressed power unit), and order volume. As a wholesale distributor, HekoPower offers tiered pricing. Contact our sales office with your serial number for an accurate, direct-from-China quotation.
Can I replace an older BF4M1012 engine with a BF4M2012-C?
Yes, the 2012 series serves as the direct technological successor to the 1012 family. While the block dimensions are nearly identical, you must verify the fly-wheel housing configuration and cooling fan height.
Are your engines manufactured by Dalian Deutz?
Yes, our inventory includes genuine New Dalian Deutz BF4M2012-C engines produced by the Deutz joint venture in China. These engines are built to the exact standards of Deutz AG Germany and are fully supported by global parts availability.
