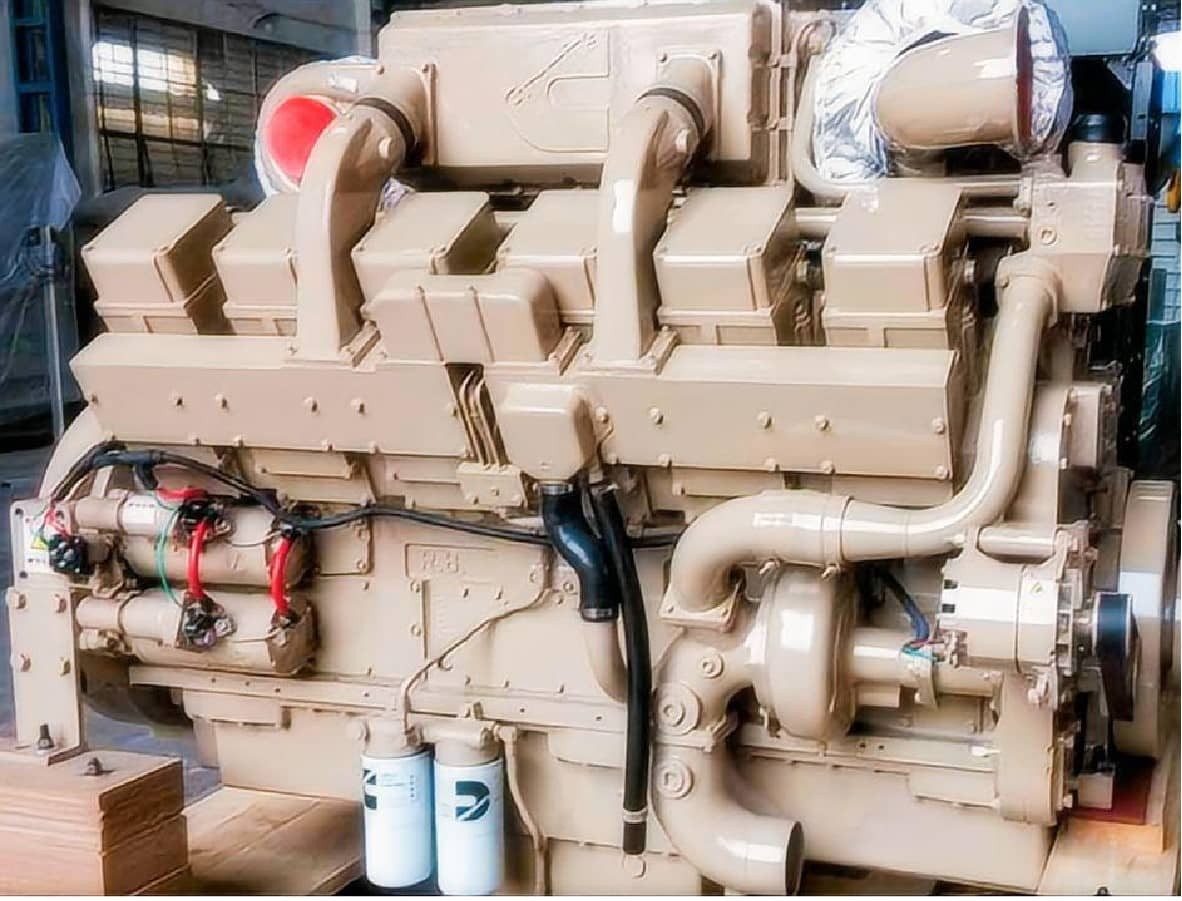

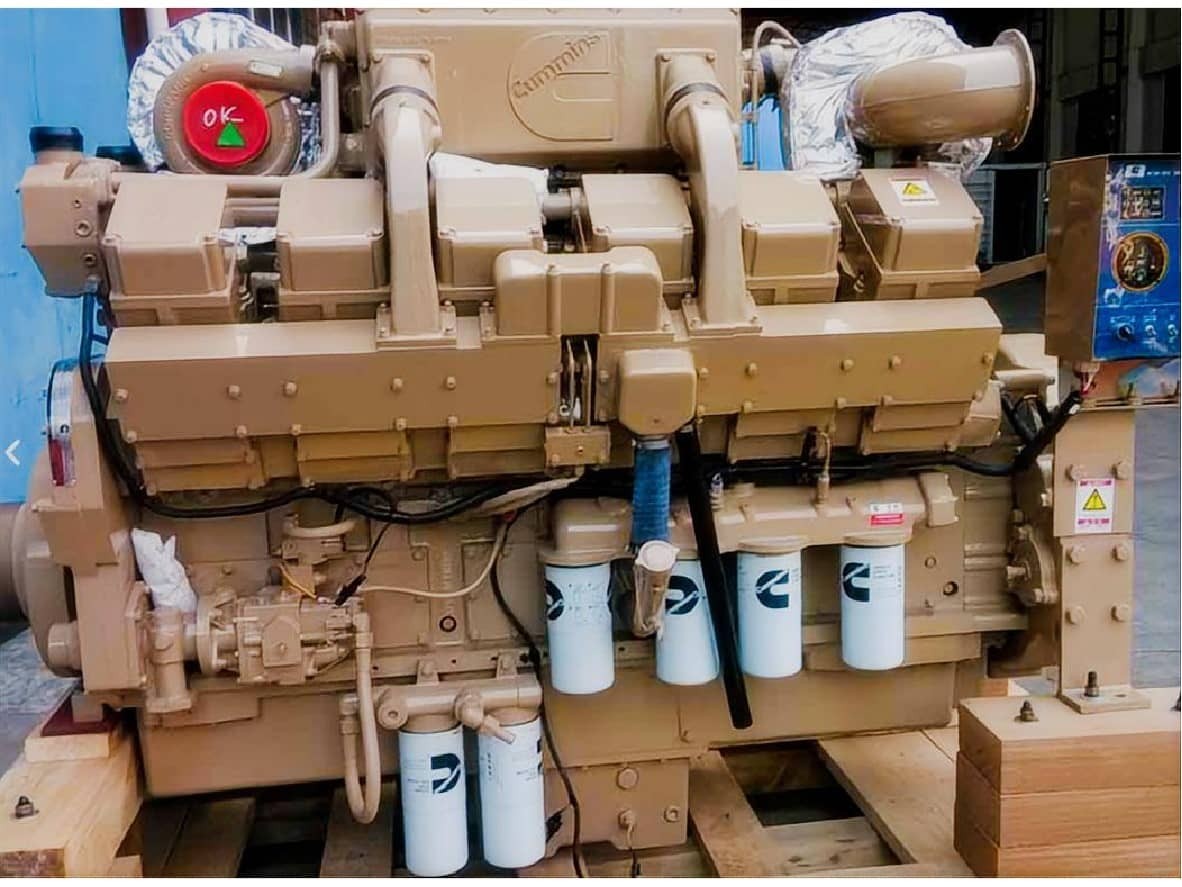

KTA38-DM1007
Original Cummins, new machines at absolute wholesale prices.
HekoPower Group is the reliable choice.
Our partner Cummins, a global power solutions leader, comprises five business segments – Components, Engine, Distribution, Power Systems and Accelera by Cummins – supported by Cummins global manufacturing and extensive service and support network, skilled workforce and vast technological expertise. In 1981, Chongqing Engine Plant started to license-produce Cummins engines, and in 1995, it jointly established a Chinese joint venture engine factory with Cummins.
KTA38-DM1007 Marine Engine is mainly used as marine electronic and could be widely used on boat, fishing boat, yacht, motor boat, tug boat, cargo ship, passenger ship, barges.
Technical Specifications
General Engine Data
Engine Model: Cummins KTA38-DM1007
Type: 12 Cylinders, V Type, 4 Stroke, Diesel
Displacement: 38 L
Bore * Stroke: 159 * 159
Net Weight (with flywheel & alternator): 4501 Kg
Overall Dimension: 2003mm*1362mm*1661mm
Engine Configuration No.: D233036MX02
Key Performance Date
Rated Power/Standby Power: 1007 kW/1350HP, 1112 kW/1490HP
Rated Speed: 1800 rpm
Low Idle Speed: 575-650 rpm
Fuel Consumption (Running Speed): 232 g/kW.hr
Torque/Rated Speed: 5342 N.m @ 1800 rpm
More Technical Data
Certification: CCS/IMO Certificates
Aspiration: Turbocharged/Aftercooled
Compression Radio: 13.9:1
Fuel System: Cummins Pressure Time (PT Pump)
Starting System: Electrical starting motor (24V)
Cooling Method: Water cooling
Cooling Method: Sea water pump, Heat exchanger, Wet exhaust manifold
Cummins K38-DM Series
Cummins K38-DM Series, Marine Auxilliary Diesel Engines for commercial and recreational applications, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes KT38-DM560, KT38-DM679, KTA38-DM664, KTA38-DM768, KTA38-DM809, KTA38-DM814, KTA38-DM880, KTA38-DM1007. All engines complete with sea water pump, heat exchanger, CCS/IMO certificates.
Fuel System
Cummins PT fuel system can be operated mechanically or with CENTRY electronics for precise engine fueling. Step Timing Control (STC) allows for smooth engine acceleration under load.
Cooling System
Keel cooled or engine mounted plate heat exchanger for reduced installation cost and less maintenance. Spin-on Cummins water treatment filters for protection against cooling system corrosion.
Air System
Marine grade air filters with air inlet restriction indicator. Twin Cummins turbochargers optimized for marine usage.
Engine Design
Low profile for ease of installation and service. Replaceable wet cylinder liners offer longer life and lower rebuild cost.
Lubrication System
Standard (114 L [30 gal]) or high capacity (185 L [49 gal]) marine grade oil pan. Cummins spin-on oil filter cartridge available handed for simplified service.
Certifications
Complies with either IMO Tier 1, IMO Tier 2 or EU Stage 3a emissions regulations as indicated. Certificates of compliance are available from the U.S. EPA and Lloyd’s Register of Shipping. Designed to meet SOLAS requirements. Consult your local Cummins professional for a complete listing of current marine agency approvals for this engine.
Electrical System
24v standard electrical system with 12V option available. Marine grade wiring harness.
Exhaust System
Dry exhaust manifold with water shielding for reduced fuel consumption and improved performance.
