Details

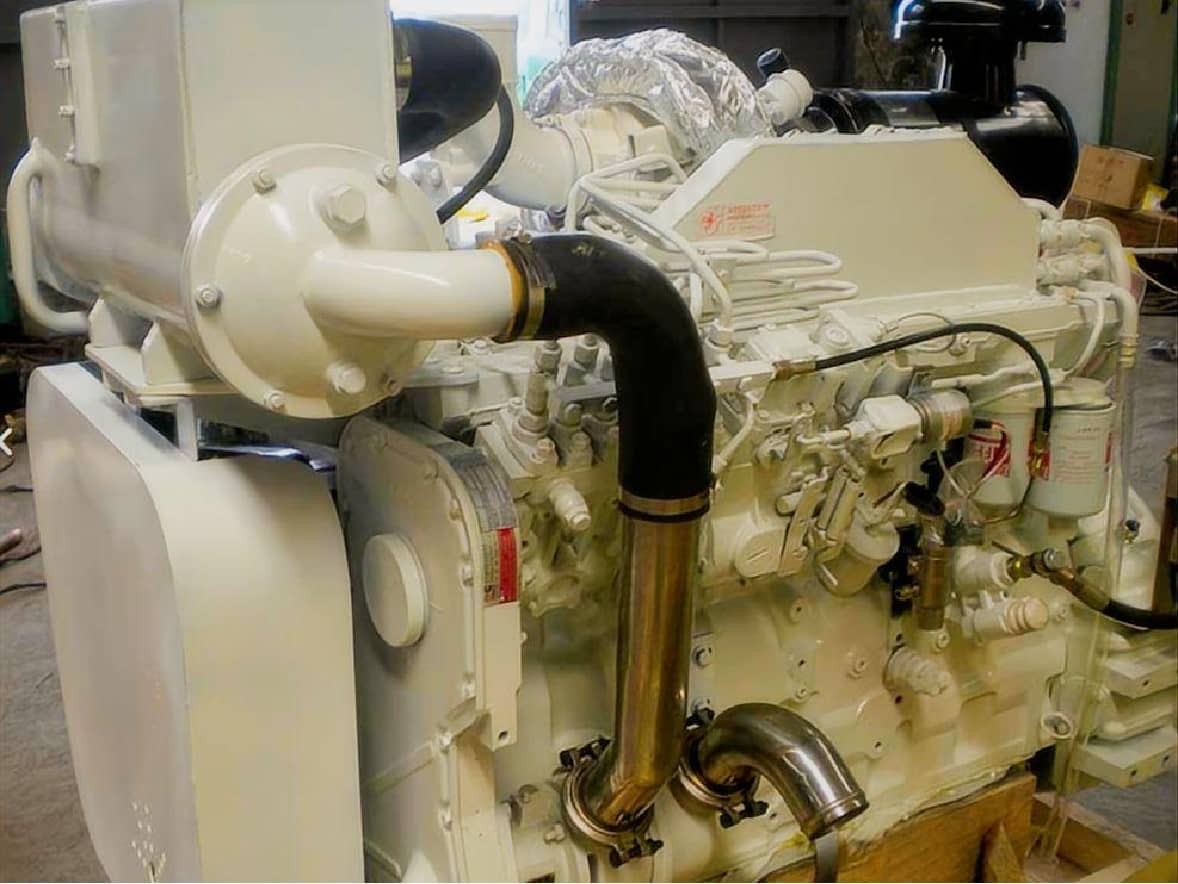

Genuine Cummins 6CTA8.3-M220 Marine Propulsion Engine (220HP / 164kW)
Selecting the right marine main engine dictates the reliability and profitability of any commercial vessel. The DCEC Cummins 6CTA8.3-M220 propulsion engine represents a benchmark in continuous-duty power. Engineered with a displacement of 8.3 liters, this 6-cylinder inline diesel workhorse produces a steady 164kW (220HP) at a conservative 1800 RPM. HekoPower supplies this complete marine propulsion system to shipbuilders and fleet operators globally, ensuring vessels operate with maximum uptime in harsh marine environments.
Tech Specs of Cummins 6CTA8.3-M220
General Engine Data
Engine Model: Cummins 6CTA8.3-M220
Type: 6 Cylinders, in Line
Displacement: 8.3 L
Bore * Stroke: 114 * 135
Net Weight (with flywheel & alternator): 674 Kg
Overall Dimension: 1360mm*780mm*988mm
Engine Configuration No.: D413065MX03
Key Performance Data
Rated Power/Max Power: 164 kW/220 HP, 180KW/242 HP
Rated Speed/Max Speed: 1800 rpm/1858 rpm
Low Idle Speed: 630-730 rpm
High Idle Speed: 2025-2125 rpm
Fuel Consumption (Running Speed): ≤ 49 L/hr
Torque/Rated Speed: 954 N.m @ 1800 rpm
Max Torque/Speed: 1000 N.m @ 1500 rpm
More Technical Data
Certification: CCS Certificates
Aspiration: Turbocharged/Water-air cooled
Compression Radio: 17.3:1
Fuel System: BYC PB Pump/R801 Governor
Governor Type: Mechanical Control
Starting System: Electrical Start (12V/24V)
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Sea water pump, Heat exchanger, Water cooled
Engine Cooling Fluid Volume: 12.3 L
Technical Superiority of the 6CTA8.3-M220
When evaluating an 8.3L Cummins marine engine, buyers often weigh different power ratings within the same family. The 6CTA8.3-M220 stands apart from higher-revving alternatives due to its specific torque and fuel delivery calibrations.
Delivering a robust 1000 N.m peak torque at lower RPMs, this engine is optimized for displacement hulls pushing heavy loads. Unlike light-duty engines that rely on high engine speeds to generate horsepower, the 6CTA8.3-M220 operates at an unhurried 1800 RPM. This lower rotational speed dramatically reduces internal component wear and torsional vibration.
A critical advantage is the integration of the Bosch inline fuel pump diesel engine architecture. Many modern marine engines utilize complex electronic rotary pumps. The mechanical Bosch inline system on the 6CTA8.3-M220 is highly tolerant of varying global fuel qualities. Combined with a responsive mechanical governor type, it provides immediate throttle response when a vessel encounters sudden resistance, such as a tug taking up towline slack.
Cooling efficiency also sets this model apart. The Cummins 6CTA8.3-M220 with sea water pump integration operates alongside a high-capacity heat exchanger. This dual-circuit design keeps corrosive raw water isolated from the engine block. The heat exchanger cooling marine engine setup ensures thermal stability even during prolonged wide-open throttle operations in tropical waters.
Real-World Vessel Applications
Different hulls demand different power dynamics. The 220HP Cummins marine diesel engine 6CTA8.3 is specifically tuned for continuous, heavy-duty commercial profiles.
Fishing Boat Engine Solutions
A 220HP marine engine for commercial fishing boats must endure long idling periods during net retrieval, followed by high-load transits back to port. The 6CTA8.3-M220 thrives here. Its robust block and efficient fuel combustion limit carbon buildup during low-speed trawling. Fleet owners rely on the 6CTA8.3-M220 fishing boat engine for its predictable fuel economy, extending the vessel's operational range without expanding onboard fuel storage.
Tugboat and Workboat Operations
For harbor assistance and coastal towing, bollard pull is everything. A 220HP Cummins engine for tugboat use delivers the sustained torque required to maneuver much larger vessels. Because the 1000 N.m torque is accessible early in the RPM range, captains experience zero lag when shifting from idle to heavy pull. This also makes it an exceptional Cummins 220HP engine for workboat and cargo vessel engine applications, where shifting heavy deck loads creates constant dynamic drag.
Propulsion System Integration and Matching
An engine cannot perform optimally if poorly integrated. HekoPower goes beyond merely acting as a Cummins 220HP marine engine supplier; we assist in comprehensive power train planning.
Proper 6CTA8.3-M220 gearbox matching is vital. Due to the 1800 RPM continuous rating, marine gearbox reduction ratios must be carefully calculated to prevent engine lugging. We regularly advise clients on the ideal Cummins 220HP marine engine gearbox package, ensuring the power curve aligns with the vessel's hull speed.
Furthermore, 6CTA8.3-M220 shaft and propeller system alignment must account for the specific thrust requirements of the vessel. Whether you are installing a new 6CTA8.3-M220 complete propulsion package or retrofitting an older hull, our team ensures the entire 6CTA8.3-M220 marine propulsion system operates efficiently from the flywheel to the propeller blade.
Maintenance and Lifespan Extension
Maximum uptime requires strict adherence to the 6CTA8.3-M220 maintenance schedule. While this DCEC 6CTA8.3-M220 is famously durable, operators must remain proactive.
Addressing Common Overheating Misconceptions
A widespread misconception is that marine engine overheating is always caused by a failing thermostat or heavy engine load. In reality, 6CTA8.3-M220 cooling system maintenance dictates that the raw water circuit is usually the culprit. Operators frequently ignore sea water pump impeller degradation. Even if the impeller looks intact, weakened rubber vanes will fail to draw sufficient water at high RPMs. We recommend impeller replacement annually, alongside routine flushing of the heat exchanger core to remove scale buildup.
Fuel System and Component Care
Effective 6CTA8.3-M220 fuel system troubleshooting starts with clean fuel. Despite the ruggedness of the Bosch inline fuel pump, water ingress will score the injector nozzles. Daily draining of the water separators is mandatory. For long-term reliability, HekoPower provides comprehensive 6CTA8.3-M220 spare parts access. Whether you require a genuine 6CTA8.3-M220 turbocharger replacement or a detailed 6CTA8.3-M220 parts catalog, our inventory minimizes your vessel's downtime.
Sourcing Your Replacement Engine
When an existing power plant reaches the end of its life, securing a 6CTA8.3-M220 replacement engine swiftly is a priority. As a dedicated Cummins marine engine agent wholesale provider, HekoPower streamlines the procurement process. We handle everything from providing the detailed 6CTA8.3-M220 dimensions and weight for engine room planning, to managing the 6CTA8.3-M220 engine export supplier logistics to your shipyard.
Exploring the Cummins C8.3 Marine Propulsion Series
The 220HP configuration offers an exceptional balance of steady torque and low operational wear, making it the preferred choice for heavy-duty commercial applications. However, your specific vessel design, hull type, or speed requirements might dictate a different power curve. To ensure every maritime operator finds their exact fit, the broader C8.3 marine propulsion lineup caters to varied tonnage limits and operational profiles. We stock the entire spectrum of this engine family to support your distinct marine engineering needs.
Cummins C8.3-M Series (C8.3 Marine Engine), marine propulsion engines for commercial and recreational applications, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6CTA8.3-M188, 6CTA8.3-M205, 6CTA8.3-M220, 6CTA8.3-M260. All engines complete with sea water pump, heat exchanger, CCS/IMO certificates.
Frequently Asked Questions
What is the expected Cummins 6CTA8.3-M220 fuel consumption?
Fuel consumption scales directly with load and propeller matching. However, the 8.3L footprint combined with the direct injection system makes this highly efficient. At continuous cruising speeds, operators typically see highly competitive burn rates compared to older two-stroke Detroit diesels or larger displacement blocks. Consult the specific 6CTA8.3-M220 performance curve documents for precise fuel flow rates at varying RPMs.
Is the Cummins 6CTA8.3-M220 compliant with marine regulations?
Yes. For operators requiring documentation for vessel registration and insurance, we supply the CCS certified Cummins 6CTA8.3-M220. Furthermore, this engine meets IMO Tier II compliant marine diesel emission standards, making it legal for operation in the vast majority of global commercial waterways.
How can I determine the Genuine DCEC Cummins 6CTA8.3-M220 price and availability?
Pricing fluctuates based on the specific configuration required (e.g., bare engine vs. complete propulsion package) and destination. For an accurate quote and current 6CTA8.3-M220 engine lead time, contact the HekoPower sales engineering team.
