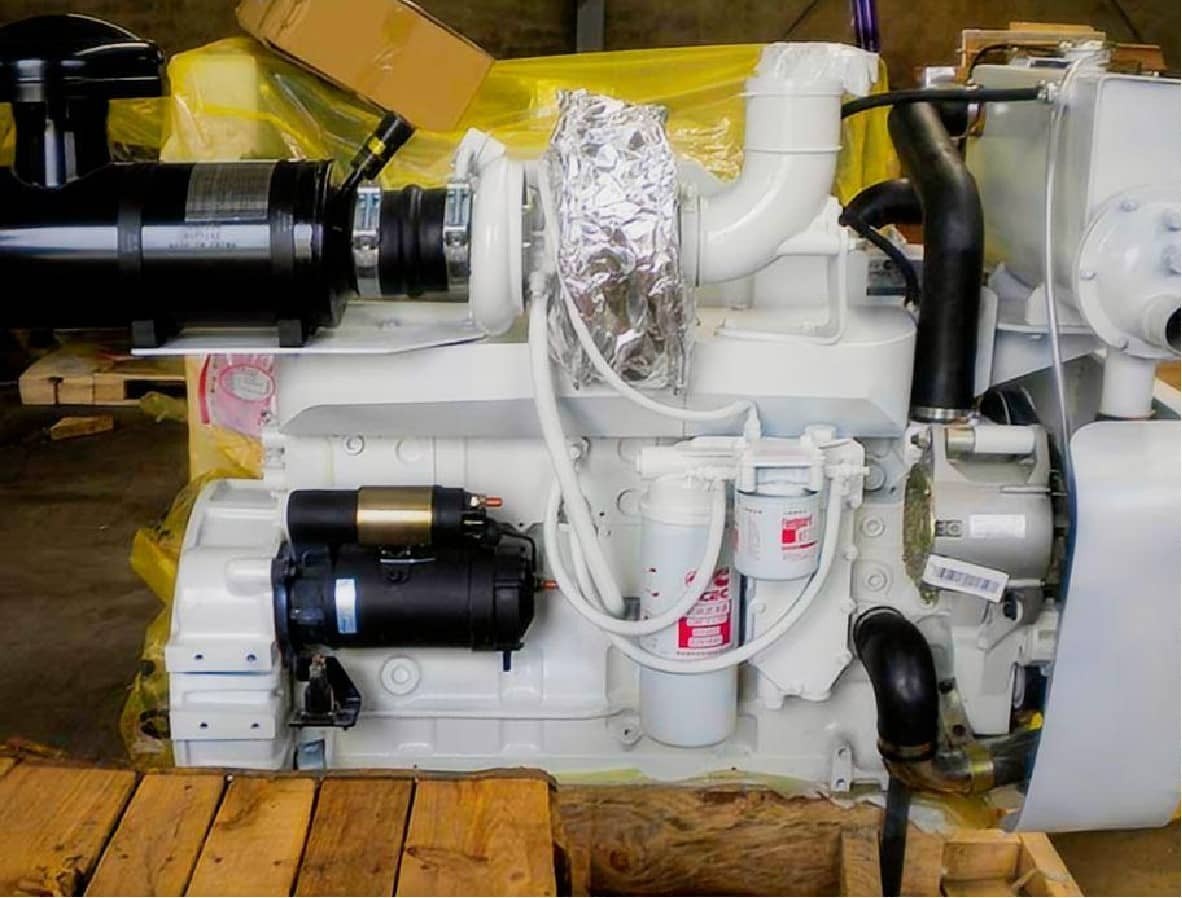

DCEC Cummins 6CTA8.3-M205 Marine Propulsion Engine (205HP / 151kW)
The DCEC Cummins 6CTA8.3-M205 is a robust, continuous-duty marine propulsion engine engineered specifically for commercial maritime operations. Delivering a rated output of 151kW at 2328 RPM, this 8.3L Cummins 205HP marine engine provides relentless power for vessels that demand absolute reliability on the water. Unlike recreational engines, the Cummins 6CTA8.3-M205 marine engine is built from the ground up for heavy workloads. It offers an impressive 828Nm torque curve designed to push displacement and semi-displacement hulls through harsh marine environments. As an authorized Cummins 6CTA8.3-M205 supplier, HekoPower provides these genuine units to shipyards, fleet operators, and independent captains worldwide.
Tech Specs of Cummins 6CTA8.3-M205
General Engine Data
Engine Model: Cummins 6CTA8.3-M205
Type: 6 Cylinders, in Line
Displacement: 8.3 L
Bore * Stroke: 114 * 135
Net Weight (with flywheel & alternator): 674 Kg
Overall Dimension: 1360mm*780mm*988mm
Engine Configuration No.: D413065MX03
Key Performance Data
Rated Power: 151 kW/205 HP
Rated Speed: 2328 rpm
Low Idle Speed: 800 rpm
Fuel Consumption (Running Speed): ≤ 247 g/kW.h
Torque/Rated Speed: 715 N.m @ 2328 rpm
Max Torque/Speed: 828 N.m @ 1500 rpm
More Technical Data
Certification: CCS Certificates
Aspiration: Turbocharged/Intercooled
Compression Radio: 17.3:1
Fuel System: BYC PB Pump/R801 Governor
Governor Type: Mechanical Control
Starting System: Electrical Start (12V/24V)
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Sea water pump, Heat exchanger, Water cooled
Engine Cooling Fluid Volume: 12.3 L
Navigating Power Demands: Real Application Scenarios
Matching the correct engine output to a vessel's hull dynamics is the most critical step in marine engineering. The 6CTA8.3-M205 engine for fishing boat applications is incredibly popular due to its lugging power. Trawlers and longliners require a continuous duty 205HP fishing boat engine capable of operating under heavy loads for days without overheating. The 114x135mm engine bore and stroke provides the deep torque necessary for dragging heavy nets.
The 2328 RPM Cummins marine engine also serves perfectly as a 205HP diesel engine for passenger ferries. Passenger vessels need rapid, reliable acceleration from the dock and consistent, smooth cruising speeds to maintain strict schedules. Furthermore, the robust nature of this 151kW marine propulsion engine for workboat operations ensures steady performance for harbor duties. We routinely configure the 6CTA8.3-M205 engine for tugboat and cargo boat operators who cannot afford downtime and need a dependable daily workhorse.
Technical Comparisons: Understanding the M205 Advantage
Many fleet managers ask which Cummins C8.3 marine engine they should choose for their next refit. Understanding the exact difference between 6CTA8.3-M205 and M220 models is crucial.
When looking at the 6CTA8.3-M205 vs 6CTA8.3-M220, the primary distinction is not just a modest horsepower bump; it is the operating speed. The 6CTA8.3-M205 operates at a rated 2328 RPM. In contrast, the M220 typically operates at a heavy-duty 1800 RPM. This 6CTA8.3-M205 205HP vs 220HP marine engine comparison means the M205 is better suited for vessels requiring higher shaft speeds and specific propeller pitches to achieve optimal fuel economy.
Similarly, in the 6CTA8.3-M188 vs 6CTA8.3-M205 marine engine debate, the M205 offers the extra power necessary for heavier payloads without drastically altering the engine room footprint. If you compare the 6CTA8.3-M205 vs higher RPM marine engine models from other brands, the Cummins strikes a perfect balance. It delivers enough speed for semi-displacement vessels while completely avoiding the rapid component wear associated with high-speed, lightweight racing diesels.
Common Misconceptions About Marine Engine Repowers
A frequent misconception regarding an 8.3L Cummins marine engine repower involves the engine's control systems. Some operators mistakenly believe that a modern marine diesel must feature complex, highly sensitive electronic control modules. In reality, the 6CTA8.3-M205 mechanical fuel pump marine engine actively avoids unnecessary electronics.
It utilizes a highly proven BYC PB fuel pump combined with an R801 governor. This 6CTA8.3-M205 mechanical governor setup is fiercely preferred by deep-sea commercial fleets. The mechanical 6CTA8.3-M205 fuel system specification guarantees that your engineering crew can perform emergency troubleshooting and repairs at sea using standard tools, completely eliminating the need for specialized diagnostic software.
Another misunderstanding surrounds the Cummins 6CTA8.3-M205 fuel consumption curve. Buyers sometimes assume that running a 205HP engine means inherently poor fuel economy. However, when paired with accurate 6CTA8.3-M205 gearbox matching, the fuel consumption at cruising RPM is highly competitive, keeping daily operational costs low.
Cooling System Configurations and Maintenance Tips
Maintaining optimal operating temperatures dictates the lifespan of your Cummins 151kW marine diesel engine. HekoPower offers flexible configurations to suit your specific operating environment.
The standard Cummins 6CTA8.3-M205 seawater cooling system utilizes a high-capacity Cummins 6CTA8.3-M205 seawater pump to cycle raw water through a durable tube-and-shell cooler. Routine inspection of the Cummins 6CTA8.3-M205 heat exchanger is vital. Operators must regularly check and replace the zinc anodes inside the 6CTA8.3-M205 marine heat exchanger to prevent galvanic corrosion. This minor maintenance task prevents massive engine repair bills.
For vessels operating in extremely shallow, muddy, or debris-filled inland waterways, standard seawater pumps can easily clog. In these scenarios, a 6CTA8.3-M205 keel cooling arrangement is highly recommended. A closed-loop keel cooler removes the need for raw water to enter the vessel, drastically reducing maintenance on the 6CTA8.3-M205 marine cooling configuration.
During any refit, pay close attention to the DCEC 6CTA8.3-M205 installation dimensions. The compact Cummins 6CTA8.3-M205 dimensions and weight make it an ideal Cummins 205HP engine for boat repowering. It easily drops into the engine beds of older vessels, reducing shipyard labor hours and lowering your overall 6CTA8.3-M205 engine replacement cost.
Certifications, Supply, and Genuine Assurance
Commercial maritime operators operate under strict regulatory compliance. HekoPower supplies the authentic Cummins 6CTA8.3-M205 CCS certified marine engine, ensuring your vessel passes inspection. This 6CTA8.3-M205 CCS marine propulsion engine is also classified as a 6CTA8.3-M205 IMO Tier II marine engine, meeting modern international emissions standards. Having the correct Cummins 6CTA8.3-M205 marine certification and accompanying 6CTA8.3-M205 marine engine certificate is mandatory for port authority clearance and marine insurance policies.
When evaluating the Cummins 6CTA8.3-M205 price, it is critical to ensure you are buying the genuine article. As a dedicated Cummins 6CTA8.3-M205 export supplier, we guarantee the delivery of an original DCEC 6CTA8.3-M205. We offer flexible procurement options, from a bare replacement block to a Cummins 6CTA8.3-M205 complete power pack. If required, we can supply a fully integrated Cummins 6CTA8.3-M205 marine engine with gearbox package, matched precisely to your vessel's reduction requirements. We maintain excellent Cummins 6CTA8.3-M205 wholesale pricing and prioritize a fast Cummins 6CTA8.3-M205 lead time so your boat can get back to work.
Exploring the Cummins C8.3-M Marine Series
Choosing the right 8.3L Cummins marine engine replacement depends entirely on your hull design and daily operational requirements. While the 6CTA8.3-M205 boat repower engine is a phenomenal choice for higher RPM continuous duty, your specific vessel might require a different torque curve or a higher horsepower output. HekoPower supplies the complete spectrum of these legendary marine diesels to ensure a perfect match for every maritime application.
Cummins C8.3-M Series (C8.3 Marine Engine), marine propulsion engines for commercial and recreational applications, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6CTA8.3-M188, 6CTA8.3-M205, 6CTA8.3-M220, 6CTA8.3-M260. All engines complete with sea water pump, heat exchanger, CCS/IMO certificates.
Frequently Asked Questions
What is the ideal gearbox matching for this engine model?
Proper 6CTA8.3-M205 gearbox matching typically involves Advance or FADA marine transmissions. The exact reduction ratio you need will depend heavily on your current propeller diameter and the engine's 2328 RPM rating. Our technical team can help calculate the best ratio for your hull.
Is this an authentic, complete engine?
Yes. Every unit we list for sale is a genuine Cummins 6CTA8.3-M205 complete marine engine straight from the DCEC factory. It includes the engine block, fuel system, cooling system, and exhaust manifold, ready for installation.
How do I know my actual fuel consumption?
The exact Cummins 6CTA8.3-M205 fuel consumption depends on vessel weight, hull shape, and sea conditions. However, we can provide the official factory fuel consumption curve chart upon request, which details the fuel burn rate across the entire RPM range under standard load conditions.
