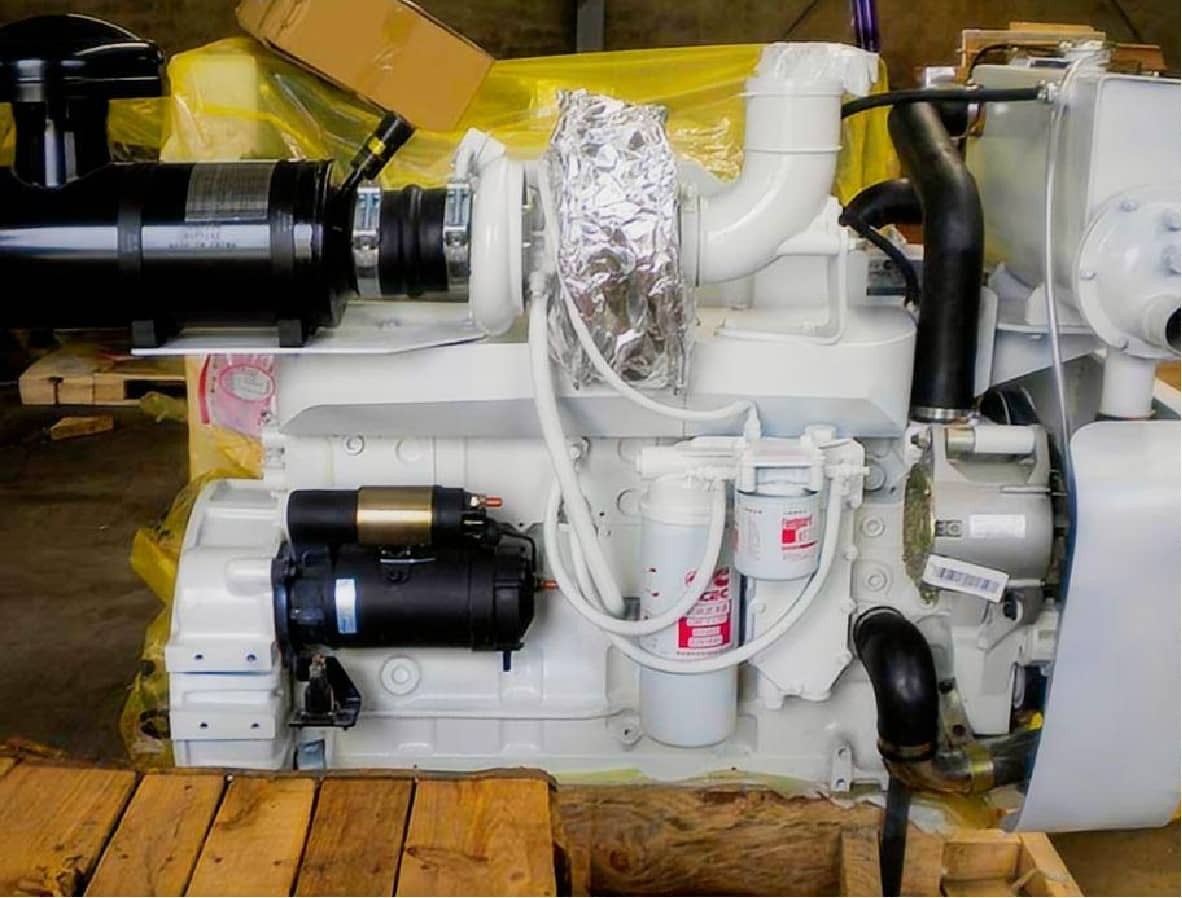

Genuine DCEC Cummins 6CTAA8.3-M260 Marine Engine: 260HP Propulsion System
Finding a reliable genuine DCEC 6CTAA8.3-M260 supplier requires looking beyond basic datasheets. At HekoPower, we understand that sourcing a 260HP Cummins inboard marine diesel is a major investment for your vessel or fleet. The Cummins 6CTAA8.3-M260 marine propulsion engine delivers exceptional durability for heavy-duty maritime operations. With a rated output of 190 kW and a maximum power of 209 kW, this 8.3L Cummins engine for marine repower is engineered specifically for commercial endurance.
Whether you need a new Cummins 6CTAA8.3-M260 marine engine for a new build or a replacement unit, we provide competitive wholesale prices. We also ensure fast lead time Cummins 260HP marine diesel export services to keep your downtime to an absolute minimum.
Tech Specs of Cummins 6CTAA8.3-M260
General Engine Data
Engine Model: Cummins 6CTAA8.3-M260
Type: 6 Cylinders, in Line
Displacement: 8.3 L
Bore * Stroke: 114 * 135
Net Weight (with flywheel & alternator): 674 Kg
Overall Dimension: 1360mm*780mm*988mm
Engine Configuration No.: D413069MX03
Key Performance Data
Rated Power/Max Power: 190 kW/260 HP, 209KW/284 HP
Rated Speed/Max Speed: 1800 rpm/1858 rpm
Low Idle Speed: 600-800 rpm
High Idle Speed: 2430 rpm
Fuel Consumption (Running Speed): ≤ 58.3 L/hr
Torque/Rated Speed: 650 N.m @ 2328 rpm
Max Torque/Speed: 1125 N.m @ 1200 rpm
More Technical Data
Certification: CCS Certificates
Aspiration: Turbocharged and Charge Air Cooled
Compression Radio: 17.3:1
Fuel System: Weifu PW2000 Pump/ RQV-K Governor
Governor Type: Mechanical Control
Starting System: Electrical Start (12V/24V)
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Sea water pump, Heat exchanger, Water cooled
Engine Cooling Fluid Volume: 11.4 L
Real-World Application Scenarios
The 6CTAA8.3-M260 marine main engine is not a generic power plant. It is purpose-built for environments where sustained torque and reliability are non-negotiable.
Repowering Fishing Vessels and Trawlers
When you repower a fishing boat with the Cummins 6CTA8.3-M 260HP, you immediately notice the low-end thrust. Fishing vessels operate in dynamic conditions where dragging nets requires immense continuous power. The engine provides a maximum torque of 1125 Nm, ensuring your vessel maintains momentum against heavy drag. The 6CTAA8.3-M260 engine for fishing vessel applications is perfectly suited for 10 to 20-meter hulls. Its compact 8.3-liter displacement allows for easier installation in tight engine rooms compared to older, bulkier mechanical engines.
Deployments in Workboats and Tugboats
For harbor operations, the 6CTAA8.3-M260 engine for workboat and tugboat usage excels due to its rapid load acceptance. Tugboats rely on instant power delivery for maneuvering barges. The robust air-air intercooler and optimized air intake requirements ensure the engine breathes efficiently even during extended idling and sudden full-throttle bursts.
Technical Comparisons: Navigating Your Options
When evaluating a Cummins C8.3 marine propulsion system, buyers often weigh the 6CTAA8.3-M260 against other popular models. Understanding these nuances is critical for matching engine output to your specific hull dynamics.
Mining Equipment
The Cummins KTA38-C1400 for mining truck applications is widely used in heavy-duty dump trucks, including compatibility with large mining brands. Its high torque and reliability make it suitable for continuous load operations.
Cummins 6CTAA8.3-M260 vs 6CTA8.3-M220
A common debate among fleet operators is choosing between the 260HP vs 220HP Cummins marine engine. The primary difference lies in the air handling and fuel calibration. The 6CTAA8.3-M260 utilizes advanced aftercooling to achieve its 190kW rating at 2134 RPM. While the 6CTA8.3-M220 is an excellent engine, the 6CTAA8.3-M260 marine engine power comparison reveals significantly better torque reserve for heavier displacements. If your vessel frequently operates at maximum cargo capacity, the M260 prevents the engine from lugging, which ultimately extends its operational life.
6CTAA8.3-M260 vs 6CTA8.3-M205
Compared to the M205, the 6CTAA8.3-M260 offers a substantial jump in output. The M205 is often selected for lighter, displacement-hull passenger ferries where top speed is less critical than absolute fuel economy. However, the M260 balances this well. The Cummins 6CTAA8.3-M260 fuel consumption remains highly efficient for its power class, making the upgrade to 260HP cost-effective for commercial operators who need that extra sprint capability to beat weather systems or tides.
6CTAA8.3-M260 vs NTA855 Marine Engine
Many older vessels are currently running the legendary NTA855. When considering a Cummins 6CTAA8.3-M260 vessel repower to replace an aging 855, the benefits are immediately apparent in the engine room footprint. The Cummins 6CTAA8.3-M260 dimensions and weight are substantially lower. You gain vital workspace around the engine block without sacrificing necessary propulsion power. Furthermore, the 8.3L design meets modern emissions standards, serving as an IMO Tier II CCS certified marine engine 8.3L solution, which is crucial for operating in regulated international waters.
Installation and Engineering Requirements
Proper integration is what separates a successful repower from a maintenance nightmare. The 6CTAA8.3-M260 marine engine installation dimensions require careful planning regarding engine mounts and shaft alignment.
Cooling System Configurations
The 6CTAA8.3-M260 cooling system requirements are flexible to accommodate different hull designs. Most commercial setups utilize 6CTAA8.3-M260 heat exchanger cooling, which pairs seamlessly with the factory-fitted sea water pump. However, for vessels operating in shallow, debris-filled waters where sea strainers frequently clog, we can configure the engine for 6CTAA8.3-M260 keel cooling. This closed-loop approach eliminates raw water intake issues and reduces long-term maintenance on internal cooling jackets.
Marine Gearbox and Propeller Matching
Buying a bare engine is rarely enough. HekoPower specializes in supplying the Cummins 6CTAA8.3-M260 complete power pack with gearbox. Proper 6CTAA8.3-M260 marine gearbox matching is vital. We typically pair this 260HP engine with Advance or Fada gearboxes, carefully calculating reduction ratios based on your specific 6CTAA8.3-M260 propeller matching data. Ensuring precise 6CTAA8.3-M260 shaft alignment during installation prevents premature wear on the rear main seal and gearbox bearings.
Maintenance and Replacement Tips
Maintaining the DCEC Cummins 6CTAA8.3-M260 is straightforward thanks to its mechanical simplicity and the widespread availability of parts. As a comprehensive Cummins 6CTAA8.3-M260 spare parts supplier, HekoPower ensures you have access to everything required for scheduled overhauls.
Fuel System Servicing

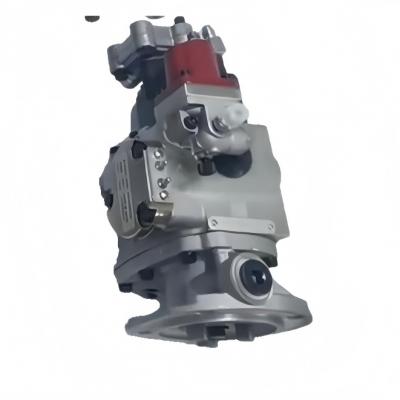

The heart of this engine is the Weifu PW2000 fuel pump for Cummins 6CTAA8.3, paired with the highly reliable 6CTAA8.3-M260 RQV-K governor. The Cummins 6CTAA8.3-M260 fuel pump specification demands clean fuel. We highly recommend installing dual primary racor filters to protect the Weifu PW2000. When replacing injectors, always verify the 6CTAA8.3-M260 firing order (1-5-3-6-2-4) and strictly adhere to the manufacturer's valve lash clearance settings to maintain optimal combustion.
Common Misconceptions
A frequent misconception regarding this specific configuration (Engine Configuration No. D413069MX03) is that it can run at its maximum 2134 RPM continuously. While the Cummins 6CTAA8.3-M260 rated power at 2134 RPM is 190kW, this is a continuous duty rating meant for specific operational profiles. Pushing the engine to its absolute maximum limit continuously without regard for exhaust gas temperatures can lead to premature turbo wear. Always monitor your exhaust pyrometer and adhere to the specified 6CTAA8.3-M260 exhaust system requirements to prevent backpressure buildup.
Exploring the Cummins C8.3 Marine Engine Family
Understanding where the M260 fits within the broader product lineup helps operators make the best purchasing decisions. The C8.3 family is renowned globally for its modular design, meaning many wear parts are interchangeable across different power nodes, simplifying inventory for fleet managers.
Cummins C8.3-M Series (C8.3 Marine Engine), marine propulsion engines for commercial and recreational applications, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6CTA8.3-M188, 6CTA8.3-M205, 6CTA8.3-M220, 6CTA8.3-M260. All engines complete with sea water pump, heat exchanger, CCS/IMO certificates.
Frequently Asked Questions
Is the Cummins 6CTAA8.3-M260 suitable for continuous operation?
Yes, it is designed for continuous duty with stable thermal performance and reliable lubrication systems.
Does the engine come complete with all marine accessories?
Yes. When you buy Cummins 6CTAA8.3-M260 marine engine units from us, they arrive as a complete marine engine assembly. This includes the marine-grade instrument panel, heat exchanger, sea water pump, and water-cooled exhaust manifold.
What certifications does this engine have?
The engine complies with IMO Tier II, CCS, and Lloyd’s Register standards.
