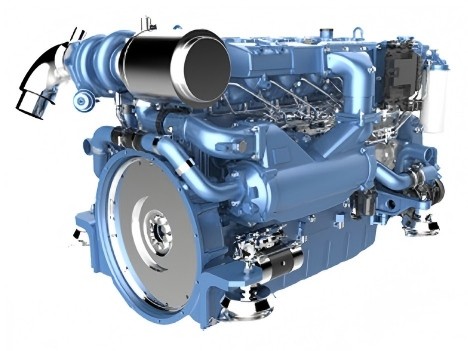

Weichai WP10C375-21 Marine Propulsion Engine: The Engineered Choice for Commercial Fleet Operators
Commercial vessel operations demand absolute reliability, predictable operating costs, and immediate power delivery. The Weichai WP10C375-21 Marine Engine stands as a premier solution for maritime operators seeking an optimal balance of power, durability, and thermal efficiency. Developing 375 HP (275kW) at 2100rpm, this 9.7-liter, 6-cylinder inline engine series is purpose-built to withstand the punishing duties of commercial marine propulsion.
As an authorized, independent global OEM Weichai marine engine supplier, HekoPower delivers completely genuine Weichai WP10C375-21 propulsion packages directly to shipyards, fleet owners, and engineering firms worldwide. By securing your machinery through an established China Weichai marine engine exporter, your operation benefits from factory-certified build standards, optimized Weichai WP10C375-21 lead time frameworks, and highly competitive Weichai marine engine wholesale pricing.
Whether you are looking to execute a complete vessel repower or sourcing equipment for a new hull build, understanding the exact technical layout of the Weichai WP10 series marine propulsion engine ensures your investment delivers a high return.
Tech Specs of Weichai WP10C375-21
General Engine Data
Engine Model: Weichai WP10C375-21
Cylinder Count: 6 Cylinders in Line
Engine Type: 4-stroke, water cooled, in-line, turbocharged and aftercooled
Total Engine Displacement: 9.726 L
Bore * Stroke: 126×130 (mm)
Net weight: 1070 kg
Overall Dimension: 1482×981×1016 (mm)
Key Performance Data
Rated Power: 275 kW / 375 HP
Rated Speed: 2100 RPM
Idle Speed: 600±50 RPM
Minimum fuel consumption rate: 191 g/kW.h
Oil consumption rate: ≤0.5 g/kW.h
More Technical Data
Certification: IMO Tier II
Aspiration: turbocharged and aftercooled
Starting system: Electrical
Rotation(facing the flywheel) : Counter-clockwise
Fuel system: HPCR
Power rating: P2
Noise: ≤97 dB(A)
Technical Fuel System Comparison: Mechanical vs. Electronic Common Rail
Selecting the correct configuration within the WP10 family requires a clear understanding of fuel injection technology. The modern marine market is split between classic mechanical fuel delivery and advanced electronic common rail architectures.
The Mechanical Pump Variant
The base Weichai marine diesel engine WP10C375 mechanical pump model utilizes a traditional inline injection pump driven directly by the engine gear train. This configuration is valued in remote territorial waters where digital diagnostic tools are unavailable.
The mechanical setup relies entirely on hydraulic pressure and physical governors to meter fuel. While incredibly resilient against lower-grade fuels, it lacks the ability to adjust injection timing dynamically based on atmospheric changes or real-time load shifts.
The Electronic Common Rail Upgrade
In contrast, the Weichai WP10C375-21E120 represents the high-pressure common rail (HPCR) evolution of this platform. This model integrates a dedicated Electronic Control Unit (ECU) that continuously manages rail pressures up to 1600 bar.
By separating pressure generation from engine speed, the Weichai WP10C375-21 common rail engine achieves ultra-fine fuel atomization across the entire power curve. This technological shift directly optimizes the Weichai WP10C375-21 fuel consumption profile, driving minimum specific fuel consumption down to an impressive 191 g/kW·h.
Torque Reserve and Transient Response
The fuel system architecture directly impacts how a vessel handles heavy seas. The Weichai WP10 2100rpm torque reserve ranges between 20% and 35% depending on the specific application tuning.
The common rail version holds a distinct advantage here: when a heavy swell slows the vessel's hull, the ECU detects the RPM drop instantly and adjusts injection duration within milliseconds. This creates immediate torque rise, allowing the propeller to maintain thrust without causing the engine to bog down or emit black smoke.
Real Application Scenarios: Where the WP10 Excels
A marine propulsion unit must match the operational profile of the vessel it powers. The Weichai 275kW Marine Engine is uniquely optimized for three distinct commercial marine applications.
Commercial Fishing and Aquaculture
For owners operating a marine engine for fishing boat duties, operational profiles alternate between high-speed runs to the fishing grounds and hours of low-speed trawling or longlining. The high-speed fishing vessel engine configuration allows captains to make markets quickly, while the stable low-idle control of 600 RPM prevents carbon buildup during long, stationary sorting sessions. The high torque reserve ensures that when heavily laden with catch and ice, the vessel gets on plane smoothly without over-stressing internal components.
Passenger Transport and Ferries
When deployed as a marine propulsion engine for passenger vessel operations, or as a marine diesel engine for ferry boat transport, safety and schedule consistency are non-negotiable. The smooth rotational balance of the Weichai 375 HP Marine Engine reduces cabin noise and deck vibrations, directly improving passenger comfort.
Furthermore, the Weichai WP10C375-21 IMO II compliant certification ensures fleet managers meet strict environmental boundaries when entering protected coastal waterways, municipal harbors, and inland river channels.
Government Patrol and Commercial Workboats
For operators managing a marine diesel engine for patrol boat deployments, or a rugged marine engine for workboat operations, durability under harsh conditions is vital. These vessels require instant throttle response and must withstand continuous high-load cycles. The heavy-duty water-jacketed exhaust manifold on the WP10 lowers engine room temperatures, protecting surrounding electrical wiring and maximizing the operational life of the marine alternator.
Maintenance, Lifecycle Management, and Replacement Insights
Maximizing your return on investment requires a proactive maintenance philosophy and an understanding of the engine's long-term lifecycle wear patterns.
Protecting the Overhaul Lifecycle
The engineered Weichai WP10 marine engine overhaul period 20000h is achievable when operators adhere to strict fluid analysis and filtration protocols. Because the common rail fuel system relies on extreme pressures, fuel cleanliness is critical.
Installing a high-efficiency water-separating primary fuel filter upstream of the factory filters is essential. This protects the expensive injection pump and injectors from water contamination and microscopic abrasive particulates.
Managing Thermal and Lubrication Systems
Lube oil breaks down rapidly under the high thermal loads of continuous marine operation. Change the engine oil and replace the dual spin-on oil filters every 250 operating hours, using only high-grade marine oils that meet API CH-4 or CI-4 standards.
Simultaneously, monitor the sacrificial zinc anodes located within the seawater heat exchanger circuit. Inspect these anodes every 100 operating hours and replace them once they show 50% consumption to prevent galvanic corrosion within the copper-nickel cooling tubes.
Recognizing Repower and Overhaul Signals
When managing a fleet of older commercial vessels, knowing when to stop patching an old engine and instead buy Weichai WP10C375-21 marine engine replacements is key to maintaining profitability. Look for clear indicators of terminal wear, such as persistent crankcase blow-by, oil consumption exceeding standard parameters, or an inability to reach rated RPM under standard loading profiles.
Transitioning to a modern WP10 platform eliminates chronic breakdown risks and significantly improves overall fleet fuel efficiency.
Commercial Procurement and Global Sourcing Guidance
Navigating international supply chains for heavy industrial machinery requires clear communication and transparent technical documentation.
Sourcing Genuine OEM Equipment
When evaluating options from a Weichai WP10C375-21 supplier, verifying component authenticity is the single most effective way to prevent costly operational downtime. Counterfeit components or gray-market assemblies often lack proper heat treatments and QC tracking.
HekoPower ensures every propulsion unit is shipped with its original factory testing certification and a verifiable serial number stamped directly into the cylinder block. This guarantees that every internal component is genuine Weichai equipment.
Managing Project Timelines and Logistics
For shipyards and fleet operators, project delays equal lost revenue. When requesting a Weichai WP10C375-21 quotation, ensure your supplier clearly defines the production and testing timeline.
The typical Weichai WP10C375-21 lead time varies depending on specific classification society approvals (such as CCS, BV, or ABS). HekoPower minimizes these friction points by handling the complete regulatory and technical certification process prior to port export. This ensures your engine arrives ready for immediate installation.
Weichai WP10 series marine diesel engine, original products from Weichai. This series mainly includes WP10C313-21, WP10C350-18, WP10C375-21, WP10C395-22.
Frequently Asked Questions (FAQ)
What are the complete Weichai WP10C375-21 price and specifications details?
The total investment for a WP10C375-21 depends on your required configuration, gearbox pairings, and classification certifications. Standard specifications include a 275kW power output at 2100rpm, a 6-cylinder inline configuration, a displacement of 9.726L, and full IMO Tier II compliance. Contact HekoPower directly for a precise, duty-free commercial quotation tailored to your region.
How does the fuel system affect the high pressure common rail Weichai WP10 fuel consumption?
The high-pressure common rail system uses electronic mapping to spray fuel into the cylinder at extreme pressures. This creates a fine mist that burns completely, reducing fuel waste. This configuration keeps fuel consumption at or below 191 g/kW·h across most of the engine's operating profile, saving significant fuel compared to older mechanical designs during long voyages.
Can this engine be installed as a 375 HP marine engine for passenger ships and fishing boats without modifying existing engine beds?
In most cases, yes. Because the WP10 utilizes a compact footprint (1482 mm length) and weighs only 1070 kg, it easily drops into spaces previously occupied by older, less efficient 6-cylinder engines. HekoPower provides complete access to the WP10C375-21 technical data sheet and dimensional drawings, allowing your shipyard engineers to verify engine mount configurations before delivery.
What does IMO Tier II compliant Weichai marine engine 375hp mean for international operations?
This compliance means the engine meets international MARPOL standards for low Nitrogen Oxide (NOx) emissions. Operating a certified IMO Tier II engine ensures your vessel avoids regulatory fines and complies with environmental rules when entering international commercial ports and coastal zones.
Where can I find a reliable Weichai WP10C375-21 for sale with full warranty support?
HekoPower provides genuine, factory-fresh Weichai engines complete with international warranty coverage. As an experienced maritime exporter, we manage the entire process from technical validation and documentation to secure international shipping, ensuring your equipment arrives on time and exactly to specification.
