Details

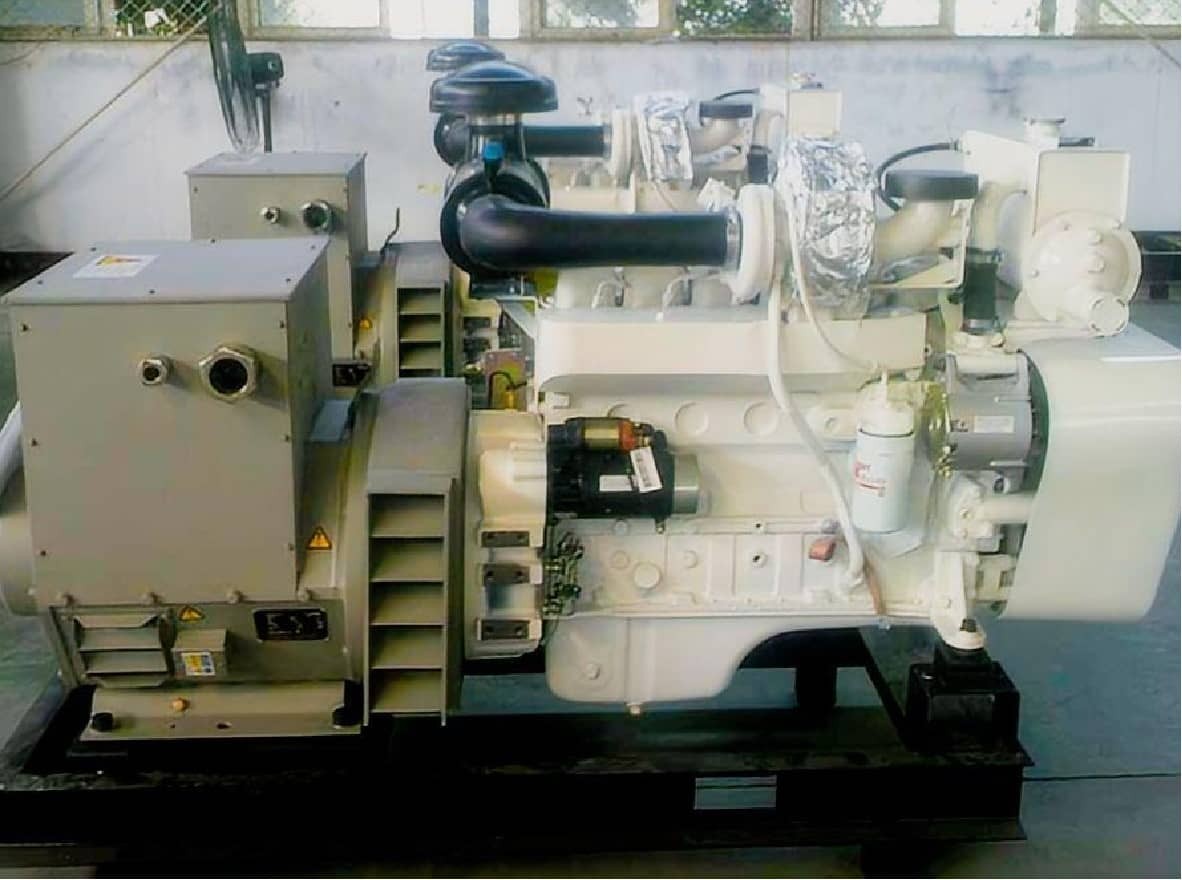

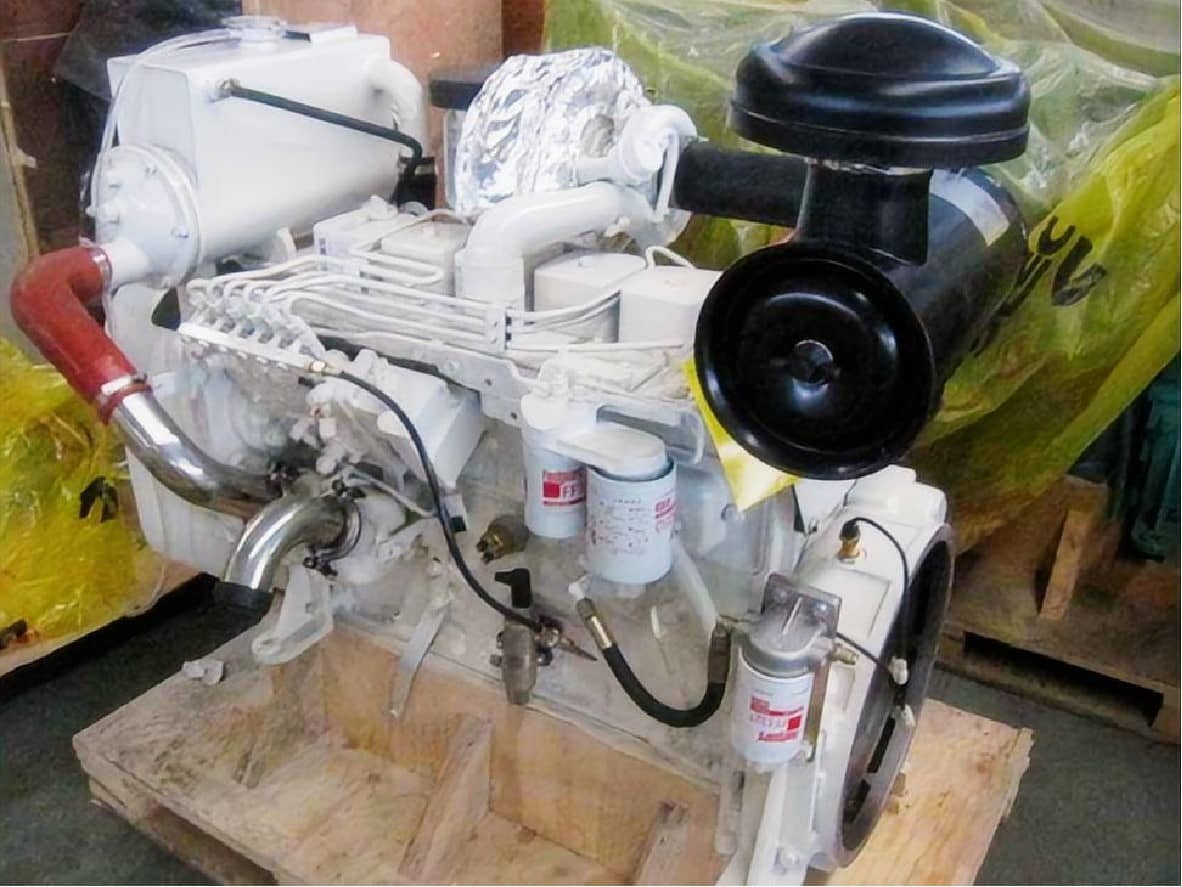

Cummins 6BTA5.9-GM120 Marine Auxiliary Engine
HekoPower supplies the genuine DCEC Cummins 6BTA5.9-GM120 marine auxiliary engine, engineered specifically for reliable shipboard power generation. Operating as a 6-cylinder turbocharged water-air intercooled marine engine, this 5.9L power plant delivers a steady 120 kW (161 HP) at 1800 RPM. Designed under the specific CPL 2976 and engine configuration D403096MX02, it serves as a highly efficient mechanical solution for commercial vessel auxiliary systems. The integration of a precision BYC A pump alongside a highly responsive GAC governor ensures stable frequency control, which is an absolute necessity when matching the prime mover to a marine generator alternator.
When securing a Cummins 6BTA5.9-GM120 engine assembly from our facility, buyers receive a complete marine power pack optimized for heavy-duty maritime environments. The compact physical footprint, measuring 867mm by 544mm by 988mm and weighing 453 kg, allows for straightforward installation and maintenance within confined ship engine rooms. HekoPower guarantees that every 6BTA5.9-GM120 complete marine auxiliary engine we supply meets rigorous original DCEC factory standards, ensuring minimal vibration, superior load-acceptance capabilities, and outstanding durability across thousands of continuous operational hours on the water.
Tech Specs of Cummins 6BTA5.9-GM120
General Engine Data
Engine Model: Cummins 6BTA5.9-GM120
Type: 6 Cylinders in Line
Displacement: 5.9 L
Bore * Stroke: 102 * 120
Net Weight (with flywheel & alternator): 453 Kg
Overall Dimension: 867mm*544mm*988mm
Engine Configuration No.: D403096MX02
Key Performance Data
Rated Power/Standby Power: 120 kW/161HP, 132 kW/177HP
Rated Speed: 1800 rpm
Low Idle Speed: 1000±50 rpm
Fuel Consumption (Running Speed): ≤ 240 g/kW.hr
More Technical Data
Certification: CCS Certificates
Aspiration: Turbocharged and Aftercooled
Fuel System: BYC A Pump/GAC Governor
Compression Ratio: 17.3:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 10.4 L
Ignition Order: 1-5-3-6-2-4
Technical Comparison: 6BTA5.9-GM120 vs. Alternative B-Series Engines
Understanding the specific output parameters of the Cummins B5.9-GM engine family is essential for specifying the correct prime mover for your marine genset. When analyzing the Cummins 5.9L marine auxiliary engine comparison, the most frequent engineering evaluation occurs between the 6BTA5.9-GM120, the 6BTA5.9-GM100, and the lower-rated 6BT5.9-GM83.
The defining difference when comparing the 6BTA5.9-GM120 vs 6BTA5.9-GM100 lies in the thermal management and precise fuel delivery mapping. While both utilize the identical 5.9L displacement and cast-iron inline-6 block, the 120 kW Cummins marine generator engine leverages an advanced turbocharged aftercooled configuration tuned specifically to maintain a 120 kW continuous rating at 1800 RPM. The 100 kW variant operates with less aggressive fueling and lower boost pressures. The 6BTA5.9-GM120 is strictly required when the shipboard electrical demand approaches the 150 kVA range at 60Hz.
Furthermore, contrasting the 6BTA5.9-GM120 vs 6BT5.9-GM83 highlights the evolution of the air intake method. The GM83 model is a purely turbocharged unit without an aftercooler, limiting its maximum air density and consequently capping its mechanical output to 83 kW. By introducing the water-air intercooler in the 6BTA5.9-GM120, DCEC dramatically reduces intake manifold temperatures. This denser air charge allows the BYC A pump to inject higher fuel volumes without exceeding critical exhaust gas temperature limits. This results in a cleaner burn, higher power density, and optimized 6BTA5.9-GM120 fuel consumption at 1800 RPM. Naval architects and shipbuilders looking at a 100 kW vs 120 kW Cummins marine generator engine must account for this vital difference in cooling requirements when designing the vessel's heat exchange loop.
Another technical consideration is the 6BTA5.9-GM120 vs 6BTAA5.9-GM115. While the GM115 utilizes an air-to-air intercooling method typically better suited for land-based generator applications operating at 1500 RPM, the 6BTA5.9-GM120 is purpose-built for marine applications requiring 60Hz power at 1800 RPM utilizing highly efficient sea-water heat exchange cooling.
Real Application Scenarios for Shipboard Power Supply
The Cummins 6BTA5.9-GM120 diesel engine is not designed for main propulsion; it is strictly an auxiliary engine designed to drive alternators. In real-world maritime operations, this engine provides the mechanical rotational force required for the primary electrical grids of commercial vessels, offshore fishing trawlers, harbor tugboats, and inland transport ships.
A primary application scenario is acting as a dedicated shipboard power supply for refrigeration vessels. These specialized ships require uninterrupted 60Hz electrical power to maintain freezing temperatures in the cargo holds. The GAC governor equipped on the 6BTA5.9-GM120 ensures that as massive refrigeration compressors cycle on and off, the engine instantly adjusts fueling to prevent voltage or frequency dips. The robust 120kW 161HP 1800RPM marine auxiliary engine handles these heavy transient loads effortlessly without stalling.
Additionally, this DCEC 6BTA5.9-GM120 marine engine is frequently utilized in parallel generator configurations on larger cargo ships. Two or three identical units are synchronized to handle the variable hotel loads of the vessel depending on the time of day. The engine's compact design makes it an ideal candidate for retrofitting older vessels where engine room deck space is severely restricted. When clients purchase this Cummins marine generator engine for commercial vessels, they are investing in a platform known for its ability to run continuously across entire ocean voyages.
Maintenance, Replacement, and Common Misconceptions
Maintaining the Cummins 6BTA5.9-GM120 engine at peak operational efficiency requires strict adherence to the manufacturer's fluid and filter schedules. For this specific 6BTA5.9-GM120 turbocharged aftercooled engine, maintaining the absolute integrity of both the air intake and cooling systems is paramount.
A severe common misconception regarding the 6BTA5.9-GM120 fuel consumption is that running the engine at very low electrical loads saves fuel and extends the engine's lifespan. In reality, operating this diesel engine consistently below 30% of its rated 120 kW capacity causes a condition known as "wet stacking." Unburned fuel and carbon bypass the piston rings, glazing the cylinder walls and rapidly fouling the exhaust system. Marine engineers must ensure the auxiliary power for commercial vessels is properly sized so the engine operates in its optimal load band of 50% to 80%, ensuring efficient combustion and preventing premature mechanical wear.
When addressing preventative maintenance, the sea-water heat exchanger requires periodic inspection. The 6-cylinder turbocharged water-air intercooled marine engine relies on unrestricted sea-water flow to cool the closed-loop jacket water. Marine growth and scale accumulation in the heat exchanger tubes will restrict this flow, leading to elevated coolant temperatures and reduced power output. It is crucial for maintenance crews to flush the heat exchanger annually and replace the zinc anodes to prevent galvanic corrosion of the internal engine components.
If you are sourcing a 6BTA5.9-GM120 replacement marine engine due to the catastrophic failure of an older unit, pay close attention to the CPL code. Replacing a unit requires matching the CPL 2976 specifications to ensure the existing exhaust routing, fuel lines, and engine mounts align perfectly. An original DCEC 6BTA5.9-GM120 supplier will always verify your exact configuration number, such as D403096MX02, before dispatch to guarantee plug-and-play compatibility in your vessel's engine room.
Discover the Full Cummins B5.9-GM Series
Selecting the precise prime mover for marine auxiliary applications demands a thorough understanding of the electrical load requirements of your specific vessel. While the 6BTA5.9-GM120 stands out as the optimal choice for 120 kW, 1800 RPM, 60Hz continuous operations, vessel designs requiring different power outputs or operating frequencies will find exact matches within the broader Cummins product family. HekoPower provides comprehensive access to this entire spectrum of marine generator engines, ensuring that shipyards and marine engineers never have to compromise on power density, fuel efficiency, or operational reliability.
Cummins B5.9-GM Series, Marine Auxilliary Diesel Engines for commercial and recreational applications, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6BT5.9-GM83, 6BT5.9-GM100, 6BTA5.9-GM100, 6BTAA5.9-GM115, 6BTA5.9-GM120. All engines complete with sea water pump, heat exchanger, CCS/IMO certificates.
Frequently Asked Questions (FAQs)
What is the Cummins 6BTA5.9-GM120 engine price and standard delivery time?
The 6BTA5.9-GM120 marine engine quotation varies depending on whether you require a bare engine, a complete power pack with radiator and base frame, or additional classification society certificates. Because HekoPower operates as a direct 6BTA5.9-GM120 wholesale supplier in China, our pricing remains highly competitive. The standard 6BTA5.9-GM120 engine delivery time ranges from 7 to 15 business days for standard factory configurations.
Where to buy genuine Cummins 6BTA5.9-GM120 components and complete assemblies?
HekoPower is a trusted Cummins 6BTA5.9-GM120 supplier in China and a dedicated exporter of marine power solutions. We provide the genuine 6BTA5.9-GM120 complete marine auxiliary engine, fully assembled and factory load-tested. We strictly reject counterfeit or rebuilt engine blocks marketed as new, ensuring our clients receive 100% original DCEC equipment.
Can this 120 kW marine auxiliary diesel engine operate continuously at 1500 RPM?
While the mechanical engine block can physically rotate at lower speeds, the 6BTA5.9-GM120 is optimized, calibrated, and governed by the BYC A pump specifically for 120 kW at 1800 RPM to produce 60Hz power. Attempting to run this specific model at 1500 RPM will result in a drastically different power curve and altered fuel consumption rates. If your vessel requires 50Hz power, you must select the appropriate 1500 RPM variant within the Cummins B-series family.
How does the fuel consumption of the 6BTA5.9-GM120 compare to modern electronic engines?
The Cummins 6BTA5.9-GM120 technical specifications and fuel consumption data demonstrate that it remains highly competitive in marine applications. Because it utilizes a mechanical fuel system governed electronically, it avoids the extreme complexities of high-pressure common rail systems. This results in fuel consumption rates that are perfectly acceptable for commercial operations, coupled with the immense benefit of field serviceability. A marine mechanic can easily service the BYC pump while at sea, whereas fully electronic injectors often require specialized diagnostic software unavailable in remote commercial ports.
