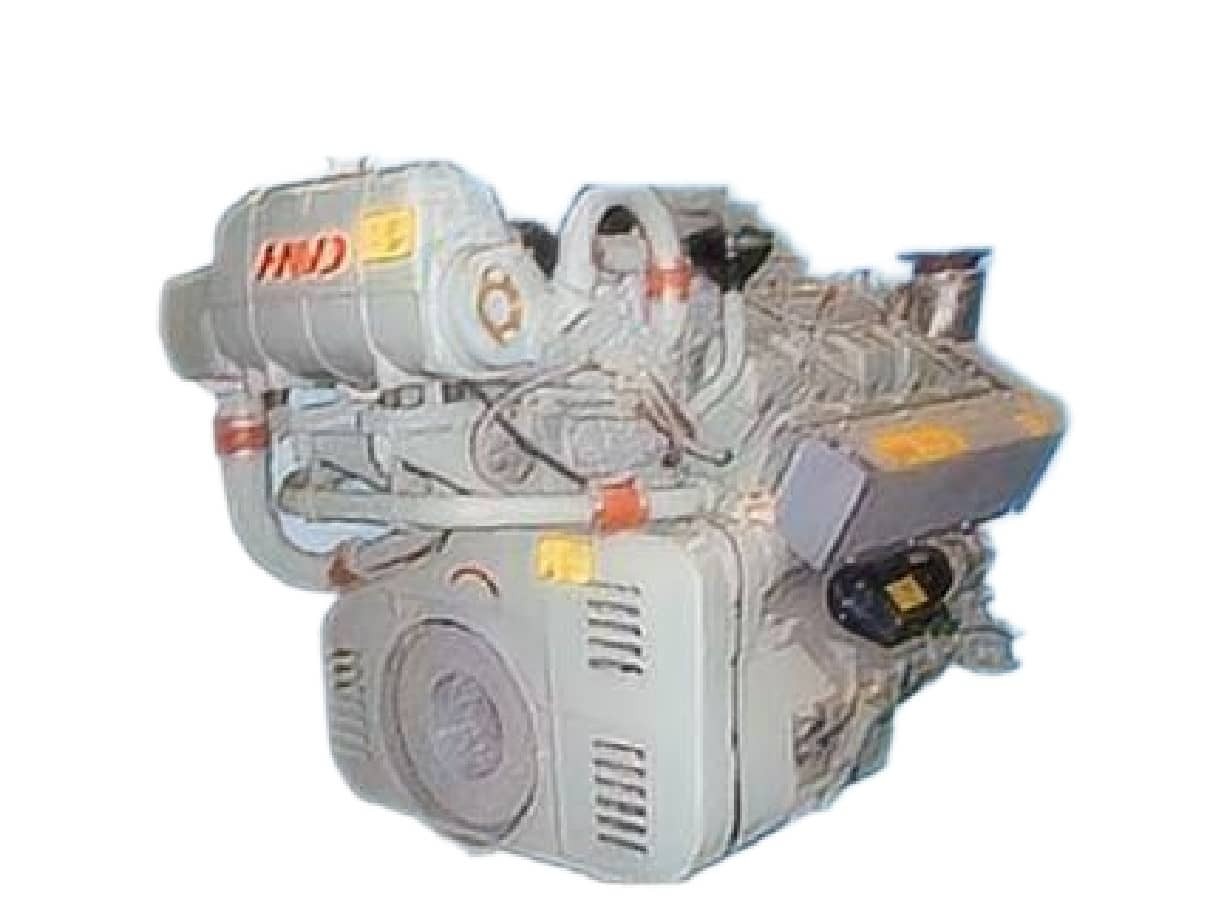

Deutz TBD604BL6 860HP Marine Propulsion Engine
When marine operators require sustained heavy-duty thrust and unwavering reliability, the Deutz TBD604BL6 marine engine delivers exactly what is needed. Manufactured by the original Henan Diesel Engine Plant (HND) under Deutz license, this specific 860HP configuration is engineered to handle the relentless demands of the commercial maritime sector. As a dedicated engine supplier, HekoPower provides this robust 637kW marine propulsion engine to shipyards, fleet operators, and marine engineers who refuse to compromise on operational uptime.
Operating at a steady 1800 RPM, the Deutz 860HP diesel engine provides a continuous, stable power curve. It is a 6-cylinder, 26.58L diesel engine that utilizes a turbocharged intercooled setup to maximize air intake density and combustion efficiency. Whether you are sourcing a new unit for a ship building project or seeking a reliable Deutz TBD604BL6 860HP replacement engine for vessel repowering, this platform offers a proven balance of mechanical durability and modern efficiency.
Tech Specs of Deutz TBD604BL6
General Engine Data
Engine Model: Deutz TBD604BL6-860HP
Type: 6 Cylinders in Line, 4 Stroke
Displacement: 26.58 L
Bore * Stroke: 170 * 195
Wet Weight (with heat exchanger): 2550 Kg
Overall Dimension: 2242mm*1143mm*1953mm
Key Performance Data
Rated Power: 637 kW/860 HP
Rated Speed: 1800 rpm
Lubricant Oil Consumption: ≤1.4 g/kW.h
Low Idle Speed: 600 rpm
Fuel Consumption: 205 g/kW.hr
More Technical Data
Certification: CCS/IMO Certificates
Aspiration: Turbocharged and Intercooled
Fuel System: EUP
Compression Ratio: 14:1
Starting Method: Electrical Start (12V/24V)
Cooling Method: Water Cooled
Governor Type: Electronic/Mechanical
Real Application Scenarios for the 860HP Marine Diesel Engine
The marine industry is diverse, but the physical demands placed on a heavy-duty 637kW marine main engine remain universally strict. The TBD604BL6 860HP marine propulsion engine is not designed for light recreational use. Instead, it is purpose-built for the rigors of commercial workboats that require high torque at low speeds.
One of the most common applications is utilizing the TBD604BL6 860HP engine for tug boats. Harbor tugs and inland push boats rely on absolute torque to maneuver vessels that weigh exponentially more than themselves. The 26.58L displacement of this six cylinder marine engine ensures that when the captain pushes the throttle, the engine responds with immediate, heavy thrust without stalling or suffering from thermal overload.
Similarly, utilizing the TBD604BL6 860HP engine for cargo vessels is a standard practice across global inland waterways. Cargo ships require engines that can run continuously for days or weeks at a time under heavy load. The robust 170x195 marine engine block design ensures that thermal stress is distributed evenly, minimizing wear on the cylinder liners and piston rings during long-haul voyages. Furthermore, fleet operators frequently select this 637kW marine engine for passenger vessels and commercial ferries, where adherence to strict maritime safety and operational schedules is mandatory.
Technical Comparisons and Engineering Edge
A common challenge for marine architects is selecting the right engine footprint without sacrificing power. Compared to bulkier V8 marine engines in a similar power class, the inline-6 design of the Deutz TBD604BL6 marine propulsion diesel engine offers distinct advantages. The inline configuration provides exceptional accessibility within cramped engine rooms. Marine engineers can easily reach the fuel injectors, valve covers, and cooling lines, which drastically reduces maintenance downtime.
When evaluating the TBD604BL6 637kW 1800rpm engine against higher-revving alternatives, the advantages of a lower RPM become clear. Engines that produce 637kW at 2200 RPM or higher often experience faster wear on their internal components due to higher piston speeds. By delivering its peak 860 horsepower at a conservative 1800 RPM, this Deutz model significantly extends the lifecycle of its crankshaft bearings and valvetrain.
Additionally, the integration of the TBD604BL6 EUP fuel system (Electronic Unit Pump) represents a significant upgrade over traditional purely mechanical injection. The EUP system provides precise control over fuel timing and atomization. This results in optimal TBD604BL6 1800 rpm fuel consumption rates, allowing commercial vessels to extend their operational range while minimizing fuel overheads. Paired with its turbocharged intercooled engine architecture, it maintains excellent combustion efficiency even in higher ambient temperatures found in tropical maritime routes.
Common Misconceptions About the TBD604BL6 Series
There are several misunderstandings regarding large-displacement marine propulsion engines. A primary misconception is that a 26.58L engine will inherently suffer from poor fuel economy regardless of how it is operated. In reality, the TBD604BL6 637kW fuel consumption is highly optimized. Because the engine produces massive torque at lower engine speeds, operators rarely need to push it to maximum throttle to achieve their desired cruising speed. Operating the engine at an optimal 75 to 80 percent load yields excellent fuel efficiency compared to smaller engines struggling at 100 percent load to do the same job.
Another frequent misconception involves maritime compliance. Some buyers assume that older engine block designs cannot meet modern maritime standards. However, the modern HND TBD604BL6 860HP is fully updated. HekoPower supplies the TBD604BL6 860HP CCS marine engine, ensuring it meets the strict safety and construction standards required by the China Classification Society. Furthermore, it operates as a TBD604BL6 IMO compliant marine engine, adhering to international maritime emission standards, making it perfectly legal and safe for international shipping routes.
Maintenance Guidelines and Replacement Solutions
Prolonging the life of a heavy-duty marine engine requires strict adherence to maintenance schedules. For the TBD604BL6 six cylinder marine engine, operators must pay close attention to the turbocharged intercooled system. The marine environment is highly corrosive, and salt-laden air can quickly degrade intercooler fins if they are not routinely inspected and cleaned. Regular checks of the EUP fuel system calibration will also ensure the engine continues to operate without vibration or excessive exhaust smoke.
When major overhauls become too costly, sourcing a replacement for the TBD604BL6 marine engine becomes necessary. HekoPower operates as a premier TBD604BL6 replacement engine supplier. We understand that vessel downtime equates to lost revenue. When ship owners need a TBD604BL6 engine replacement for a workboat, we provide fast, reliable access to complete engine assemblies. By purchasing directly from an authorized source, fleet managers secure an authentic HND Deutz TBD604BL6 860HP price, avoiding the inflated markups often found through third-party brokers. We offer transparent TBD604BL6 marine engine quotations to help marine businesses budget for their vessel repowering projects accurately.
Exploring the Deutz HND TBD604 Marine Propulsion Series
Because marine applications vary drastically in their power requirements, standardizing a single power output is impossible for every vessel. While the 860HP model provides exceptional heavy-duty capability, some hull designs and operational profiles require different power configurations. To accommodate these varying maritime engineering requirements, the manufacturer has developed a comprehensive lineup based on the same proven engine block.
Deutz TBD604-Marine Propulsion Series, Marine Propulsion Diesel Engines for commercial and recreational applications, original products from Henan Diesel Engine Plant (HND). This series mainly includes TBD604BL6-720HP, TBD604BL6-730HP, TBD604BL6-860HP.
Frequently Asked Questions
What is the lead time when ordering a Deutz TBD604BL6 860HP marine engine from HekoPower?
As a dedicated marine propulsion engine supplier, HekoPower typically fulfills orders for this specific model within 15 to 30 business days. However, lead times can occasionally vary based on current factory inventory and specific classification society testing requirements.
Does the 637kW marine propulsion engine come with classification society certificates?
Yes. Upon request, we provide the TBD604BL6 marine propulsion CCS certification. The engine is also an IMO marine engine, meaning it meets the necessary international emissions and safety parameters required for commercial maritime operations.
Is it difficult to find spare parts for the HND TBD604BL6 series?
Not at all. Because HND is the original Deutz marine engine manufacturer in China for this series, genuine OEM parts are widely available. HekoPower supplies a full range of components, from replacement EUP fuel injectors to complete cylinder head assemblies, ensuring your engine remains operational for decades.
Can I get a wholesale Deutz TBD604BL6 marine engine quotation for a multi-vessel project?
Absolutely. We work closely with shipyards and fleet operators undertaking large-scale builds or vessel repowering projects. Contact our sales team to discuss your project scope, and we will provide a customized TBD604BL6 860HP wholesale price based on your volume requirements.
