Details

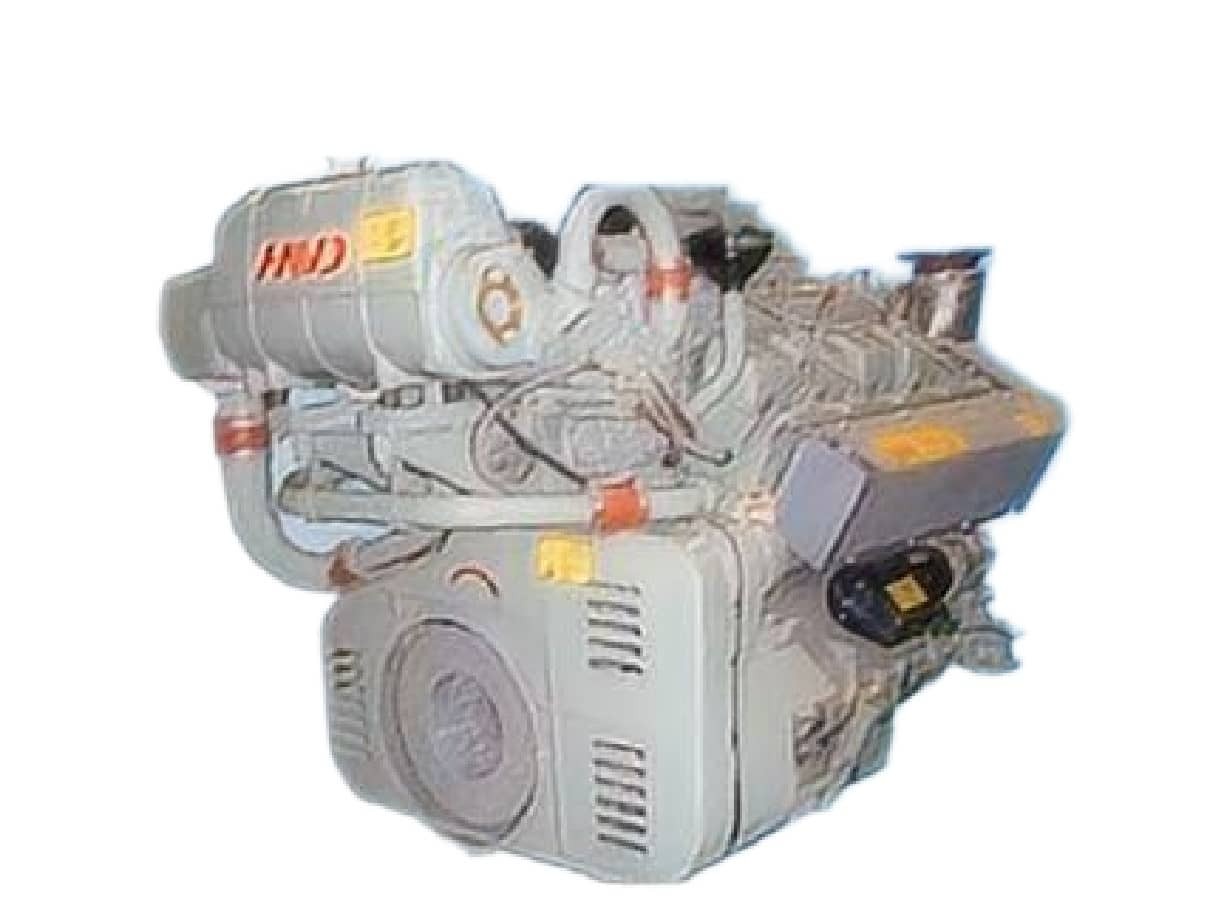

Deutz TBD604BL6 730HP Marine Propulsion Engine
The Deutz TBD604BL6 marine propulsion engine is engineered to deliver relentless continuous power for heavy-displacement commercial vessels. Outputting 730HP (540kW) at 1650 RPM, this turbocharged intercooled marine diesel engine is a cornerstone of reliability. Manufactured by the Henan Diesel Engine Plant, the genuine Henan Diesel (HND) TBD604 series propulsion power block is trusted worldwide. As an authorized China TBD604BL6 engine supplier, HekoPower delivers this powerhouse directly to shipyards and fleet operators. We understand that selecting the right prime mover is critical for operational profitability. This unit offers a robust 26.58L displacement across six cylinders, providing the sheer torque required to move substantial tonnage through rough waters.
Tech Specs of Deutz TBD604BL6
General Engine Data
Engine Model: Deutz TBD604BL6-730HP
Type: 6 Cylinders in Line, 4 Stroke
Displacement: 26.58 L
Bore * Stroke: 170 * 195
Wet Weight (with heat exchanger): 2550 Kg
Overall Dimension: 2242mm*1143mm*1953mm
Key Performance Data
Rated Power: 540 kW/730 HP
Rated Speed: 1650 rpm
Lubricant Oil Consumption: ≤1.4 g/kW.h
Low Idle Speed: 600 rpm
Fuel Consumption: 205 g/kW.hr
More Technical Data
Certification: CCS/IMO Certificates
Aspiration: Turbocharged and Intercooled
Fuel System: EUP
Compression Ratio: 14:1
Starting Method: Electrical Start (12V/24V)
Cooling Method: Water Cooled
Governor Type: Electronic/Mechanical
Unpacking the TBD604BL6 540kW 1650 RPM Engine
Vessel operators often encounter homogenization when researching engine specifications online. Most suppliers simply copy the manufacturer's basic data sheet. At HekoPower, we know that successful integration requires understanding the engineering nuances behind the numbers.
1500 RPM vs 1650 RPM Marine Diesel Engine Dynamics
A frequent point of confusion is the difference between a 1500 RPM and a 1650 RPM setup within the exact same engine block. You cannot simply take an auxiliary generator engine and use it for primary propulsion. A 1500 RPM marine diesel engine is strictly calibrated for constant-speed operation to maintain a 50Hz electrical frequency. Its governor and fuel delivery map are designed for immediate load acceptance in a stationary state.
Conversely, the Deutz TBD604BL6 1650 RPM diesel engine is specifically mapped for variable loads. When pushing a heavy hull, the engine faces dynamic resistance from water currents and wind. The 1650 RPM calibration allows the engine to develop maximum torque smoothly across a broader operating band. Using a 1500 RPM generator-spec engine for propulsion will result in severe thermal overload and premature cylinder wear. Our TBD604BL6 540kW marine engine is purpose-built with the correct propulsion governor, ensuring the block manages thermal stress efficiently during continuous operation.
Clarifying the TBD604BL6 730HP vs 720HP Output
When sourcing a Deutz TBD604BL6 replacement engine, procurement managers often ask about the discrepancy between 730HP and 720HP ratings found in various manuals. Functionally, there is no physical difference in the engine block or the fuel system. The 730HP metric represents the absolute continuous output under standard ISO reference conditions. The 720HP figure frequently appears when the engine is slightly derated to comply with specific classification society requirements or to account for elevated engine room ambient temperatures in tropical climates. As your TBD604BL6 marine engine supplier, we ensure the unit is configured and certified for the exact thermal environment of your vessel.
Real-World Marine Propulsion Applications
Theoretical horsepower means nothing if the engine cannot transfer that energy to the propeller effectively. The Deutz MWM TBD604BL6 engine is highly versatile, but it excels in specific commercial applications where low-end torque is non-negotiable.
Continuous 730HP Marine Propulsion Engine for Tugboats and Cargo Ships
Tugboats operate under extreme variable loads. One moment they are idling, and the next they require maximum bollard pull. A 730HP marine propulsion engine for a tug boat must offer rapid throttle response without stalling. The high-capacity turbocharger on the TBD604BL6 ensures immediate air delivery during these rapid load changes, preventing heavy black smoke and maintaining RPM.
For cargo vessels, the priority shifts to sustained efficiency. A 540kW marine diesel engine for a cargo vessel runs for days or weeks at a steady cruising speed. The robust cast-iron block and specialized cooling channels in this six cylinder diesel engine for marine repowering prevent localized overheating during these long-haul voyages. It also serves as an excellent marine propulsion engine for passenger boats, where vibration must be kept to an absolute minimum to ensure a comfortable ride.
TBD604BL6 Gearbox Matching
To harness 730HP effectively, TBD604BL6 gearbox matching is critical. This engine pairs exceptionally well with heavy-duty marine transmissions, such as those from Advance Gearbox. The standard SAE bell housing allows for seamless integration. Selecting the correct reduction ratio depends entirely on your propeller diameter and hull design. Our technical team works with you to ensure the rotational force is perfectly translated to thrust, optimizing your TBD604BL6 marine propulsion application.
TBD604BL6 Repowering Solution and Replacement Guide
Replacing an aging power plant is a major capital expenditure. As a specialized TBD604BL6 engine replacement supplier, HekoPower simplifies this process.
Marine Engine Replacement for Fishing Vessels
Fishing vessels require compact yet powerful prime movers. The TBD604BL6 engine dimensions and weight make it an ideal drop-in replacement engine for Deutz TBD604BL6 units that have reached the end of their lifecycle. When you need to replace an old TBD604 marine propulsion engine, utilizing the same footprint drastically reduces shipyard modification costs. You avoid cutting engine beds or altering the exhaust routing.
Our HND TBD604BL6 replacement marine engine arrives fully dressed and ready for installation. Whether you are upgrading from an older MWM generation or seeking a reliable 730HP diesel engine for a fishing boat, this TBD604BL6 repowering solution minimizes downtime. We supply the complete package, ensuring your vessel returns to revenue-generating operations as quickly as possible.
Routine Overhaul and Maintenance
Maintaining a Deutz MWM TBD604BL6 26.58L marine engine requires adherence to strict service intervals. TBD604BL6 overhaul and maintenance should never be left to guesswork. The intercooling system must be inspected regularly to prevent salt buildup, which restricts airflow and drastically impacts the Deutz TBD604BL6 1650 RPM fuel consumption. Clean intake air is directly correlated to lower exhaust gas temperatures and extended valve life.
Common Misconceptions About TBD604BL6 Maintenance
A major misconception is that any heavy-duty diesel oil will work in this engine. The TBD604BL6 requires specific marine-grade lubricants designed to neutralize the acidic byproducts of marine diesel fuel. Using standard truck oil will lead to accelerated bearing wear. Additionally, operators often neglect the vibration damper on the front of the crankshaft during major overhauls. This component degrades over thousands of hours. Failing to replace it during a Deutz TBD604BL6 propulsion engine overhaul can lead to catastrophic crankshaft failure, regardless of how well the rest of the engine was rebuilt.
Integrating with the Broader HND TBD604 Series
As a dedicated HND marine propulsion engine distributor, we understand that every hull has unique requirements. While the 730HP configuration is ideal for many heavy displacement vessels, your fleet might require different power nodes for smaller workboats or larger ferries. HekoPower provides comprehensive access to the entire HND Deutz portfolio. We ensure that whether you are standardizing your fleet or outfitting a single vessel, you have the exact power solution required.
Deutz TBD604-Marine Propulsion Series, Marine Propulsion Diesel Engines for commercial and recreational applications, original products from Henan Diesel Engine Plant (HND). This series mainly includes TBD604BL6-720HP, TBD604BL6-730HP, TBD604BL6-860HP.
Frequently Asked Questions About the Deutz TBD604BL6
How to select a TBD604BL6 marine engine for my project?
Selecting the right engine involves calculating your hull's displacement, desired cruising speed, and available engine room space. You must also determine if you need a continuous duty rating for long voyages or an intermittent rating for lighter commercial work. HekoPower assists with these calculations to ensure the 730HP model is the correct fit for your operational profile.
What is the standard TBD604BL6 marine engine fuel consumption?
Fuel consumption is highly dependent on hull resistance and load profile. However, this turbocharged intercooled marine diesel engine is renowned for its specific fuel consumption efficiency at its 1650 RPM sweet spot. For exact consumption curves mapped against your intended propeller load, our engineering team can provide detailed technical data sheets upon request.
Are you a direct HND TBD604BL6 engine supplier?
Yes. HekoPower supplies genuine engines manufactured by the Henan Diesel Engine Plant under Deutz license. When you purchase a Deutz TBD604BL6 730HP 540kW 1650rpm marine engine from us, you receive a factory-fresh unit with full documentation, ensuring authenticity and reliability for your commercial operations.
