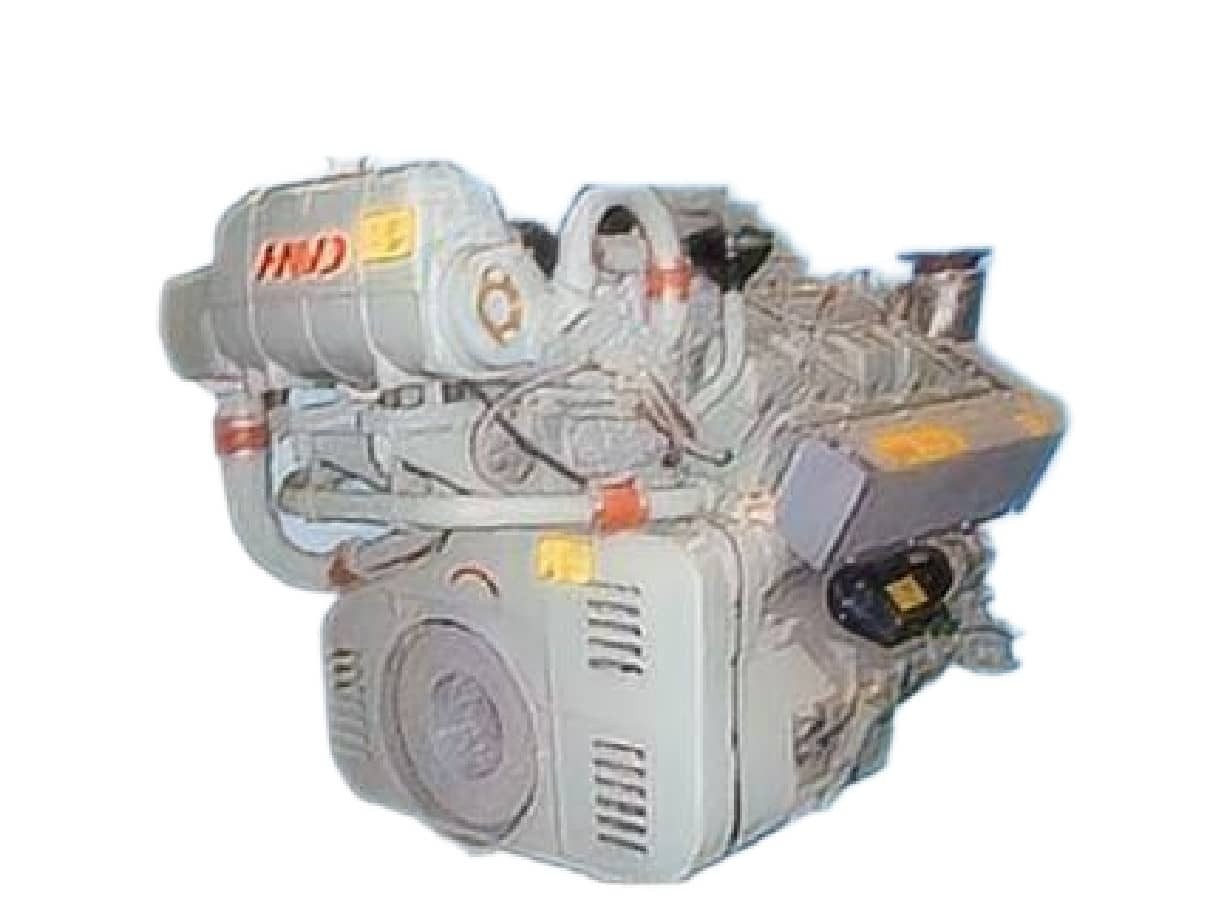

HND Deutz TBD604BL6 720HP Marine Propulsion and Industrial Engine
The HND Deutz TBD604BL6 stands as a benchmark in heavy-duty diesel power, specifically engineered to deliver unrelenting performance in the most demanding maritime and industrial environments. Rated at a continuous 720HP (530kW) at an optimal 1500 RPM, this complete engine assembly provides the exact balance of high-torque output and long-term durability required by commercial operators. As a dedicated engine supplier, HekoPower provides this 26.58L diesel engine to clients who cannot afford downtime. Whether you are repowering a commercial workboat or integrating a prime diesel generator engine for a remote construction site, the TBD604BL6 is built to sustain massive operational loads day after day. Its robust six-cylinder inline architecture offers a streamlined footprint without compromising the raw mechanical force necessary for heavy haulage and marine propulsion.
Tech Specs of Deutz TBD604BL6 720HP
General Engine Data
Engine Model: Deutz TBD604BL6-720HP
Type: 6 Cylinders in Line, 4 Stroke
Displacement: 26.58 L
Bore * Stroke: 170 * 195
Wet Weight (with heat exchanger): 2550 Kg
Overall Dimension: 2242mm*1143mm*1953mm
Key Performance Data
Rated Power: 530 kW/720 HP
Rated Speed: 1500 rpm
Lubricant Oil Consumption: ≤1.4 g/kW.h
Low Idle Speed: 600 rpm
Fuel Consumption: 205 g/kW.hr
More Technical Data
Certification: CCS/IMO Certificates
Aspiration: Turbocharged and Intercooled
Fuel System: EUP
Compression Ratio: 14:1
Starting Method: Electrical Start (12V/24V)
Cooling Method: Water Cooled
Governor Type: Electronic/Mechanical
Real-World Application Scenarios for the 720HP Power Unit
Commercial Marine Propulsion Systems
In the maritime sector, the TBD604BL6 is widely respected as a primary marine propulsion engine for commercial vessels. Tugboats and workboats require immense, immediate torque for towing heavy barges against strong river currents or coastal tides. The turbocharged intercooled setup, combined with a dedicated marine heat exchanger cooling system, ensures the engine maintains optimal operating temperatures even when pinned at maximum continuous throttle during extended towing operations.
Fishing vessels and coastal cargo ships also benefit heavily from this model. The inline configuration allows for easier access to critical maintenance points within cramped engine rooms compared to wider V-block engines. Because it is a continuous-duty rated engine, captains can rely on steady transit speeds across long distances without the risk of thermal overloading.
Heavy-Duty Industrial and Generator Drive Applications
Beyond the water, the TBD604BL6 is an exceptional prime diesel generator engine. Because 1500 RPM perfectly synchronizes with 50Hz alternator requirements, it is the ideal prime mover for continuous power generation. Mining operations, large-scale construction sites, and remote industrial facilities utilize this engine as a radiator-cooled industrial power pack to keep critical infrastructure running. Additionally, its high torque threshold makes it suitable for integration into specialized heavy haulage vehicles and massive construction equipment requiring a reliable 530kW power source.
Dispelling Common Misconceptions About the TBD604 Series
Purchasing managers often encounter conflicting information when sourcing large displacement engines. A prominent misconception is that the engine's 2550 kg dry weight is a detriment to vessel speed or payload capacity. In reality, in the realm of 720HP continuous-duty engines, this mass is a direct indicator of structural integrity. The thick-walled cast-iron cylinder block and oversized crankshaft journals are precisely what allow the engine to absorb immense rotational forces without failing. Lighter engines in this power class simply cannot match the lifespan of the TBD604BL6 under continuous commercial strain.
Another point of confusion revolves around the legacy of the Deutz-MWM brand. Buyers sometimes assume that because the TBD604 series has a long operational history, the current models feature outdated technology. This is entirely incorrect. Today's original HND Deutz TBD604BL6 incorporates modernized metallurgy, superior turbocharger efficiency, and the highly advanced EUP fuel system. It retains the legendary, indestructible block design of the past while delivering modern fuel economy and emission compliance.
Expert Maintenance and Replacement Engine Tips
Maximizing the lifespan of a 26.58L diesel engine requires strict adherence to operating protocols. For turbocharged intercooled engines, one of the most critical practices is allowing for proper thermal stabilization. Operators must allow the engine to idle for several minutes before shutdown; this ensures the oil circulating through the turbocharger bearings has time to cool, preventing oil coking and premature bearing failure.
In marine environments, the heat exchanger cooling system demands regular vigilance. Raw water systems are prone to scaling and marine growth. Routine descaling of the heat exchanger tubes is mandatory to prevent cooling flow restrictions that lead to catastrophic overheating under load. Furthermore, because the EUP fuel system operates under immense pressure, utilizing OEM-specified fuel filters and maintaining a rigorous replacement schedule is non-negotiable to prevent injector scoring.
When facing the end of an engine's lifecycle, operators must weigh the costs of an in-frame overhaul against purchasing a complete replacement engine. Attempting to rebuild a heavily worn block using piecemeal marine engine parts often results in extended downtime and hidden machining costs. In many cases, sourcing a brand-new, factory-tested complete engine assembly from HekoPower is a more economically sound decision. It guarantees immediate return to service with zero compromises to the continuous 530kW power rating.
The TBD604 Engine Series Family
While the inline-6 configuration provides the perfect power solution for a vast array of mid-sized commercial vessels and generators, we recognize that fleet operators often require a broader spectrum of power outputs based on the exact same reliable engineering platform. Standardizing your power units across a single engine family dramatically simplifies maintenance training and reduces the need to stock disparate spare parts.
Deutz TBD604-Marine Propulsion Series, Marine Propulsion Diesel Engines for commercial and recreational applications, original products from Henan Diesel Engine Plant (HND). This series mainly includes TBD604BL6-720HP, TBD604BL6-730HP, TBD604BL6-860HP.
Frequently Asked Questions (FAQ)
Where is the best place to buy an HND TBD604BL6 720HP marine engine?
As a dedicated diesel engine supplier, HekoPower provides original, factory-direct HND Deutz complete engine assemblies. We handle procurement for domestic and international clients, ensuring you receive authentic power units tailored for marine propulsion or industrial genset use.
How does the EUP fuel system impact overall fuel consumption?
The Electronic Unit Pump system provides highly precise fuel metering compared to legacy mechanical injection. This results in an optimized fuel consumption rate of just 205 g/kWh, vastly reducing long-term operating costs for continuous-duty commercial vessels and prime power generators.
What are the primary differences between the marine and industrial versions?
While the core 26.58L block remains identical, the marine propulsion engine utilizes a specialized marine heat exchanger and water-cooled exhaust manifold to manage ambient engine room temperatures safely. The industrial and genset drive versions typically utilize heavy-duty radiator cooling systems suited for open-air or well-ventilated generator canopies.
Does this engine meet modern maritime compliance standards?
Yes, the modern TBD604BL6 marine propulsion engine is certified to meet CCS IMO Tier II emission standards. This ensures that your workboat, tugboat, or cargo vessel remains compliant with current international maritime environmental regulations.
Is it better to buy spare parts or a complete replacement engine?
If the engine block has suffered severe thermal stress or internal component failure, replacing the complete engine assembly is often more cost-effective and reliable than a major overhaul. HekoPower supplies both authentic spare parts for routine maintenance and complete replacement engines for major vessel repowering projects.
