HC12V823/18D
Original Deutz licence plant, new machines at absolute wholesale prices.
HekoPower Group is the reliable choice.
Our partner Deutz, With 160 years of heritage, is one of the world’s leading manufacturers of innovative drive systems. Hebei Huabei Diesel Engine Company("Huachai"), Huachai Deutz Engine Plant is Deutz License Plant in China, which has successively introduced the technology of Deutz AG since 1979, including the B/FL413/513, BFM1015, TCD2015, TCD12.0/16.0, HC4132, HC6132 series.

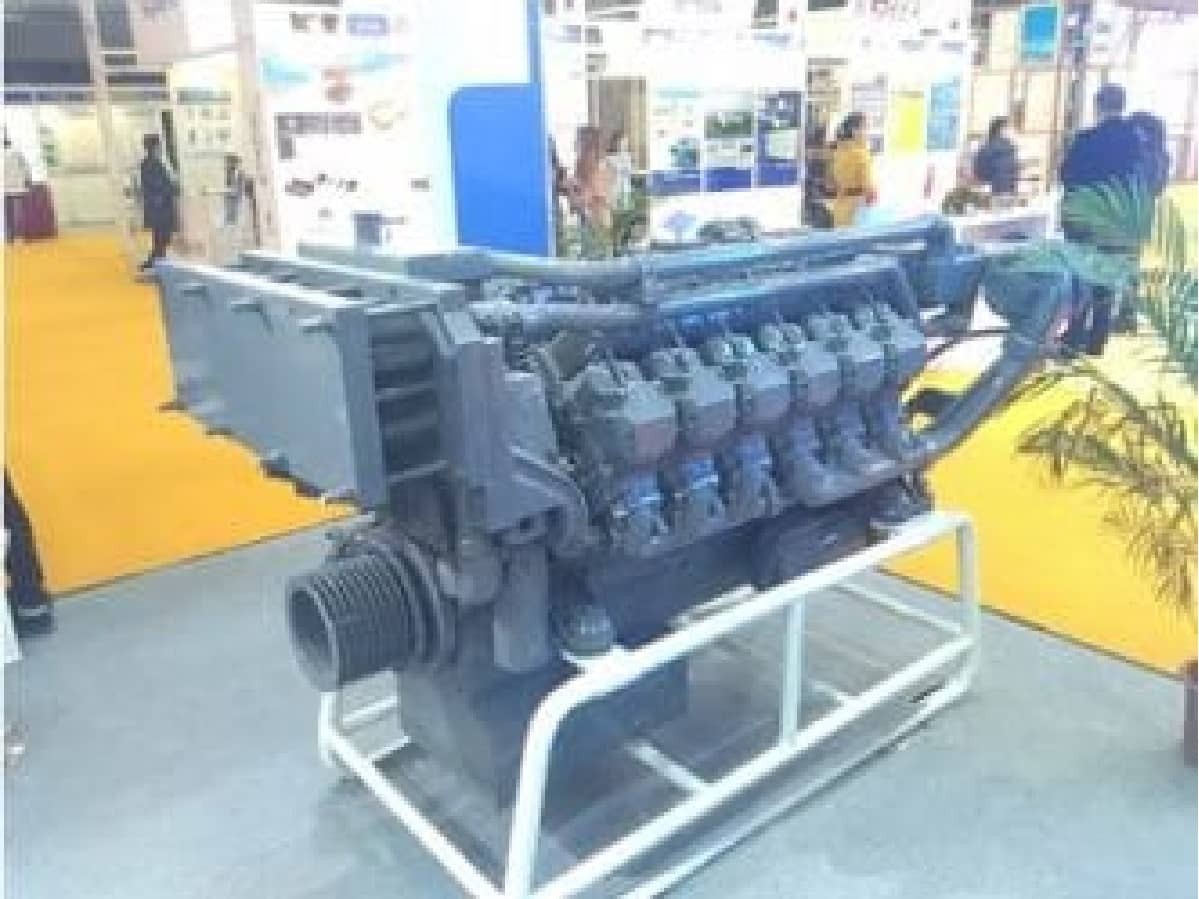

The Deutz HC12V823/18D is a 12-cylinder, V-type, 4-stroke marine engine with a displacement of 23.812 L, featuring a bore and stroke of 132 mm and 145 mm, respectively. It delivers a rated power of 550 kW (748 HP) at 1800 rpm, with a low idle speed of 550 rpm. The engine is turbocharged and intercooler-equipped, with a fuel consumption rate of ≥195 g/kWh at running speed. It has a compression ratio of 16.5:1 and uses an EUP fuel system. Certified with ZY, CCS, and IMO certificates, it features an electronic/mechanical governor and an electrical start system (28.5V/55A). The engine is cooled using a heat exchanger and water-air intercooler, with a lubricant capacity of around 70 L and a flywheel size of 14" (SAE1). It operates continuously, with a net weight of 2000 kg and dimensions of 1763 mm * 920 mm * 1174 mm.
Technical Specifications
General Engine Data
Engine Model: Deutz HC12V823/18D
Type: 12 Cylinders, V type, 4 stroke
Displacement: 23.812 L
Bore * Stroke: 132 * 145
Net Weight (with flywheel and alternator): 2000 Kg
Overall Dimension: 1763mm*920mm*1174mm
Key Performance Date
Rated Power: 550 kW/748 HP
Rated Speed: 1800 rpm
Low Idle Speed: 550 rpm
Fuel Consumption (Running Speed): ≥ 195 g/kW.h
More Technical Data
Certification: ZY/CCS/IMO Certificates
Aspiration: Turbocharged and Intercooled
Fuel System: EUP
Compression Ratio: 16.5:1
Starting Method: Electrical Start (28.5V/55A)
Cooling Method: Heatexchanger and Water-air Intercooler
Governor Type: Electronic/Mechanical
Lubricant Capacity: Around 70 L
Flywheel Size/ Housing: 14", SAE1
Running Type: Continuous
Deutz HC12V/D-Marine Auxiliary Series
Deutz HC12V/D-Marine Auxiliary Series, Marine Auxiliary Diesel Engines for commercial and recreational applications, original products from Huachai Deutz Engine Plant. This series mainly includes HC12V748/15D, HC12V823/15D, HC12V898/15D, HC12V748/18D, HC12V823/18D, HC12V898/18D, HC12V979/18D.
