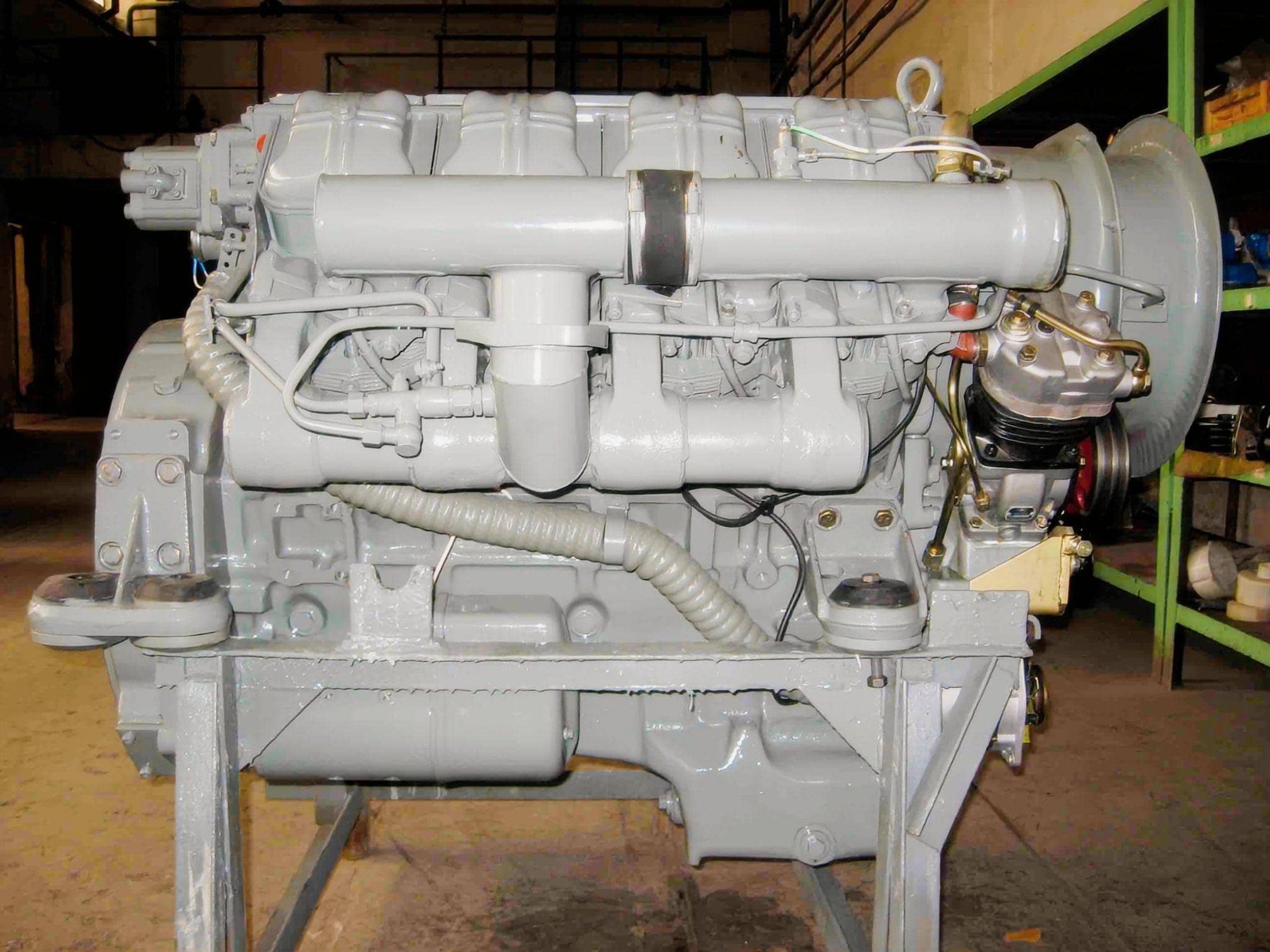

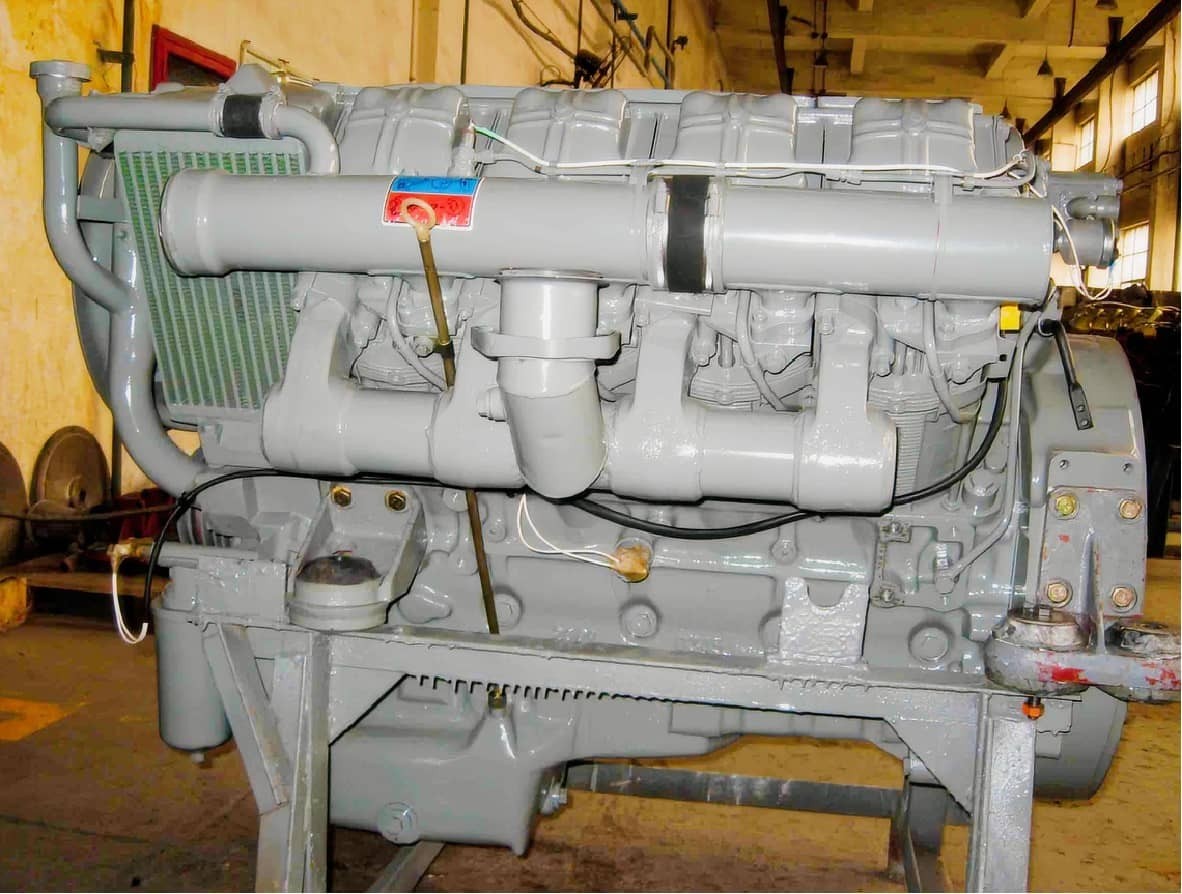

F10L513F-Vehicle Diesel Engine
Original Deutz licence plant, new machines at absolute wholesale prices.
HekoPower Group is the reliable choice.
Our partner Deutz, With 160 years of heritage, is one of the world’s leading manufacturers of innovative drive systems. Hebei Huabei Diesel Engine Company("Huachai"), Huachai Deutz Engine Plant is Deutz License Plant in China, which has successively introduced the technology of Deutz AG since 1979, including the B/FL413/513, BFM1015, TCD2015, TCD12.0/16.0, HC4132, HC6132 series.
F10L513F-Vehicle Diesel Engine could be widely used on Truck, Bus, Coach, Van, Commercial vehicles, Motor power pack.
Technical Specifications
General Engine Data
Engine Model: Deutz F10L513F-Vehicle Diesel Engine
Type: 10 Cylinders, V Type
Displacement: 19.953 L
Bore * Stroke: 125 * 130
Net Weight (with flywheel and alternator): 1140 Kg
Overall Dimension: 1472mm*1138mm*1067mm
Key Performance Date
Continue Power As Per ISO3046: 172 kW/1500 rpm, 250 kW/2300 rpm
Intermittent Power As Per ISO3046/1: 263 kW/2500 rpm
Highly Intermittent: 278 kW/2500 rpm
Max. Torque/Rated Speed: 1046 N.m @ 1500 rpm
Max. Power/Speed: 294 kW/2500 rpm
Fuel Consumption: 212 g/kw.h
More Technical Data
Certification: Euro II
Aspiration: Turbocharged
Fuel System: Direct Injection Pump
Compression Ratio: 15.8:1
Starting System: Electronic Starting (12V/24V)
Cooling Method: Air Cooling
Governor Type: Mechanical/Electronic Governor
Deutz FL513-Vehicle Diesel Engine Series
Deutz FL513-Vehicle Diesel Engine Series, original products from Huachai Deutz Engine Plant. This series mainly includes F6L513-Vehicle Diesel Engine, F8L513-Vehicle Diesel Engine, F8L513C-Vehicle Diesel Engine, F10L513F-Vehicle Diesel Engine, BF12L513-Vehicle Diesel Engine, BF12L513C-Vehicle Diesel Engine, BF12L513CP-Vehicle Diesel Engine.
