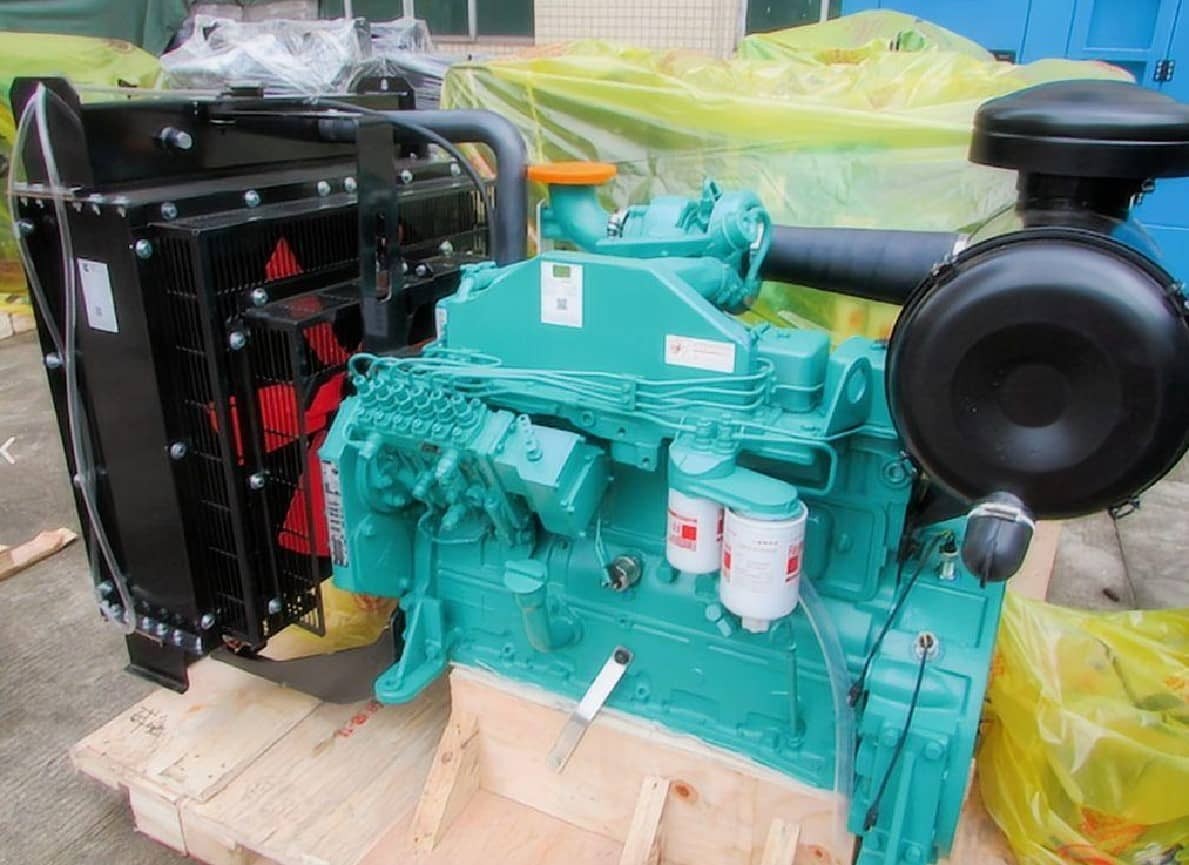

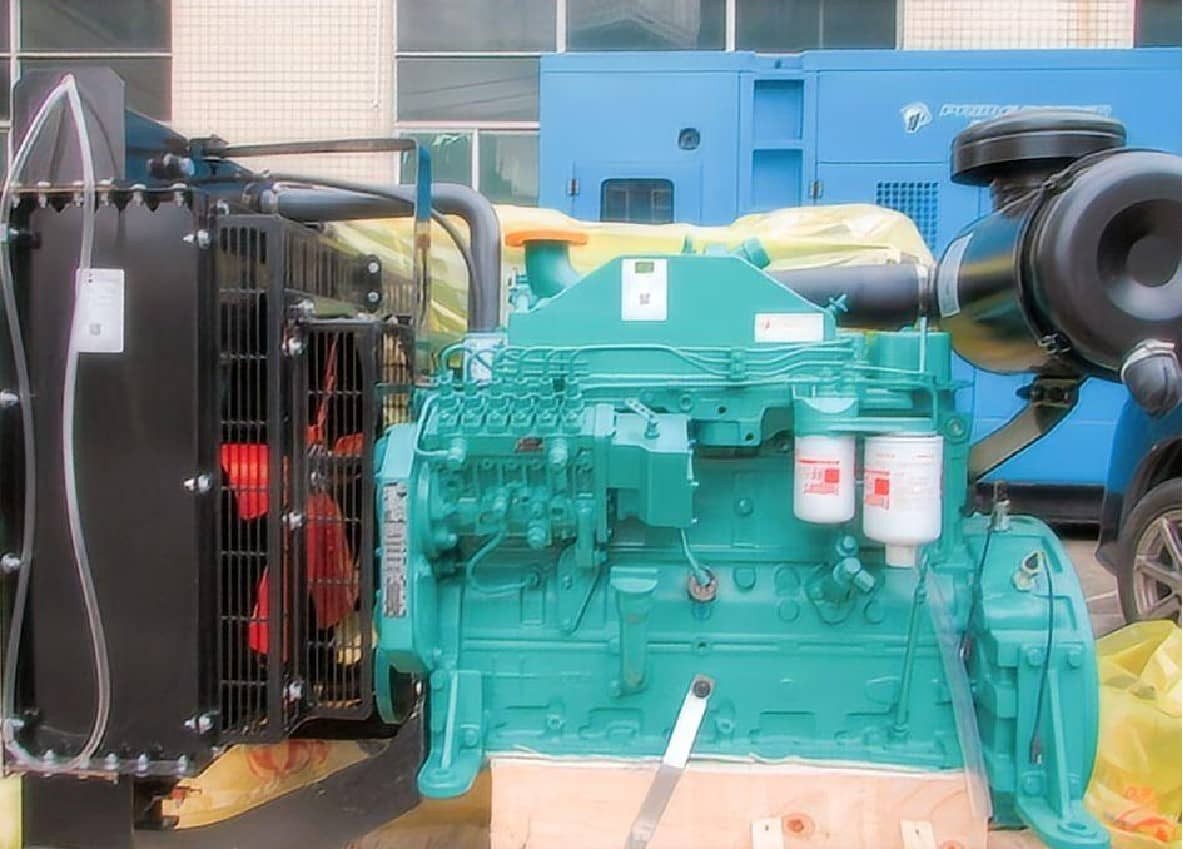

Cummins 6CTA8.3-G1 Engine: 163 kW Cummins G-Drive Engine for Industrial Power
This heavy-duty 6CTA8.3-G1 diesel engine is engineered by Dongfeng Cummins (DCEC) exclusively for power generation systems. Delivering a continuous, stable 163 kW of prime power at 1500RPM, this Cummins 6CTA8.3-G1 generator drive engine serves as the standard mechanical core for building reliable 150kw and 160kw generator sets. As a dedicated OEM Cummins generator engine supplier, HekoPower sources these units directly from the factory, providing international engineering firms and generator packagers with certified assemblies complete with sea-worthy packing.
Unlike standard industrial power units designed for variable mechanical loads, this G-drive model features an optimized governor system and specialized flywheel configuration to handle sudden block load inputs. It provides the tight frequency regulation needed by sensitive electrical grids.
Tech Specs of Cummins 6CTA8.3-G1 163KW
General Engine Data
Engine Model: Cummins 6CTA8.3-G1-163kw
Type: 6 Cylinders in Line, 4 Stroke Diesel
Displacement: 8.3 L
Bore * Stroke: 114 * 135
Net Weight: 708 Kg
Overall Dimension: 1360mm*780mm*988mm
Key Performance Data
Rated Power/Standby Power: 163 kW/219 HP, 180 kW/241 HP
Continuous Output/Speed: 133 kW/178HP @ 1500 rpm
Rated Speed: 1500 rpm
Low Idle Speed: 750-950 rpm
Fuel Consumption @ Running: ≤ 229g/Kw.h
Torque/Rated Output: 1040 N.m @ 1500 rpm
Torque/Standby Output: 1145 N.m @ 1500 rpm
More Technical Data
Aspiration: Turbocharged/Aftercooled
Fuel System: BYC PB Pump/GAC Governor
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 12.3 L
Governor Type: Electronic, Regulation 1%-5%
Compression Ratio: 17.3:1
Technical Specifications and Industrial Engineering Comparisons
Selecting the right engine for prime or standby power generation requires looking past basic power metrics. The Cummins 8.3L industrial diesel engine features structural choices that separate it from smaller displacement blocks or competitive models in the 160 kW range.
Mechanical Profiling: Turbocharged Aftercooled vs. Standard Aspiration
The turbocharged aftercooled Cummins genset engine architecture utilizes engine jacket water to cool incoming intake air after it passes through the turbocharger. This density increase allows a precise air-to-fuel ratio within the cylinders.
Competitors often offer standard turbocharged engines without aftercooling in this power band. The 6CTA8.3-G1 aftercooling design lowers combustion chamber temperatures, reduces thermal wear on the pistons, and delivers a highly efficient Cummins 6CTA8.3-G1 fuel consumption g/kw.h curve. At 100% prime load, fuel efficiency remains highly stable, reducing long-term operating costs for continuous power applications.
1500RPM Cummins G-Drive Engine vs. 1800RPM Configurations
While the engine block can be configured for dual-frequency operations, this specific 1500RPM Cummins G-Drive engine is optimized for 50Hz electricity generation. Running at 1500RPM reduces piston linear speeds compared to 1800RPM variants. This lower operational speed translates directly to reduced internal friction, lower noise emissions, and extended time between major overhauls (TBO). For facilities running continuous power operations, this 1500RPM tuning minimizes maintenance interventions.
Real-World Application Scenarios for the 163kW Engine
The utility of a 163kW Cummins diesel generator engine depends entirely on its deployment environment. HekoPower provides these specialized setups configured for the specific operating conditions of three core industries.
DCEC Cummins Engine for Telecom Backup Power
Telecom networks rely on decentralized, automated backup power systems. Positioned in remote base transceiver stations (BTS) or regional switching centers, the DCEC Cummins engine for telecom backup power is paired with smart automatic transfer switches (ATS).
The 6CTA8.3-G1 model excels here due to its reliable cold-start capabilities and mechanical stability. It achieves full load stabilization within seconds of a grid failure, protecting data transmission from voltage drops.
Cummins Engine for Data Center Standby Generators
Data centers demand immediate emergency power with zero tolerance for frequency fluctuation. Operating as a Cummins standby power diesel engine, the 6CTA8.3-G1 acts as the critical layer of protection behind uninterruptible power supply (UPS) battery rooms. Its mechanical governor system reacts quickly to sudden electrical steps, keeping voltage drops within tight tolerances to prevent server hardware trip-outs.
Cummins Engine for Mining and Construction Projects
In open-pit mining environments and remote infrastructure builds, grid power is frequently unavailable. This industrial diesel engine for continuous power generation drives heavy machinery, site lighting, and base camps.
The structural integrity of the Dongfeng Cummins industrial power engine—built with a high-strength cast-iron block and wet cylinder liners—withstands the heavy dust, ambient heat, and rough handling common to international Cummins 6CTA8.3-G1 for EPC power projects.
Maintenance, Lifecycle Management, and Replacement Tips
To ensure your water cooled Cummins diesel engine 1500RPM reaches its intended service lifespan without unscheduled downtime, operators must follow precise maintenance protocols and identify wear indicators early.
Sourcing a Genuine DCEC Cummins 6CTA8.3-G1 Engine Assembly
When a generator engine in an active field project suffers a major failure, replacing the entire block is often more cost-effective than rebuilding. Choosing a genuine DCEC Cummins 6CTA8.3-G1 engine assembly avoids the performance drops common with aftermarket or copycat blocks. Genuine units feature the factory-stamped data plate, specialized anti-counterfeit markings, and matching engine serial numbers (ESN) that can be verified in the global Cummins QuickServe system.
Core Lifecycle Maintenance Routines
- Lubrication Maintenance: Replace engine oil and fuel filters every 250 to 500 operating hours, depending on dust levels. Always use high-grade 15W-40 lubricants.
- Cooling Loop Audits: Inspect the water-cooled Cummins 6CTA generator drive engine radiator core for debris blocking airflow. Test coolant additive levels to prevent cylinder liner pitting.
- Fuel Injection Calibration: Monitor the mechanical injection pump injectors for wear if exhaust smoke changes color or power drops.
Identifying the Need for a Prime Power Engine Replacement
When planning a DCEC 6CTA8.3-G1 prime power engine replacement, look for clear signs of mechanical fatigue:
- Significant crankcase blow-by or blue exhaust smoke indicating worn piston rings.
- Constant oil pressure drops when the engine reaches normal operating temperature.
- Unexplained metal debris in the oil filters during routine fluid checks.
Procurement Logistics: Sea-Worthy Packing and China Wholesale
Sourcing from a Cummins diesel engine wholesale China partner requires attention to export packaging and supply chain documentation to prevent shipping damage.
Buy Cummins 6CTA8.3-G1 Engine with Sea-Worthy Packing
Ocean transit exposes mechanical components to salt air and humidity, which can cause surface rust on bare metal parts like flywheels and crankshaft ends. HekoPower ships every Cummins 6CTA8.3-G1 factory direct supplier order using heavy-duty, fumigated wooden cases. The engine is sealed in a heavy VCI (Vapor Corrosion Inhibitor) plastic barrier bag with desiccant packs, protecting all electrical components and fuel systems until arrival at your facility.
OEM Cummins Engine for Generator Manufacturers
As a reliable genuine Cummins generator engine exporter China, HekoPower provides open-frame configurations specifically for generator manufacturers and EPC contractors. We supply the engine with structural engine mounts, a standard control panel harness, and factory testing certification sheets. This simplifies matching the engine to your alternators (such as Stamford or Marathon brands) during assembly.
Cummins C8.3-G Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6CT8.3-G2-133kw, 6CTA8.3-G1-163kw, 6CTA8.3-G2-163kw, 6CTAA8.3-G2-183kw.In accordance with the criteria of Machinery Safety Directive 2006/42, movable elements such as distribution belts, fans, and parts that acquire high temperatures during operation, such as exhaust manifolds, have their respective safeguards. Before being delivered, the generator is thoroughly checked at the factory. Voltage, frequency, and load are all tested, as well as the appropriate operation of warnings and the influence of engine oil temperature on stop.
Frequently Asked Questions Regarding the 6CTA8.3-G1
What is the precise power output rating of the Cummins 6CTA8.3-G1 engine?
The engine produces 163 kW (218 horsepower) of prime power at 1500RPM. For emergency standby operations, the maximum standby power rating scales up to approximately 180 kW.
How can I verify that an engine from a China supplier is a genuine DCEC product?
Every engine includes a factory data plate showing the Engine Serial Number (ESN). You can verify this ESN directly through Cummins official service channels. HekoPower provides original factory documentation and testing certificates with every delivery.
What generator size can I build using this specific G-drive engine?
This engine is designed to power a Cummins 200 kVA generator engine configuration for standby use, or a 150kW to 160kW generator set for prime, continuous electrical loads.
What are the export shipping options for heavy industrial engines?
We ship via major Chinese ports (including Shanghai, Qingdao, and Ningbo). For urgent project replacements, air freight can be arranged using custom structural steel transport cradles.
