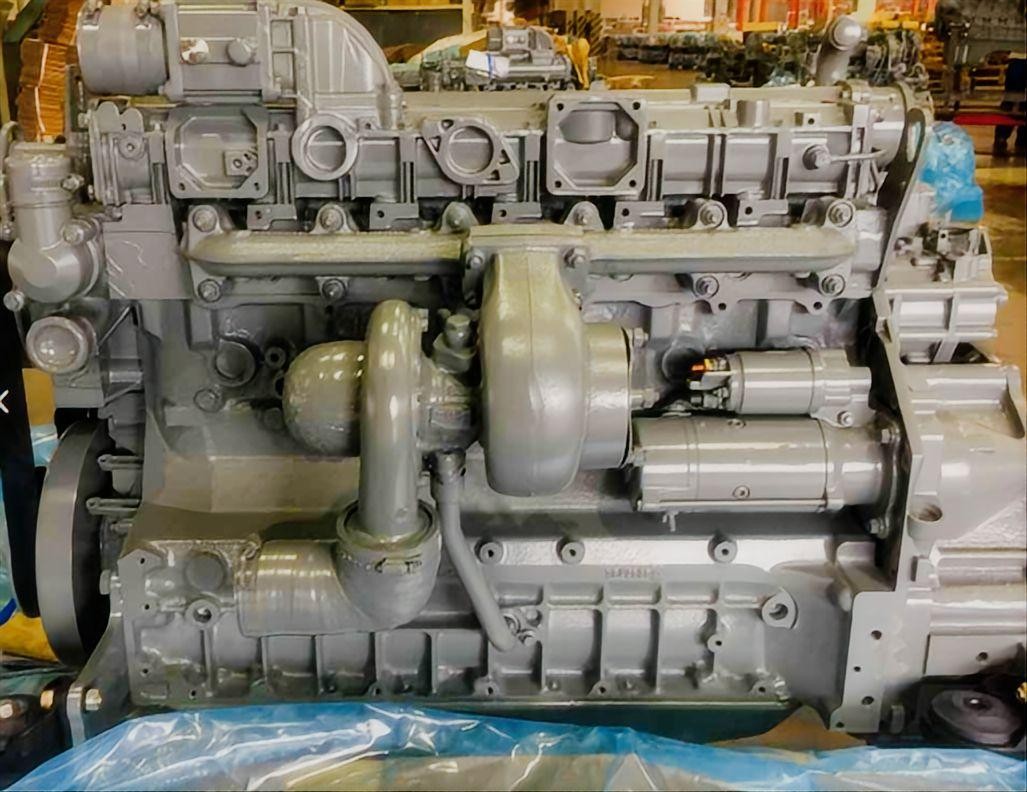

Genuine Dalian Deutz BF6M2012-C Construction Diesel Engine Assembly
Finding a direct-fit replacement engine that balances high torque output with strict fuel economy standards can make or break your heavy equipment uptime. The Deutz BF6M2012-C is a 6.06-liter, inline six-cylinder turbocharged diesel engine engineered specifically for high-load construction machinery.
Manufactured under the strict quality standards of the Dalian Deutz joint venture, this engine produces up to 155kW (147kW rated continuous output) at 2500 rpm and 743 Nm of peak torque. Built around an advanced Electronic Unit Pump (EUP) fuel injection system and charge-air cooling, it delivers reliable mechanical force for excavators, wheel loaders, road rollers, and mobile drilling rigs operating under harsh environmental conditions.
At HekoPower, we supply original factory-new Dalian Deutz BF6M2012-C complete engine assemblies, short blocks, and replacement components direct from approved manufacturing lines.
Tech Specs of Deutz BF6M2012-C
General Engine Data
Engine Model: Deutz BF6M2012-C-Construction Diesel Engine
Type: 6 Cylinders in Line
Displacement: 6.06 L
Bore * Stroke: 101 * 126
Overall Dimension: 998mm*628mm*920mm
Net Weight (with flywheel & alternator): 509 Kg
Key Performance Data
Rated Power: 155 kW
Max. Torque/Speed: 743 N.m @ 1500 rpm
Rated Speed: 2500 rpm
Min Fuel Consumption @ Full Load: 202 g/Kw.h
Idle Speed: 800 rpm
Mean Piston Speed: 10.5 m/s
More Technical Data
Certification: Euro II
Aspiration: Turbocharged & Charge Air Coller
Fuel System: Electronic Unit Pump
Cooling Method: Water Cooled
Electrical System (Starter Motor/Alternator): Electronic Starting (24V)
Compression Ratio: 19:1
Electronic Unit Pump (EUP) vs. High-Pressure Common Rail (HPCR)
Many competitive engines in this power class utilize High-Pressure Common Rail (HPCR) systems. While HPCR offers fine multi-injection control, it is notoriously sensitive to fuel contamination.
The Deutz BF6M2012-C uses individual Electronic Unit Pumps (EUP). Each cylinder has its own dedicated injection pump driven directly off the camshaft:
- Contamination Resistance: EUP systems tolerate varying diesel quality better than HPCR high-pressure pumps. This makes the BF6M2012-C ideal for remote construction sites where fuel filtration is inconsistent.
- Serviceability: If an injection unit fails on an EUP engine, you replace a single unit pump rather than an expensive multi-cylinder rail assembly.
- Thermal Efficiency: Direct camshaft driving provides quick pressure buildup up to 1600 bar, ensuring crisp throttle response under rapid hydraulic demand.
Field Application Scenarios & Equipment Integration
The BF6M2012-C engine curve is calibrated for high rotational speed and sustained torque recovery. This dynamic power curve makes it a popular power source for global OEM equipment manufacturers.
Crawler Excavators (20–25 Ton Class)
In excavator applications, the engine must handle sudden hydraulic load spikes when digging through rock or heavy clay. The 743 Nm torque reserve of the BF6M2012-C prevents engine droop when the main hydraulic pumps demand maximum displacement.
Wheel Loaders & Compactors
Wheel loaders require steady power delivery at varying engine speeds. The liquid-cooled, turbocharged design maintains stable operating oil temperatures even during high-ambient outdoor operation, reducing oil degradation during long shift work.
Mobile Drilling Rigs & Hydraulic Power Packs
Stationary or slow-moving equipment relies heavily on efficient airflow and charge-air cooling. The integrated cooling jacket and robust gear-driven oil pump ensure heat dissipation even when equipment remains stationary at high engine loads for hours.
Maintenance Guide & Troubleshooting Protocols
Proper maintenance extends the operational life of your Dalian Deutz engine beyond 10,000 operational hours. Below are practical shop guidelines for maintaining performance.
Preventive Maintenance Schedule
- Every 250 Hours: Change engine oil (15W-40 CI-4 or higher) and replace the primary spin-on oil filter. Inspect belt tensioners and intake air piping.
- Every 500 Hours: Replace fuel pre-filters and main fuel filter elements. Drain water separators. Check coolant glycol concentration.
- Every 1,000 Hours: Inspect turbocharger shaft end-play. Check valve clearance (Intake: 0.30mm / Exhaust: 0.50mm on a cold engine).
- Every 2,000 Hours or Annually: Flush cooling system, replace cooling hoses, and inspect Electronic Unit Pump delivery pressures.
Diagnosing Common Engine Issues
Problem 1: Hard Starting or Lack of Power under Load
- Primary Cause: Air ingress into the fuel supply system or clogged EUP fuel strainers.
- Solution: Check low-pressure fuel lines for loose fittings. Replace the primary fuel filter and bleed the system using the manual priming pump located near the fuel lift pump.
Problem 2: Excessive Black Smoke During Acceleration
- Primary Cause: Restricted air intake line or leaking charge-air cooler (intercooler) piping.
- Solution: Inspect air filter restriction indicators. Pressure-test the charge-air piping for leaks between the turbocharger outlet and intake manifold.
Engine Replacement, Retrofit & Overhaul Guide
When an engine reaches the end of its service life due to high blow-by, crankcase damage, or internal mechanical failure, equipment owners face three choices: a full engine swap, a short-block swap, or an in-frame overhaul.
Option 1: Installing a Complete Factory Engine Assembly
Replacing your old unit with a new complete Dalian Deutz BF6M2012-C engine assembly is the fastest route back to operation.
- Plug-and-Play Setup: Complete engines ship with pre-hung accessories including turbocharger, fuel injection pumps, flywheel housing, oil sump, and wiring harness drops.
- Downtime: Installation typically takes 8 to 12 shop hours versus 40+ hours for a full manual teardown and rebuild.
Key Considerations During Retrofitting
- Flywheel & Housing Matching: Verify if your application uses an SAE 2 or SAE 3 flywheel housing interface before ordering to ensure seamless coupling to your hydraulic pump drive or transmission.
- Cooling Package Sizing: When replacing a non-intercooled engine with the BF6M2012-C, ensure your radiator assembly includes a dedicated charge-air cooler core.
- Electrical System Voltage: Confirm whether your machine utilizes a 12V or 24V starter motor and alternator configuration.
Source Reliable Deutz Engines from HekoPower
Minimizing equipment downtime requires a supplier who understands technical specifications and supply chain logistics. At HekoPower, we stock original Dalian Deutz BF6M2012-C diesel engines, ensuring fast global export, competitive wholesale pricing, and technical support for your fleet.
Need a price quote or technical compatibility check? Contact our engineering sales team today with your engine serial number or machine model for immediate assistance.
Deutz BFM2012-Construction Diesel Engine Series, original products from Dalian Deutz Engine Plant. This series mainly includes Deutz BF4M2012, Deutz BF4M2012C, Deutz BF4M2012-C, Deutz BF6M2012C, Deutz BF6M2012-C.
Frequently Asked Questions
What is the difference between a Dalian Deutz engine and a German Deutz engine?
Dalian Deutz (DDE) is an official joint venture production base established by Deutz AG in China. Dalian Deutz engines are built according to original Deutz AG engineering designs, tolerances, and quality management systems, providing genuine performance and part interchangeability at competitive manufacturing costs.
How do I verify if the BF6M2012-C fits my specific machine model?
Provide your current engine serial number (located on the engine nameplate on the crankcase) to the HekoPower technical team. We cross-reference your serial number against factory build sheets to confirm flywheel housing sizes, oil pan orientation, and pump mounting patterns.
What is the standard warranty coverage on complete engine assemblies from HekoPower?
All new original Dalian Deutz complete engine assemblies supplied by HekoPower come with a standard 12-month or 2,000-operating-hour factory warranty (whichever comes first), covering defects in material and workmanship.
Can HekoPower supply individual spare parts for the BF6M2012-C?
Yes. In addition to complete engine assemblies, HekoPower supplies genuine spare parts including overhaul gasket sets, pistons, cylinder liners, crankshafts, Electronic Unit Pumps, turbochargers, and water pumps.
