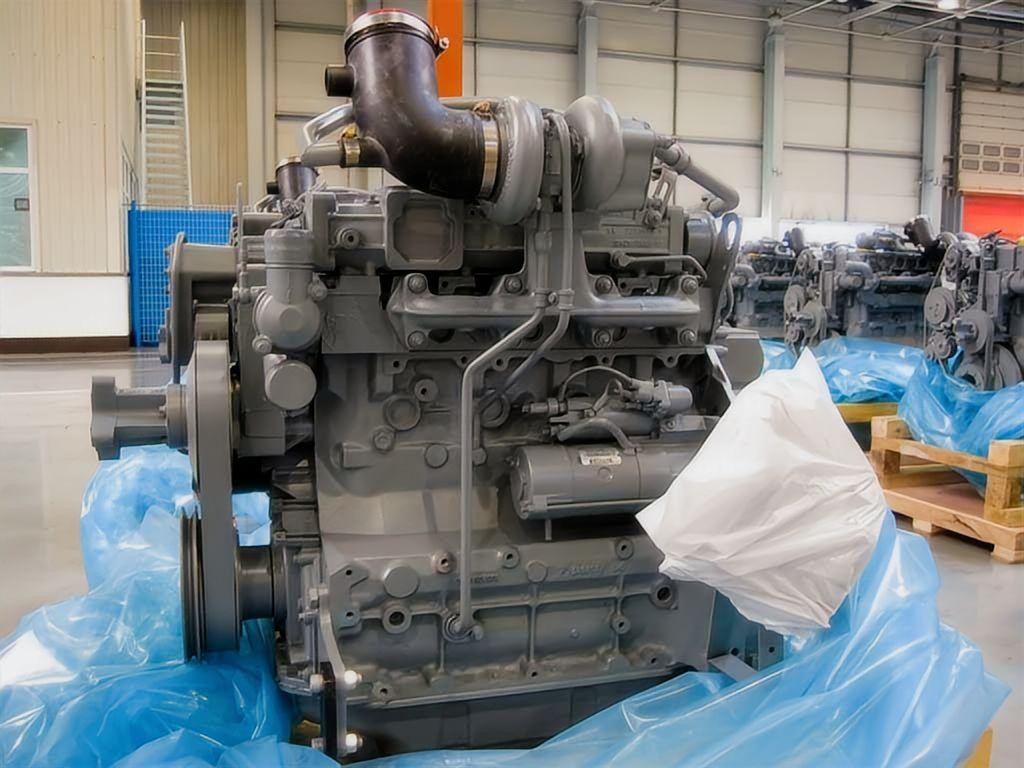

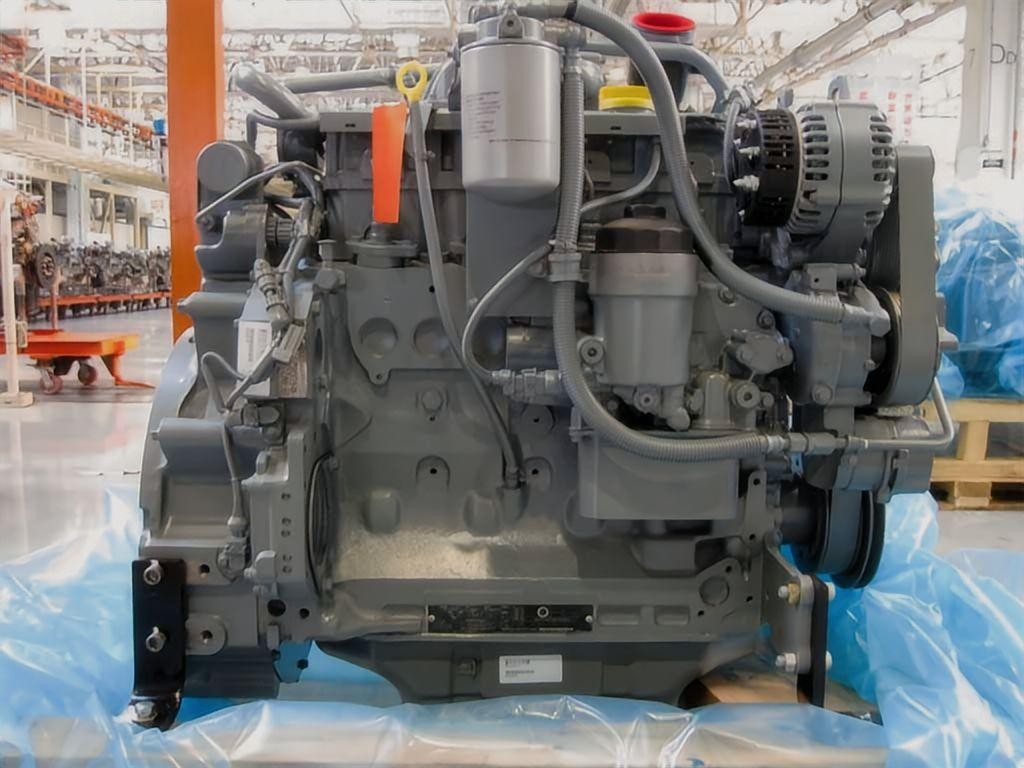

Genuine Dalian Deutz BF4M2012 Industrial Engine | HekoPower OEM Supply
The Deutz BF4M2012 construction engine is a primary workhorse for mid-tier earthmoving, road building, and material handling machinery. Manufactured under strict European quality standards at the Dalian Deutz joint-venture plant, this 4-cylinder turbocharged diesel engine offers high-torque performance paired with mechanical reliability.
At HekoPower, we bridge the gap between heavy equipment operators and reliable factory production, supplying fully configured OEM Deutz BF4M2012 engines with direct international logistics.
Tech Specs of Deutz BF4M2012 construction engine
General Engine Data
Engine Model: Deutz BF4M2012-Construction Diesel Engine
Type: 4 Cylinders, in Line
Displacement: 4.03 L
Bore * Stroke: 101 * 126
Overall Dimension: 742mm*643mm*741mm
Net Weight (with flywheel & alternator): 391 Kg
Key Performance Data
Rated Power: 74.9 kW
Max. Torque/Speed: 390 N.m @ 1500 rpm
Rated Speed: 2500 rpm
Min Fuel Consumption @ Full Load: 208 g/Kw.h
Idle Speed: 800 rpm
Mean Piston Speed: 10.5 m/s
More Technical Data
Certification: Tier II
Aspiration: Turbocharged
Fuel System: Mechanical Pump in Line
Cooling Method: Water Cooled
Electrical System (Starter Motor/Alternator): Electronic Starting (24V)
Compression Ratio: 19:1
Technical Comparisons: BF4M2012 vs. Competitors
When choosing a replacement engine or power unit, machinery operators frequently weigh the BF4M2012 against other engines in the 4-liter class, such as the Cummins QSB3.9 or the Perkins 1104 series.
Deutz BF4M2012 vs. Cummins QSB3.9
The Cummins QSB3.9 relies heavily on common-rail electronic fuel injection. While common-rail technology reduces noise and emissions, it is highly sensitive to fuel quality. The mechanical injection unit pump system of the Deutz BF4M2012 handles lower-grade or mildly contaminated diesel far better. This makes the Deutz unit preferable for remote job sites or developing regions where fuel filtration standards vary.
Deutz BF4M2012 vs. Perkins 1104C-44T
While both are 4-cylinder turbocharged options, the Deutz engine features a more modular design. Individual cylinder heads and separate unit injection pumps mean you can service a single cylinder bank without pulling the entire head assembly. This reduces shop hours during a top-end overhaul.
Real-World Application Scenarios
The versatility of the BF4M2012 heavy equipment engine is reflected in its widespread integration across multiple industries.
Excavator Repowering
The Deutz BF4M2012 excavator engine configuration is found in several 12 to 15-ton class crawlers. It is optimized to run at continuous high loads to drive dual variable-displacement hydraulic piston pumps.
Wheel Loaders & Tractors
The engine’s flat torque curve from 1300 to 1700 RPM makes it a reliable match for power-shift transmissions in loaders, providing high tractive effort (drawbar pull) when driving into gravel piles.
Road Rollers & Soil Compactors
Operating in dusty, high-vibration environments, the robust cast-iron block and integrated oil cooler of the water-cooled BF4M2012 prevent thermal hot spots during slow-speed compaction passes.
Maintenance, Overhaul, and Replacement Tips
Maximizing the service life of a genuine Deutz BF4M2012 requires proactive attention to its unique engineering features.
Managing the Internal Unit Pumps (PLD System)
Unlike traditional rotary inline pumps, the BF4M2012 uses individual unit pumps for each cylinder. These pumps are driven directly by the main camshaft.
- Fuel Filtration: Change primary and secondary fuel filters every 250 hours. Even minor water contamination can cause cavitation in the high-pressure unit pumps, leading to hard starting or rough idling.
- Valve Clearances: Check and adjust valve lash every 500 operating hours (Intake: 0.30 mm, Exhaust: 0.50 mm, measured cold).
Cooling System Care
Since this is a compact, high-output 4.04L turbocharged design, cooling efficiency is critical. Keep the radiator fins free of construction debris, and always use a 50/50 glycol-to-water ratio with approved anti-cavitation additives to protect the wet cylinder liners from pitting.
Sourcing Correct Replacement Parts
Because Dalian Deutz engines are used in global applications, always locate the engine serial number (ESN) stamped on the crankcase block before ordering components. This ensures compatibility for top gaskets, piston rings, and turbocharger trims.
Deutz BFM2012-Construction Diesel Engine Series, original products from Dalian Deutz Engine Plant. This series mainly includes Deutz BF4M2012, Deutz BF4M2012C, Deutz BF4M2012-C, Deutz BF6M2012C, Deutz BF6M2012-C.
Frequently Asked Questions
What is the difference between a Dalian Deutz and a German-made Deutz BF4M2012?
Dalian Deutz is a joint-venture manufacturing facility in China operating under direct license and quality audits from Deutz AG. The engines use identical engineering blueprints and component specifications. Components like the engine block, cylinder head, and crankshaft are fully interchangeable with German-made units, offering identical performance at a highly competitive procurement cost.
Can I replace a Tier III BF4M2012-16E3 with a Tier II unit?
In many stationary, industrial, or export market applications, yes. However, you must verify local environmental regulations and match the flywheel housing SAE profile, electrical wiring harness (12V vs. 24V starting systems), and throttle linkages.
What is the average fuel consumption rate of this model?
Under typical industrial load factors (around 75% load), the Deutz BF4M2012 fuel consumption runs between 210 to 215 g/kWh. At full continuous 100% load, consumption is approximately 18 to 19 liters per hour.
Does HekoPower provide worldwide shipping?
Yes. As an established industrial engine exporter, HekoPower manages secure sea, air, and land freight logistics. All replacement engines are crated in export-grade wooden cases, complete with standard customs invoice documentation and origin certifications.
