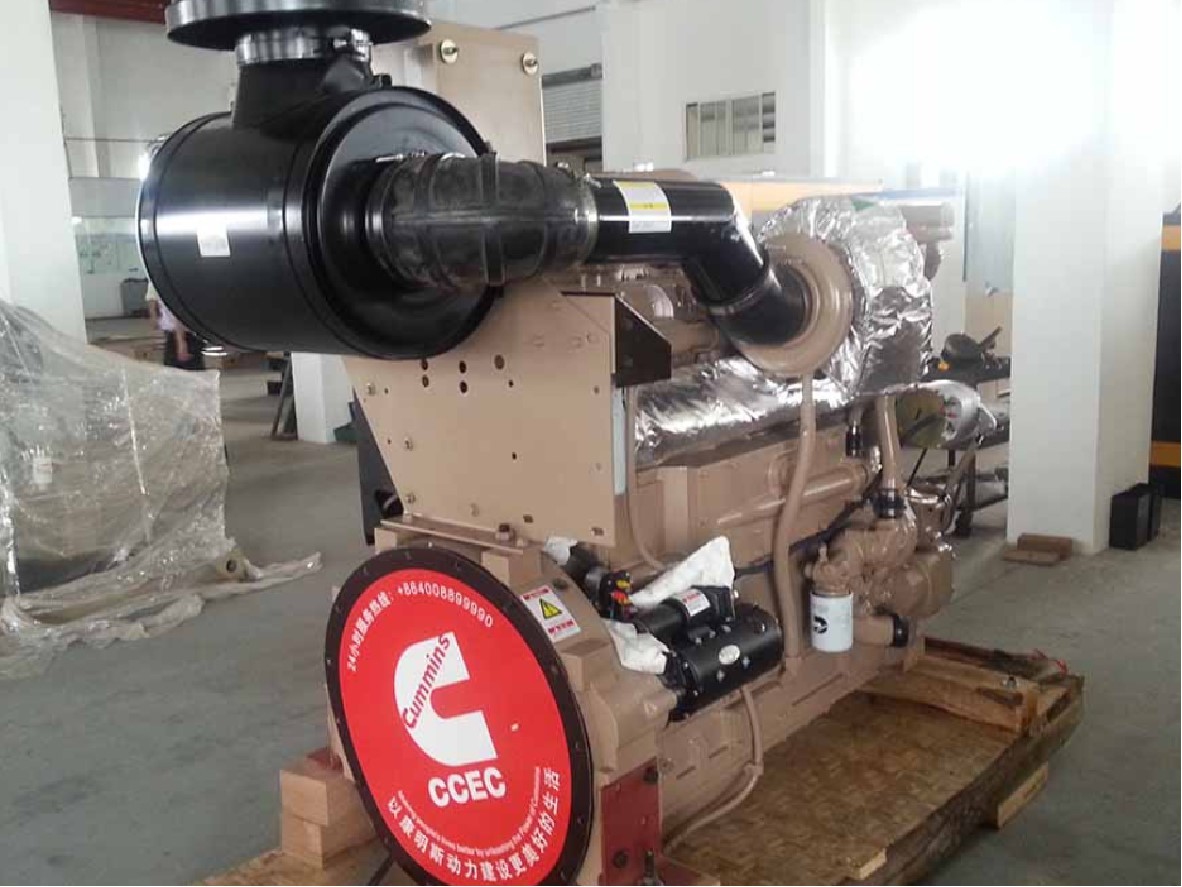

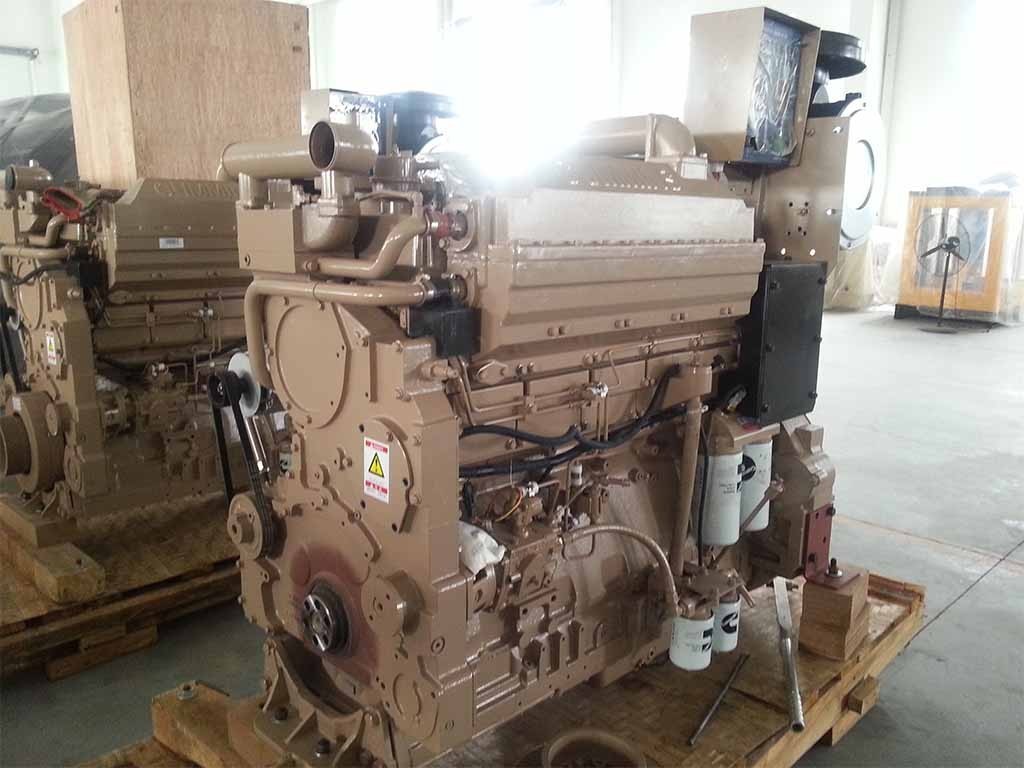

Cummins KTA19-DM403 Marine Auxiliary Engine Assembly for Marine Generator Sets
The Cummins KTA19-DM403 is a six-cylinder marine auxiliary diesel engine developed by Chongqing Cummins for continuous-duty marine power generation applications. Rated at 403kW (540HP), this IMO Tier II compliant engine is widely used as a prime mover for marine generator sets installed on cargo vessels, fishing boats, tugboats, offshore support vessels and coastal engineering ships.
Unlike propulsion engines that directly drive the propeller, the KTA19-DM403 is designed to provide reliable onboard electrical power. Its PT fuel system, robust cylinder block structure and proven K19 platform allow operators to achieve stable performance in demanding marine environments. As a supplier of genuine Cummins engines, HekoPower provides complete engine assemblies, spare parts support and export services for shipyards, fleet operators and marine generator packagers worldwide.
Tech Specs of Cummins KTA19-DM403
General Engine Data
Engine Model: Cummins KTA19-DM403
Type: 6 Cylinders in Line
Displacement: 19 L
Bore * Stroke: 159 * 159
Net Weight (with flywheel & alternator): 2005 Kg
Overall Dimension: 1666mm*874mm*1377mm
Engine Configuration No.: D193097MX02
Key Performance Data
Rated Power/Standby Power: 403 kW/540HP, 448 kW/600HP
Rated Speed: 1500 rpm
Low Idle Speed: 675-775 rpm
Fuel Consumption (Running Speed): 232 g/kW.hr
Torque/Rated Speed: 2565 N.m @ 1500 rpm
More Technical Data
Certification: CCS/IMO Certificates
Aspiration: Turbocharged/Aftercooled
Compression Radio: 14.5:1
Fuel System: Cummins Pressure Time (PT Pump)
Starting System: Electrical starting motor (24V)
Cooling Method: Water cooling
Cooling Method: Sea water pump, Heat exchanger, Wet exhaust manifold
Technical Comparisons & Family Architecture
Understanding how the KTA19 platform scales its power output helps marine engineers determine if the 403kW configuration matches their exact electrical bus load requirements without risking engine under-loading or premature carbon buildup.
KTA19-DM403 vs. KTA19-DM448 and KTA19-DM463
The KTA19-DM platform utilizes identical physical dimensions, a 159 mm x 159 mm bore and stroke, and a 19-liter displacement across its primary 1500 RPM fixed-speed range. The fundamental difference between the KTA19-DM403, the 448kW (KTA19-DM448), and the 463kW (KTA19-DM463) variants lies entirely within the fuel delivery mapping and turbocharger air-mass volume matching.
While the KTA19-DM448 and KTA19-DM463 variants alter the calibration of the Pressure Time (PT) fuel system to achieve higher mean effective pressures, the KTA19-DM403 runs at a more conservative thermal envelope. This specific 403kW configuration lowers thermal strain on the single-piece aluminum pistons and wet cylinder liners. This intentional safety margin translates directly into extended Time Between Overhauls (TBO) when the engine runs uninterrupted as a prime auxiliary power unit.
Performance Curve and Fuel Efficiency Metrics
At its fixed operating frequency of 1500 RPM, the KTA19-DM403 exhibits a highly optimized torque profile, holding a rated torque output of 2565 N.m. The engine's fuel efficiency sweet spot is tightly tuned to commercial generator duty cycles.
- 100% Load Profile: At maximum continuous output, the KTA19-DM403 fuel consumption rate stabilizes between 209 g/kW.h and 232 g/kW.h, burning approximately 97 to 102 liters of diesel per hour depending on raw intake temperature and backpressure.
- Part-Load Profile: Unlike electronically controlled high-pressure common rail engines that experience efficiency drops at lower operating bands, the mechanical Step Timing Control (STC) injector mechanism maintains clean atomization down to 50% load. This makes it an exceptionally resilient choice for vessels running fluctuating galley and auxiliary electrical loads.
Real Application Scenarios for the 403kW Platform
A standard error across general engine catalogs is categorizing the KTA19-DM403 as a standard propulsion unit. The "DM" designation stands explicitly for Auxiliary Marine Engine configuration, governing its governor settings for tight frequency control.
Primary Marine Generator Drives
The primary commercial deployment for the KTA19-DM403 is acting as the direct mechanical driver for a 350 kVA to 400 kVA marine generator set. Its heavy flywheel design easily dampens sudden electrical transients, such as the startup current draw from massive bow thruster motors, heavy ballast pumps, or deep-sea refrigeration compressors. It pairs natively with dual-bearing marine alternators like Stamford, Marathon, or Leroy-Somer via standard SAE 0 housing adapters.
Commercial Fleet Adaptability
The engine's specific structural auxiliary configuration adapts effectively across several distinct maritime sectors:
- Commercial Fishing Boats: Acts as the primary power source for massive onboard hydraulic freezing plants and catch-processing machinery during extended off-shore operations.
- Tugboats and Inland Barges: Provides redundant auxiliary power arrays, guaranteeing continuous operation of vital steering gear, deck winches, and navigation systems if the main propulsion machinery fails.
- Cargo Vessels and Bulk Carriers: Operates as a reliable harbor or auxiliary emergency genset, utilizing its split cooling circuits to maintain stable block temperatures even during prolonged vessel idle periods.
- Offshore Support Vessels (OSV): Delivers clean electrical power to precise dynamic positioning systems that demand rapid, non-linear auxiliary generator response times.
Cummins PT Fuel System Mechanical Optimization
The defining characteristic of the genuine CCEC KTA19-DM403 engine assembly is its complete reliance on the completely mechanical Cummins Pressure Time (PT) fuel system. This system eliminates complex engine control units (ECUs) and sensitive wiring harnesses that are highly prone to salt-spray corrosion.
Internal Fluid Dynamics and Injection Mechanics
The PT fuel system regulates fuel volume based on the pressure delivered by the main PT gear pump and the mechanical time interval allowed by the cam-driven injectors. Fuel travels through drilled internal passages within the cylinder heads, eliminating vulnerable external high-pressure fuel lines.
The integration of Step Timing Control (STC) allows the engine to mechanically shift its injection timing based on real-time engine load. At low loads or low idle speeds (675–775 RPM), it advances the timing to suppress cold-smoke generation and prevent injector carbon fouling. At full rated load, it retards the timing to mitigate peak cylinder pressures, reducing overall mechanical wear on the crankshaft bearings and connecting rods.
On-Board Troubleshooting and Maintenance Protocols
For vessel engineers operating hundreds of miles offshore, the mechanical nature of the PT pump means troubleshooting requires basic hand tools rather than diagnostic laptops.
If the engine experiences erratic idling or drops below its standard 2565 N.m torque output, field maintenance should first inspect the mechanical throttle linkage and check for air entry into the fuel suction lines. Unlike electronic engines where a single sensor failure can trigger a full emergency engine shutdown (safety trip), the KTA19 mechanical fuel layout will typically continue running through degraded states, allowing crew members to safely return to port before addressing deep system maintenance.
Parts Commonality, Life Cycle Costs, and Certifications
From an investment standpoint, the KTA19-DM403 is one of the most cost-effective marine engines over its operational lifespan due to parts standardization across the entire Cummins K19 family.
Component Sharing Profile
HekoPower prioritizes the KTA19 platform for fleet procurement because it shares over 85% of its internal replacement parts with standard industrial K19 variants. Components like the wet cylinder liners, main valve train assemblies, connecting rod bearings, and individual four-valve cylinder heads are universally compatible. This high commonality significantly reduces spare parts inventory overhead for shipyard managers and commercial ship operators, as a single service kit can support multiple engine variations across an entire fleet.
Global Fleet Compliance and Certification Status
Navigating international maritime regulations requires clear classification validation. The CCEC KTA19-DM403 is fully certified to meet International Maritime Organization (IMO) Tier II emissions criteria, effectively reducing nitrogen oxide outputs through advanced internal cylinder geometry engineering rather than using bulky, high-maintenance external aftertreatment systems.
HekoPower delivers every KTA19-DM403 engine assembly accompanied by direct factory-stamped China Classification Society (CCS) documentation. This certificate is globally recognized for smooth conversion into Bureau Veritas (BV), Lloyd’s Register (LR), or American Bureau of Shipping (ABS) vessel registry frameworks during custom shipyard builds.
Procurement & Logistics Framework
As a dedicated international marine engine supplier, HekoPower manages strict export compliance and seaworthy packaging requirements for shipyards worldwide. Every KTA19-DM403 engine assembly undergoes careful rust-preventative treatment, dynamic balancing certification, and secure mounting inside heavy-duty anti-moisture wooden transport cases to ensure complete protection during transit to international departure ports.
Cummins K19-DM Series, Marine Auxilliary Diesel Engines for commercial and recreational applications, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes KTA19-DM336, KTA19-DM392, KTA19-DM403, KTA19-DM448, KTA19-DM463, KTA19-DM507. All engines complete with sea water pump, heat exchanger, CCS/IMO certificates.
Frequently Asked Questions
What is the typical lead time for a complete KTA19-DM403 engine assembly from HekoPower?
Standard shipyard packaging and testing schedules require approximately 15 to 30 business days from initial deposit verification. This window covers complete engine assembly, installation of specific marine heat exchangers or water-cooled exhaust manifolds, and full factory dyno testing to verify the 403kW output curve before crating.
Can the KTA19-DM403 be converted from heat exchanger cooling to keel cooling?
Yes. The KTA19-DM403 features a highly modular cooling architecture. While it ships standard with an engine-mounted heat exchanger and integrated seawater pump, it can be ordered from HekoPower in a keel-cooled configuration. This removes the seawater pump loop, routing coolant instead through internal hull channels, making it highly effective for shallow-water inland commercial barges.
What specific grade of lubricating oil is required for this engine?
CCEC explicitly mandates high-quality diesel engine lubricating oil that meets or exceeds the API CF-4 or CH-4 performance classifications. For standard commercial marine operations, a stable 15W-40 viscosity oil is required to maintain adequate oil film protection over prolonged continuous full-load duty cycles.
