Details

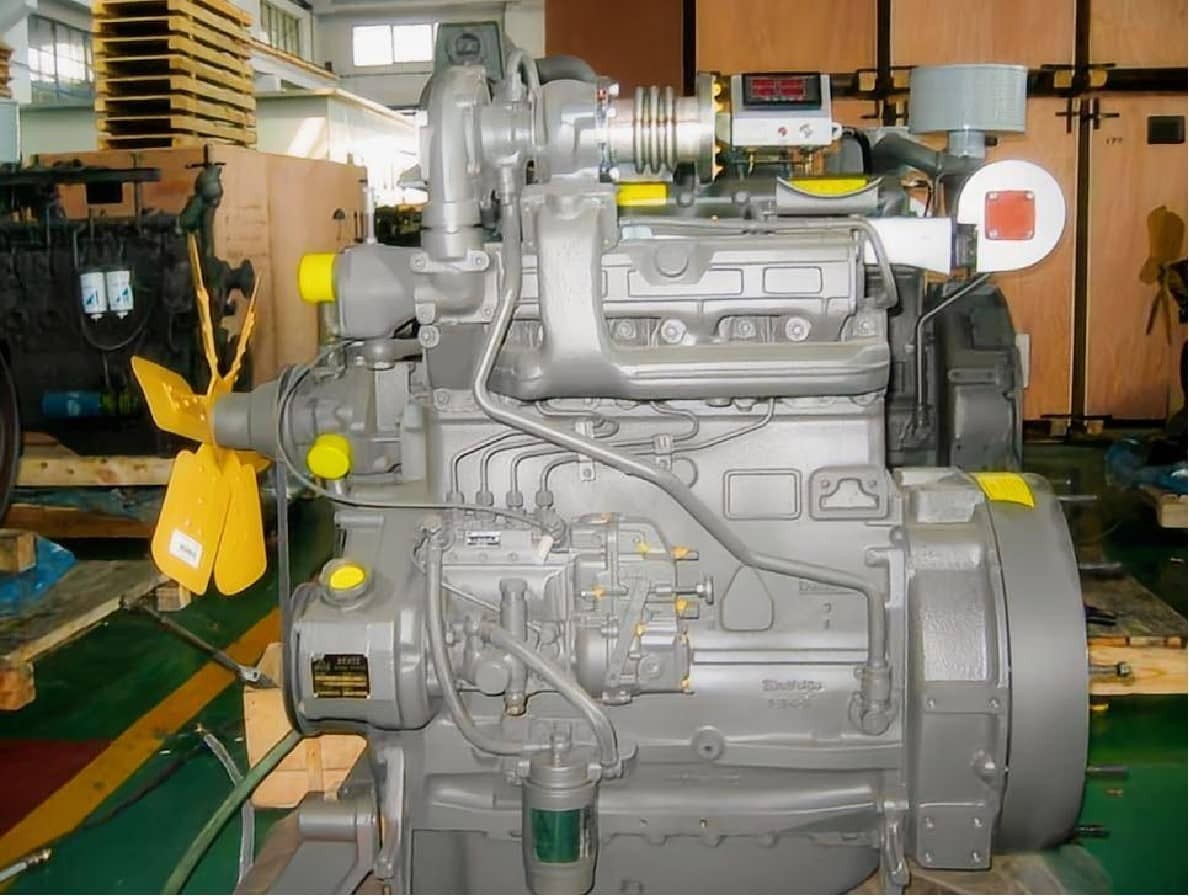

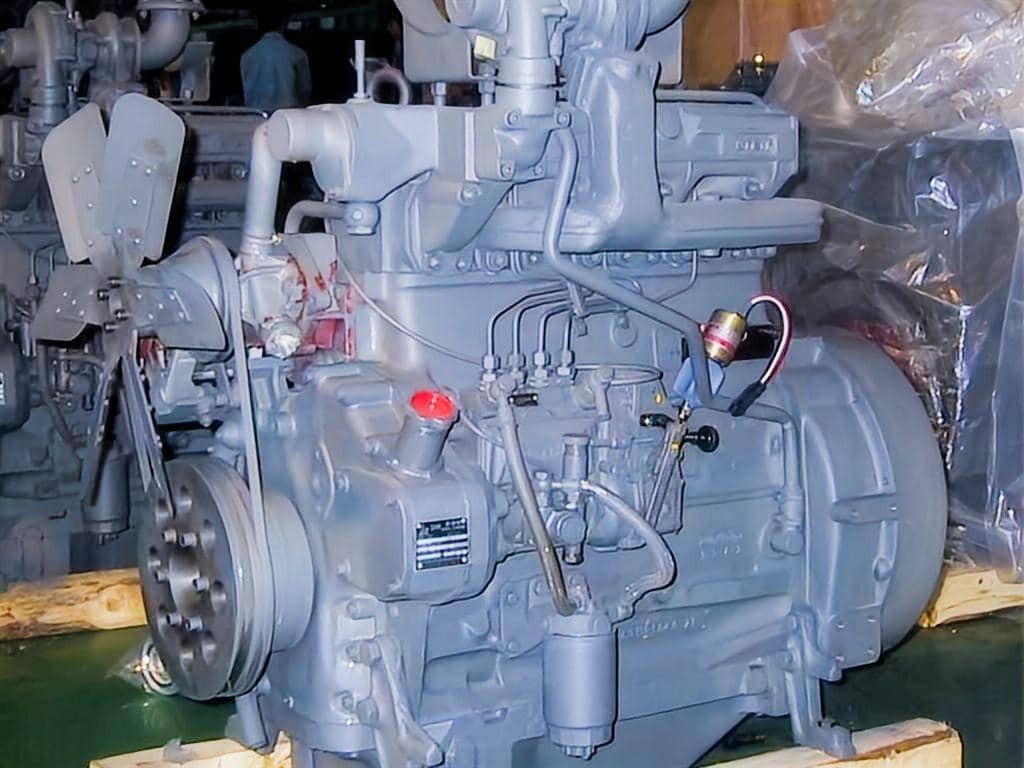

Deutz TD226B-6L Construction Engine Assembly
When heavy machinery goes down, securing a reliable Weichai Deutz 226B Series Replacement Engine is critical to minimizing operational downtime and avoiding costly structural modifications. As an established Original Deutz TD226B-6L Engine Supplier, HekoPower provides the complete Deutz TD226B-6L construction diesel engine, delivering exact factory specifications for seamless integration into your existing equipment. Designed specifically for demanding earth-moving environments, the Deutz TD226B-6L engine is globally recognized for its sustained power output, straightforward maintenance, and robust mechanical architecture.
Whether you are looking to completely replace a failing block or source a TD226B-6L complete engine in stock for proactive fleet maintenance, understanding the engineering behind this specific TD226B-6L diesel engine is essential. Operating as a highly efficient 100kW Deutz TD226B-6L diesel engine, this model guarantees the heavy-duty breakout torque required for continuous industrial applications.
Tech Specs of Deutz TD226B-6L
General Engine Data
Engine Model: Deutz TD226B-6L-Construction Diesel Engine
Type: 6 Cylinders in Line
Bore * Stroke: 105 * 120
Firebox: Rotundity shrink ora with flat roof in middle
Packing Details: Dimension: 1330* 720* 1800 mm, G.W: 560 KG
Key Performance Data
Adversed Power1/Speed: 100 kW/2400 rpm
Specific Fuel Consumption: ≤ 240 g/kw.h
More Technical Data
Aspiration Method: Turbocharger
Displacement: 6.23 L
Weichai WP Model vs Deutz 226B Comparison
One of the most frequent challenges procurement managers face when searching for a TD226B-6L replacement engine supplier is navigating the historical manufacturing transition between Deutz and Weichai production lines. HekoPower, acting as a deeply connected Weichai Deutz authorized agent network partner, frequently educates clients on the critical engineering nuances between these iterations.
Historically, the 226B series was manufactured in China under a strict joint venture license from Deutz AG. This means that an early model TD226B-6L engine and a later Weichai-produced 226B are fundamentally the same piece of machinery built to identical German engineering tolerances. However, after the licensing agreement concluded, Weichai upgraded the platform geometry, eventually creating the newer WP6 series.
Comparing the Weichai WP model vs Deutz 226B requires looking directly at the internal cylinder geometry. The original Deutz TD226B-6L 6.23 L diesel engine relies on a 120mm stroke length. In contrast, the newer WP6 expands the stroke to 130mm, pushing the total displacement to 6.8 liters. While the WP6 offers a modernized power curve, the critical factor for equipment owners is Deutz 226B series parts interchangeability.
If you are executing a direct TD226B-6L engine replacement for construction equipment, sticking with the original 226B configuration guarantees that your cooling packages, exhaust manifolds, and SAE flywheel housings align perfectly. Upgrading to a WP6 often alters the TD226B-6L engine installation dimensions, forcing mechanics to fabricate custom mounts and reroute plumbing. Therefore, sourcing a true Deutz TD226B-6L replacement engine from a specialized Deutz 226B engine supplier like HekoPower eliminates costly integration risks and ensures exact TD226B-6L replacement compatibility.
Real Application Scenarios in Heavy Machinery
The TD226B-6L 100 kW construction engine was not designed for a single type of vehicle; its mechanical versatility makes it a cornerstone across various heavy-duty sectors. As a dedicated 2400 rpm diesel engine for construction equipment, it provides the precise input speed necessary to drive high-flow hydraulic pumps without stalling the torque converter.
When deploying the Deutz TD226B-6L engine for construction machinery, the most common application is utilizing it as a TD226B-6L engine for wheel loader platforms. Specifically, popular 3-ton to 5-ton wheel loaders rely heavily on this block because the turbocharged Deutz engine for construction machinery delivers the immediate burst of torque required to push a full bucket into dense gravel or soil banks. Sourcing a direct 100 kW diesel engine for wheel loader applications ensures that the machine maintains its original breakout force and cycle times.
Similarly, deploying the TD226B-6L diesel engine for excavator operations provides the sustained hydraulic pressure needed for continuous deep-trenching. Excavators operate under constant thermal load fluctuations, and this 100 kW Deutz engine for construction machinery handles the heat stress easily due to its replaceable wet cylinder liner design and high-capacity gear-driven water pump. Additionally, as a TD226B-6L engine for road construction equipment—such as vibratory soil compactors and motor graders—the engine’s low vibration signature prevents harmonic interference with the precision grading sensors required on modern asphalt projects. In all these scenarios, utilizing an exact 100 kW diesel engine replacement for construction equipment prevents the mechanical headaches associated with mismatched engine swaps.
Maintenance and TD226B-6L Engine Retrofit Tips
To maximize the operational lifecycle of your Deutz 6.23 L engine for construction machinery, proactive maintenance is non-negotiable. A very common misconception during a TD226B-6L engine retrofit is that the factory settings on the mechanical fuel injection pump do not require calibration after installation. Whenever you replace a TD226B-6L diesel engine, mechanics must always verify the injection timing according to your local fuel quality and geographical altitude to prevent premature cylinder wear and excessive exhaust smoke.
Another critical maintenance area is the forced induction system. Routine TD226B-6L turbocharger replacement is a standard procedure as the engine approaches the 8,000-hour operating mark. Operators often misdiagnose general power loss as a fuel system failure when, in reality, the turbocharger bearings have worn out due to extended equipment idling periods which starve the turbine of proper oil pressure. When executing a TD226B-6L complete engine assembly swap, technicians must always prime the new turbocharger with fresh oil before the initial engine crank to prevent dry friction damage.
Furthermore, always verify all TD226B-6L engine mounting dimensions on the chassis vibration isolators before dropping the block in. Installing a new engine onto worn rubber chassis mounts will transfer destructive harmonic frequencies directly into the engine block, leading to early main bearing or crankshaft failure.
Engine Series and Configurations
As a comprehensive TD226B-6L diesel engine supplier China relies upon, HekoPower provides various power configurations tailored specifically to your chassis requirements. While the TD226B-6L remains a flagship model for robust earth-moving equipment, it is part of a broader family of Deutz-engineered powertrains designed to cover multiple industrial power bands.
Deutz 226B-Construction Diesel Engine Series, original products from Weichai Power Engine Plant. This series mainly includes Deutz D226B-4L, Deutz D226B-4T, Deutz TD226B-6L.
Frequently Asked Questions (FAQs)
What is the current Deutz TD226B-6L diesel engine price?
Because global metal commodities and shipping logistics fluctuate, the Deutz TD226B-6L engine for sale is quoted dynamically based on your exact specifications. As a high-volume Deutz TD226B-6L wholesale supplier, HekoPower consistently provides highly competitive rates compared to localized regional dealers. For the most accurate Deutz TD226B-6L engine wholesale price, please contact our sales engineering team directly with your specific SAE flywheel housing size and governor requirements.
Are Weichai WP6 parts and Deutz 226B parts fully interchangeable?
There is a dangerous industry misconception that all Weichai parts fit Deutz engines perfectly. While HekoPower, acting as your trusted Weichai Deutz TD226B-6L supplier, confirms high parts interchangeability for original 226B series components, the newer WP series parts are often dimensionally different due to the increased stroke length. Always provide your original engine data plate serial number to our Deutz TD226B-6L engine manufacturer network to guarantee exact component fitment.
Does the TD226B-6L complete engine assembly include the starter and alternator?
Yes, when you order a TD226B-6L complete engine assembly from HekoPower, it typically arrives fully dressed and ready for installation. This comprehensive package includes the mechanical fuel injection system, water pump, turbocharger unit, starter motor, and alternator, drastically streamlining the TD226B-6L engine replacement process for your field technicians.
