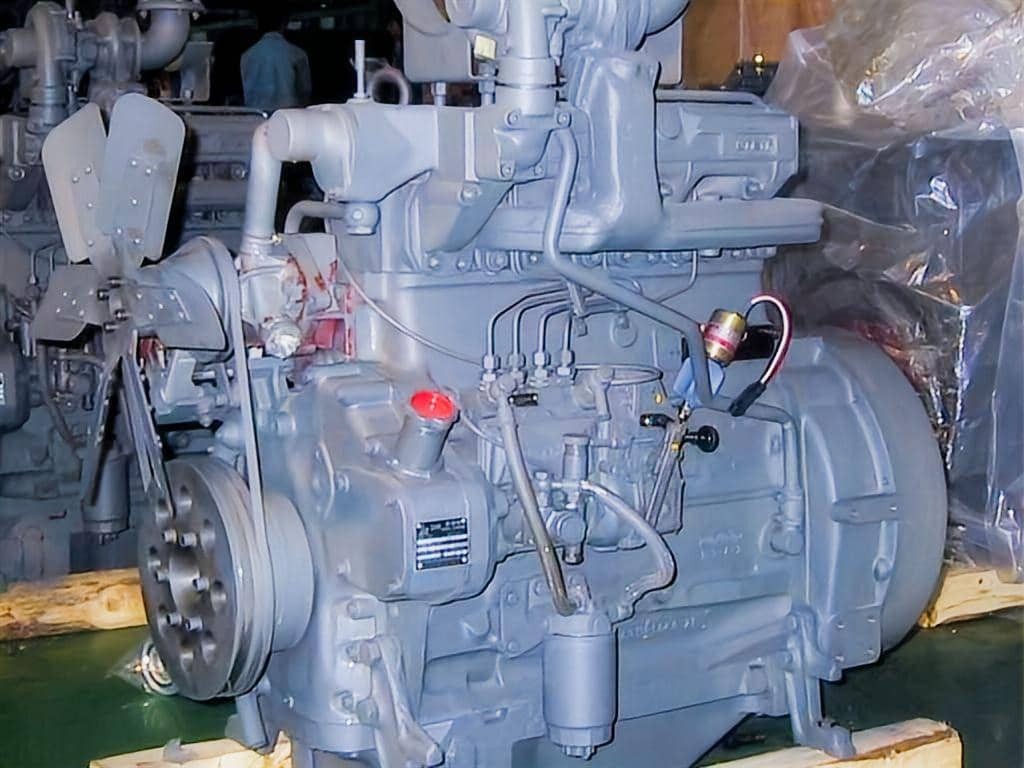

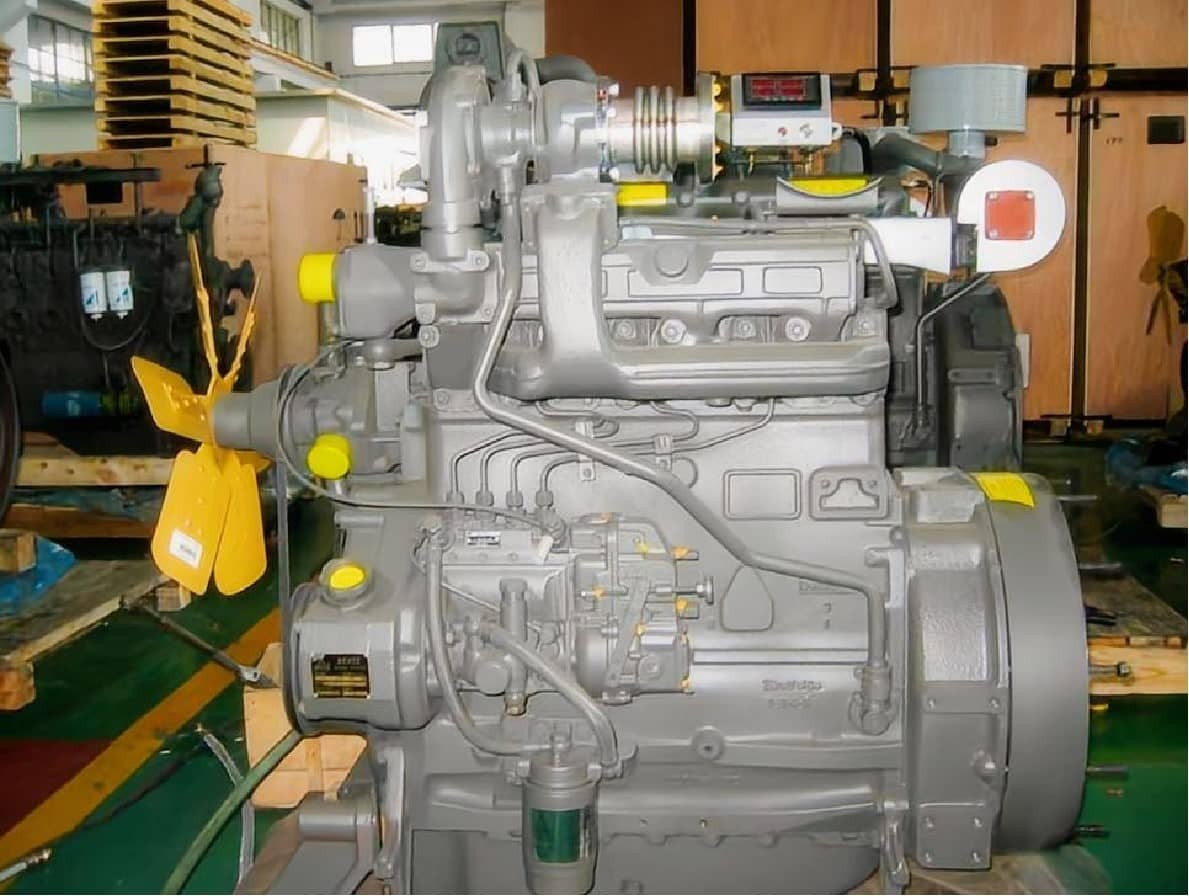

Deutz D226B-4T Construction Diesel Engine: Technical Specifications, Performance & Equipment Replacement Guide
The Deutz D226B-4T (co-developed under the Weichai-Deutz partnership) is a 4.16-liter inline 4-cylinder, direct-injection turbocharged diesel engine. Purpose-built for heavy-duty off-highway duty cycles, this engine powers wheel loaders, 15-to-20-ton excavators, road rollers, and drill rigs across high-dust and high-vibration work sites.
As a specialized supplier of industrial diesel engines, HekoPower delivers complete factory-tested Deutz D226B-4T engine assemblies, bare blocks, and OEM-matched drop-in replacement units to keep your job site moving.
Tech Specs of Deutz D226B-4T
General Engine Data
Engine Model: Deutz D226B-4T-Construction Diesel Engine
Type: 4 Cylinders in Line
Bore * Stroke: 105 * 120
Firebox: Rotundity shrink ora with flat roof in middle
Packing Details: Dimension: 1330* 720* 1800 mm, G.W: 560 KG
Key Performance Data
Adversed Power1/Speed: 59 kW/2400 rpm
Adversed Power2/Speed: 78 kW/2400 rpm
Specific Fuel Consumption: ≤ 240 g/kw.h
More Technical Data
Aspiration Method: Natural/Turbocharger
Displacement: 4.16 L
Technical Comparison: Deutz D226B-4T vs. Common Alternatives
When evaluating a replacement or fleet upgrade, machinery operators frequently compare the D226B-4T against similar 4-cylinder engines like the Cummins 4BT3.9 and the Perkins 1104A-44T.
Displace-to-Torque Ratio
The D226B-4T displacement of 4.16L provides an edge over the smaller 3.9L Cummins 4BT. Its extra $260\text{ cc}$ swept volume allows lower peak engine speed while generating equivalent low-end breakout torque. This reduces continuous stress on the crankshaft during heavy bucket digging.
Individual Cylinder Head Modular Design
Unlike engines featuring a single cast-iron cylinder head spanning across all four cylinders, the Deutz 226B architecture uses separate individual cylinder heads.
- Service Efficiency: If cylinder #3 suffers thermal stress or valve scoring, technicians replace a single head unit on-site without stripping the whole top end.
- Thermal Stress: Individual heads expand and contract independently, minimizing thermal distortion under sustained maximum-duty cycles.
Fuel Quality Tolerance
The D226B-4T relies on a robust mechanical inline injection pump rather than high-pressure common rail (HPCR) electronics. In remote construction or mining sites where diesel may contain high sulfur or minor particulate contamination, mechanical pumps remain immune to sensitive injector clogging that often grounds electronic engines.
Equipment Compatibility & Real Application Scenarios
The modular SAE flywheel mounting allows the Deutz D226B-4T to serve as standard equipment or replacement repower units across several heavy machinery platforms:
- Medium Wheel Loaders (e.g., SDLG LG936L, SEM 639B): Provides high hydraulic pump response at mid-range RPMs during bucket lifting and drive-pile loading.
- Crawler & Wheeled Excavators: Delivers constant torque curves required for hydraulic main pump load-sensing circuits.
- Compaction & Road Rollers (12–16 Ton Class): Sustains smooth power delivery despite continuous high-frequency vibration from eccentric drums.
- Rotary Drill Rigs & Compressors: Maintains prolonged steady-state speed under continuous mechanical shaft load.
Maintenance & Service Standards
To reach its target $15,000\text{-hour}$ service lifecycle before major overhaul, the D226B-4T requires structured preventative care:
Oil & Filtration Intervals
- Engine Oil: Change every 250 operating hours. Use API CD/CF or CH-4 15W-40 oil for standard climates. Use synthetic 5W-30 when operating consistently below -15.
- Fuel Filters: Change primary spin-on water separator and fine fuel filter every 400 hours.
- Air Filtration: Clean inner and outer dry-type air elements weekly on dry, high-dust sites. Replace inner safety elements every 1,000 hours.
Valve Lash Adjustment
Inspect and adjust mechanical valve clearance every 1,000 operating hours when cold:
- Intake Valve Clearance: 0.20 mm - 0.30 mm
- Exhaust Valve Clearance: 0.30 mm - 0.40 mm
Cooling System Maintenance
Maintain a 50/50 ethylene glycol coolant mix. Inspect belt tensioner tightness every 500 hours to avoid water pump slippage, which can lead to localized head overheating.
Engine Replacement Guide: Retrofitting & Ordering
When replacing a failed engine assembly with a new HekoPower Deutz D226B-4T unit, accurate mechanical verification prevents ordering errors:
Nameplate & Serial Verification
Locate the stamped metal nameplate on the valve cover or cylinder block side. Record the complete serial number and design specification code before requesting quote pricing.
Flywheel Housing & Coupling Alignment
Confirm whether your existing transmission or hydraulic pump adapter uses an SAE 1 or SAE 3 housing pattern. Also verify flywheel bolt circle diameter and offset depth.
Oil Sump Profile
Depending on machine frame clearance (wheel loader vs. excavator), the engine may require a stamped-steel deep sump or a flat cast-iron structural sump. HekoPower configures sumps to match machine pan clearance.
Auxiliary Equipment & PTO Points
Verify belt pulley positioning, alternator voltage (12V vs 24V), hydraulic steering pump mountings, and air compressor requirements.
Deutz 226B-Construction Diesel Engine Series, original products from Weichai Power Engine Plant. This series mainly includes Deutz D226B-4L, Deutz D226B-4T, Deutz TD226B-6L.
Frequently Asked Questions
What is the difference between a Deutz D226B-4 and a D226B-4T?
The suffix letter "T" designates Turbocharged. The naturally aspirated D226B-4 produces around 50 kW, whereas the turbocharged D226B-4T delivers up to 78 kW with higher air density, improved fuel burn, and better altitude output.
Can HekoPower supply both complete engine assemblies and replacement spare parts?
Yes. HekoPower supplies complete brand-new factory engine assemblies ready for drop-in installation, as well as OEM overhaul components including cylinder liners, piston kits, main bearings, individual cylinder heads, and fuel injection pumps.
How does HekoPower ensure engine assembly quality prior to international shipping?
Every complete engine assembly undergoes a strict bench test prior to export. This includes a 30-minute run test monitoring oil pressure stabilization, cooling loop integrity, speed governor responsiveness, and leak checks. Units are securely crated in sea-worthy plywood packaging.
