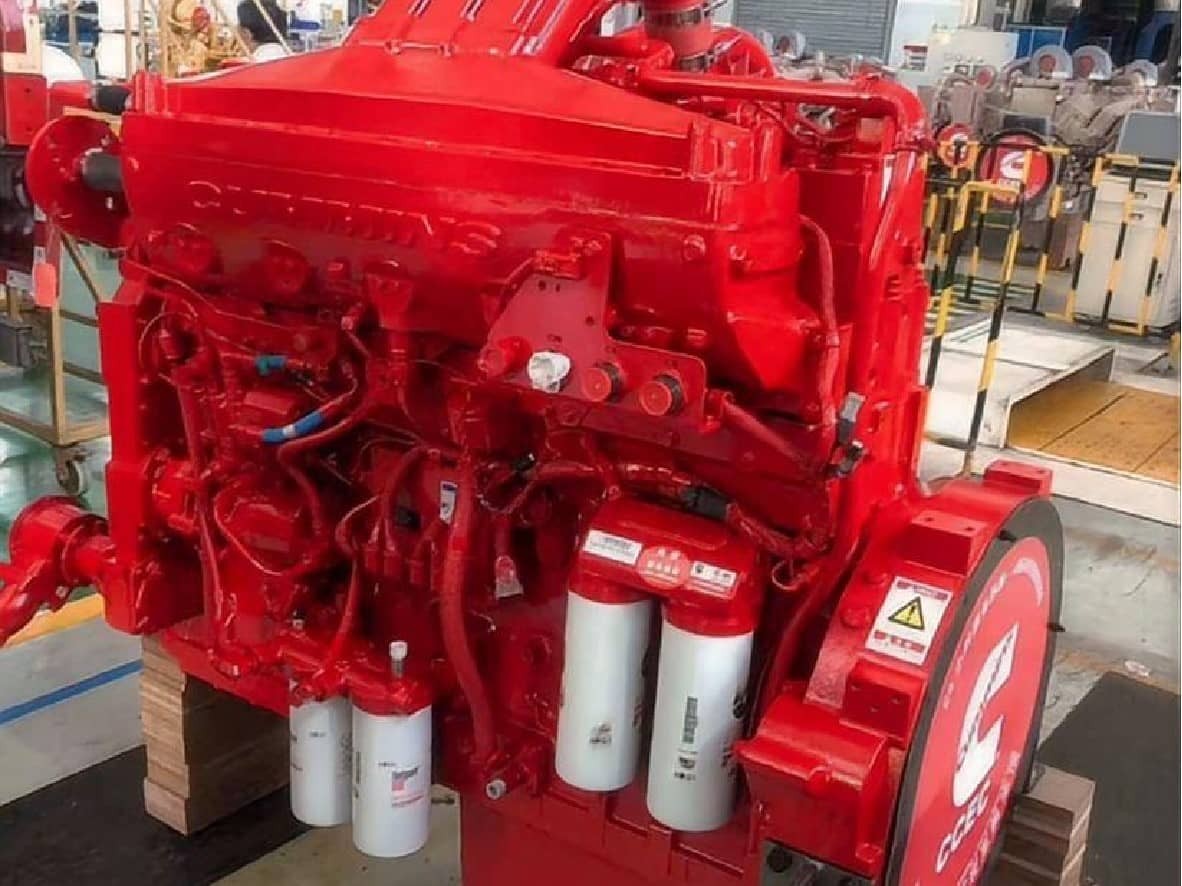

Cummins QSKTAA19-C755 Industrial Engine | 755HP 563kW CCEC Power
When extreme environments demand uncompromising mechanical reliability, the genuine CCEC Cummins 19L industrial engine stands out as an industry benchmark. HekoPower operates as a premier Cummins QSKTAA19-C755 wholesale supplier, providing this complete engine assembly fully tested and ready for rigorous field operations. Operating at a rated 563kW at 1800rpm, this 19L diesel engine generates the sustained power necessary to break through the toughest terrain. Heavy-duty construction equipment requires more than just raw horsepower to remain profitable. The QSKTAA19-C755 turbocharged intercooled engine utilizes an advanced air handling design to ensure absolute thermal stability, even during prolonged, high-stress earthmoving tasks.
As a dedicated industrial engine supplier, we understand that fleet managers need immediate access to a reliable Cummins QSKTAA19-C755 engine assembly. Minimizing equipment downtime is our primary focus. Supplying an original QSKTAA19-C755 engine means delivering a powerplant capable of enduring continuous shift work in severe dust and extreme temperature variations.
Tech Specs of Cummins QSKTAA19-C755
General Engine Data
Engine Model: Cummins QSKTAA19-C755
Type: 6 Cylinders in Line
Displacement: 19 L
Bore * Stroke: 159 * 159
Overall Dimension: 2150mm*966mm*1704mm
Net Weight (with flywheel & alternator): 1699 Kg
Key Performance Data
Rated Power: 563 kW/755HP
Rated Speed: 1800 rpm
Max Torque/Speed: 2730 N.m @ 1800 rpm
Fuel Consumption @ Rated Power: 210 g/Kw.h
Max Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro II
Aspiration: Turbocharged-Intercooled
Fuel System: Direct Injection PT Pump
Compression Ratio: 13.9:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 30 L
Real Application Scenarios: Powering Heavy Equipment
Knowing the exact Cummins QSKTAA19-C755 engine specifications is vital for procurement. However, understanding its real-world capabilities provides fleet mechanics with a true operational advantage. This 755HP construction diesel engine thrives in environments where standard commercial powertrain components would quickly suffer catastrophic failure. We routinely supply this specific model as a direct replacement Cummins 19L engine for heavy excavators, articulated dump trucks, and high-capacity mining machinery.
In deep-pit mining operations, the QSKTAA19-C755 mining engine provides the essential low-speed grunt required to move massive payloads up steep gradients. The impressive QSKTAA19-C755 2730Nm torque ensures that heavy excavators can maintain their digging force without stalling under sudden resistance. This unique power curve makes it an exceptional QSKTAA19-C755 excavator engine, capable of driving high-flow hydraulic pumps without bogging down.
High-altitude environments also pose unique combustion challenges for industrial machinery. Thanks to its advanced forced-induction setup, the QSKTAA19-C755 heavy equipment engine actively compensates for thinner air density. This prevents the dangerous thermal overloading often seen in older, naturally aspirated models. Whether you are outfitting a high-dust quarry site or upgrading a heavy-duty QSKTAA19-C755 drilling rig engine, this model offers uncompromising performance. It is widely regarded by field technicians as the best Cummins 19L engine for mining equipment.
Technical Comparisons: QSKTAA19-C755 vs. Legacy Models
Procurement managers frequently ask the HekoPower engineering team how the QSKTAA19-C755 compares to other popular options within the Cummins QSK19-C series. Understanding these mechanical distinctions is critical for matching the exact right engine to your specific machinery load profile. When evaluating the QSKTAA19-C755 vs QSKTAA19-C700, the most crucial difference lies in power band optimization. The QSKTAA19-C755 reaches its peak 755HP at a lower threshold of 1800 rpm. In contrast, the 700HP variant requires a higher 2000 rpm to reach its peak output.
This lower RPM requirement for the C755 variant significantly reduces internal cylinder wear over a 10,000-hour service life. It also translates directly to a highly optimized QSKTAA19-C755 fuel consumption and torque curve for sustained heavy loads. We also frequently analyze the QSKTAA19-C755 vs QSK19-C600 for our clients. Both models share a robust 19 litre diesel engine architecture and achieve identical peak torque ratings. However, the QSKTAA19-C755 engine is calibrated to deliver substantially more horsepower at the top end. This 755HP output ensures that mining equipment maintains forward momentum under sudden load spikes where the 600HP variant might struggle.
Another common technical discussion involves the QSKTAA19-C755 vs KTA19-C700. The older KTA19 series earned legendary status through pure mechanical durability. However, the modern 755HP Cummins construction engine integrates critical thermodynamic advancements. By comparing these 755HP vs 700HP Cummins construction engine variants, the benefits of modern fuel management become obvious. The CCEC QSKTAA19-C755 direct injection PT fuel system delivers incredibly precise fuel atomization. This results in a cleaner, more efficient burn compared to legacy mechanical systems, ultimately lowering your daily operating costs.
Maintenance Intervals and Replacement Compatibility
Successfully integrating a replacement engine into an existing heavy machinery chassis requires strict attention to physical compatibility. As your trusted QSKTAA19-C755 replacement engine supplier, HekoPower emphasizes the critical nature of accurate identification prior to ordering. Operators must verify the exact QSKTAA19-C755 CPL number identification before proceeding with a major procurement. The Control Parts List dictates the precise QSKTAA19-C755 engine mounting dimensions required for your specific equipment.
Furthermore, the CPL dictates the specific QSKTAA19-C755 flywheel housing options necessary to connect seamlessly to your machinery's transmission. Failing to match these exact dimensions will severely complicate your QSKTAA19-C755 engine installation requirements. It can lead to expensive onsite structural modifications or destructive vibration issues. Long-term reliability depends heavily on strict adherence to factory Cummins QSKTAA19-C755 maintenance intervals and spare parts replacement schedules.
Operators must focus closely on the QSKTAA19-C755 PT fuel pump specification and ensure routine calibration. We advise flushing the QSKTAA19-C755 cooling system and inspecting the QSKTAA19-C755 lubrication system regularly. Maintaining proper fluid hygiene drastically extends the lifespan of the 6 cylinder diesel engine block. When conducting a QSKTAA19-C755 engine overhaul and maintenance procedure, exact measurements matter. The QSKTAA19-C755 bore and stroke measures exactly 159 x 159 mm. Utilizing only genuine OEM parts from a recognized supplier during a rebuild is the only way to guarantee original factory compression ratios are restored.
Common Misconceptions When Sourcing a Replacement
A frequent misconception in the industrial procurement sector is that any generic 19L engine will drop seamlessly into an existing chassis. Operators sometimes assume a QSKTAA19-C755 replacement engine compatibility check is unnecessary if the total displacement simply matches. In reality, the QSKTAA19-C755 engine dimensions and weight demand highly specific engine compartment clearances. The heavy-duty air-to-air cooling plumbing also requires unique chassis routing that older KTA models do not possess.
Another persistent myth detailed in our QSKTAA19-C755 troubleshooting guide relates to operational efficiency. Many mechanics mistakenly assume that a massive 755HP industrial diesel engine universally ruins site fuel economy. However, the exact QSKTAA19-C755 fuel consumption data proves otherwise. A properly calibrated engine operating comfortably under a moderate load will outlast and consume less fuel than a smaller, continuously overworked engine straining at maximum capacity.
Finally, buyers occasionally believe that cheaper aftermarket parts are sufficient for emergency field repairs. Only a dedicated genuine CCEC QSKTAA19-C755 engine supplier can provide the exacting metallurgical tolerances required for this platform. Non-genuine components often lead to catastrophic block failure under extreme mining conditions.
Exploring the Complete Cummins QSK19-C Series
When planning a fleet-wide mechanical overhaul or a single major unit repair, selecting the precise industrial engine model is essential for long-term operational success. HekoPower is fully committed to being your reliable QSKTAA19-C755 export engine supplier. Beyond this specific 755HP powerhouse, we maintain a comprehensive, readily available inventory designed to support highly diverse heavy-duty applications. We provide targeted power solutions that keep your global construction and mining operations running smoothly without interruption.
Cummins QSK-C Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes QSK19-C600, QSKTAA19-C700, QSKTAA19-C755.
Frequently Asked Questions (FAQ)
What is the difference between the QSKTAA19-C755 and the KTA19-C700?
The primary difference lies in the fuel system and power output. The QSKTAA19-C755 uses the modern Common Rail system and produces 755HP, whereas the KTA19-C700 uses the older PT pump system and typically produces around 700HP. The QSK is also generally more fuel-efficient and emissions-compliant.
Can this engine operate in high-altitude regions?
Yes, the QSKTAA19-C755 is designed to handle high altitudes. However, for operations above 2000 meters, we recommend consulting with HekoPower for specific deration curves to ensure optimal performance.
Do you supply the radiator and control panel?
Yes, HekoPower can supply the complete power package, including the radiator, exhaust system, and control panels, tailored to your specific application requirements.
How can I accurately identify a genuine Cummins QSKTAA19-C755 engine?
To verify absolute authenticity, inspect the metal dataplate securely riveted to the engine block or the rocker cover. This plate prominently displays the core QSKTAA19-C755 engine specifications, the unique serial number, and the vital CPL number. When sourcing directly through HekoPower, we provide full factory documentation to guarantee your original Cummins QSKTAA19-C755 engine for sale is completely authentic.
What determines the OEM Cummins QSKTAA19-C755 price and global shipping timeline?
The final Cummins QSKTAA19-C755 engine price fluctuates based on your chosen CPL configuration and specific accessory drives required for your chassis. As a direct Cummins QSKTAA19-C755 supplier in China, HekoPower manages secure export crating and competitive sea freight logistics globally. You can contact our engineering sales team directly for precise QSKTAA19-C755 engine price and lead time details.
Why is the QSKTAA19-C755 torque at 1800 rpm so critical for heavy equipment?
Producing an immense 2730Nm torque at a relatively low 1800 rpm means the engine does not have to over-rev to move massive, dead-weight loads. This low-end torque characteristic is absolutely crucial for a QSKTAA19-C755 replacement for excavator applications. It prevents the machinery from bogging down or stalling completely when the bucket hits sudden, dense subterranean resistance.
